Impact Sensor
>>
Side Impact Sensor, First Row Driver Side
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

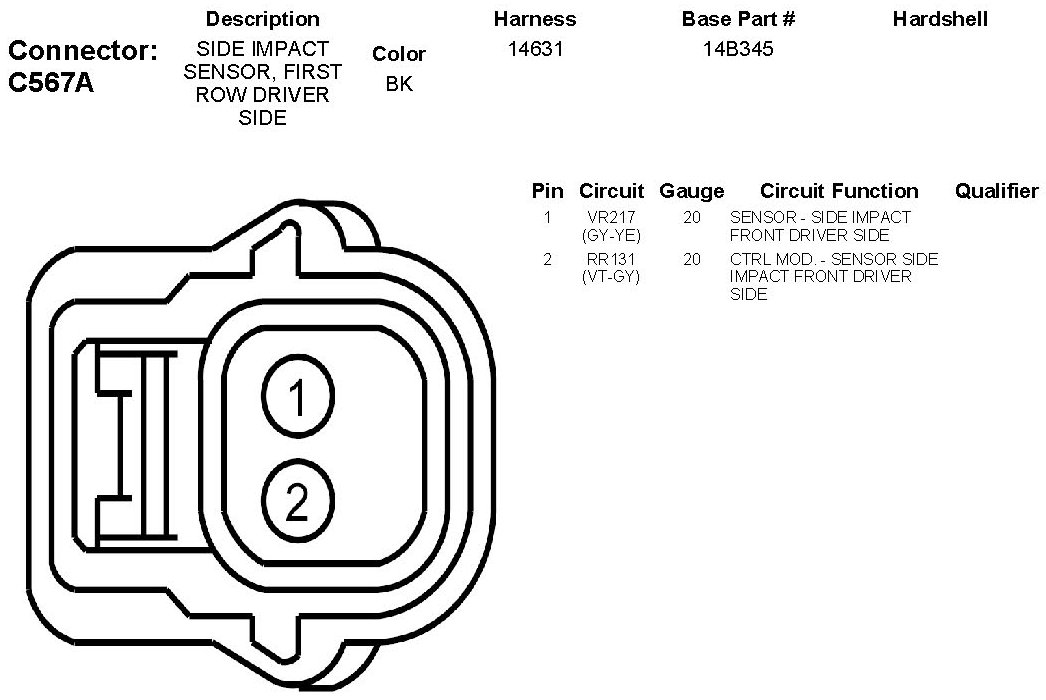

Side Impact Sensor, First Row Driver Side
