Disassembled Views
Transmission
Disassembled Views

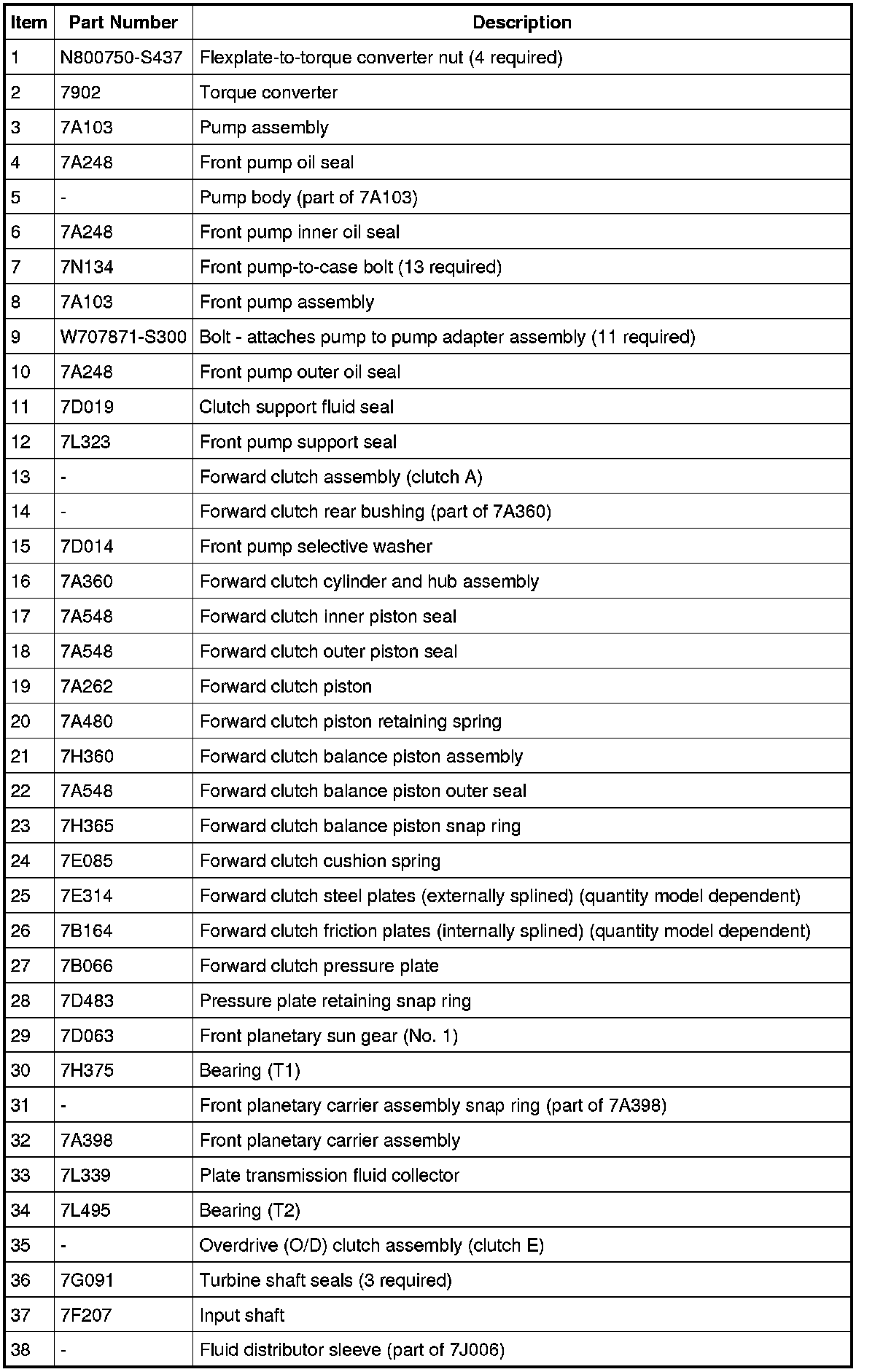

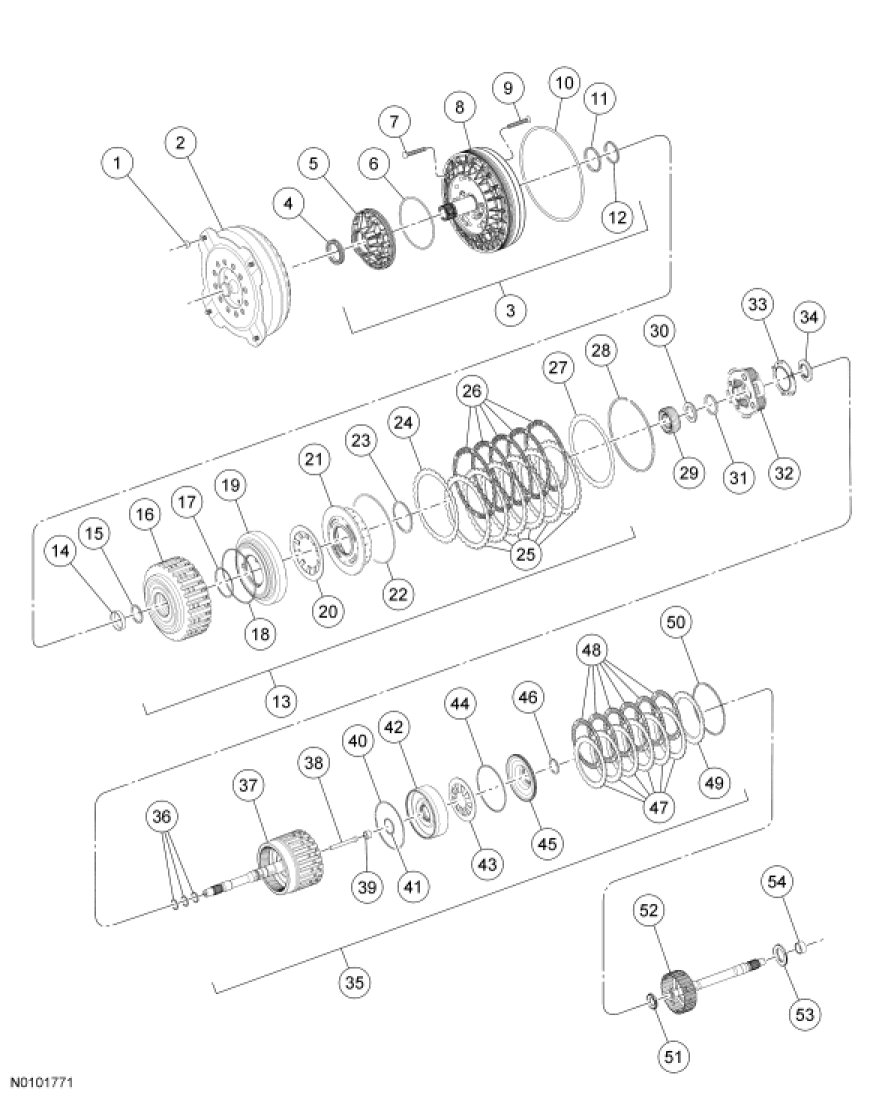

Transmission Disassembled View (Part 1):

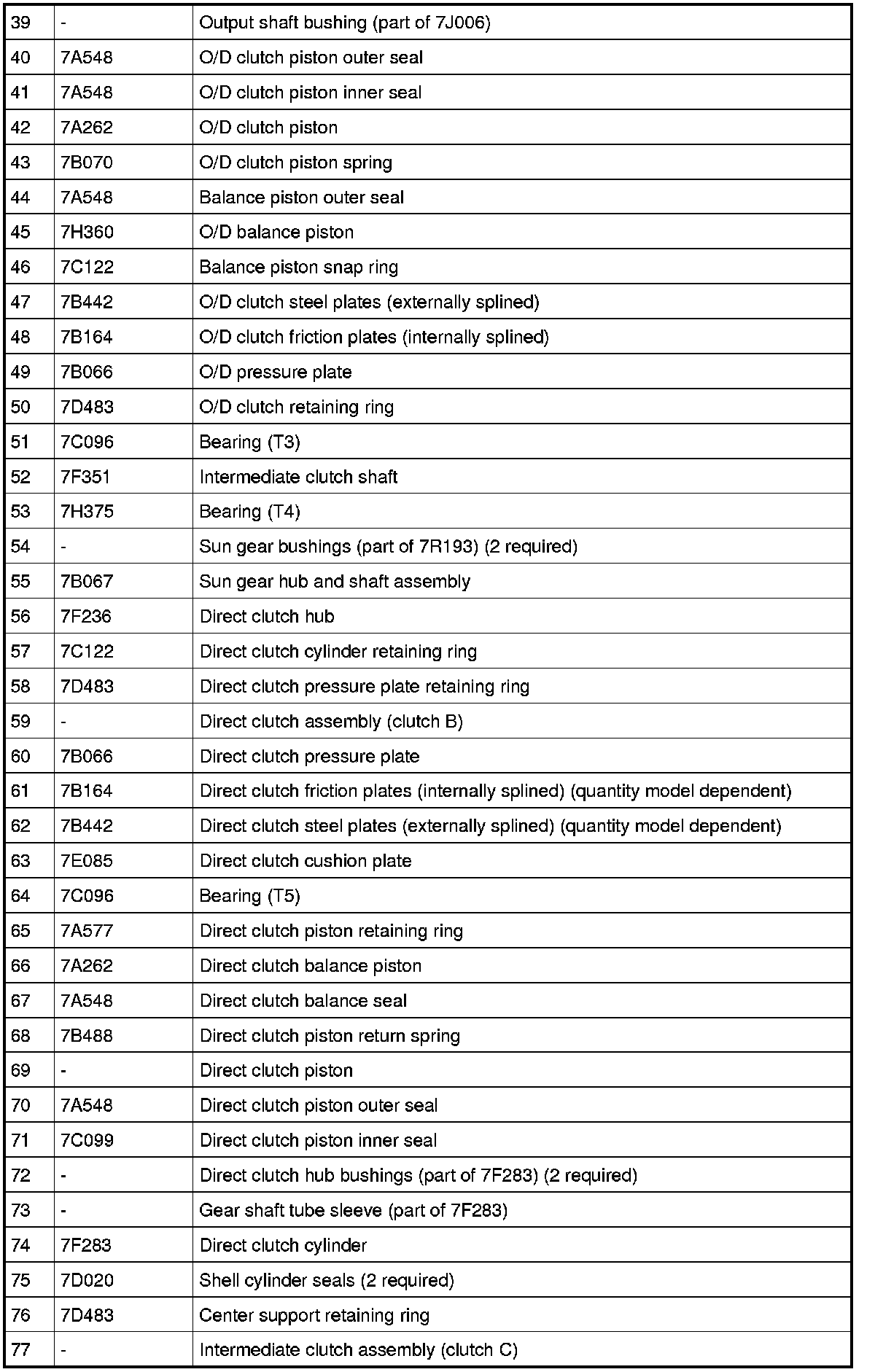

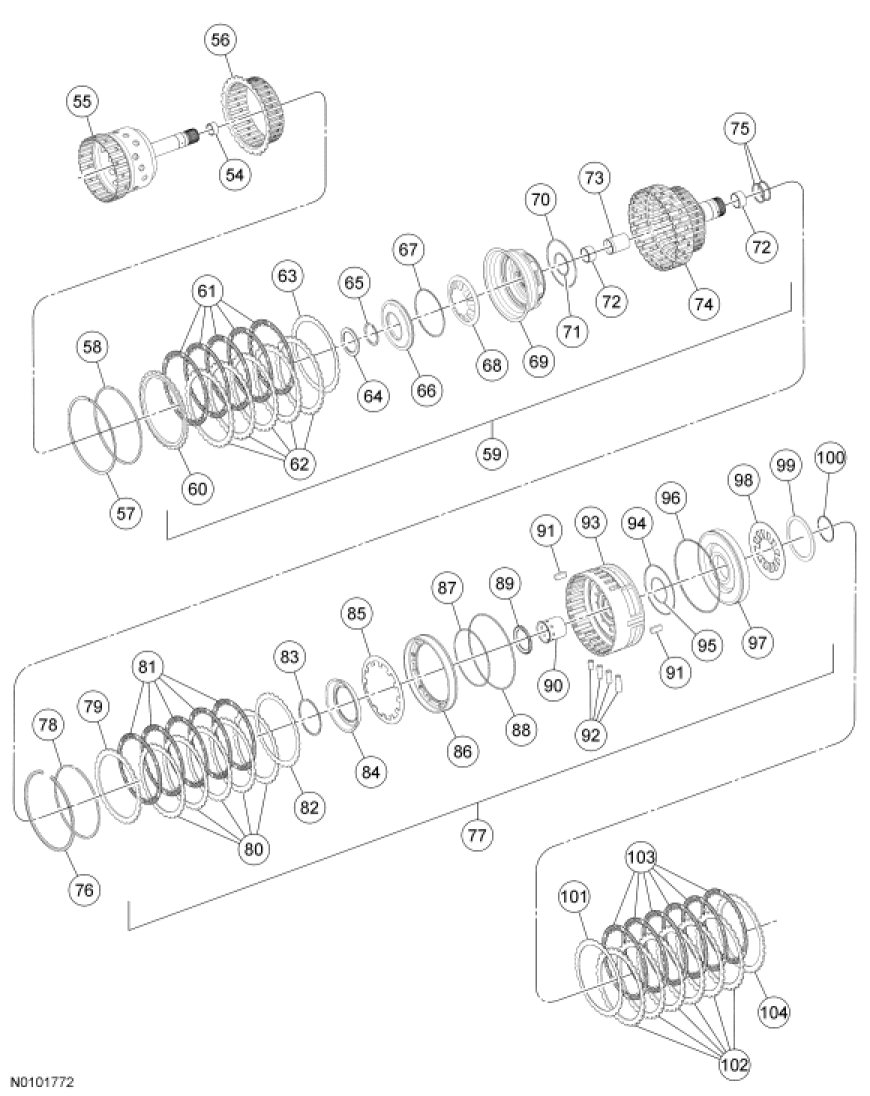

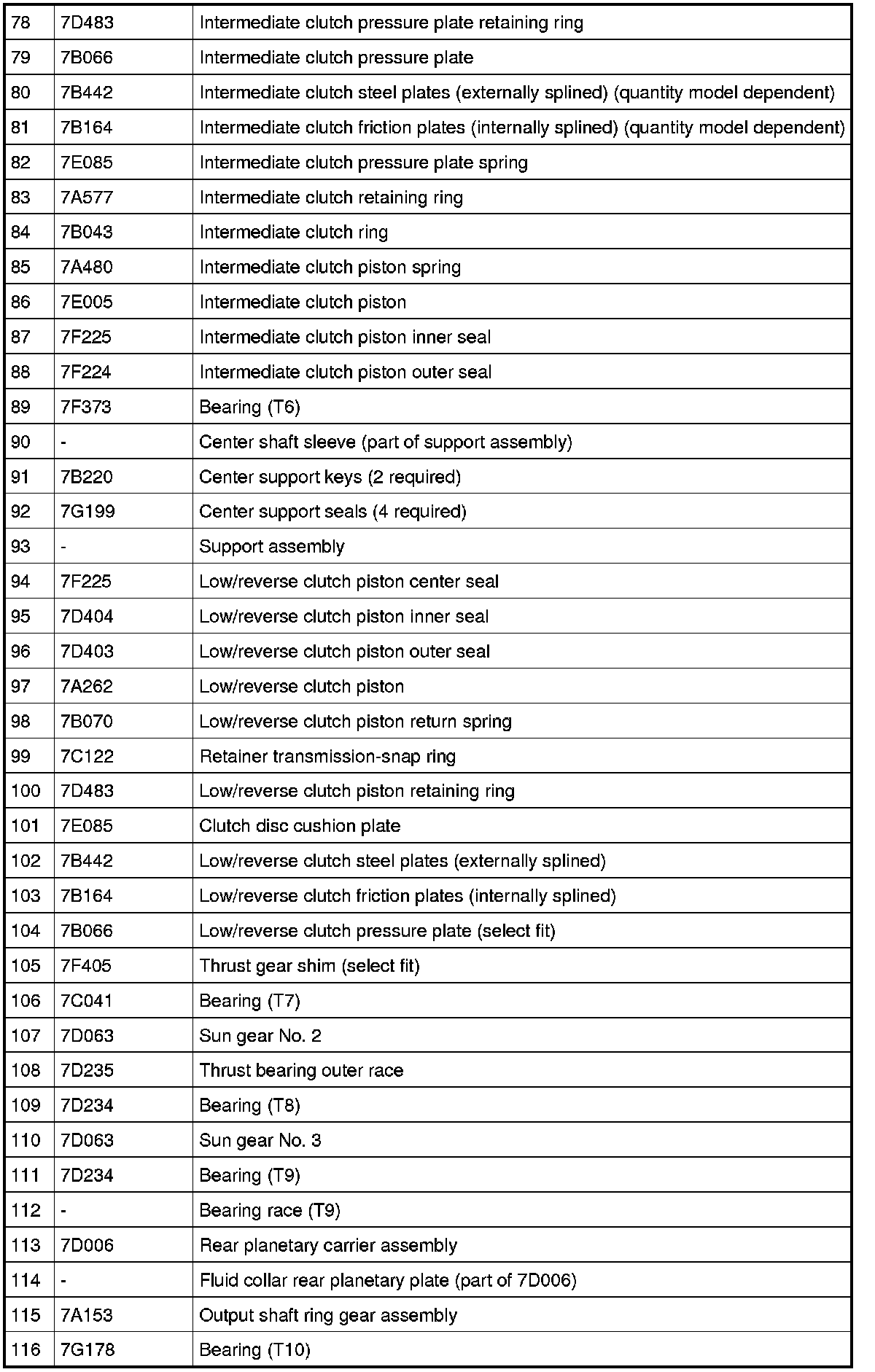

Transmission Disassembled View (Part 2):

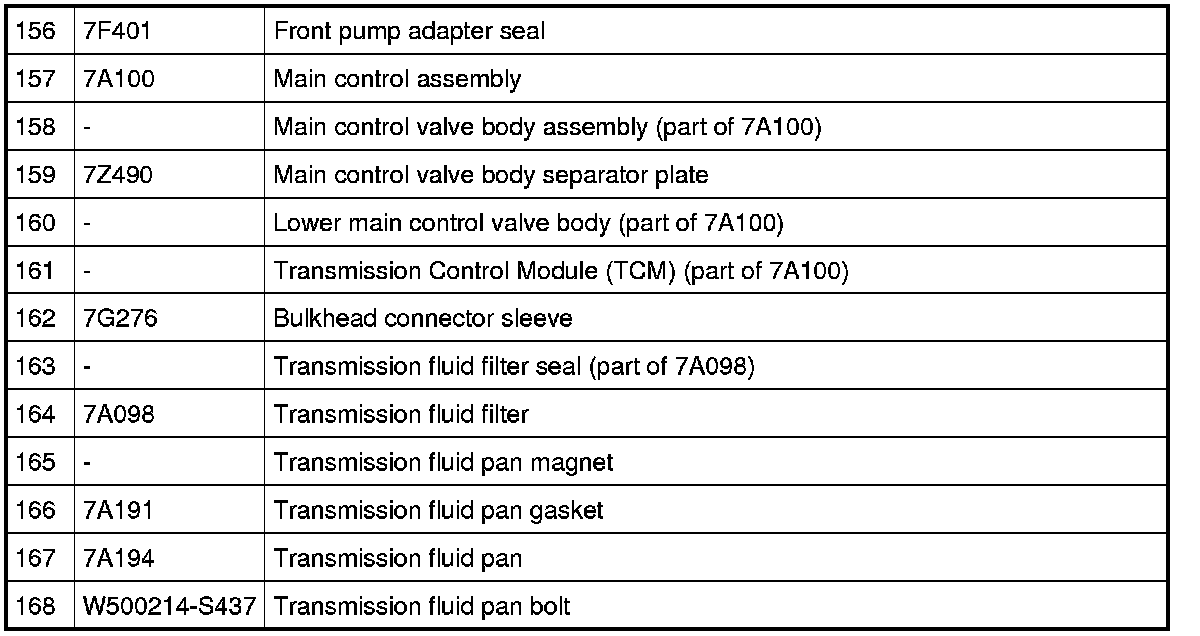

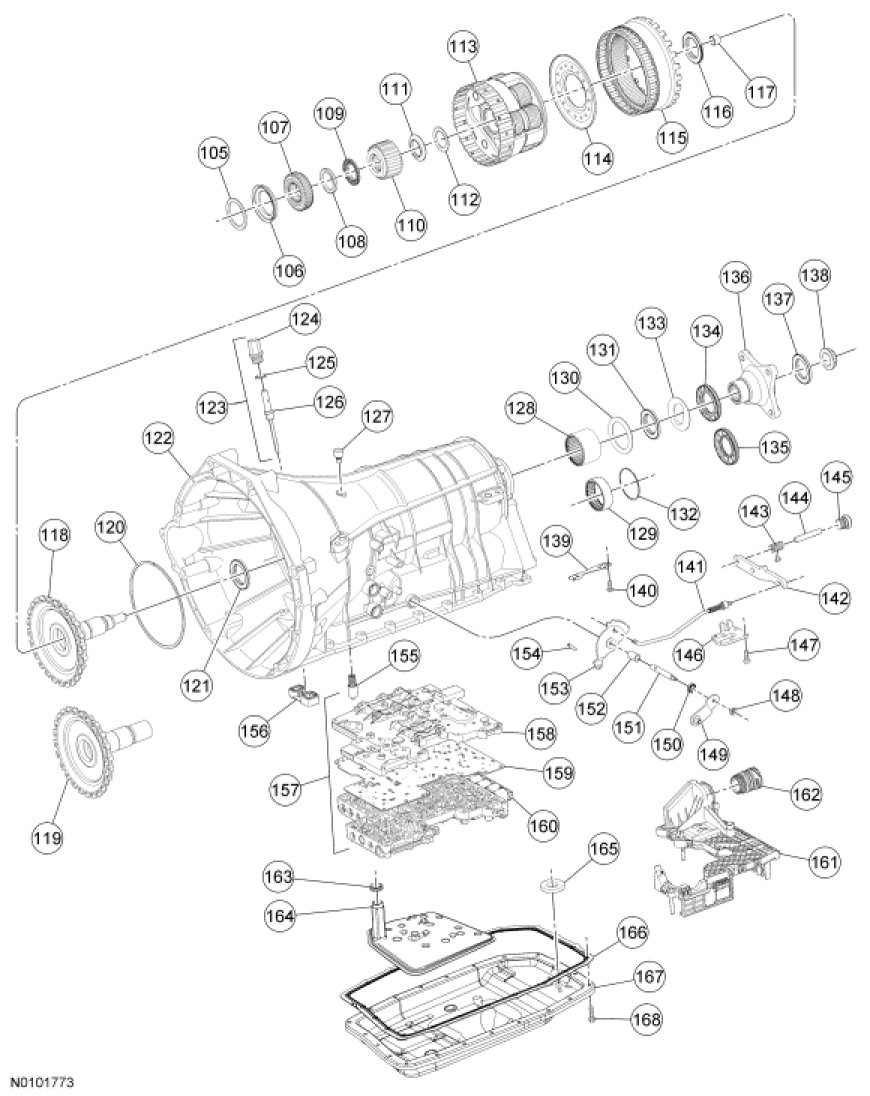

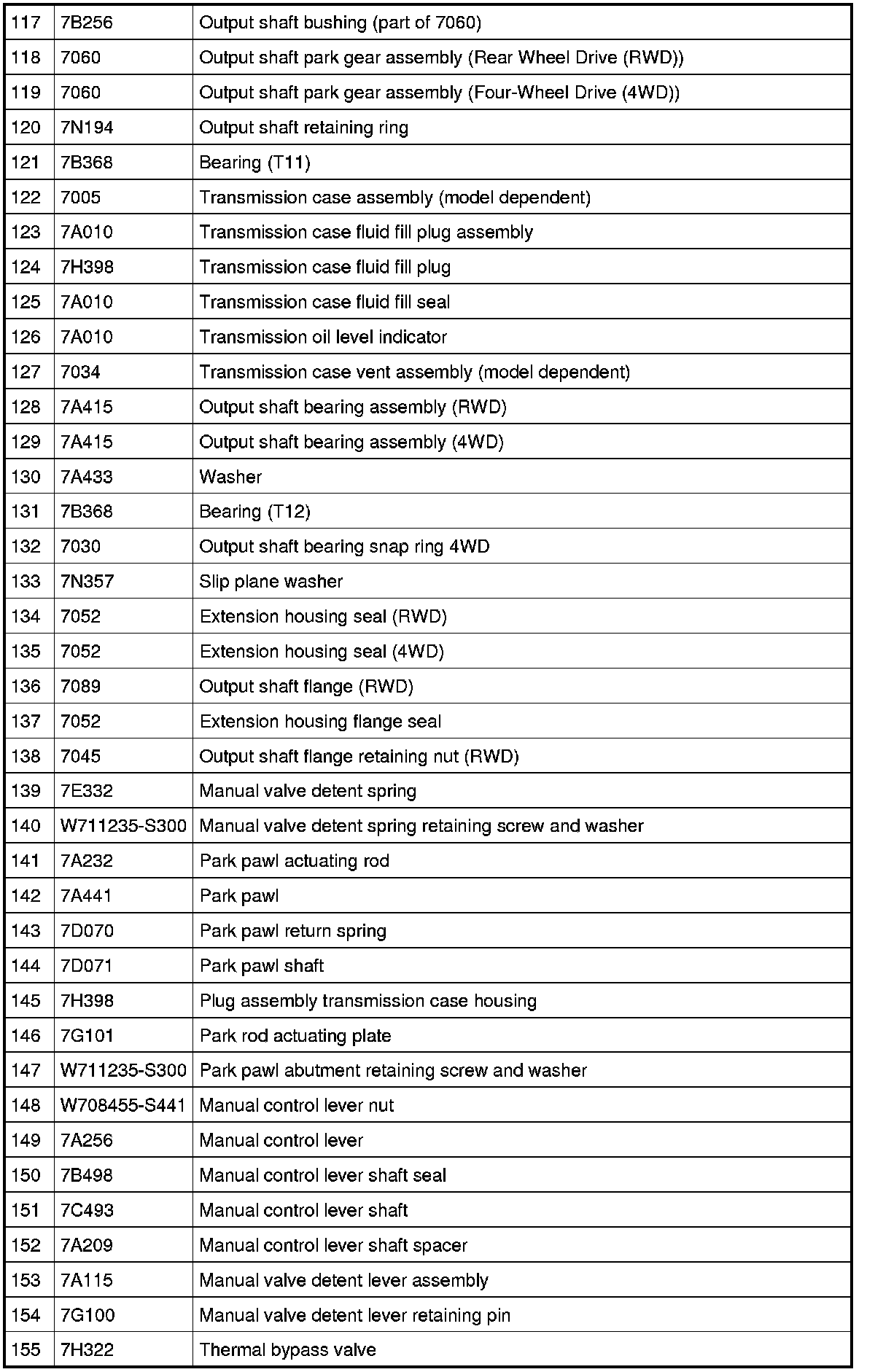

Transmission Disassembled View (Part 3):
