Heating Ventilation Air Conditioning (HVAC) Module

Heating Ventilation Air Conditioning (HVAC) Module









Removal and Installation

NOTE: If installing a new HVAC module, the new module must be configured for the vehicle. For additional information, refer to Information Bus.

1. Remove the center instrument panel finish panel. For additional information, refer to Service and Repair

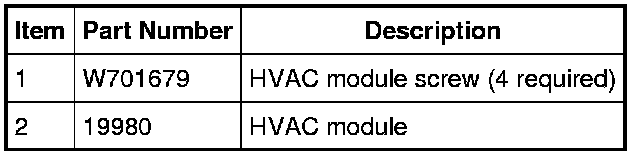

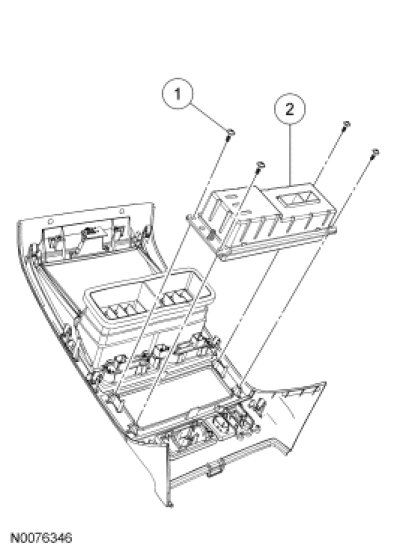

2. Remove the 4 HVAC module screws.

3. Remove the HVAC module.

4. To install, reverse the removal procedure.
