PCM DTC Chart

Climate Control System

DTC Charts

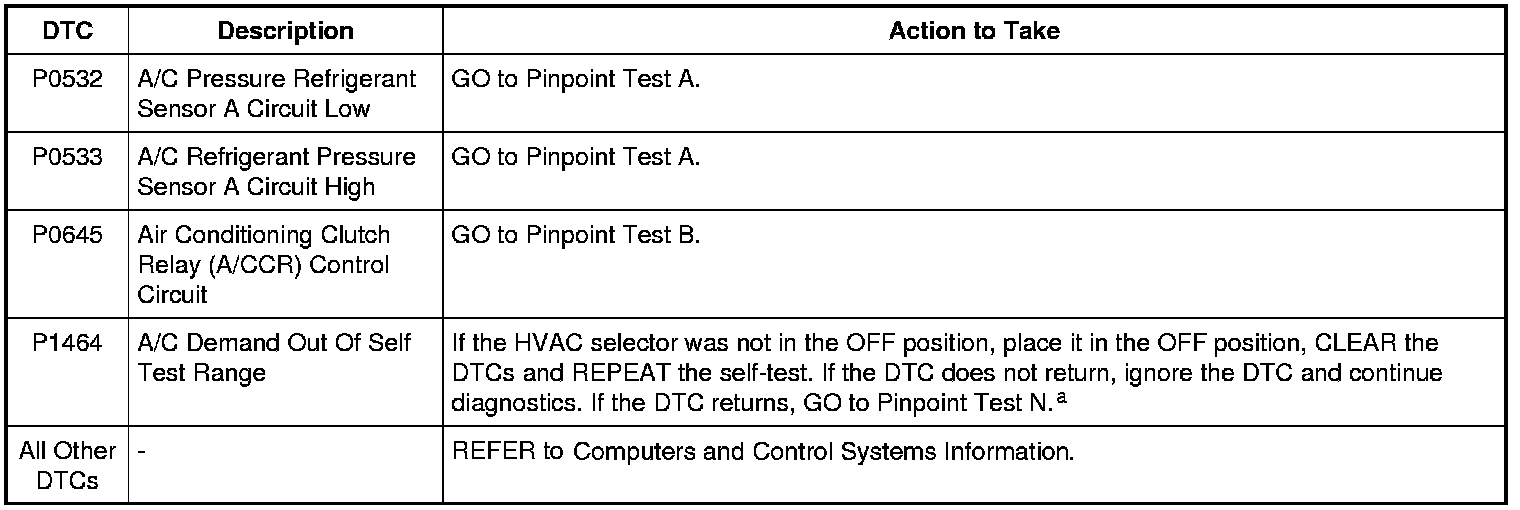

PCM DTC Chart





a PCM DTC P1464 will set if the function selector is in PANEL with A/C button pressed, DEFROST or MAX A/C mode when the on-demand self test is being run.
