Test DI: Direct Fuel Injection Fuel Injector

PINPOINT TEST DI: DIRECT FUEL INJECTION FUEL INJECTOR

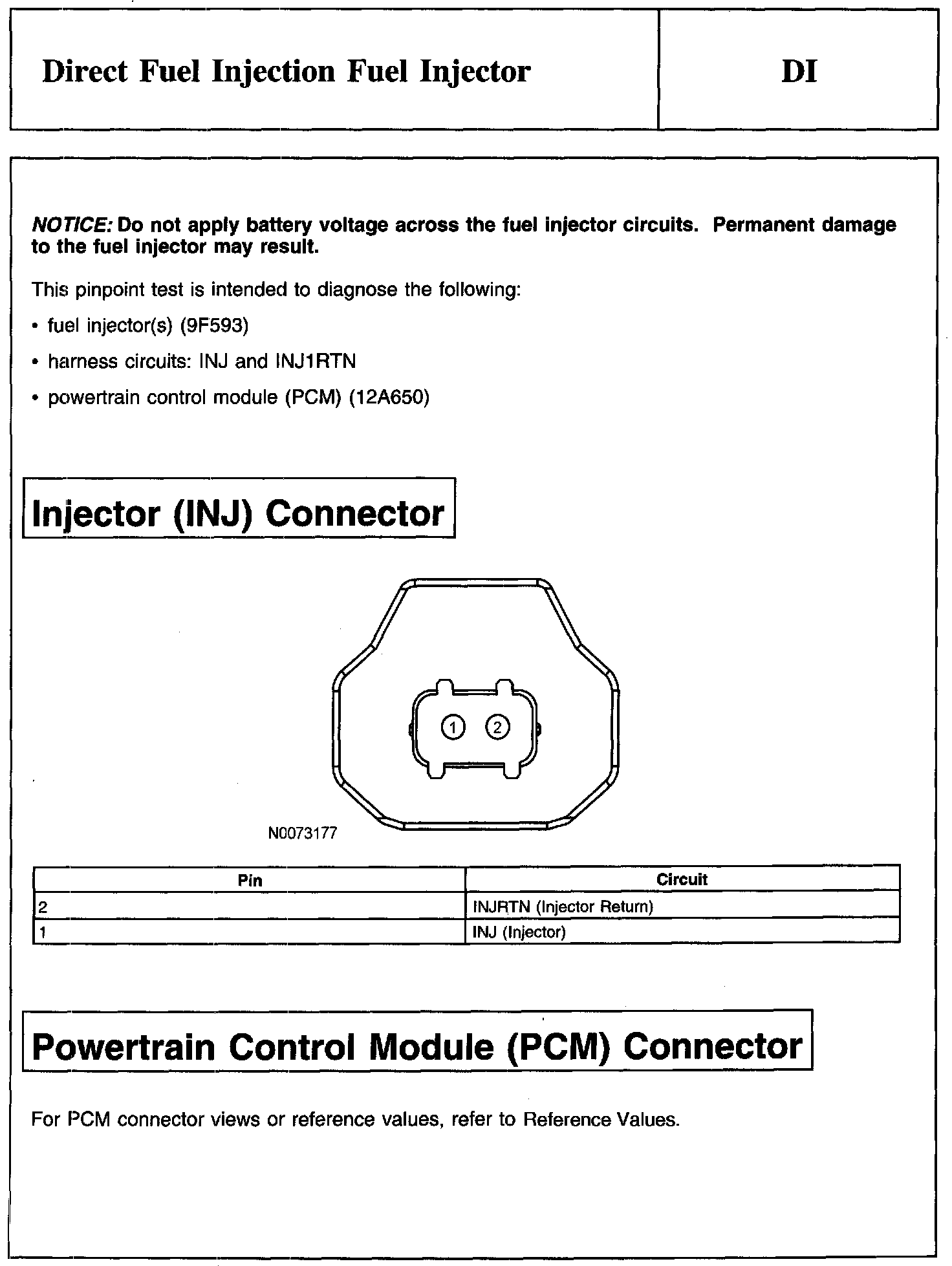

Notice, Injector (INJ) Connector And Powertrain Control Module (PCM) Connector:

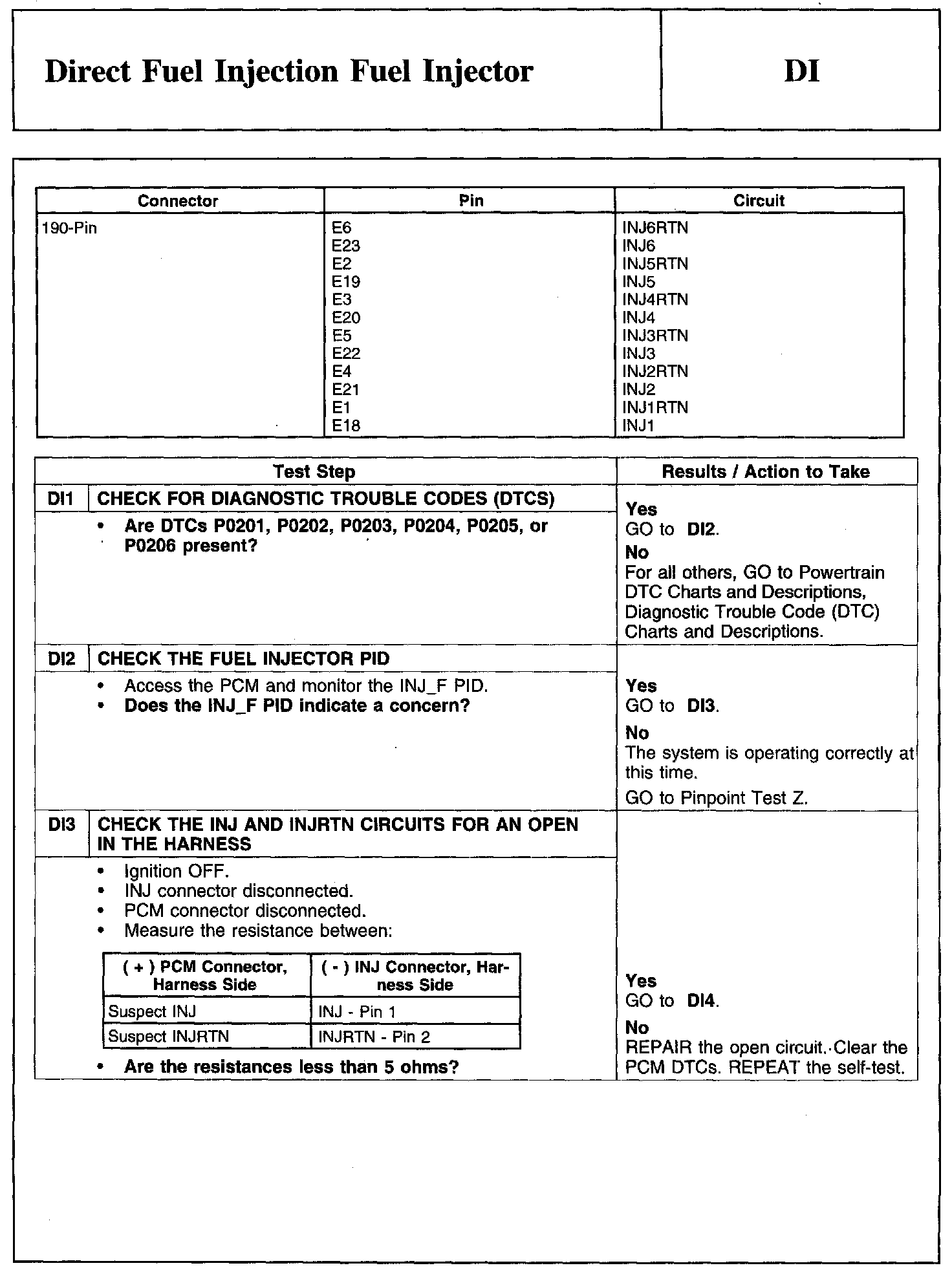

DI1-DI3:

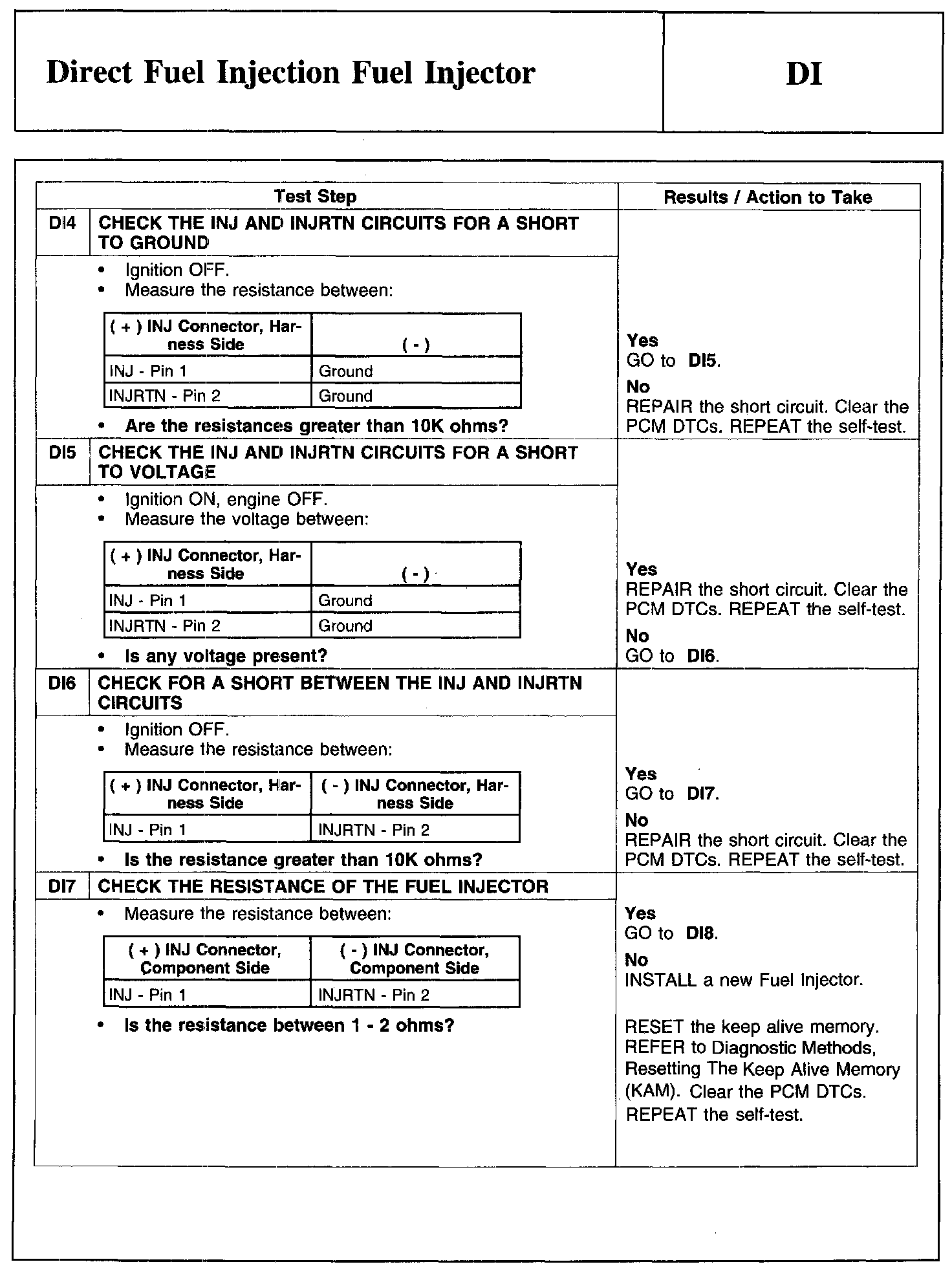

DI4-DI7:

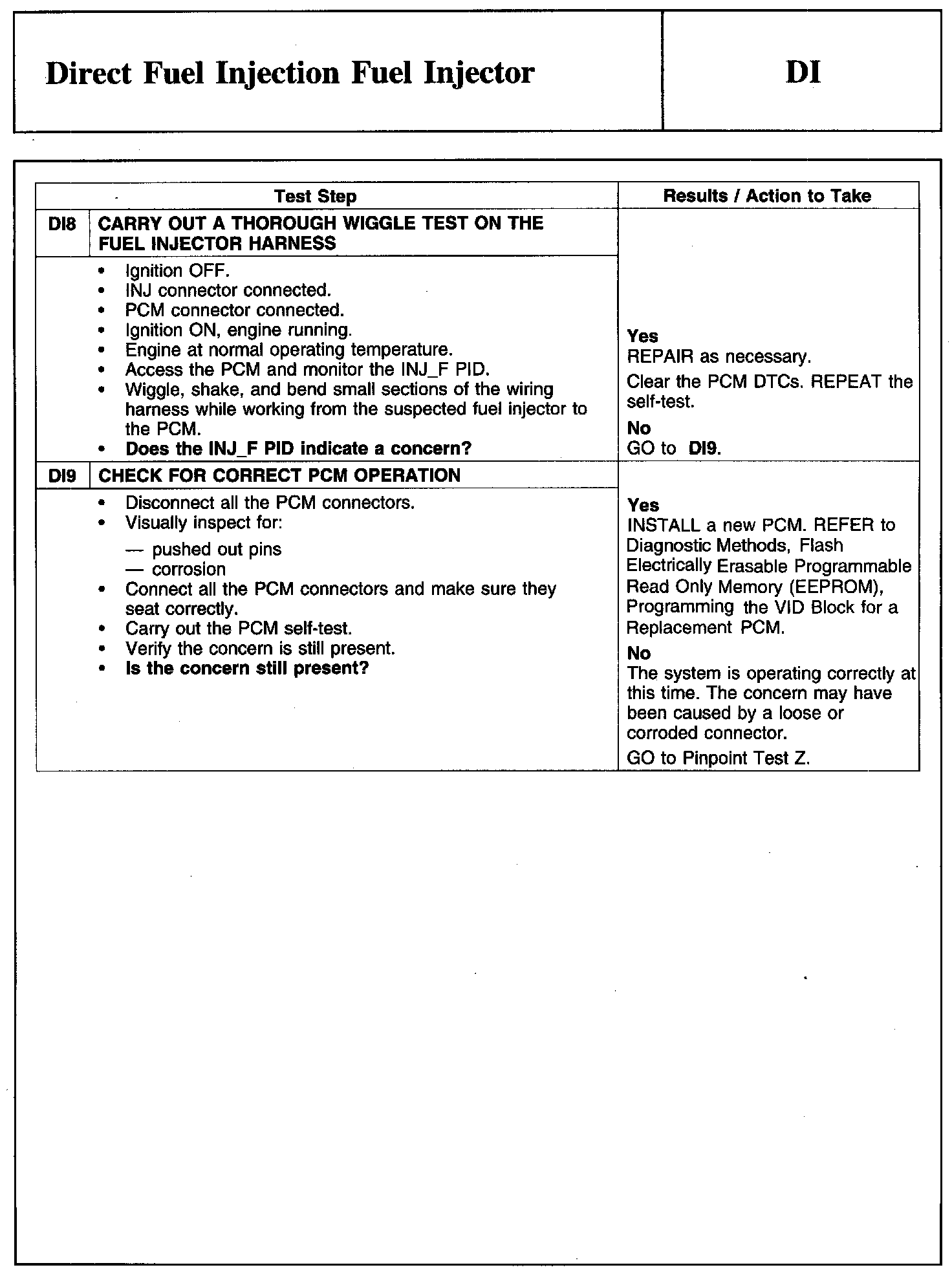

DI8-DI9:
