Test HU: Intake Air Systems

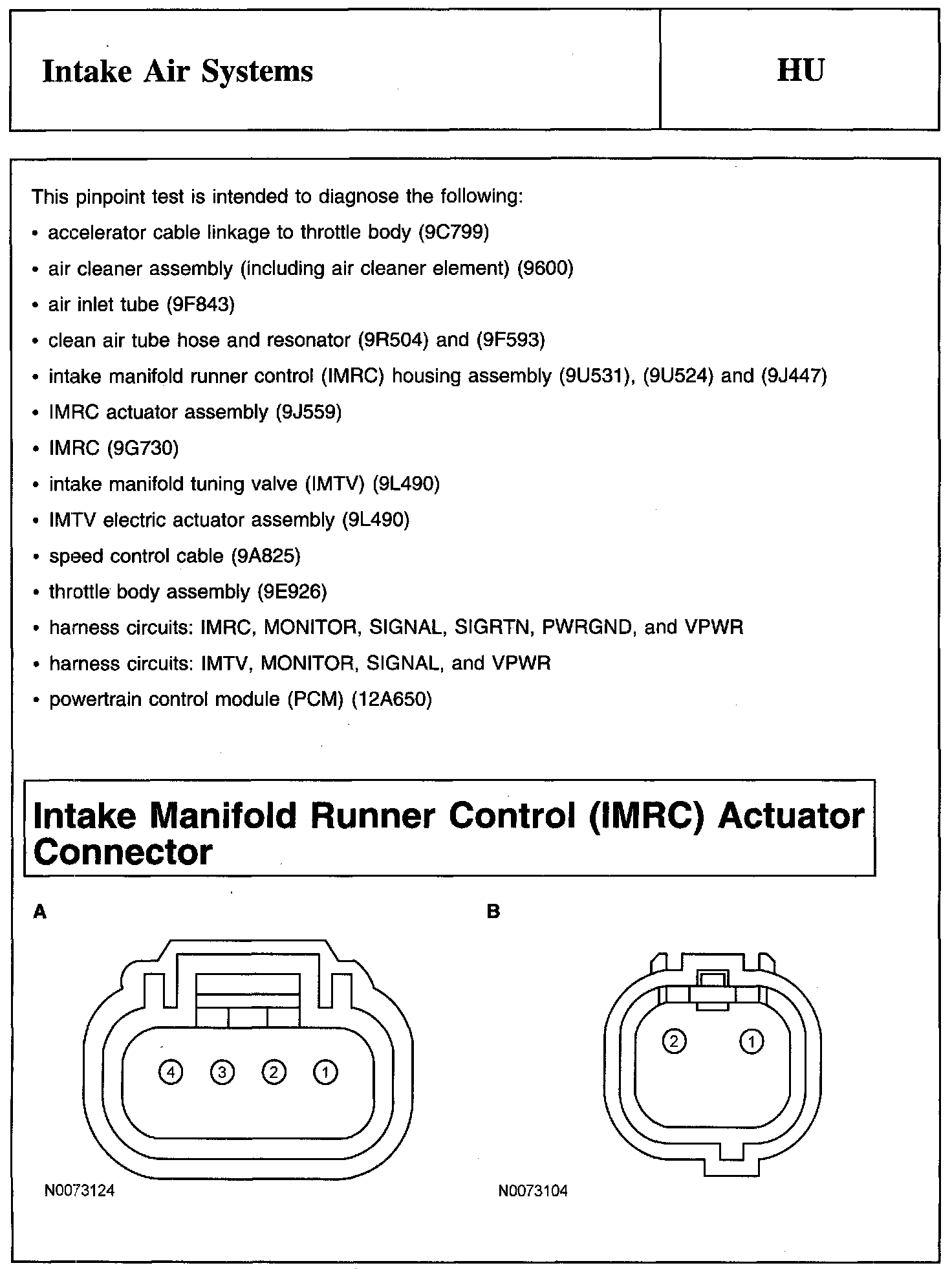

Intake Manifold Runner Control (IMRC) Actuator Connector:

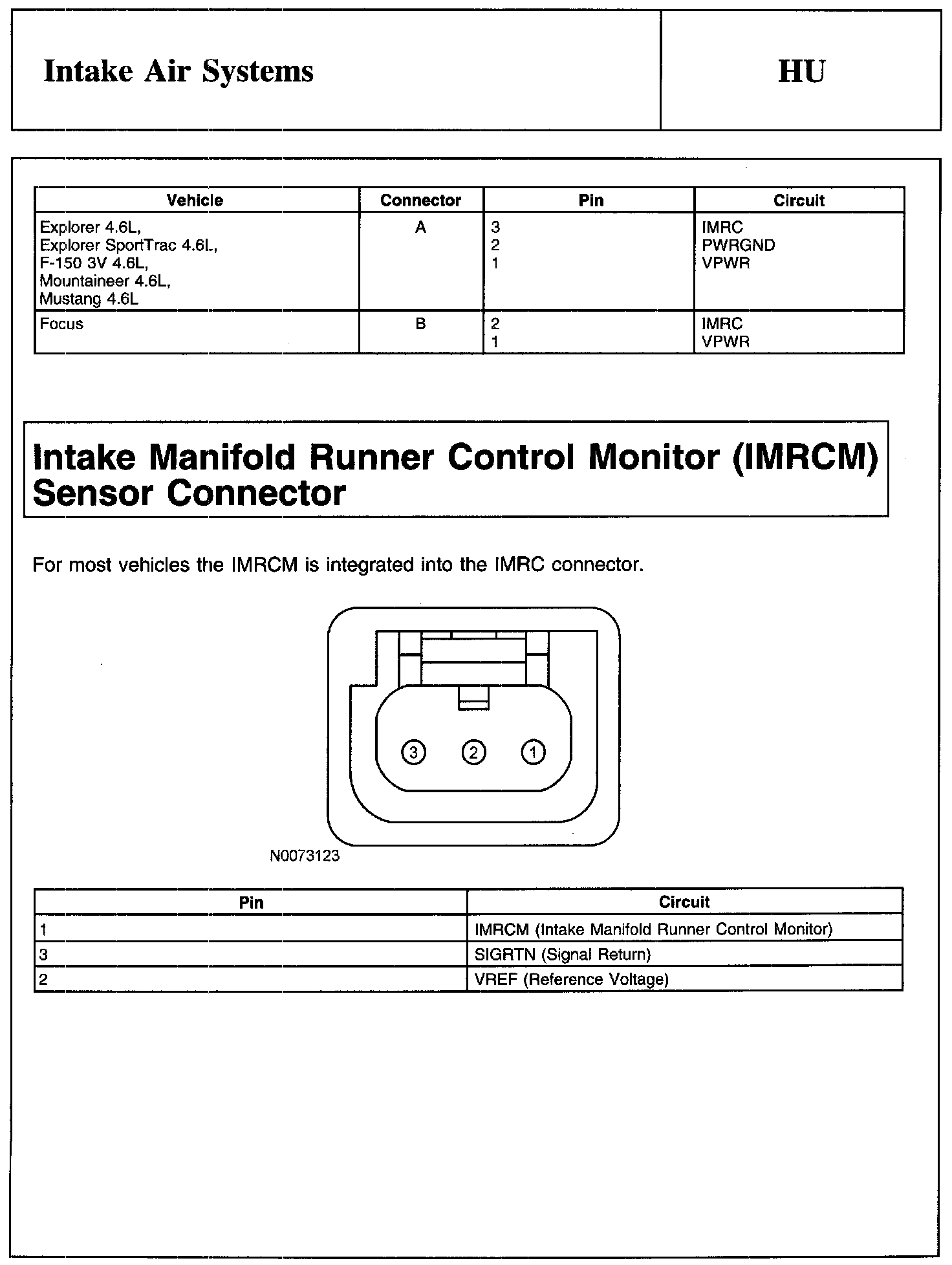

Intake Manifold Runner Control (IMRC) Actuator Connector And Intake Manifold Runner Control Monitor (IMRCM) Sensor Connector:

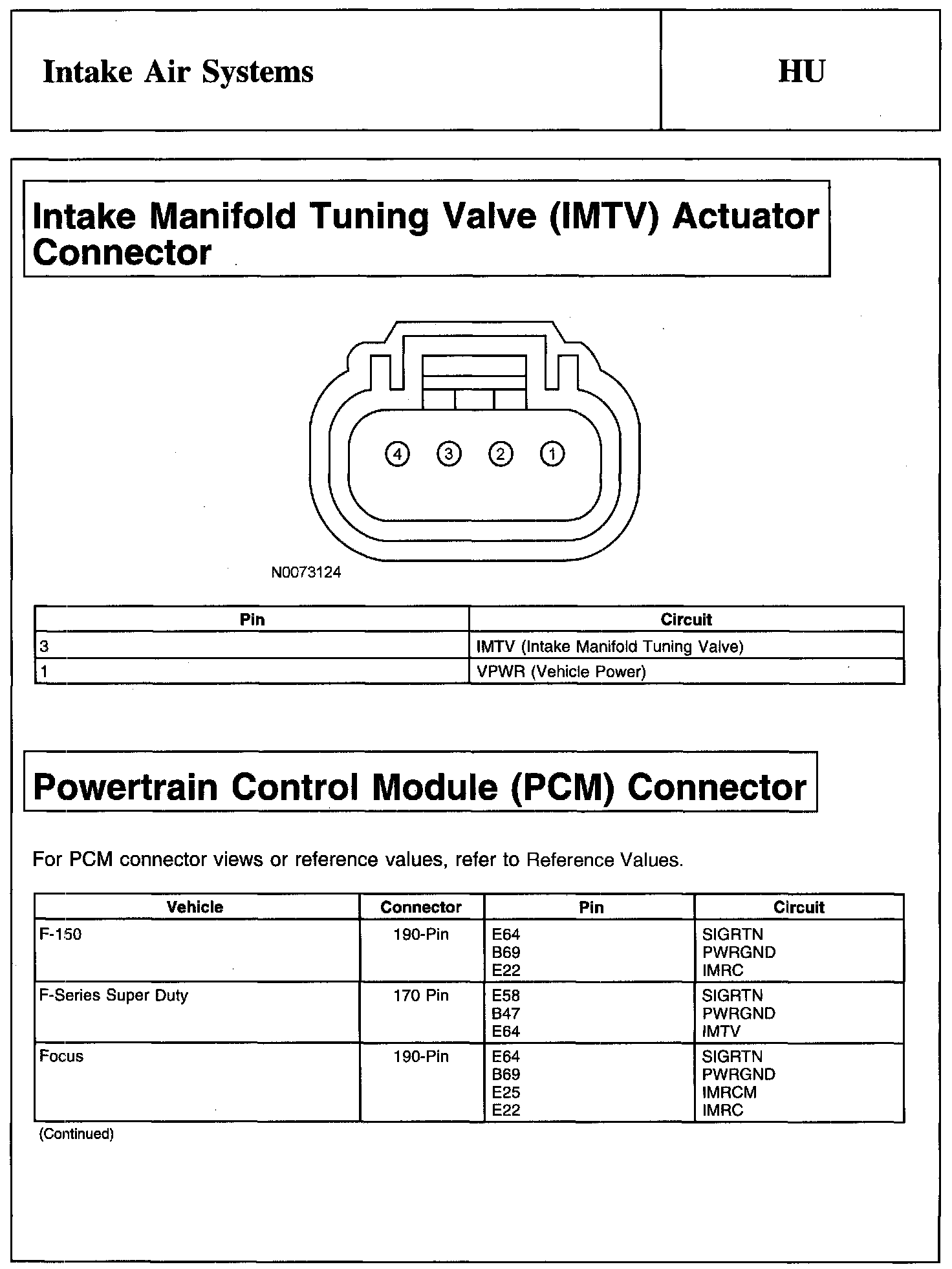

Intake Manifold Tuning Valve (IMTV) Actuator Connector And Powertrain Control Module (PCM) Connector:

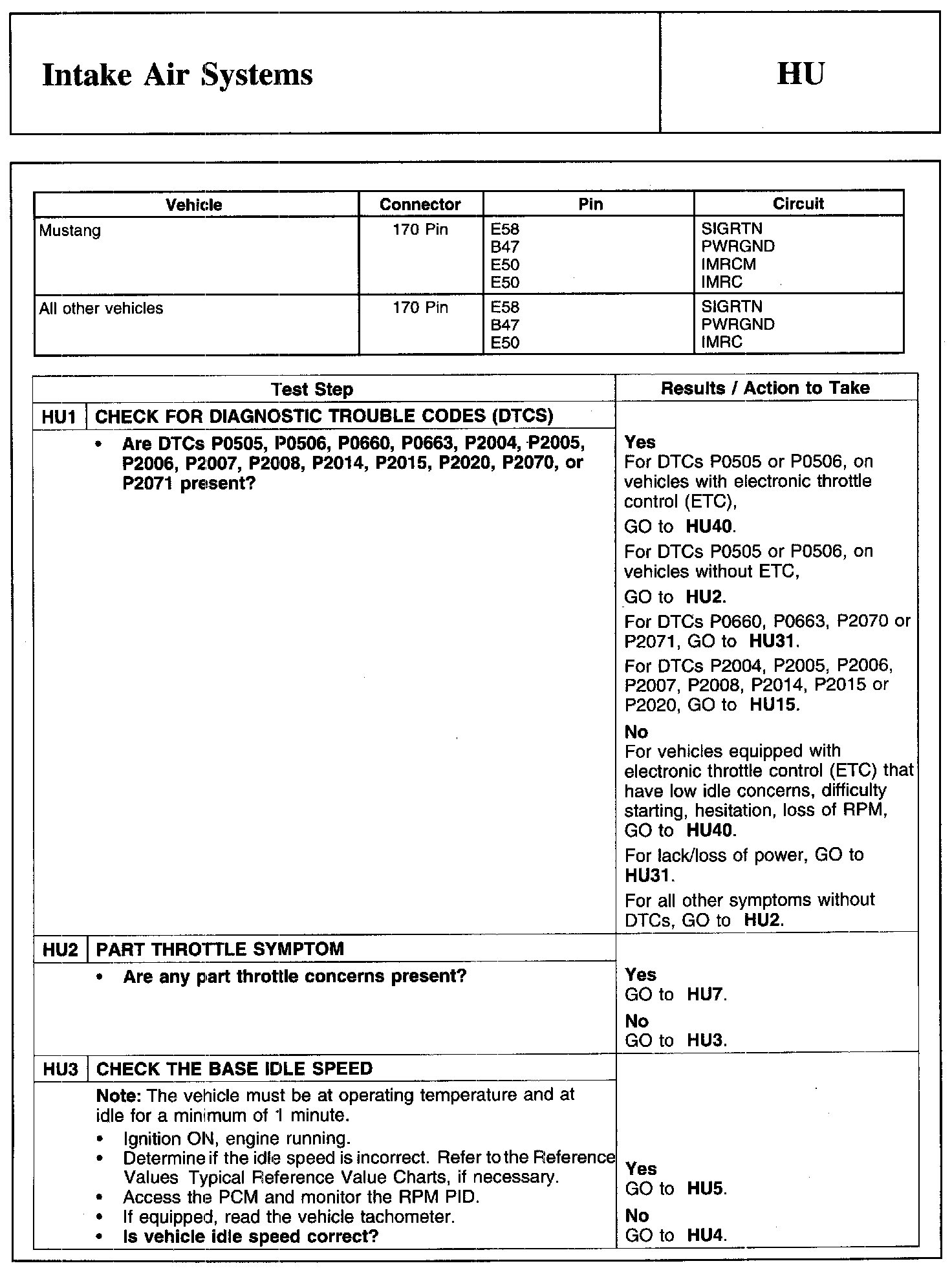

HU1-HU3:

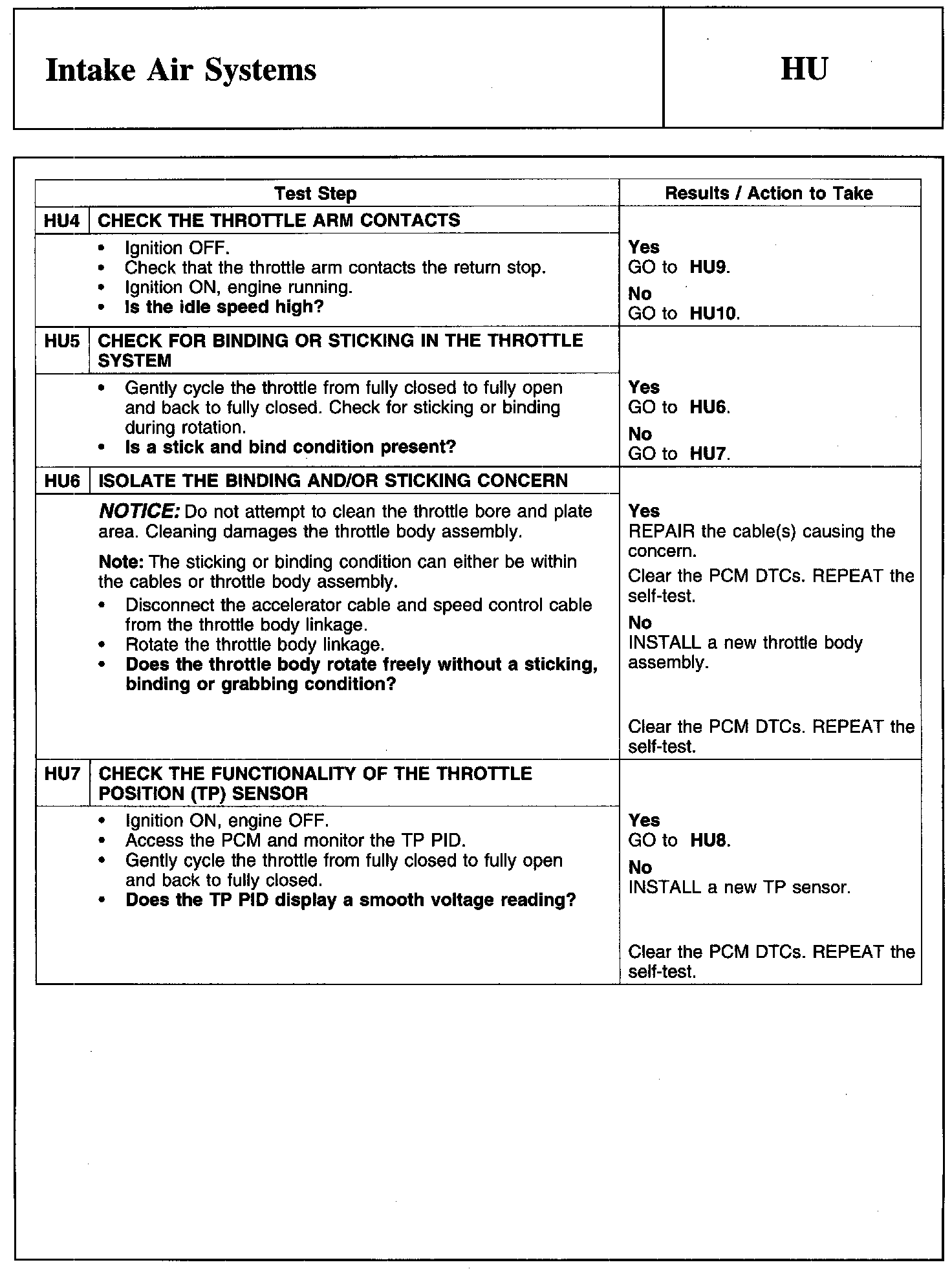

HU4-HU7:

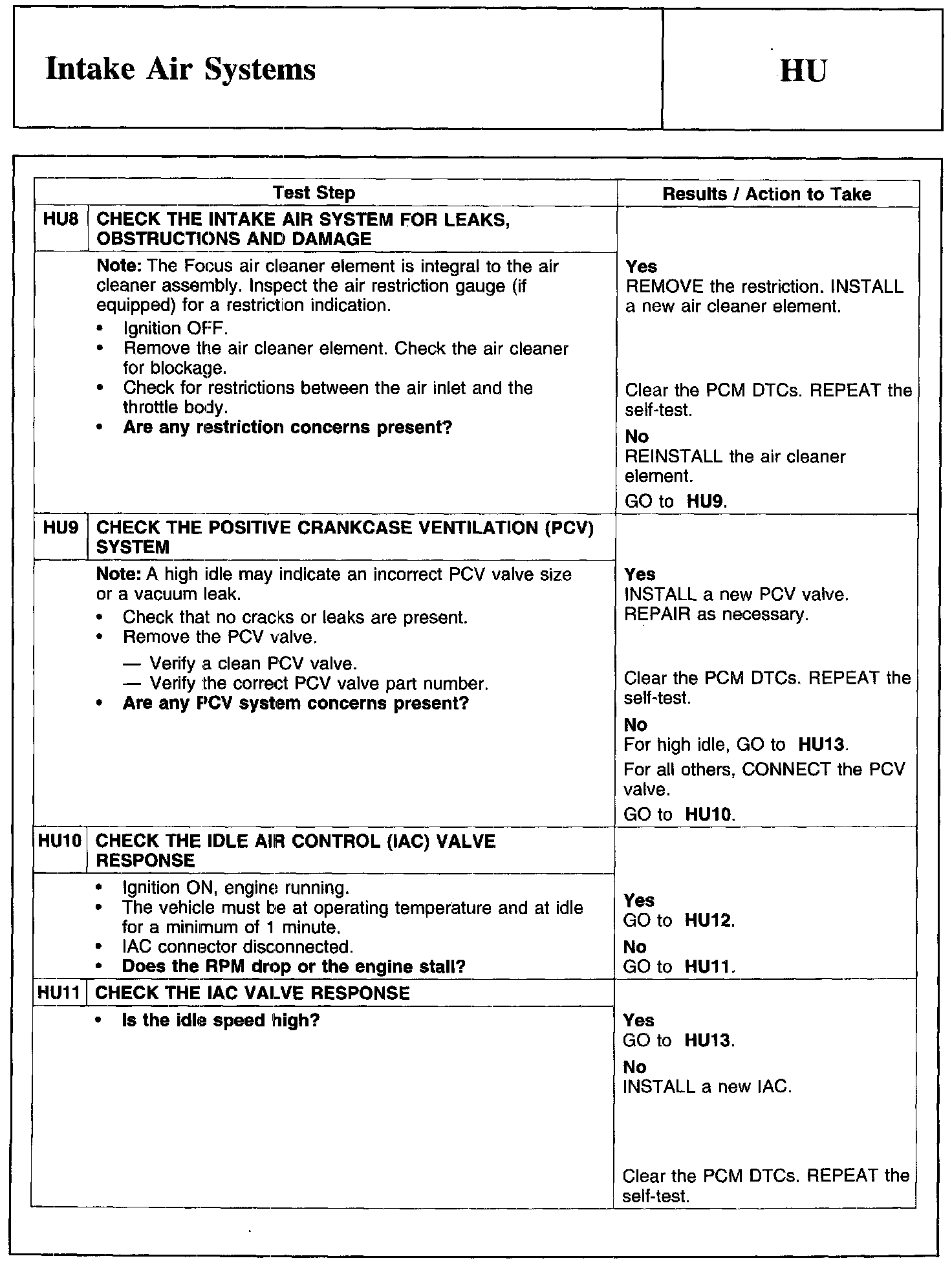

HU8-HU11:

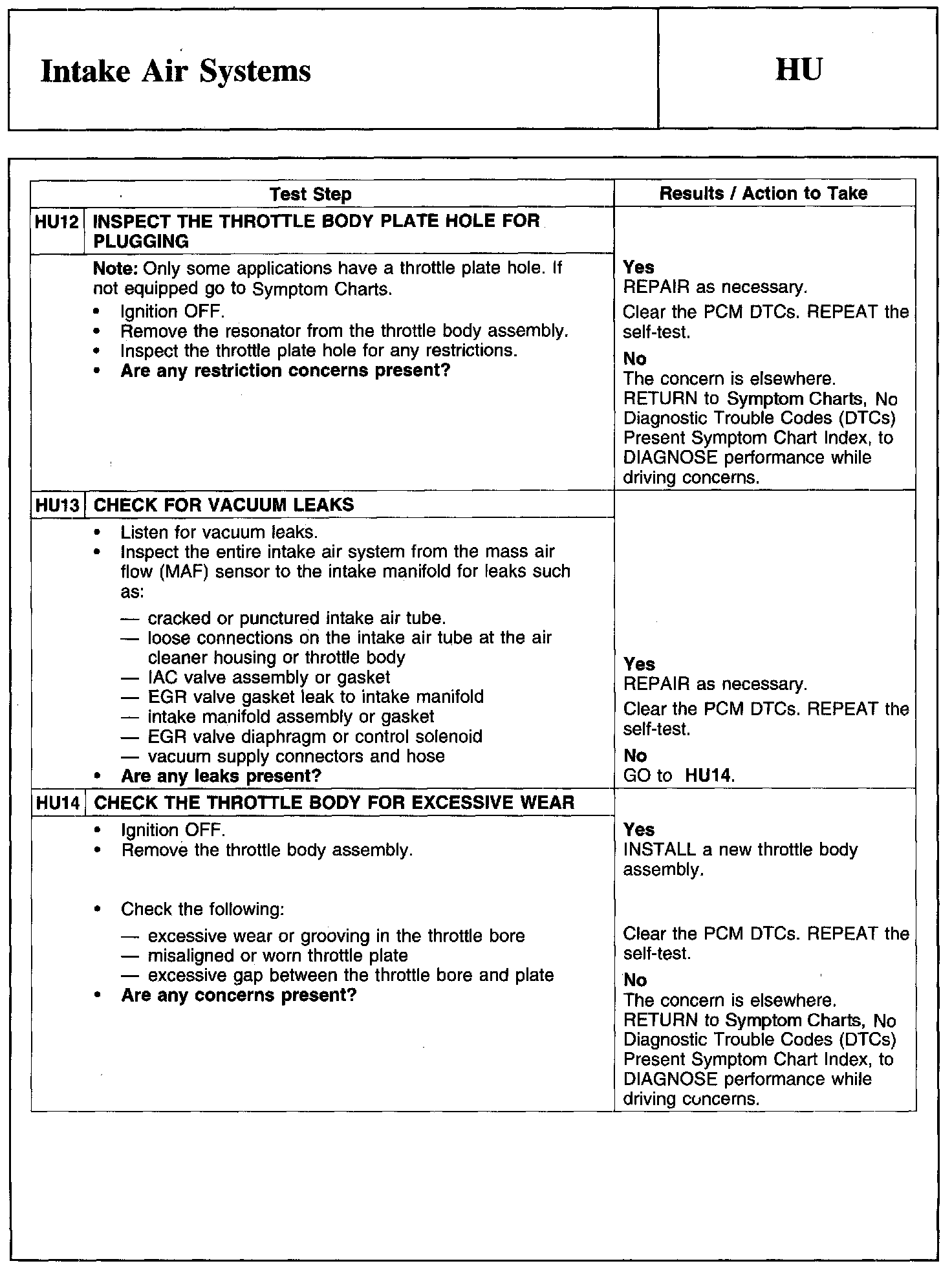

HU12-HU14:

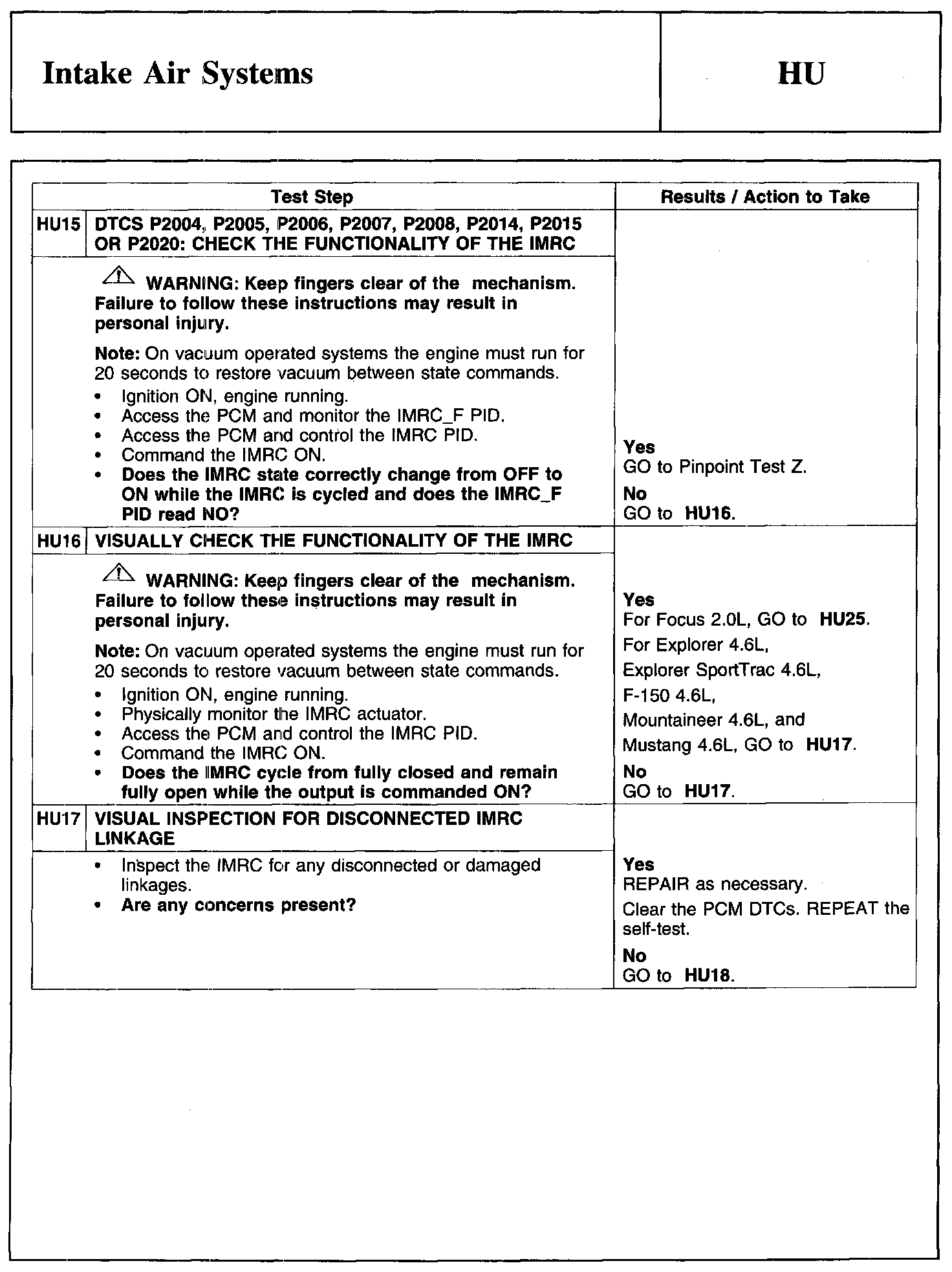

HU15-HU17:

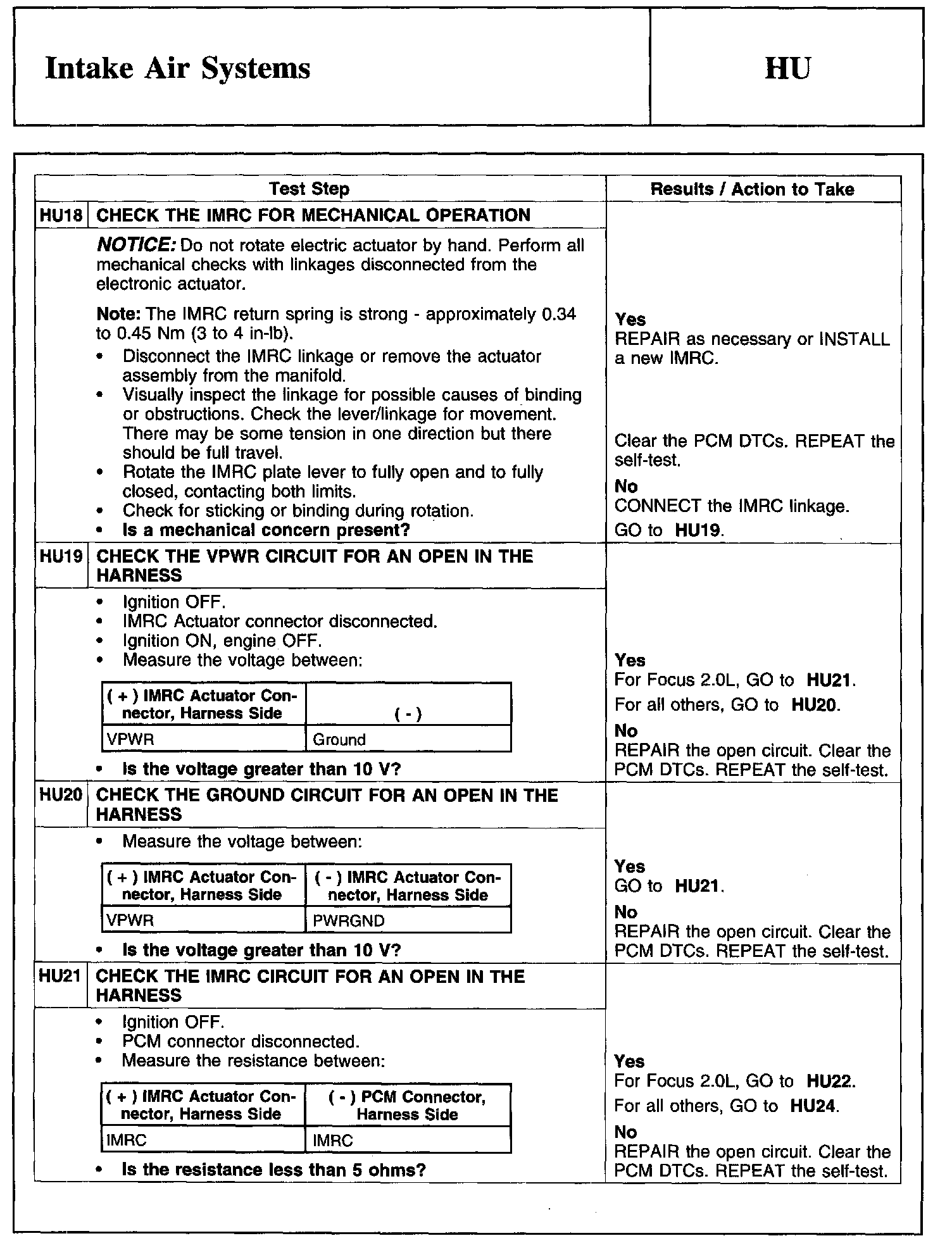

HU18-HU21:

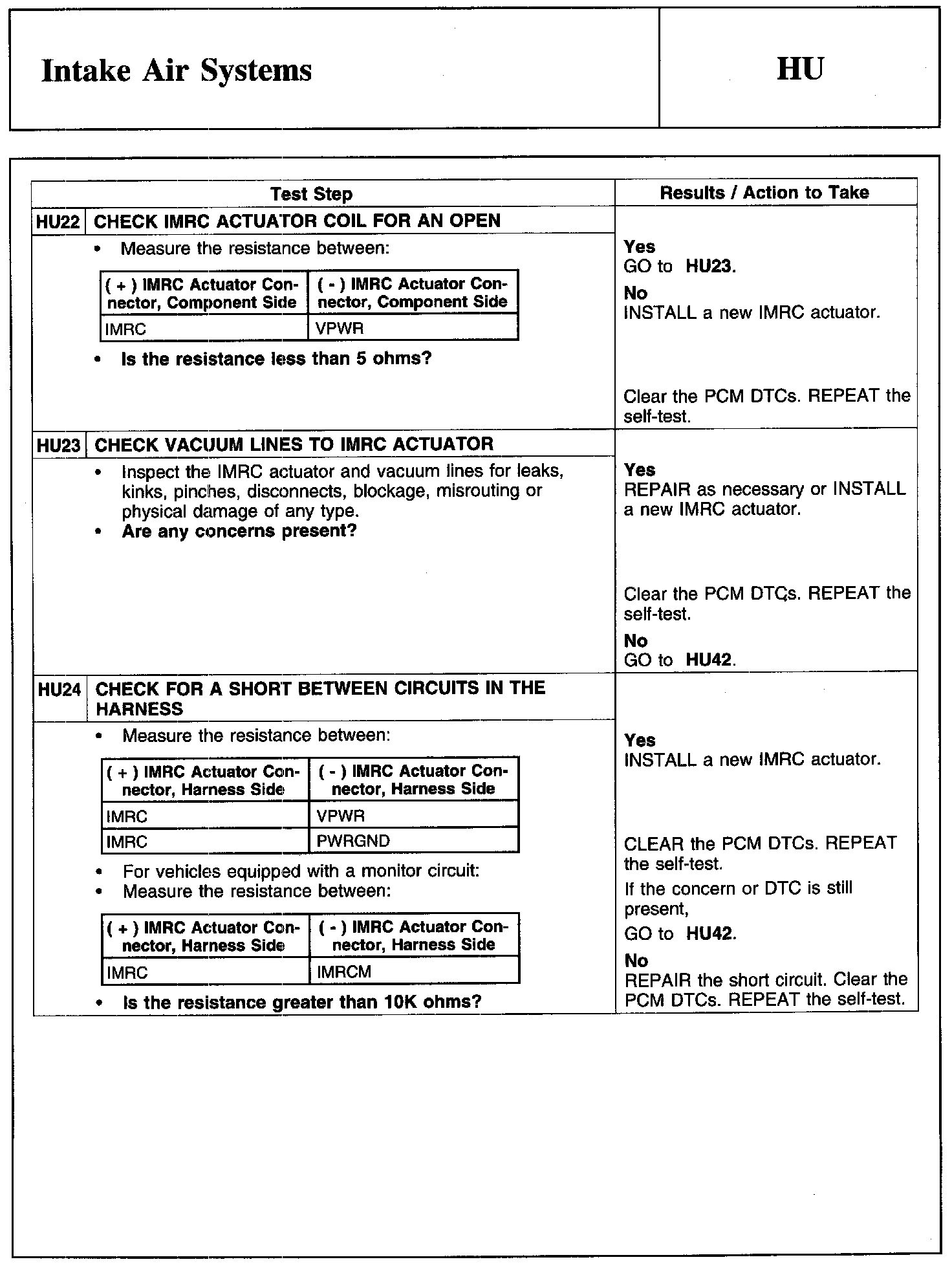

HU22-HU24:

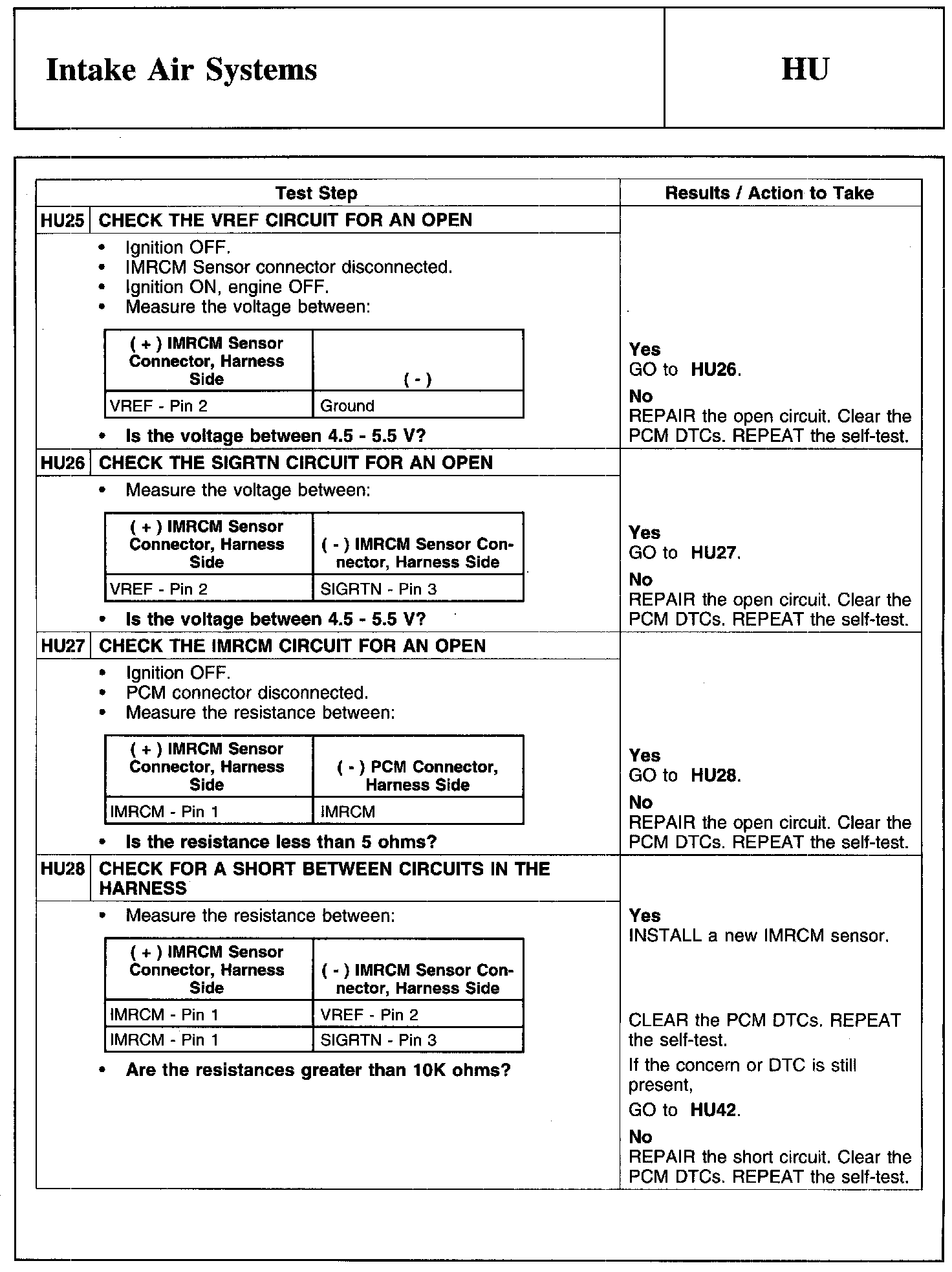

HU25-HU28:

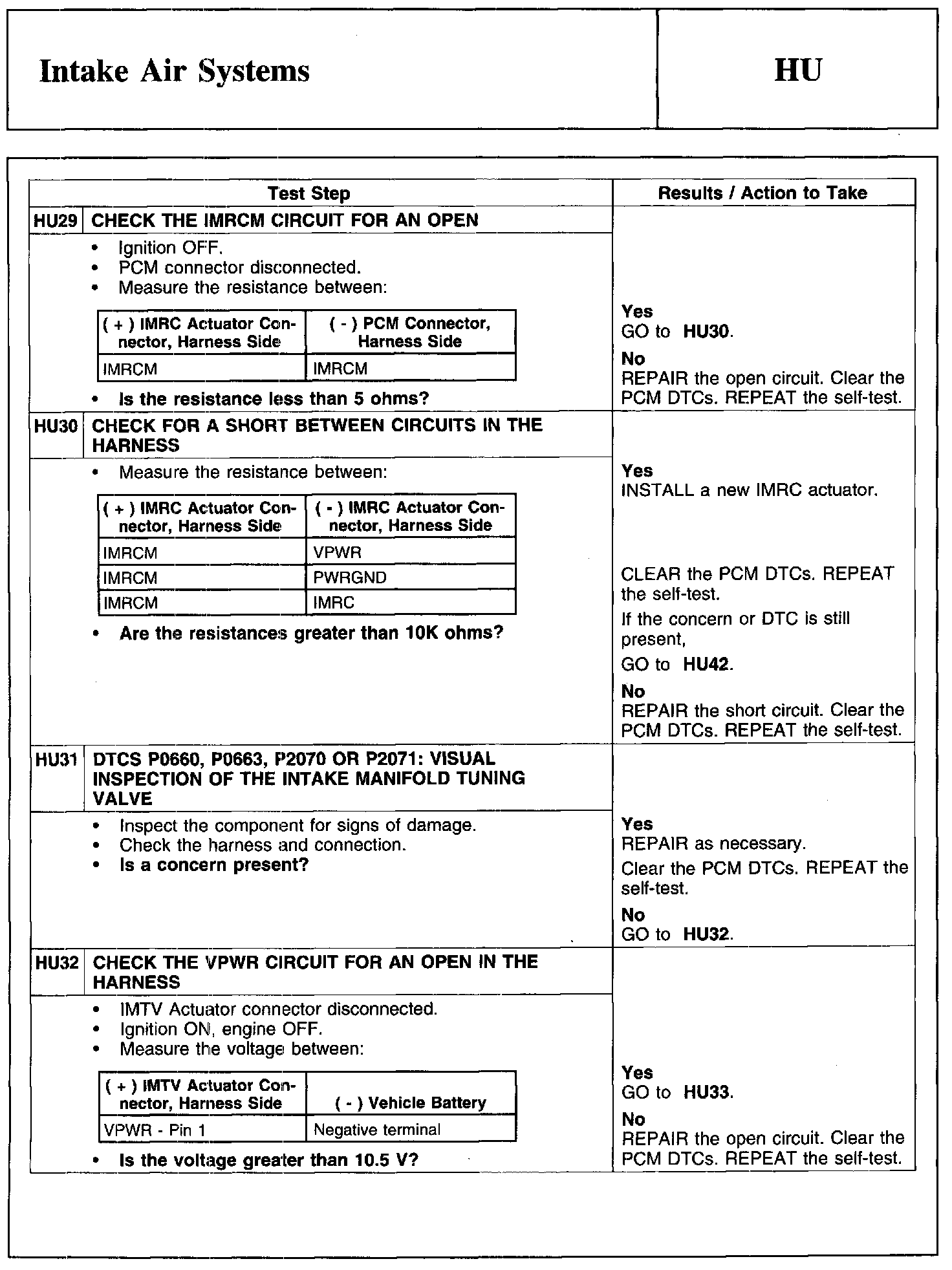

HU29-HU32:

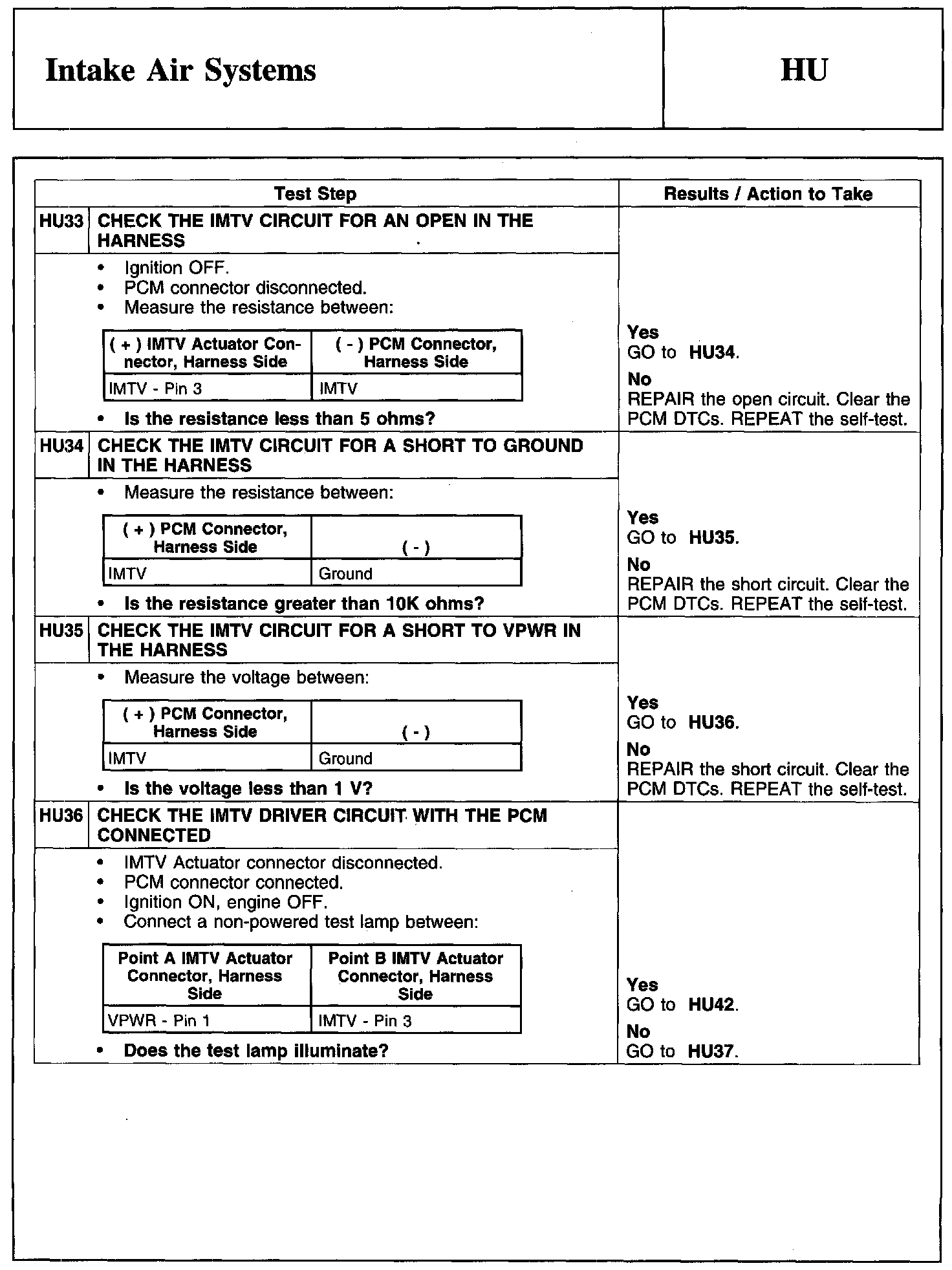

HU33-HU36:

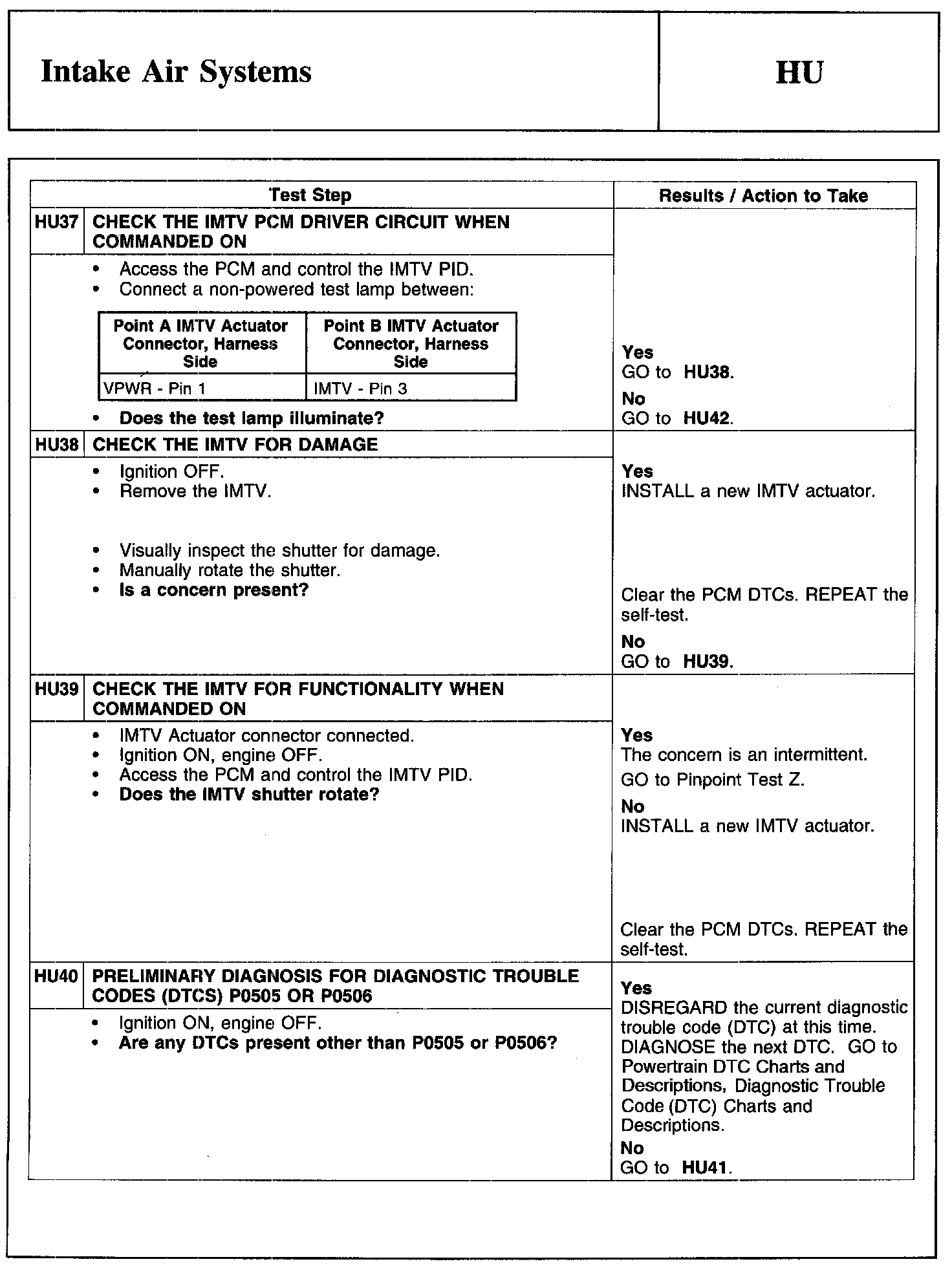

HU37-HU40:

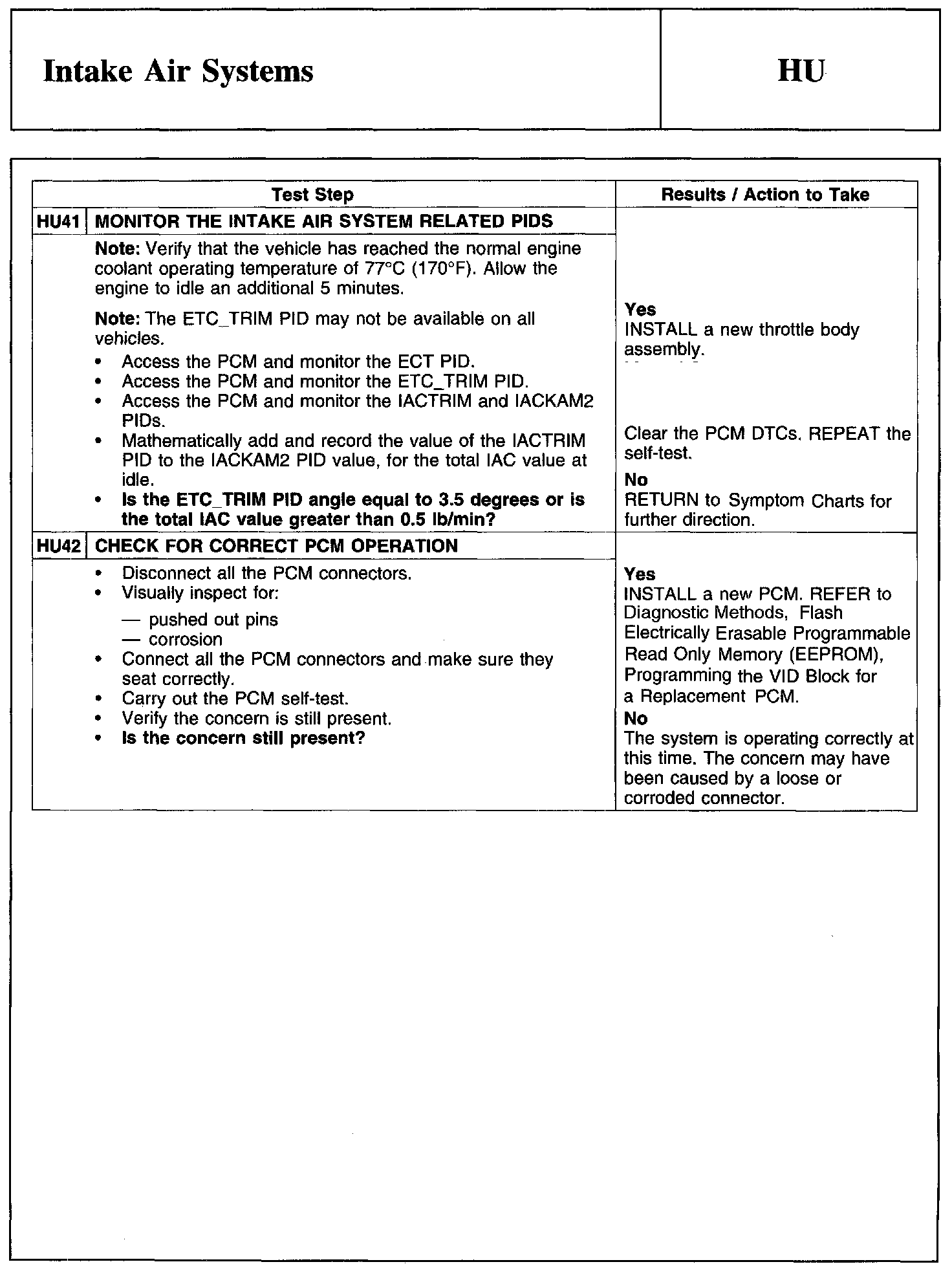

HU41-HU42:
