Variable Valve Timing Solenoid: Service and Repair

Variable Camshaft Timing (VCT) Oil Control Solenoid









Removal and Installation

1. Remove the valve cover. For additional information, refer to Engine.

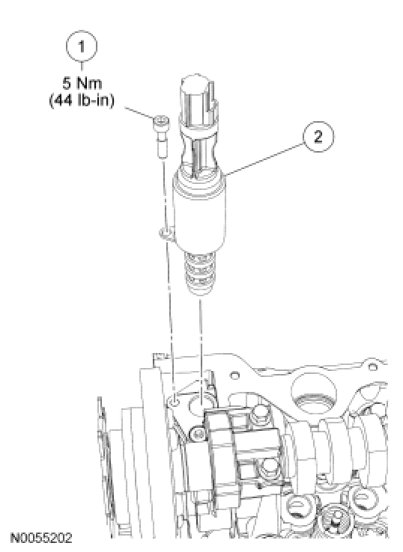

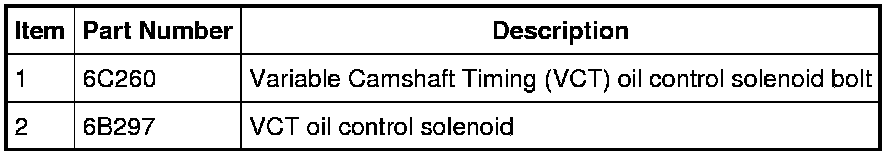

2. Remove the bolt and the Variable Camshaft Timing (VCT) oil control solenoid.
- To install, tighten to 5 Nm (44 lb-in).

3. To install, reverse the removal procedure.
