Band and Clutch Application Chart

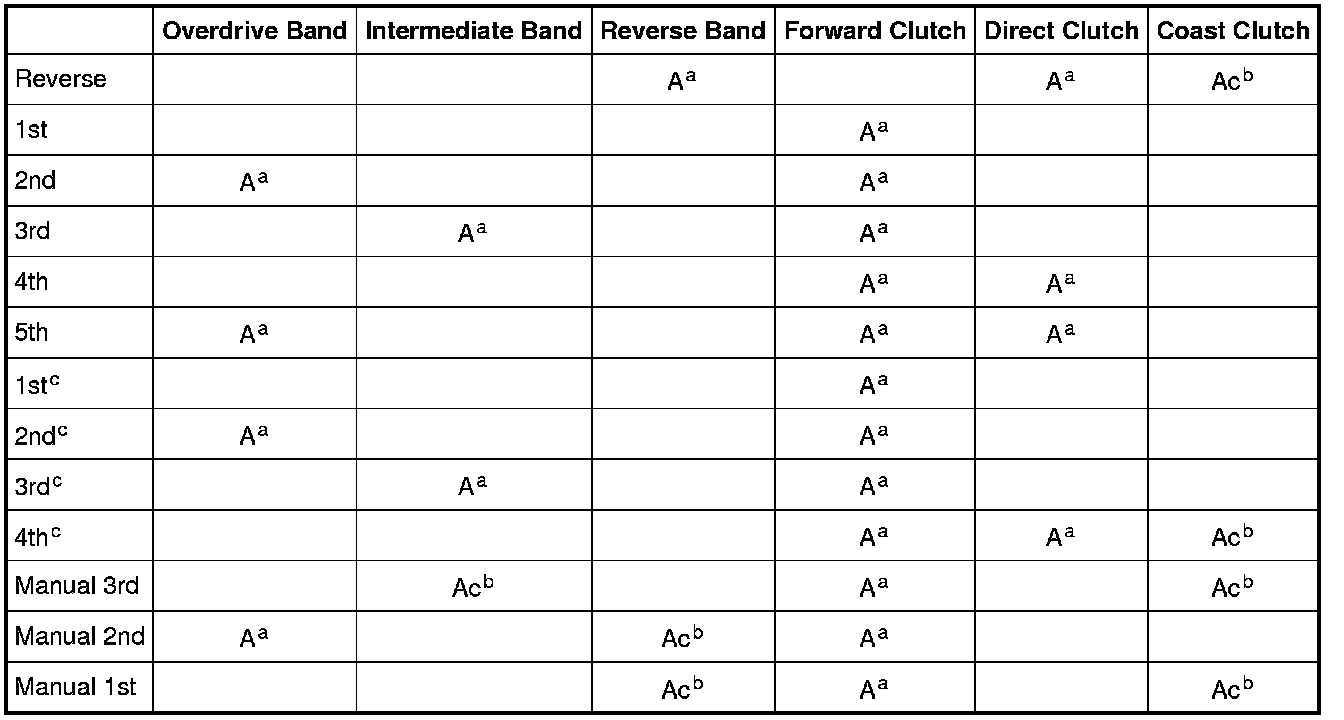

Band and Clutch Application Chart A





a A = Applied

b Ac = Applied to carry coast torque

c (D) Position (overdrive canceled)

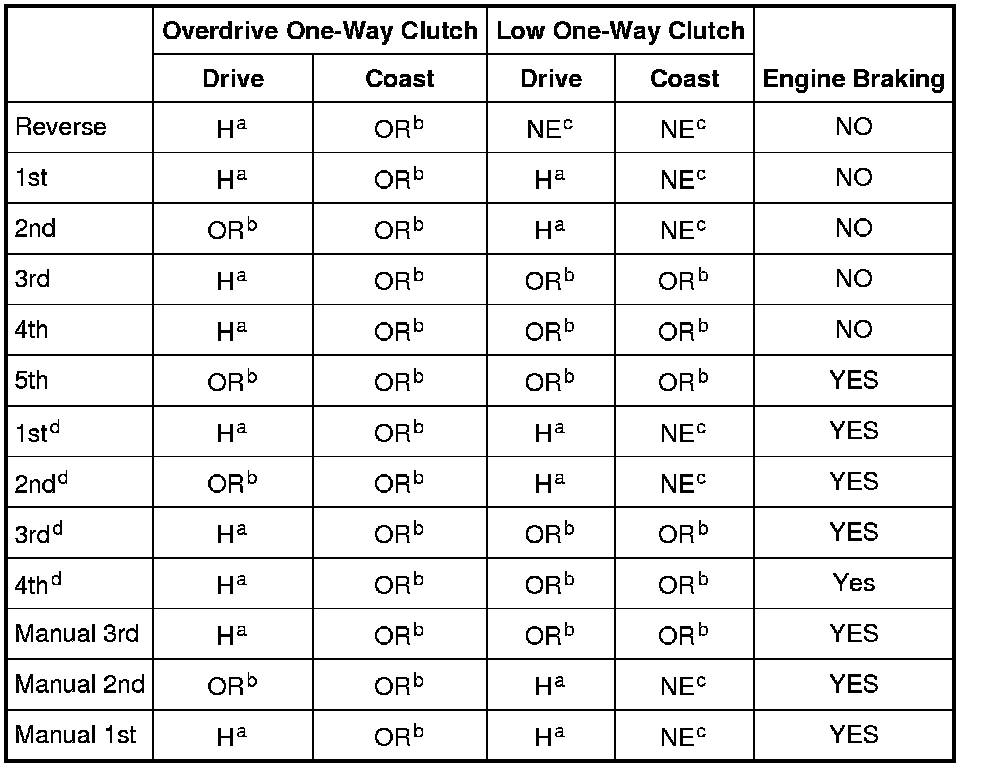

Band and Clutch Application Chart B





a H = Hold

b OR = Overrunning

c NE = No Effect

d (D) Position (overdrive canceled)
