Flex Plate

Remove the 6 bolts and the flexplate.

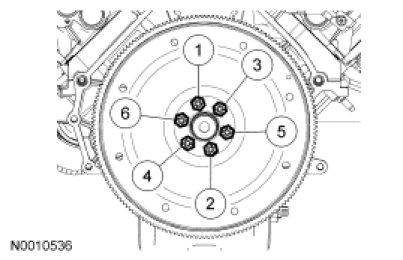

To install, tighten to 80 Nm (59 lb-ft) in the sequence shown.
