Diagnostic Trouble Code Tests and Associated Procedures




Glass, Frames and Mechanisms

DTC Charts

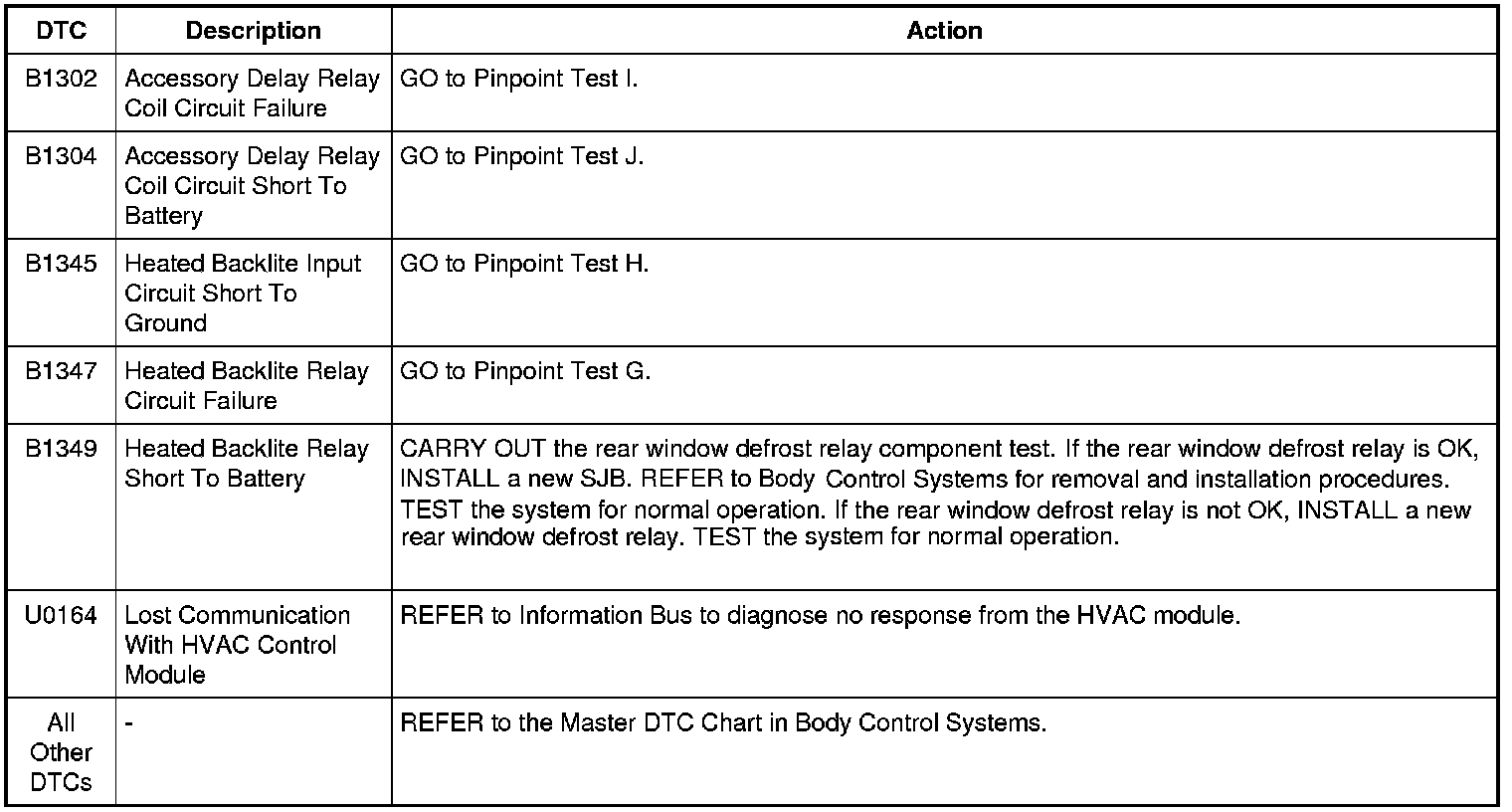

Smart Junction Box (SJB) DTC Chart

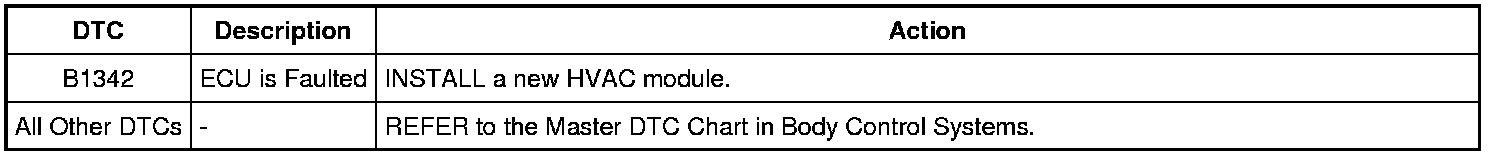

HVAC Module DTC Chart
