Back Window Regulator: Service and Repair

Window Regulator - Rear

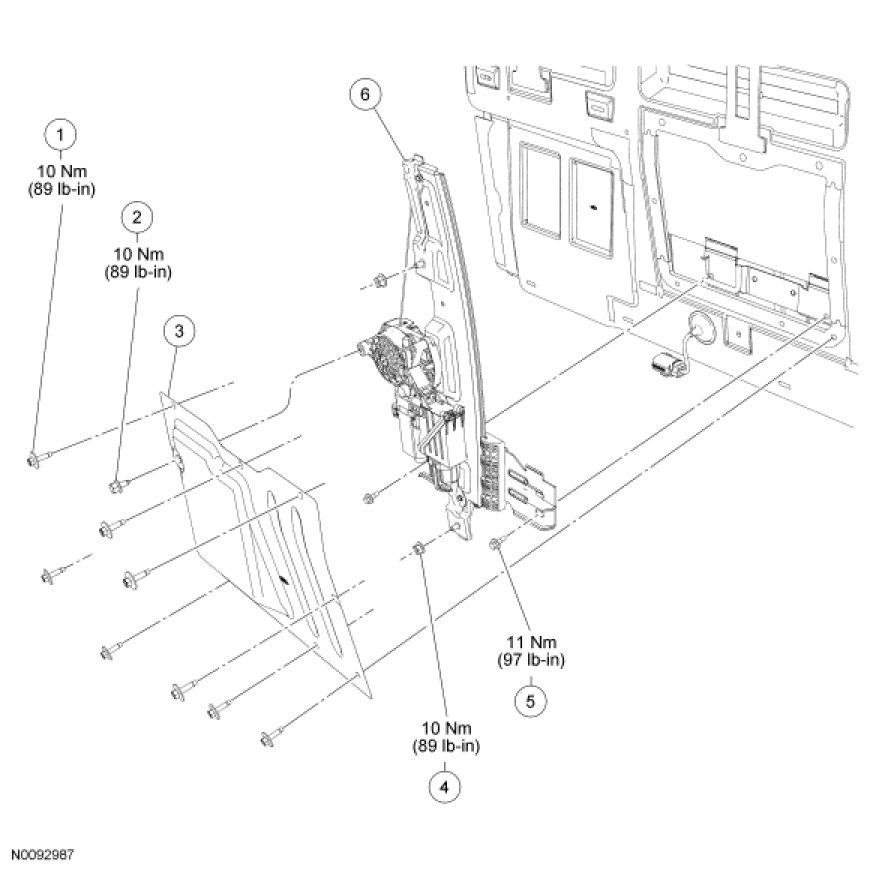

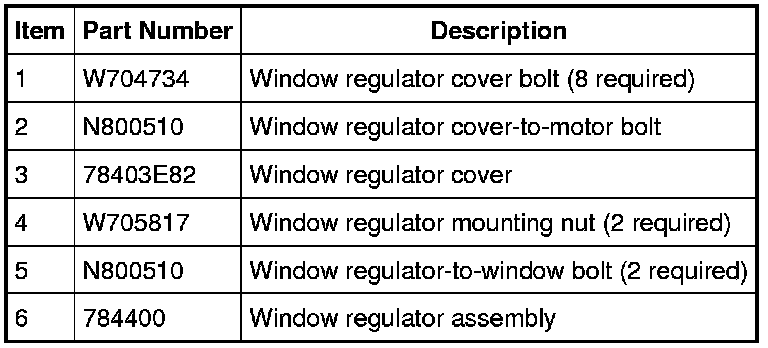

Removal and Installation

NOTE: The power rear window motor must be initialized when repairs are performed on any part of the power rear window system including when: the power rear window motor is removed from the window regulator drum housing, a new power rear motor is installed, a new power rear window regulator is installed, a new power rear window glass module is installed, and any operation in which grease or lubricants are applied to the power rear window system.

1. Remove the cab rear panel.

2. Position the insulator aside.

3. Remove the 8 window regulator cover bolts.
- To install, tighten to 10 Nm (89 lb-in).

4. Remove the window regulator cover-to-motor bolt.
- To install, tighten to 10 Nm (89 lb-in).

5. Remove the window regulator cover.

6. Remove the 2 window regulator mounting nuts.
- To install, tighten to 10 Nm (89 lb-in).

7. Remove the 2 window regulator-to-window bolts.
- To install, tighten to 11 Nm (97 lb-in).

8. Disconnect the electrical connector.

9. Remove the window regulator.

10. To install, reverse the removal procedure.
- Initialize the power rear window motor. For additional information, refer to Window Motor Initialization - Rear Window Motor Initialization - Rear.
