Seat - Exploded View, Second Row

Seat - Exploded View, Second Row

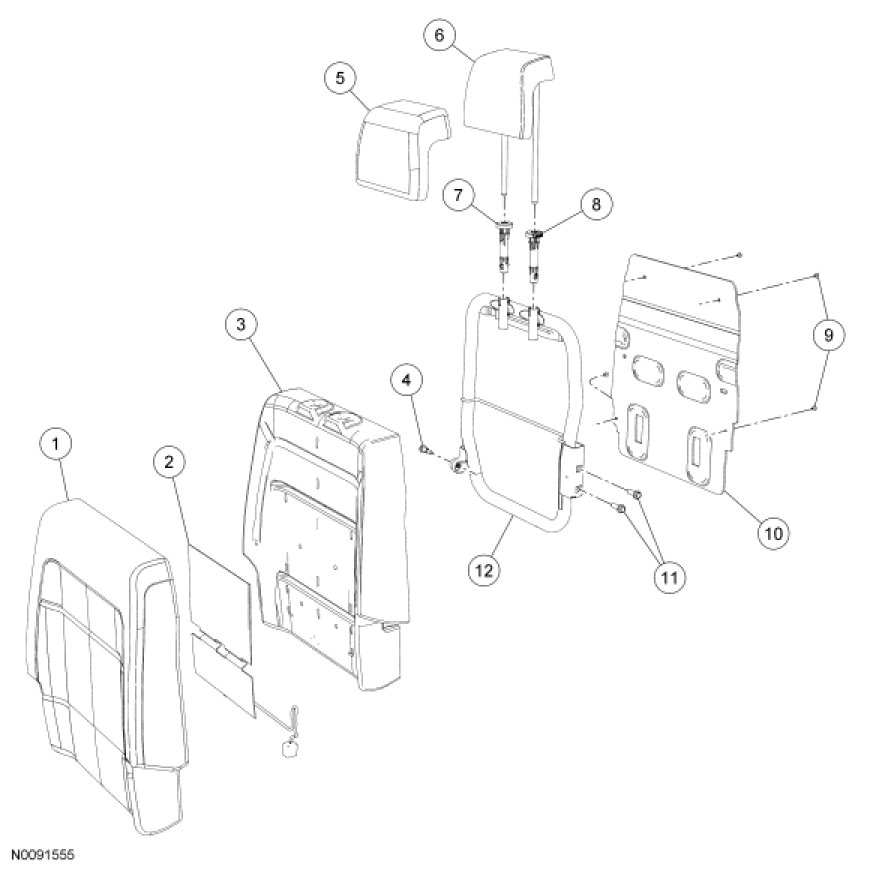

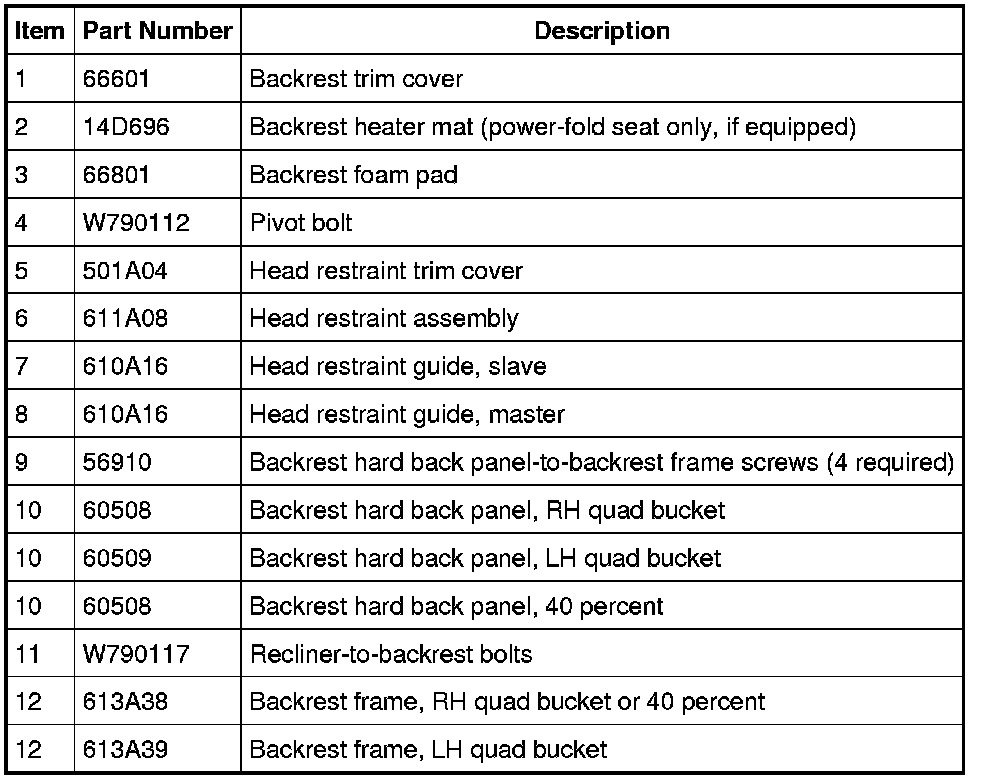

40 Percent Backrest

NOTE: LH shown, RH similar.

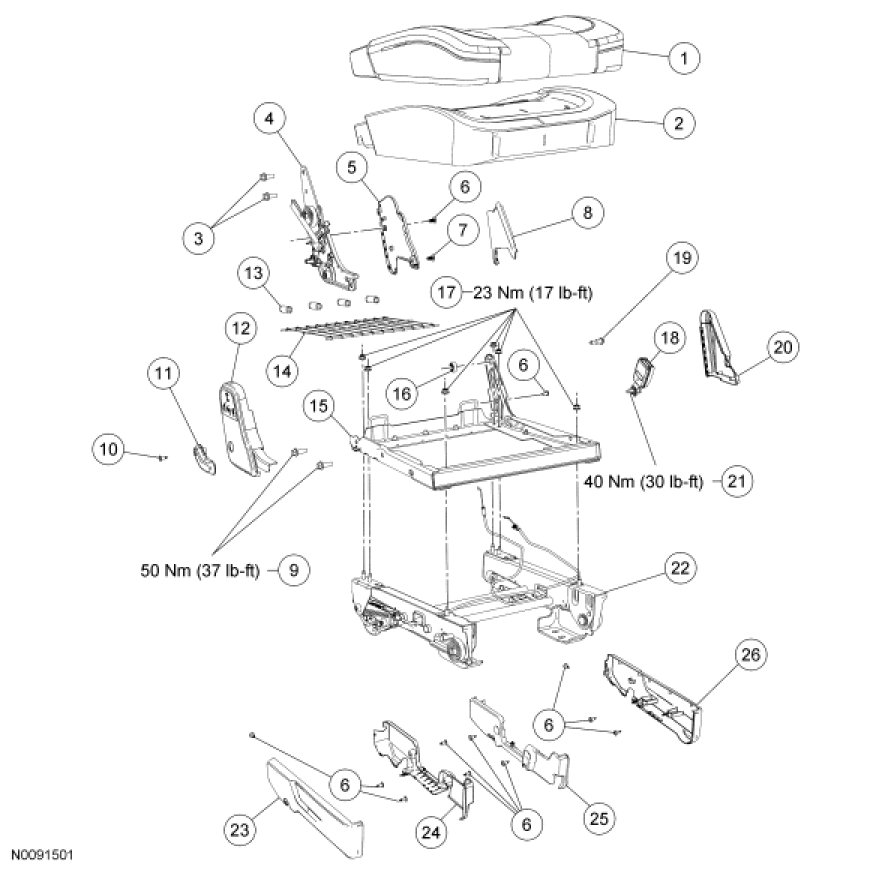

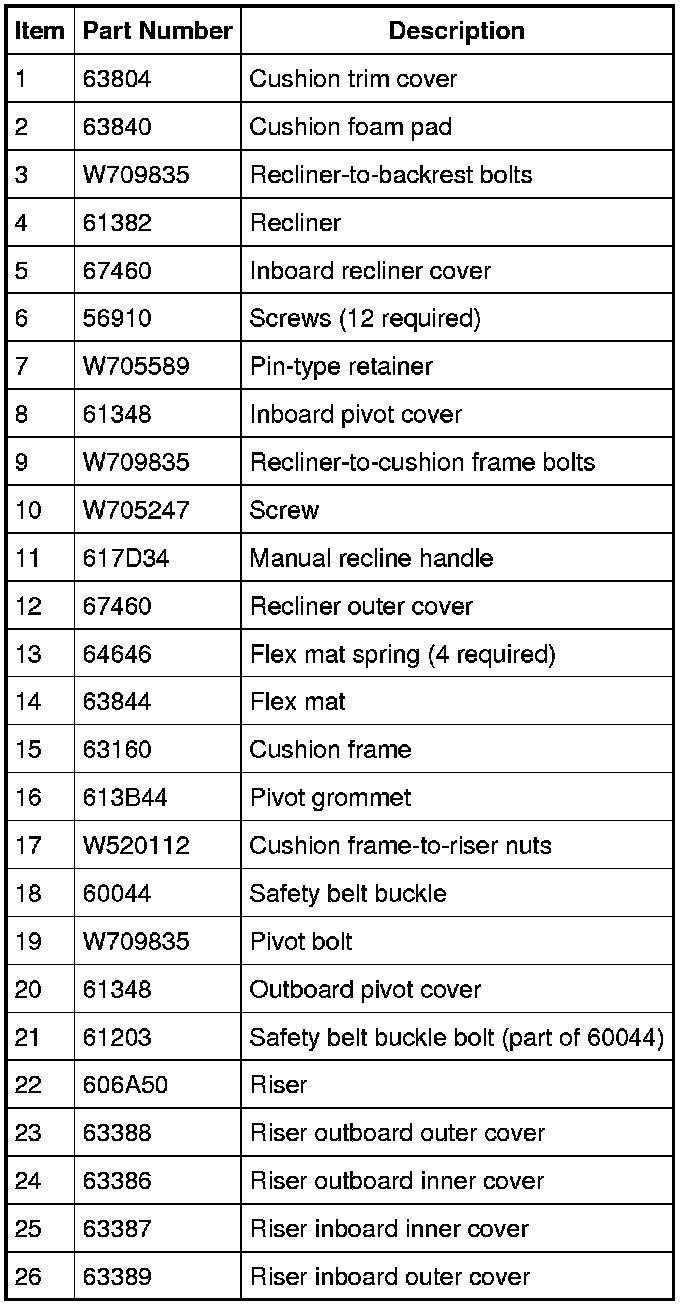

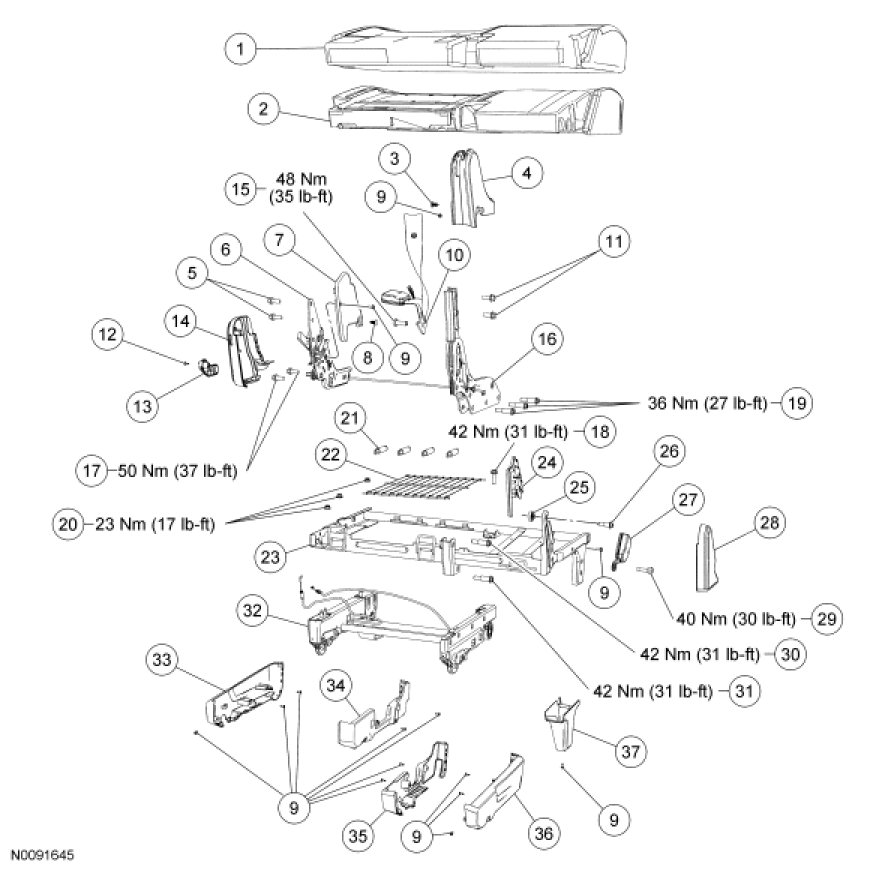

40 Percent Cushion with Riser

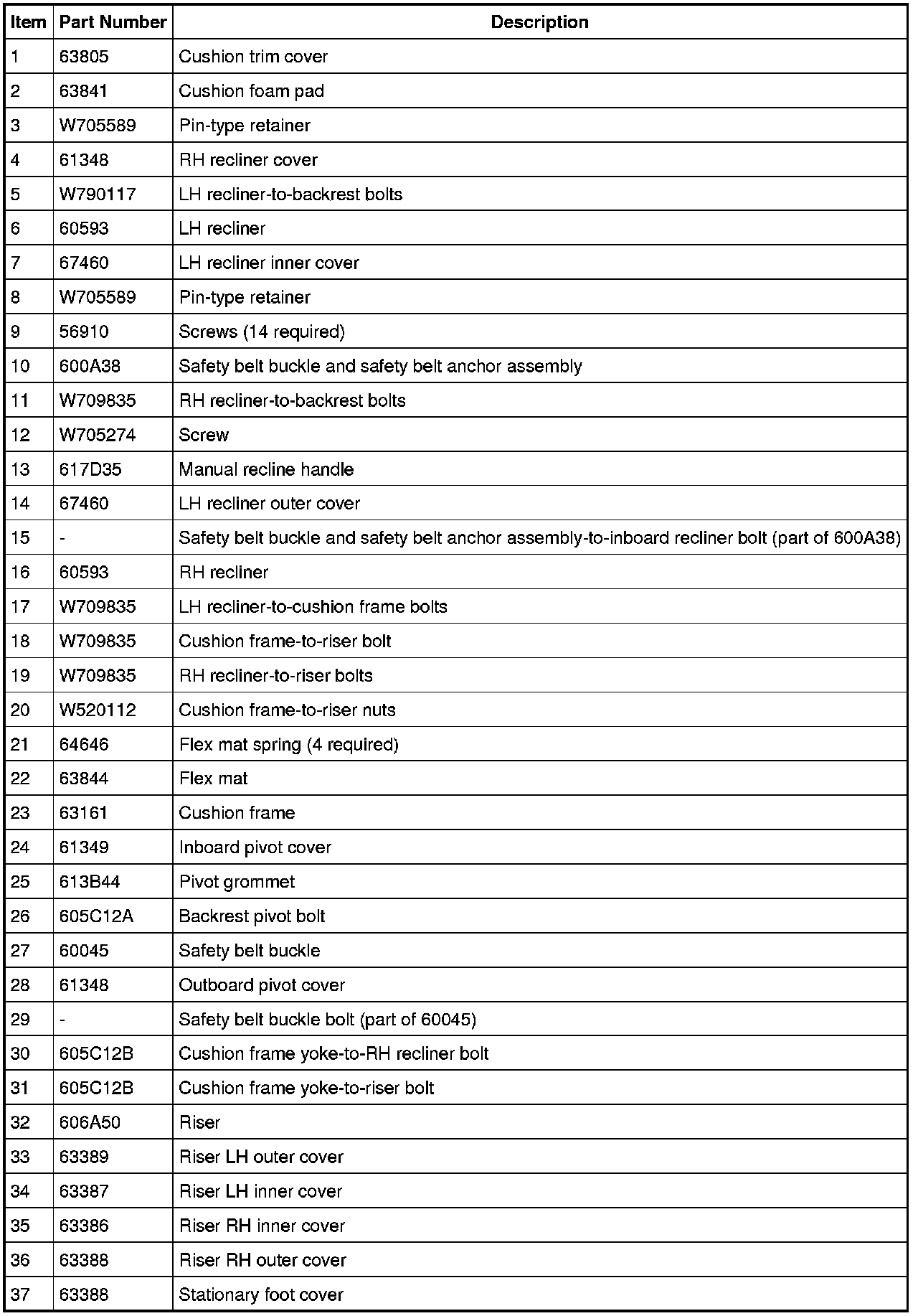

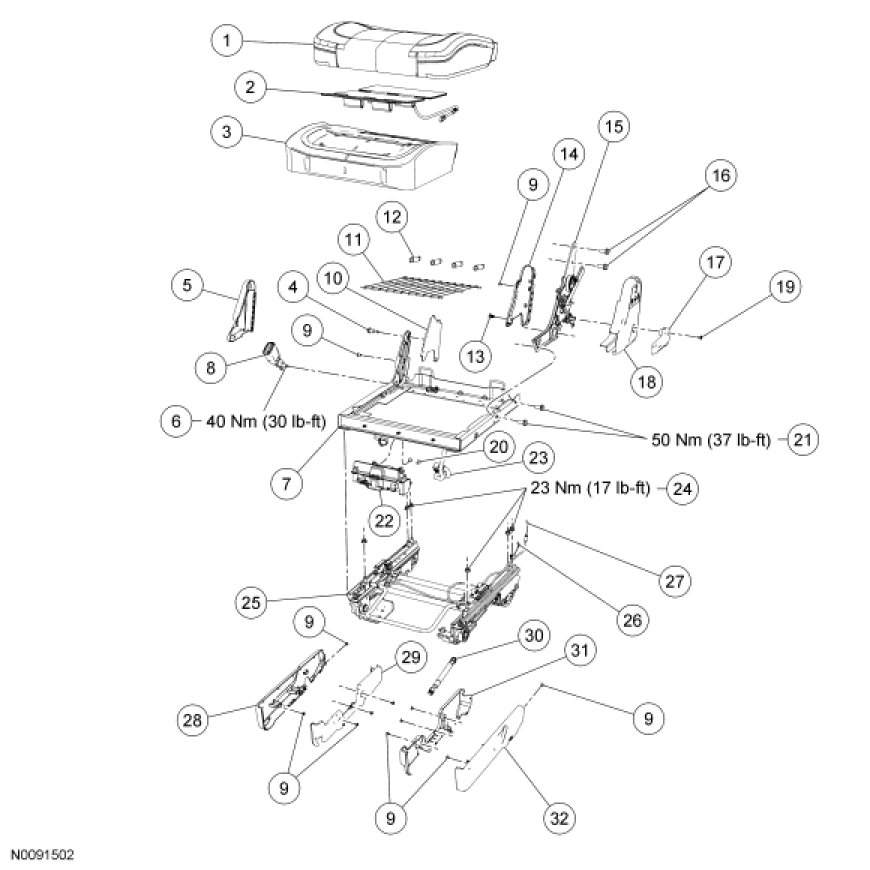

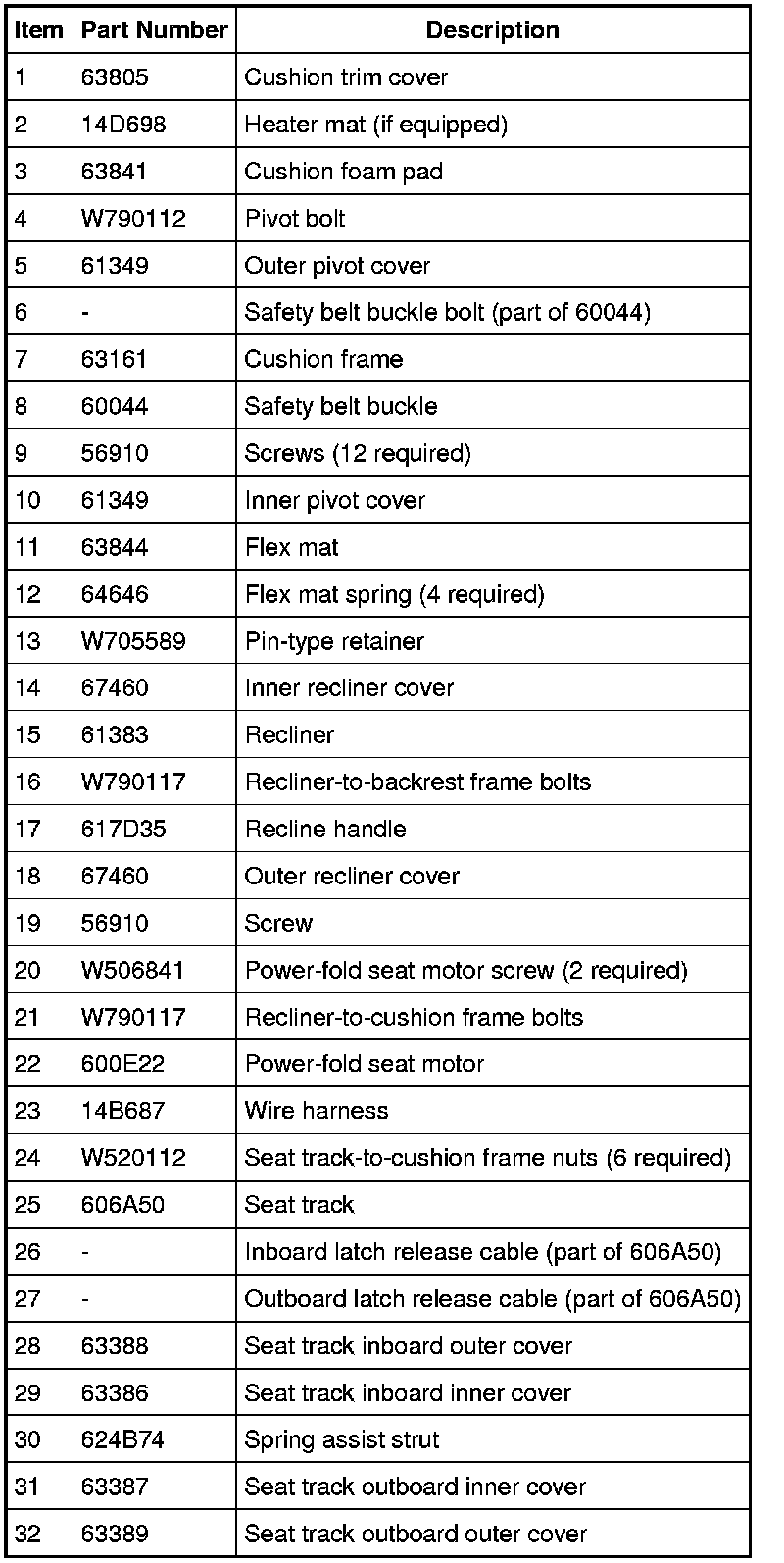

40 Percent Cushion with Seat Track

NOTE: LH shown, RH similar.

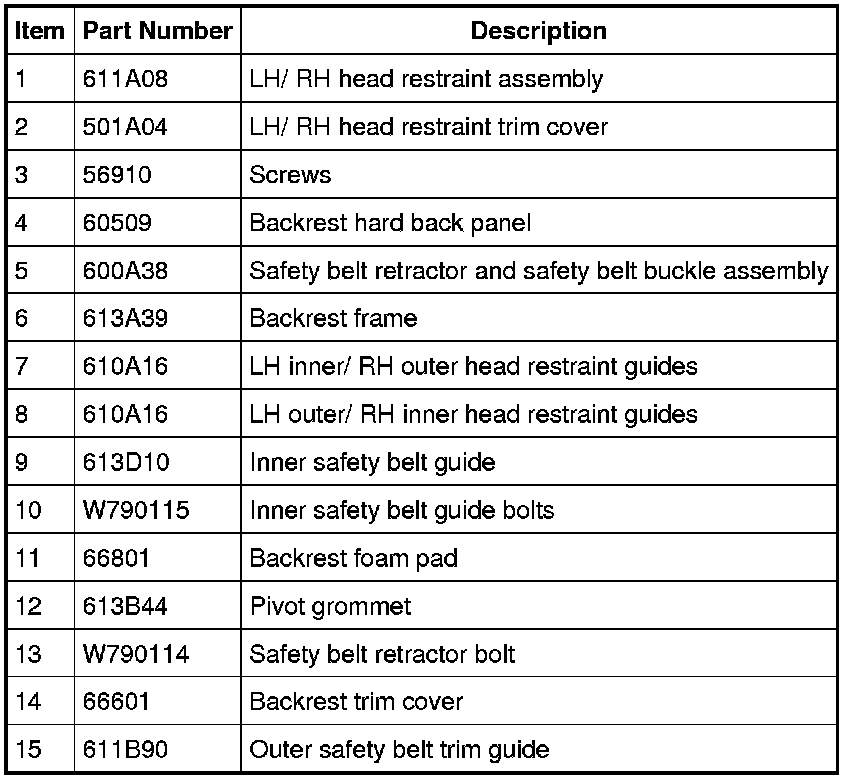

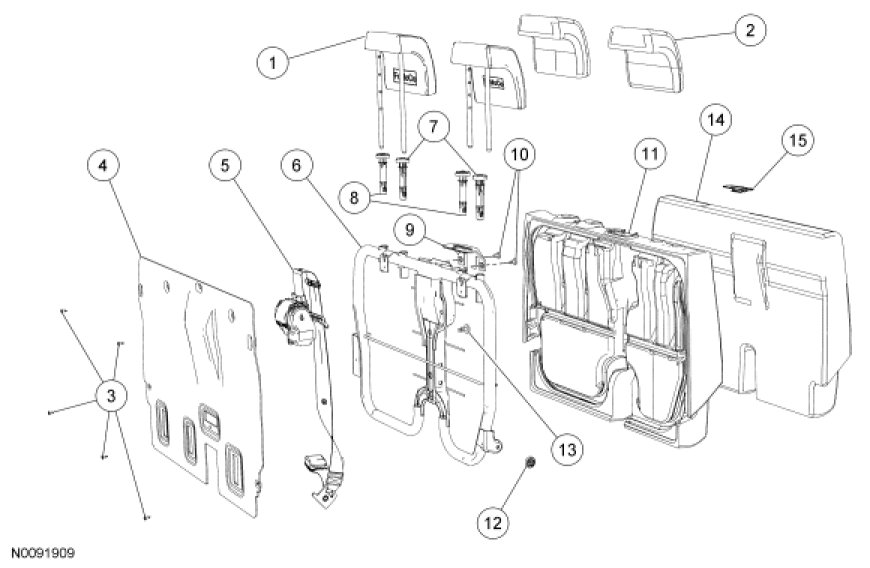

60 Percent Backrest

NOTE: Refer to Seat Backrest - Second Row, 60 Percent Seat Backrest - Second Row, 60 Percent for inner safety belt guide and safety belt retractor bolt tightening sequence and torque specification.











60 Percent Cushion
