Fuel Pump Control Module: Notes

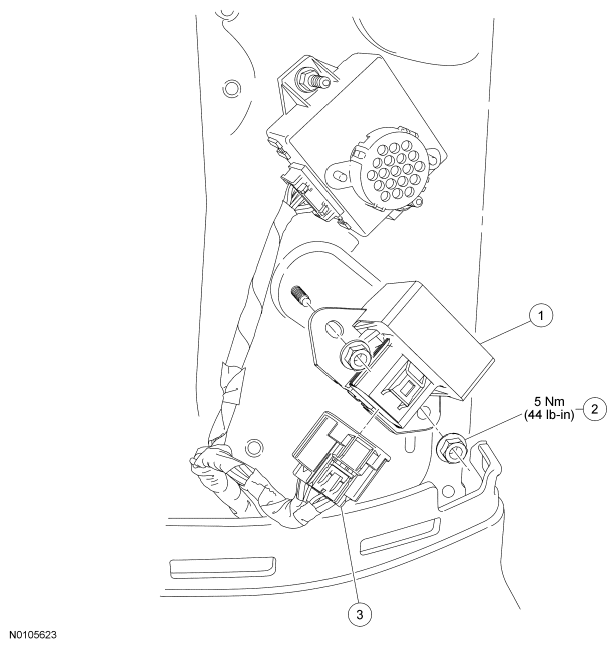

Fig 1: Exploded View Of Fuel Pump Control Module With Torque Specifications
G06542286Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 9D412 Fuel Pump (FP) control module
2 N805320 FP  control module nut (2 required)
3 14A464 FP  control module electrical connector
