Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Engine Compartment

G00476504

Courtesy of FORD MOTOR CO.

Fig 2: Engine Compartment

G00476505

Courtesy of FORD MOTOR CO.

Fig 3: Engine Compartment

G00476506

Courtesy of FORD MOTOR CO.

Fig 4: Top Left Side & Rear Of Engine (Non Turbo)

G00466923

Courtesy of FORD MOTOR CO.

Fig 5: Top Right Side & Front Of Engine (Non Turbo)

G00466924

Courtesy of FORD MOTOR CO.

Fig 6: Transmission

G00466925

Courtesy of FORD MOTOR CO.

Fig 7: Dash

G00476509

Courtesy of FORD MOTOR CO.

Fig 8: Dash

G00476510

Courtesy of FORD MOTOR CO.

Fig 9: HVAC Unit

G00476511

Courtesy of FORD MOTOR CO.

Fig 10: Steering Column

G00476512

Courtesy of FORD MOTOR CO.

Fig 11: Steering Wheel

G00466930

Courtesy of FORD MOTOR CO.

Fig 12: Center Console

G00466931

Courtesy of FORD MOTOR CO.

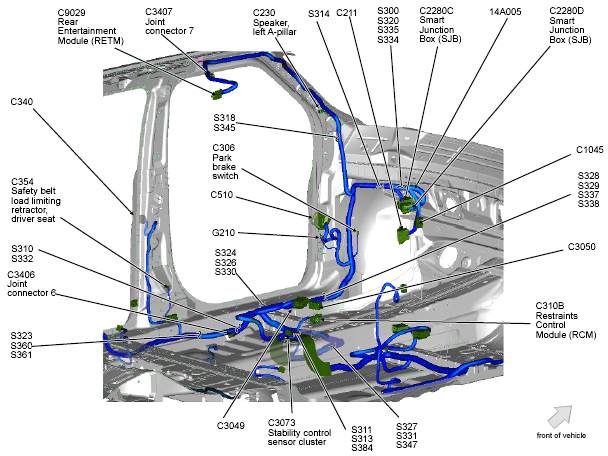

Fig 13: Left Front Of Passenger Compartment

G00476513

Courtesy of FORD MOTOR CO.

Fig 14: Right Front Of Passenger Compartment

G00466933

Courtesy of FORD MOTOR CO.

Fig 15: Left Rear Vehicle Interior

G00476514

Courtesy of FORD MOTOR CO.

Fig 16: Right Rear Vehicle Interior

G00476515

Courtesy of FORD MOTOR CO.

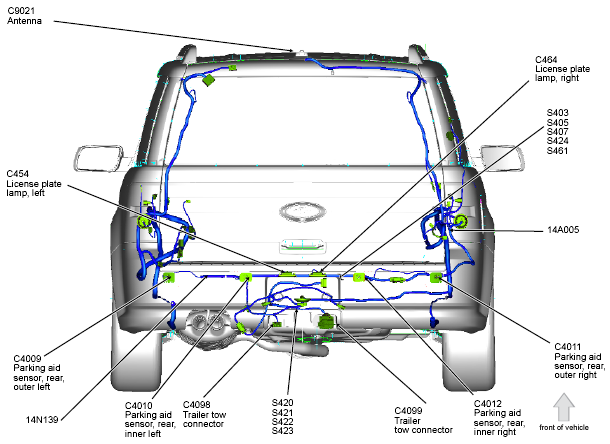

Fig 17: Rear Of Vehicle

G00476516

Courtesy of FORD MOTOR CO.

Fig 18: Driver's Seat

G00476517

Courtesy of FORD MOTOR CO.

Fig 19: Front Passenger's Seat

G00476518

Courtesy of FORD MOTOR CO.

Fig 20: Second Row Seats

G00466939

Courtesy of FORD MOTOR CO.

Fig 21: Driver's Door

G00466940

Courtesy of FORD MOTOR CO.

Fig 22: Front Passenger's Door

G00466941

Courtesy of FORD MOTOR CO.

Fig 23: Left Rear Door

G00466942

Courtesy of FORD MOTOR CO.

Fig 24: Right Rear Door

G00466943

Courtesy of FORD MOTOR CO.

Fig 25: Liftgate

G00466944

Courtesy of FORD MOTOR CO.

Fig 26: Roof

G00466945

Courtesy of FORD MOTOR CO.

Fig 27: Smart Junction Box (SJB)

G00466947

Courtesy of FORD MOTOR CO.

Fig 28: Battery Junction Box (BJB)

G00476503

Courtesy of FORD MOTOR CO.

Fig 29: Top Left Side & Rear Of Engine (Turbo)

G00476507

Courtesy of FORD MOTOR CO.

Fig 30: Top Right Side & Front Of Engine (Turbo)

G00476508

Courtesy of FORD MOTOR CO.

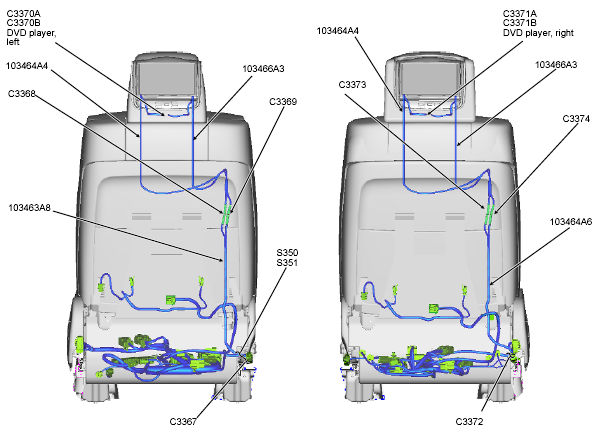

Fig 31: Rear Of Front Seats

G00476519

Courtesy of FORD MOTOR CO.
