Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

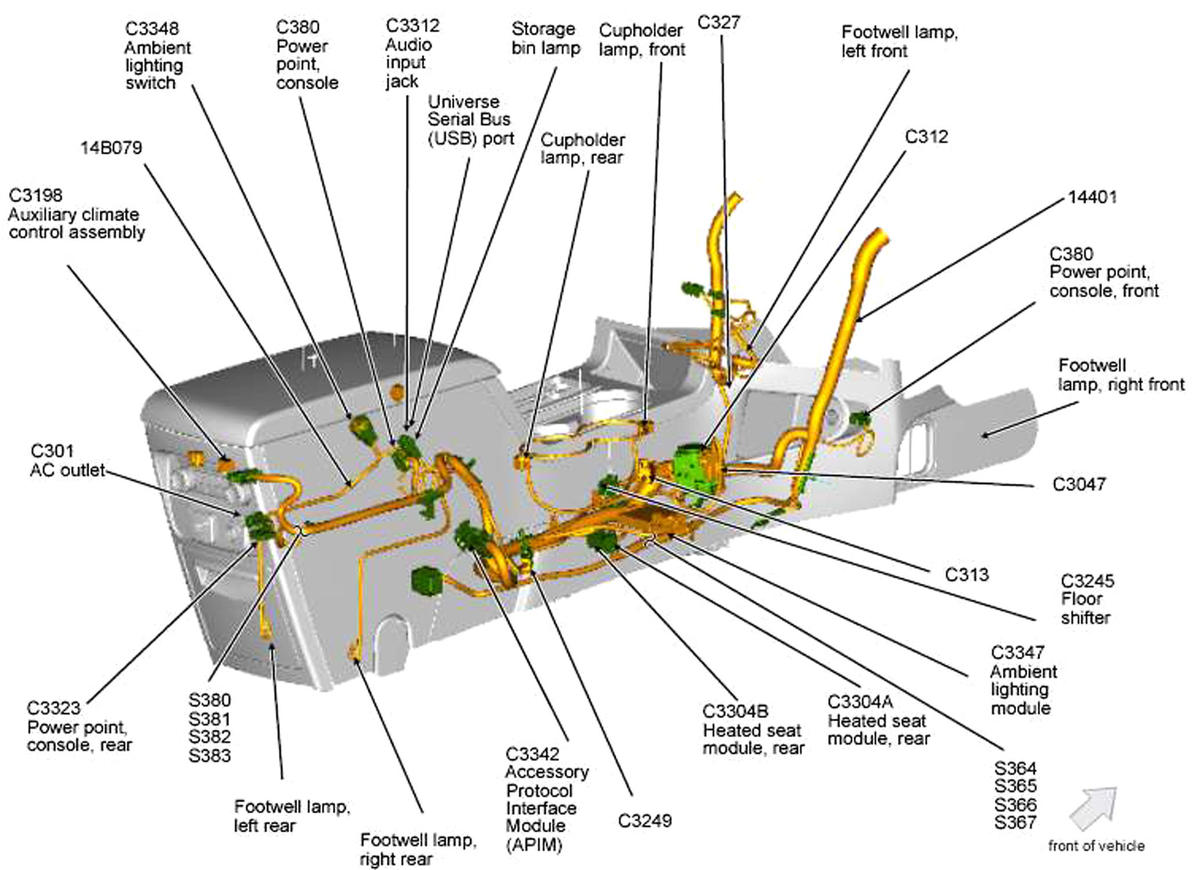

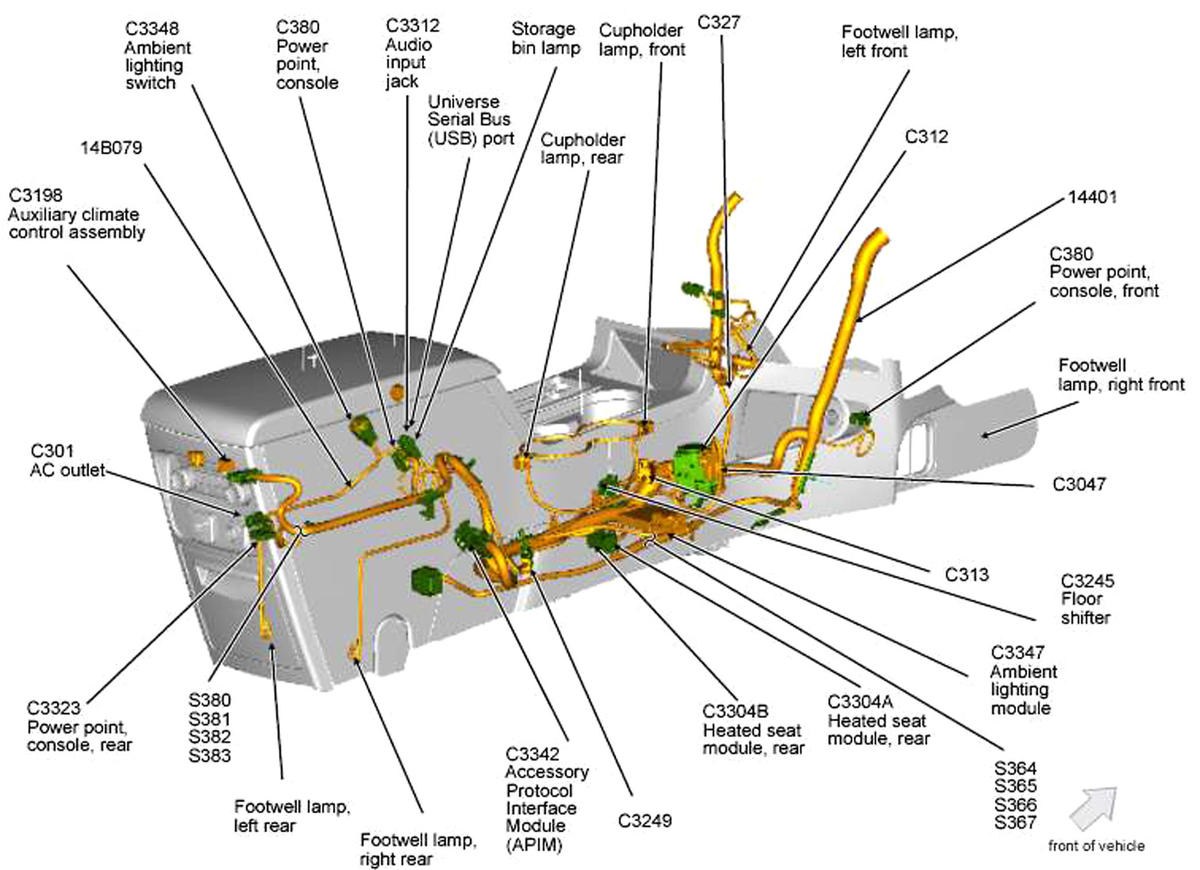

| Accessory Protocol Interface Module (APIM) | Center console. See Figure. |
| Ambient Lighting Module | Center console. See Figure. |
| Anti-Lock Brake System (ABS) Module | Left rear of engine compartment. See Figure. |
| Auxiliary Blower Control Module | Left rear quarterpanel. See Figure. |

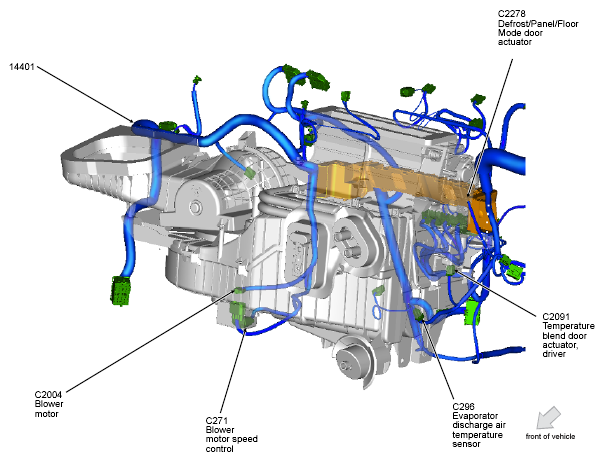

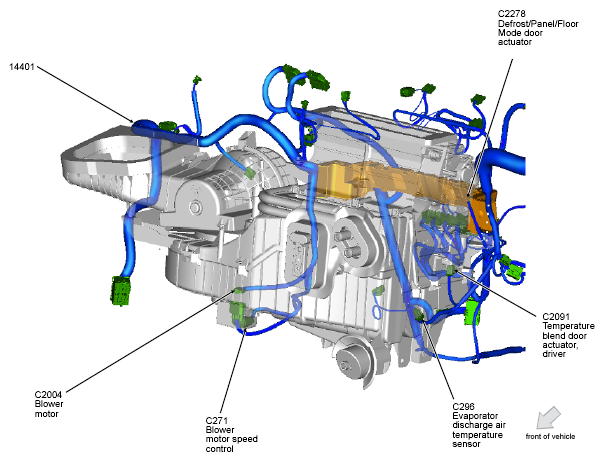

| Blower Motor Speed Controller | Right side of HVAC unit. See Figure. |

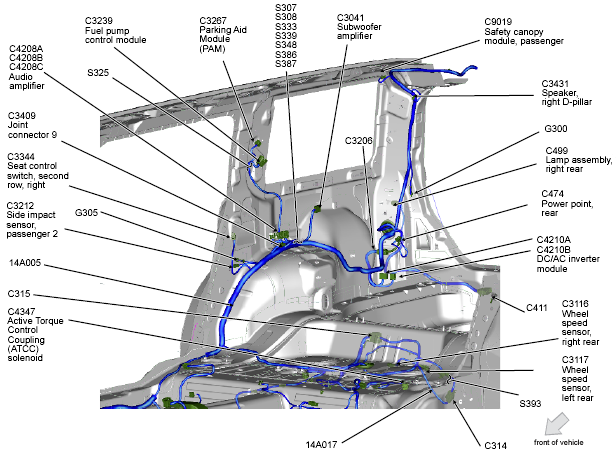

| DC/AC Inverter Module | Base of right "D" pillar. See Figure. |

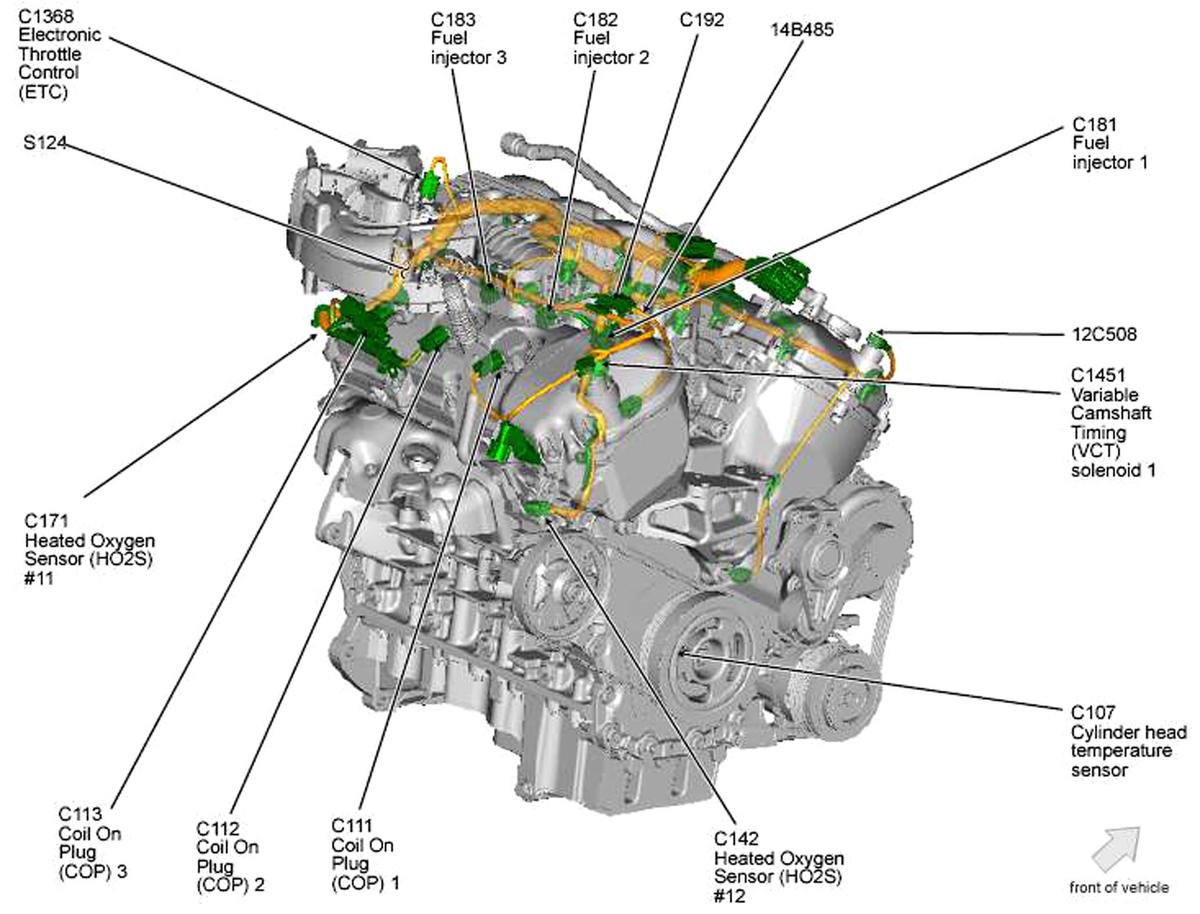

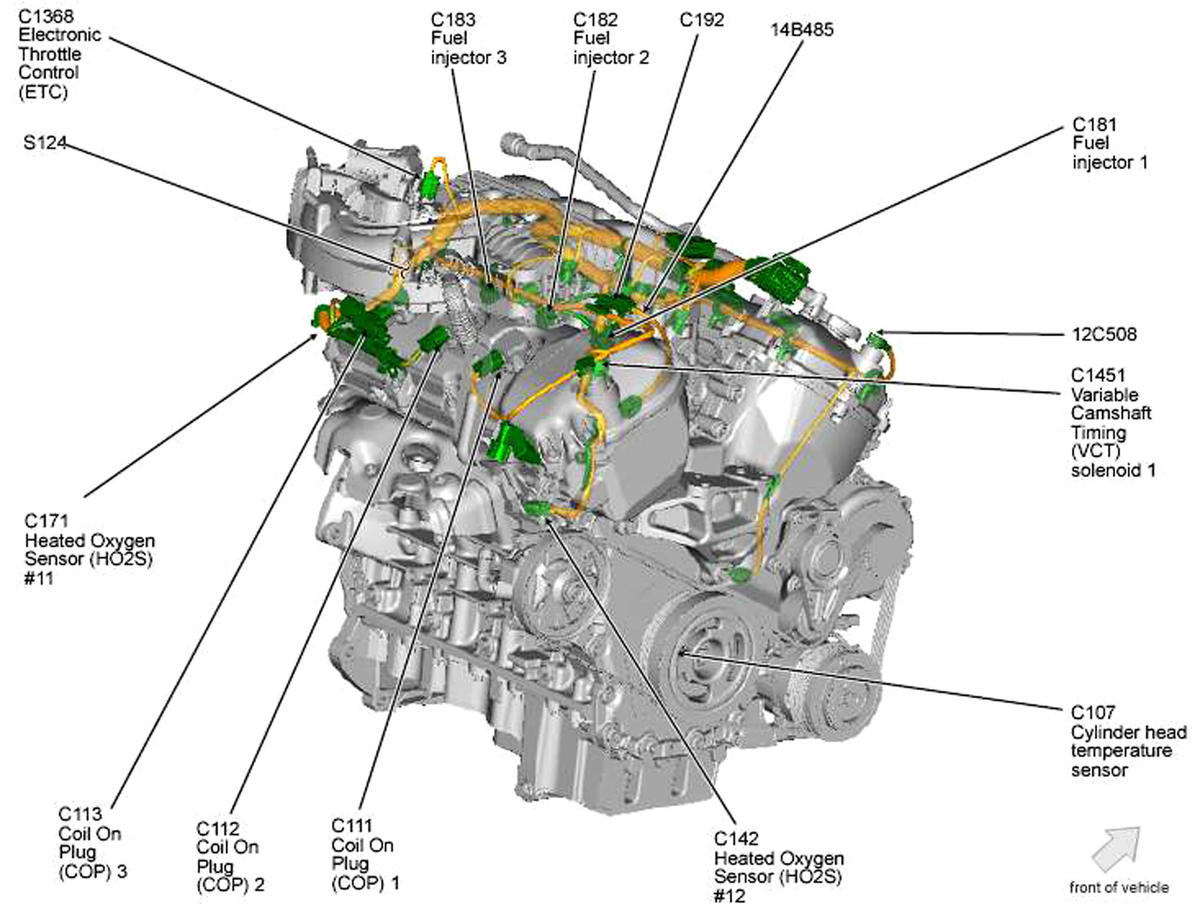

| Electronic Throttle Control (ETC) (Non Turbo) | Top right rear of engine. See Figure. |

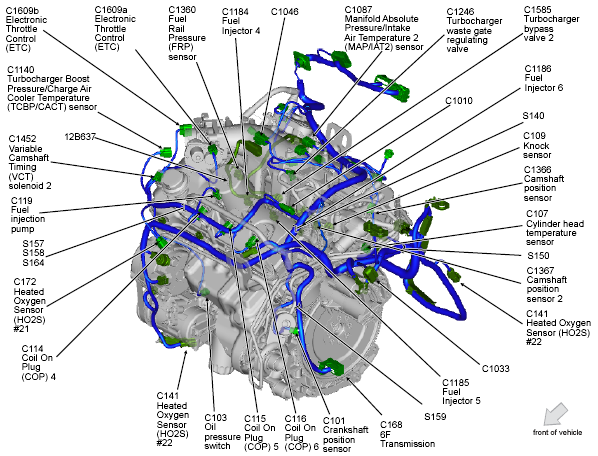

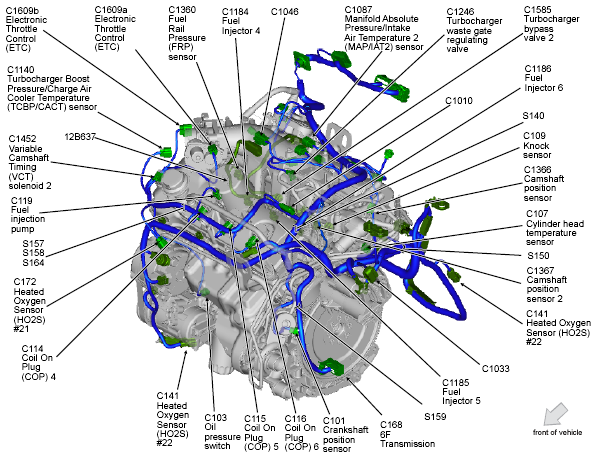

| Electronic Throttle Control (ETC) (Turbo) | Top front of engine. See Figure. |

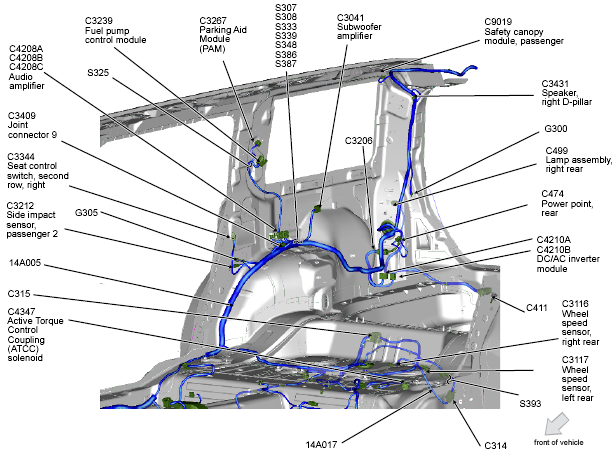

| Fuel Pump Control Module | Right "C" pillar. See Figure. |
| Fuel Pump Module | In fuel tank. See Figure. |
| GPS Module | Right side of dash. See Figure. |
| Heated Seat Module (Front) | Under front passenger's seat. See Figure. |
| Heated Seat Module (Rear) | Center console. See Figure. |
| HVAC Module | Center of dash. See Figure. |

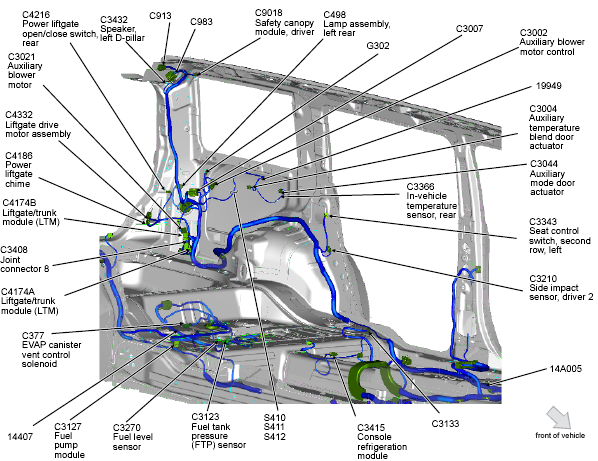

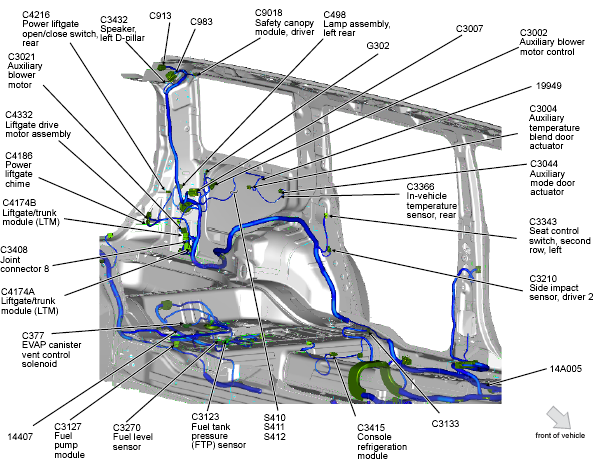

| Liftgate/Trunk Module (LTM) | Left "D" pillar. See Figure. |

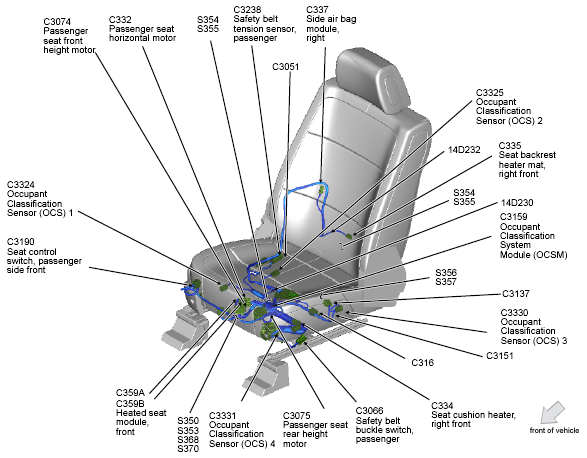

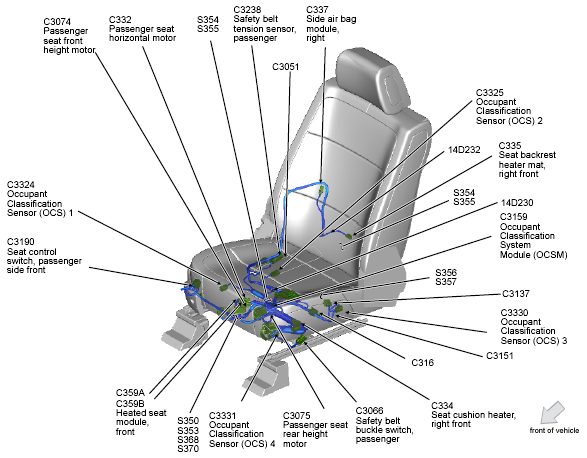

| Occupant Classification System Module (OCSM) | Under front passenger's seat. See Figure. |
| Parking Aid Module (PAM) | Right "C" pillar. See Figure. |
| Power Steering Control Module (PSCM) | Right rear of engine. See Figure. |

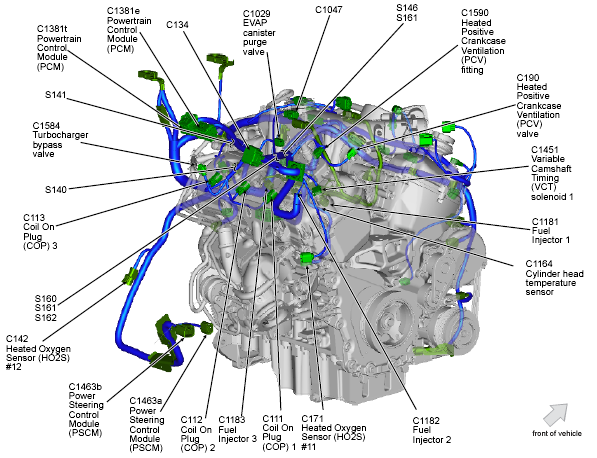

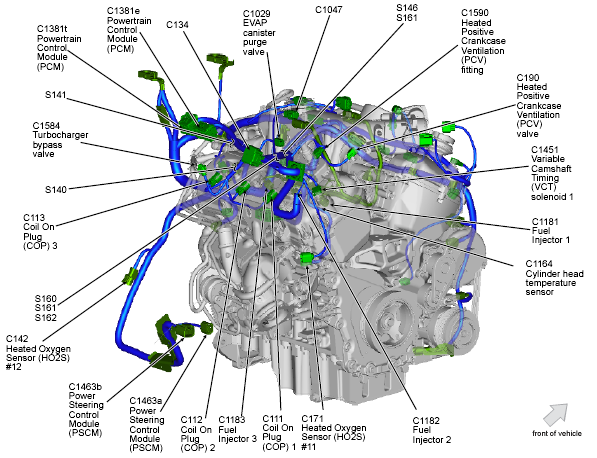

| Powertrain Control Module (PCM) | Rear of engine compartment. See Figure. |
| Restraints Control Module (RCM) | Center console. See Figure. |

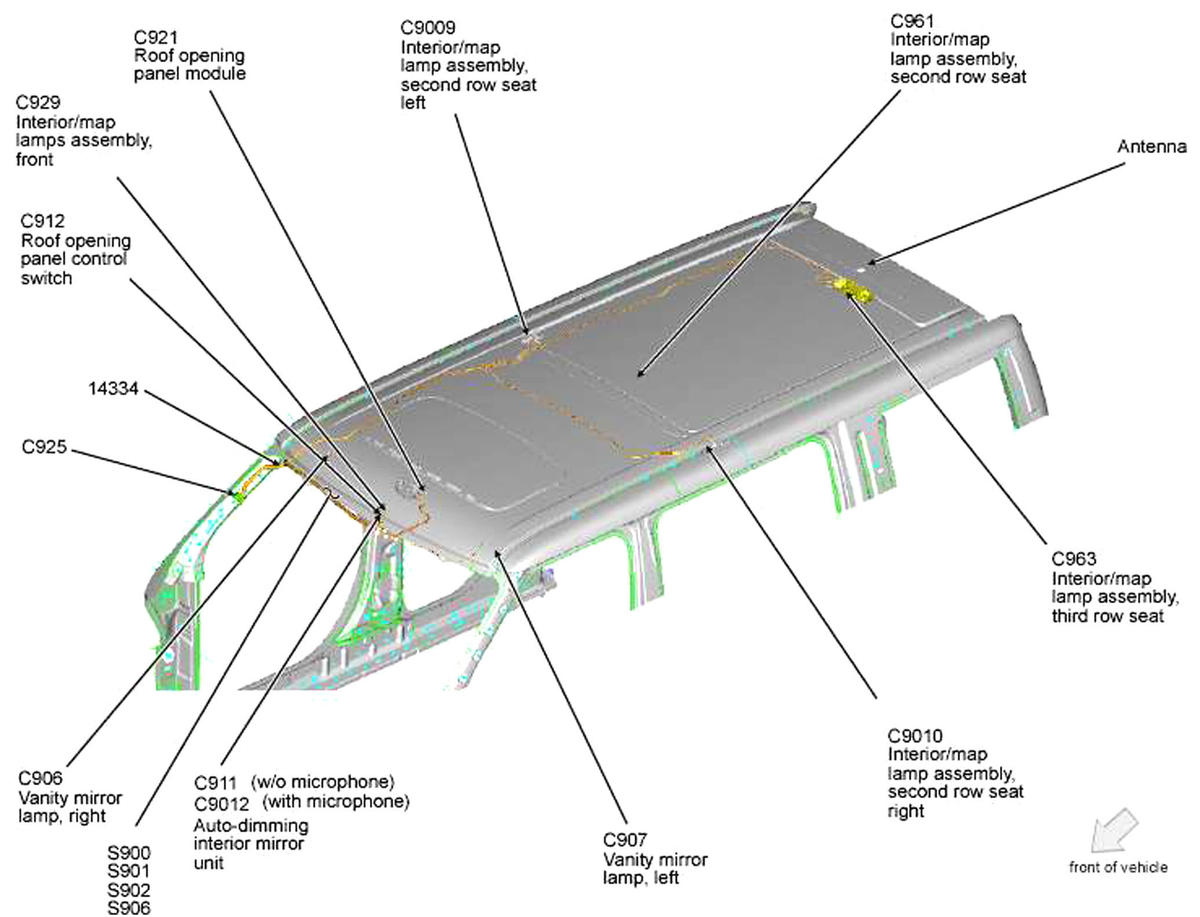

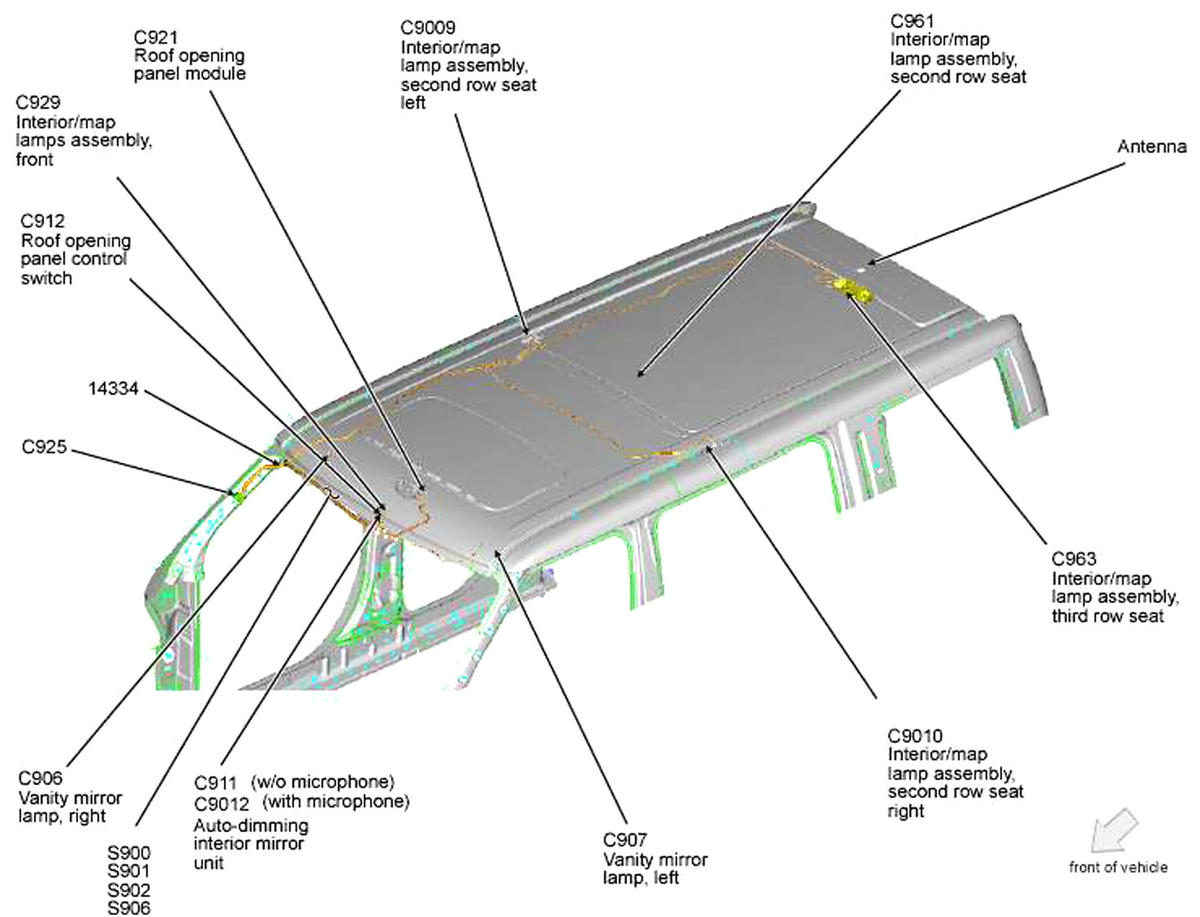

| Roof Opening Panel Module | Center front of roof. See Figure. |

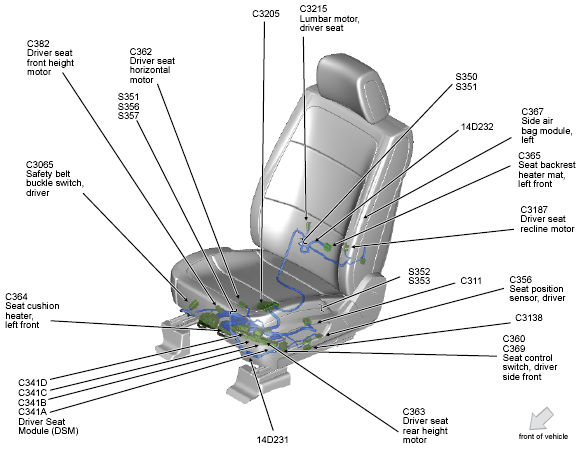

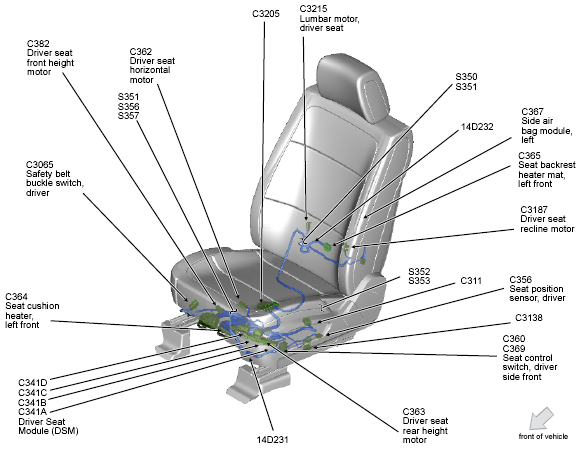

| Seat Module (DSM) (Driver) | Under driver's seat. See Figure. |

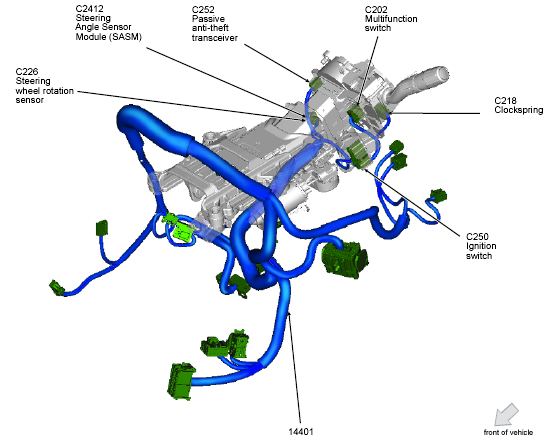

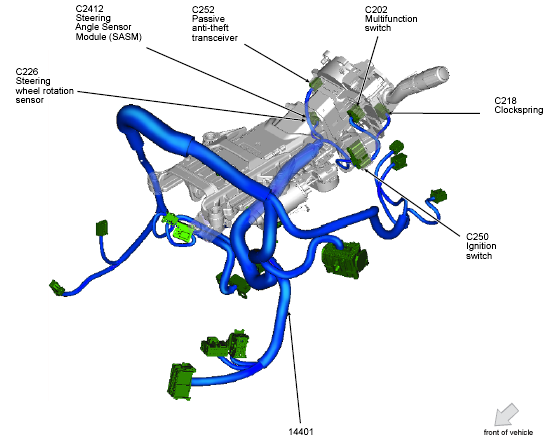

| Steering Angle Sensor Module (SASM) | Top of steering column. See Figure. |

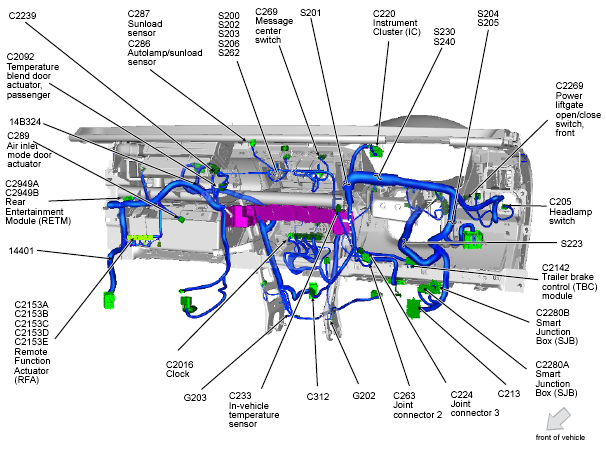

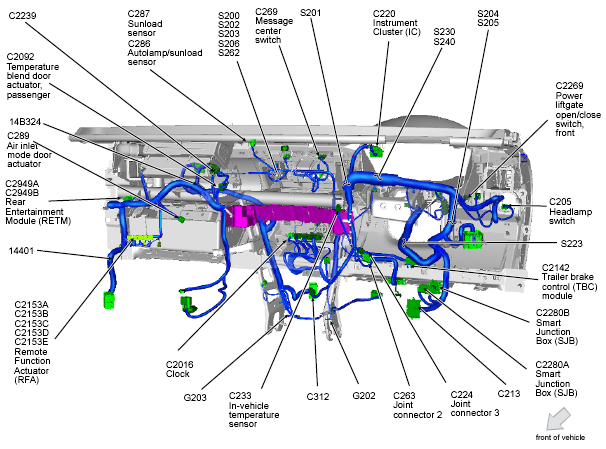

| Trailer Brake Control (TBC) Module | Left side of dash. See Figure. |

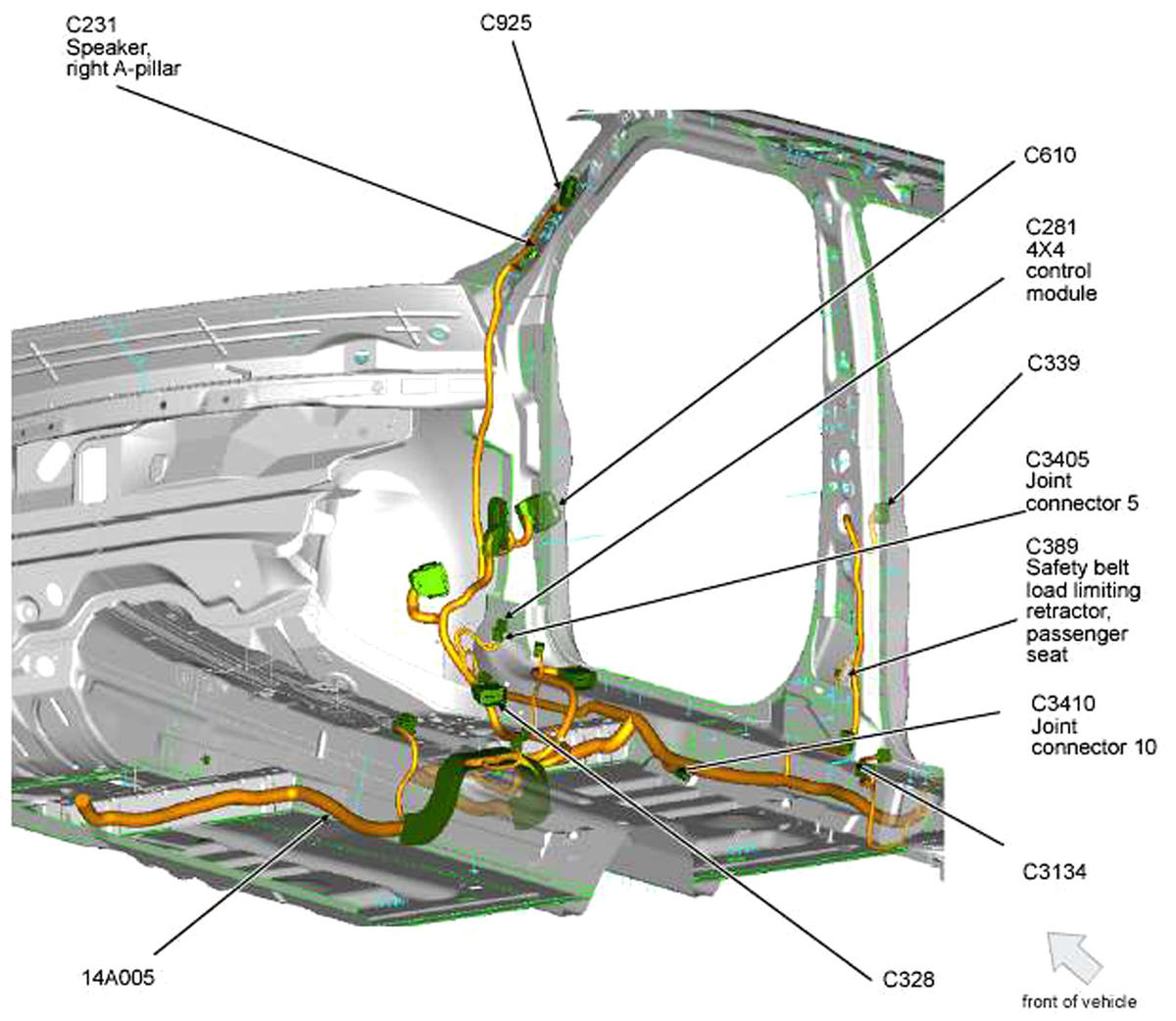

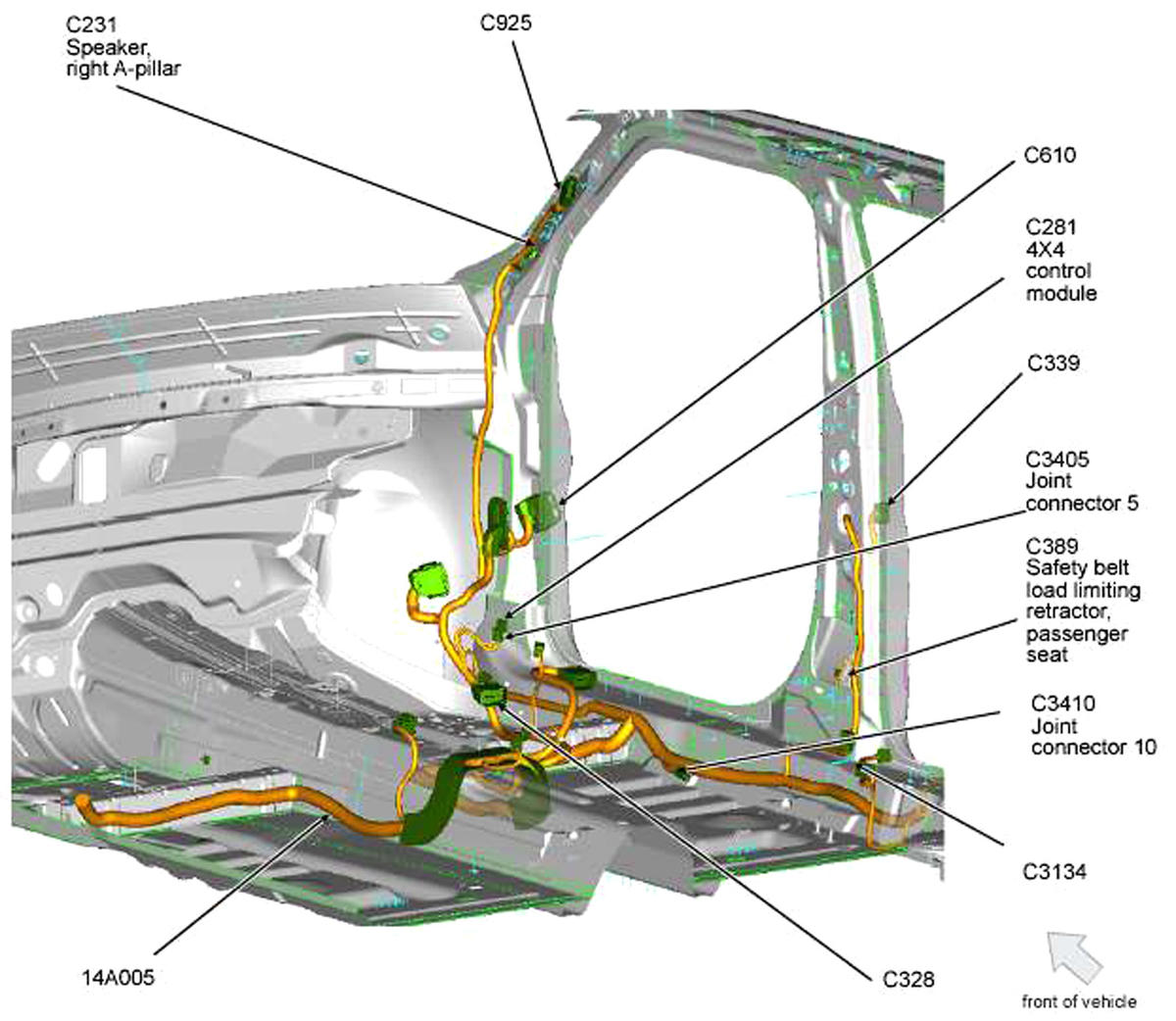

| 4X4 Control Module | Right kick panel. See Figure. |
