Steering Wheel: Notes

NOTE: Steering wheel with paddle shifters shown in illustration, steering wheel without paddle shifters similar.

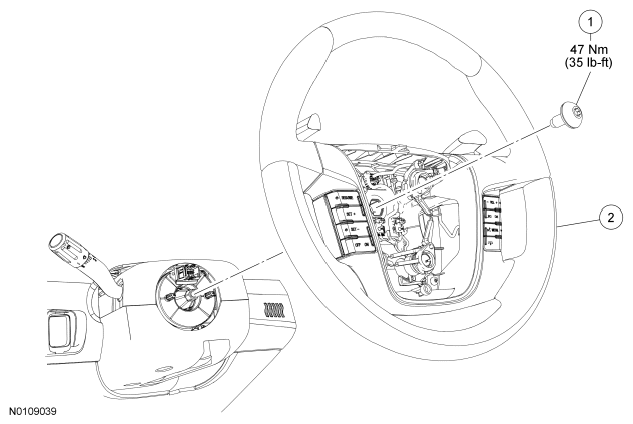

Fig 1: Steering Wheel And Steering Wheel Bolt With Torque Specifications
G06539470Courtesy of FORD MOTOR CO.
PARTS DESCRIPTION CHART

Item Part Number Description
1 W708887 Steering wheel bolt
2 3600 Steering wheel
