Audio Control Module (ACM)

Audio Control Module (ACM)









Removal and Installation

NOTE: It is not necessary to remove the Audio Control Module (ACM) in order to retrieve the part number. For additional information, refer to Audio Unit Part Number Retrieval Audio Unit Part Number Retrieval.

1. NOTE: Module configuration is only required if a new ACM is being installed. Upload the ACM configuration information to the scan tool. For additional information, refer to Programmable Module Installation (PMI) in Information Bus. Programmable Module Installation (PMI)

2. Remove the instrument panel center finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

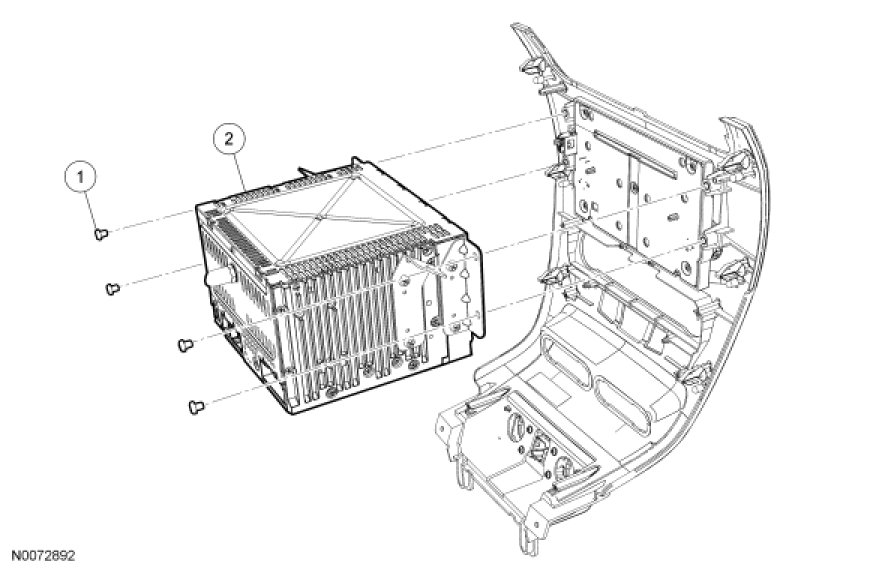

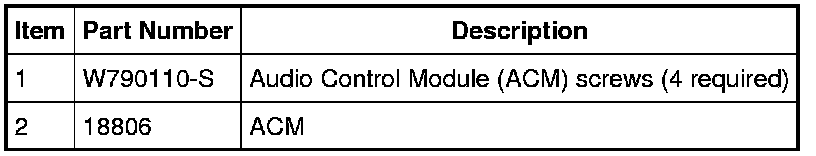

3. Remove the 4 screws and the ACM.

4. To install, reverse the removal procedure.
- Download the configuration information to the ACM. For additional information, refer to PMI in Information Bus. Programmable Module Installation (PMI)
