Test EA: Pressure And Temperature Sensor Correlation

PINPOINT TEST EA: PRESSURE AND TEMPERATURE SENSOR CORRELATION

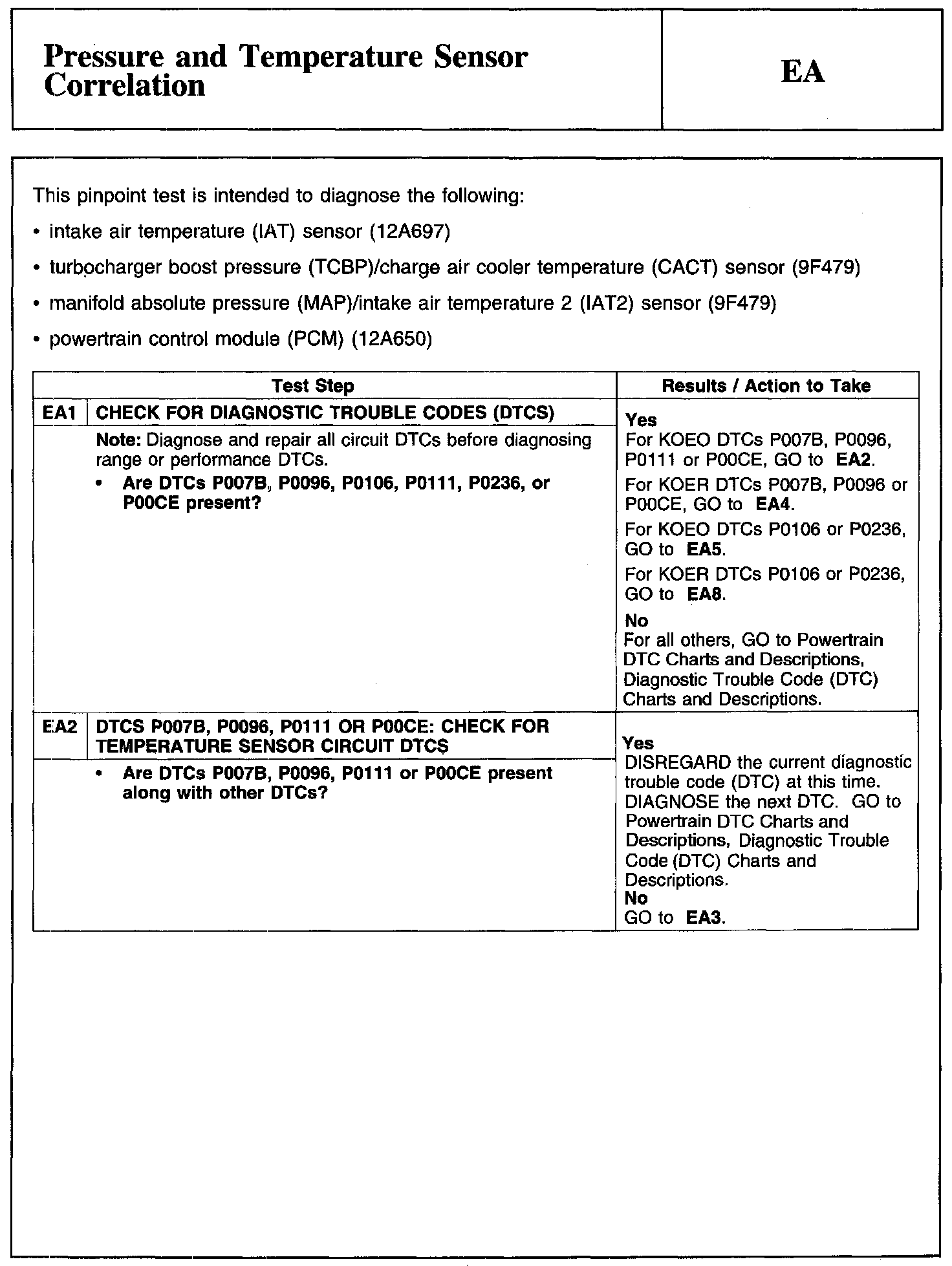

EA1-EA2:

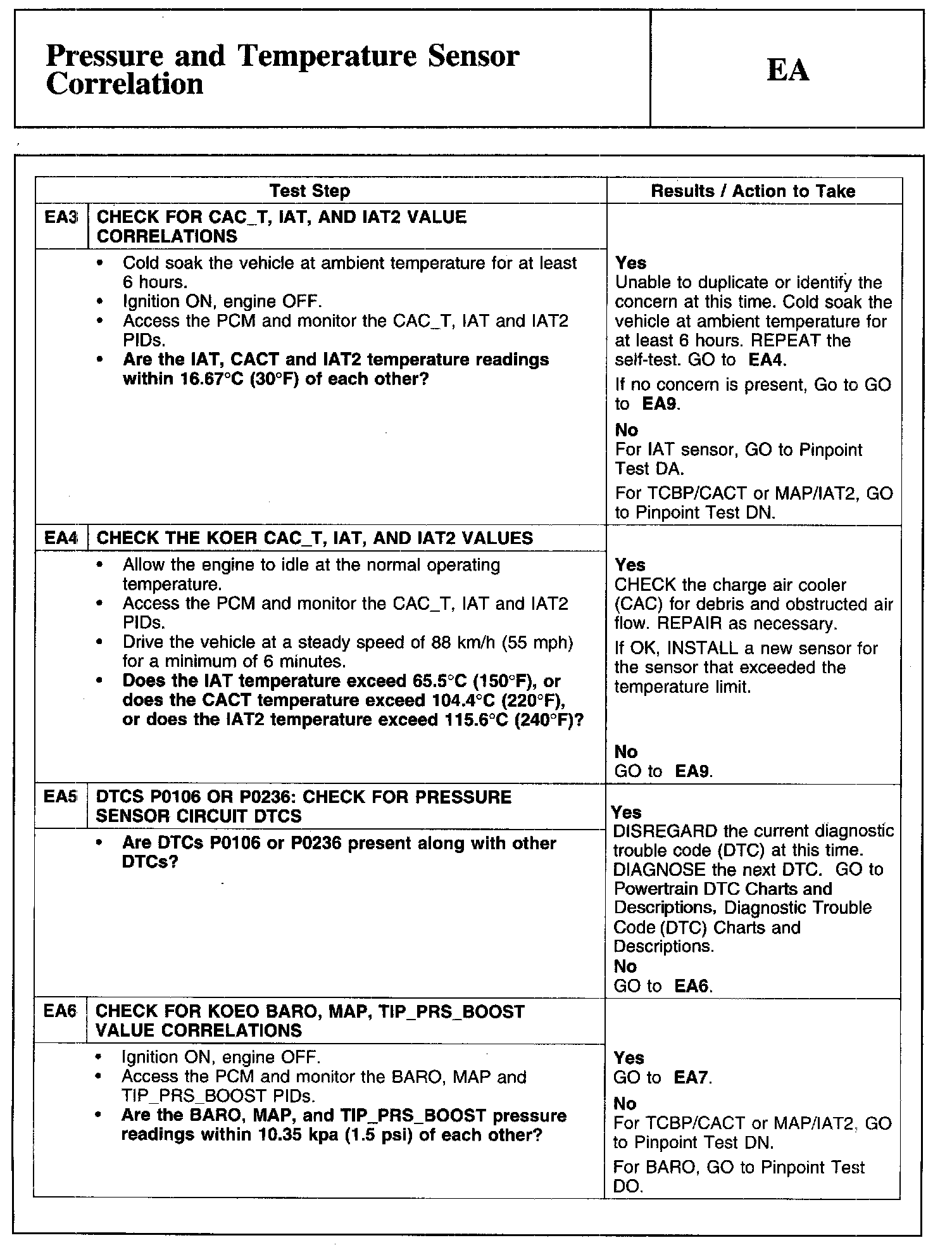

EA3-EA6:

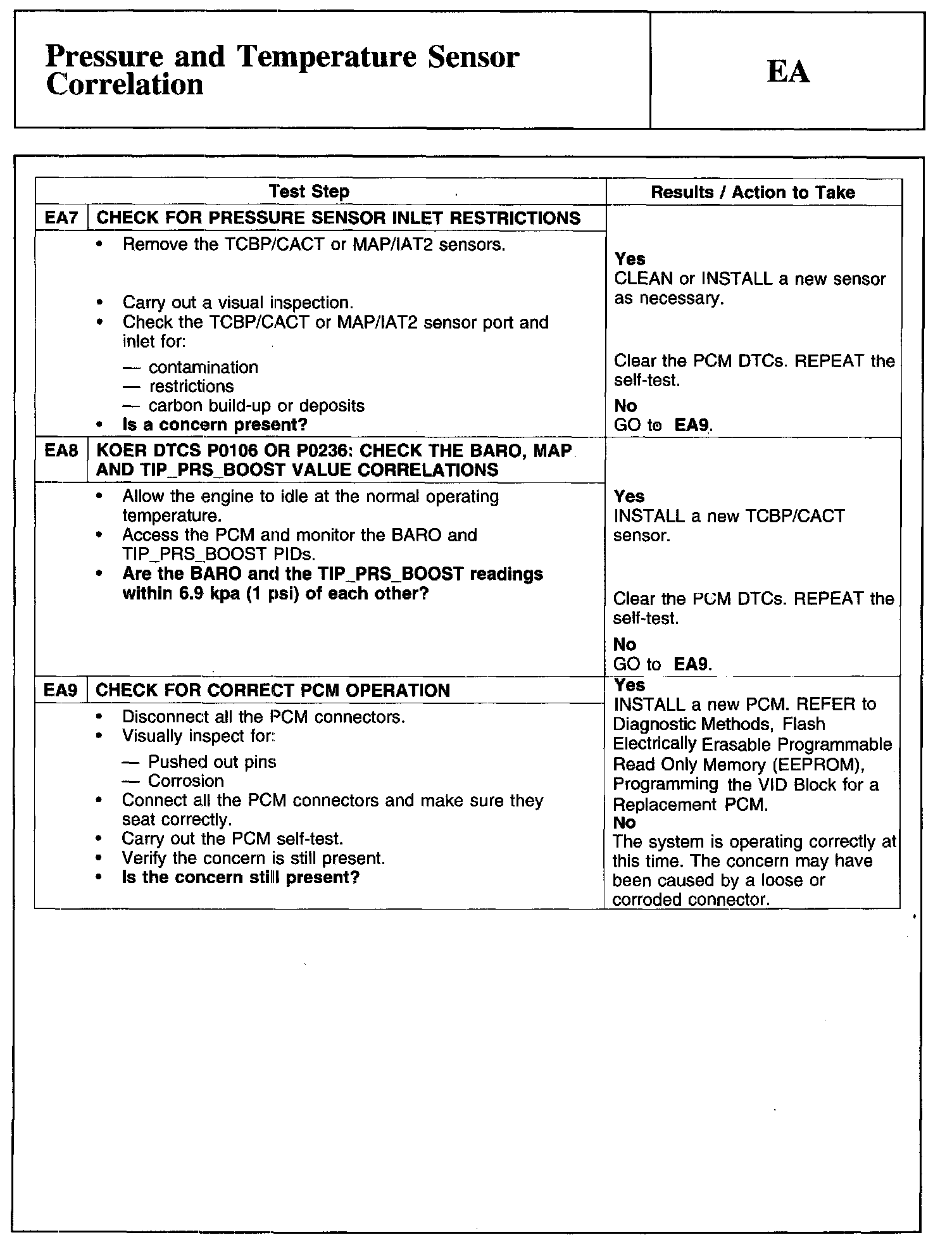

EA7-EA9:
