Power Window Switch: Service and Repair

Window Control Switch

Removal and Installation

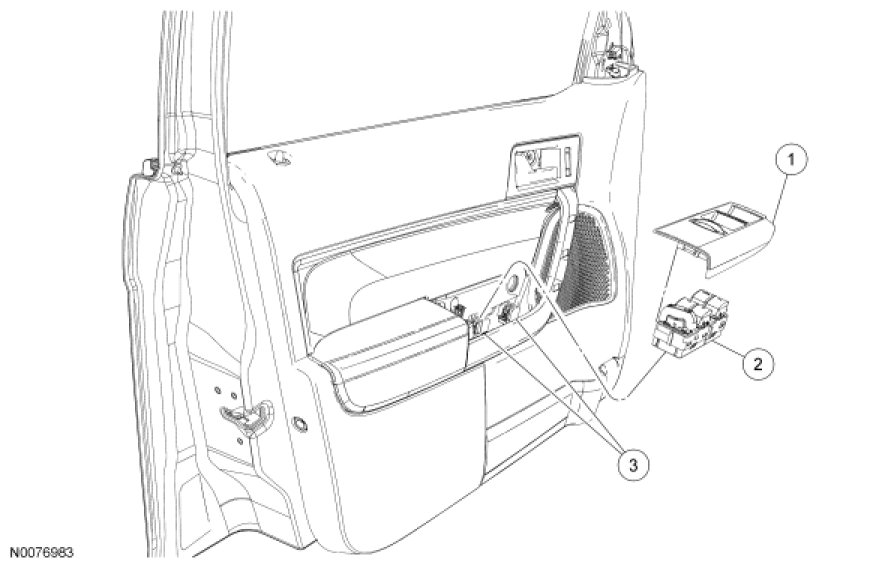

NOTE: Driver window control switch shown, all others similar.











1. NOTE: Front window control switch shown, all others similar.

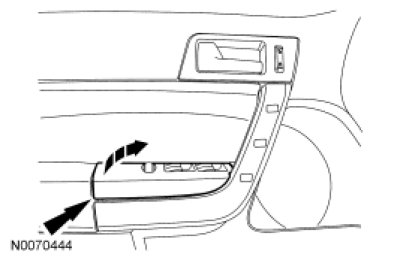

Lift upward at the rear of the window control switch panel.

- Disconnect the electrical connector(s).

- Remove the control switch.





2. To install, reverse the removal procedure.
