Cabin Temperature Sensor / Switch
>>
In-Vehicle Temperature/Humidity Sensor
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

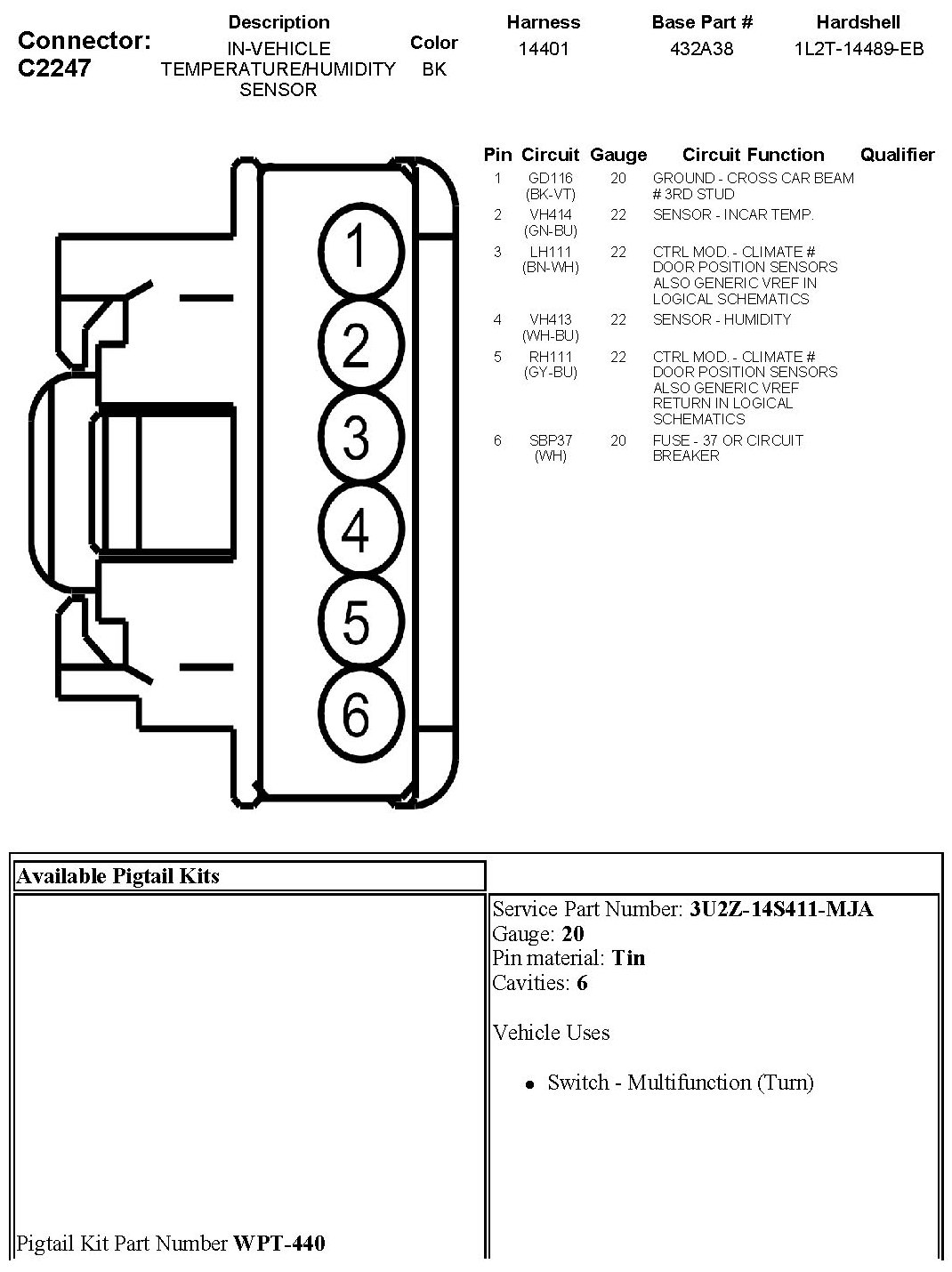

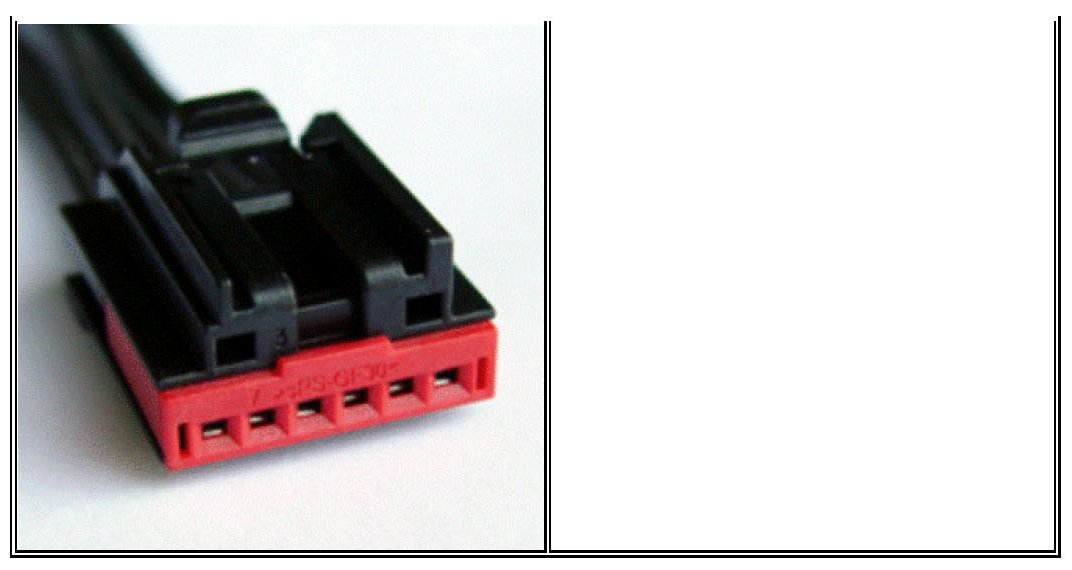

In-Vehicle Temperature/Humidity Sensor
