Ambient Lighting Module

Ambient Lighting Module

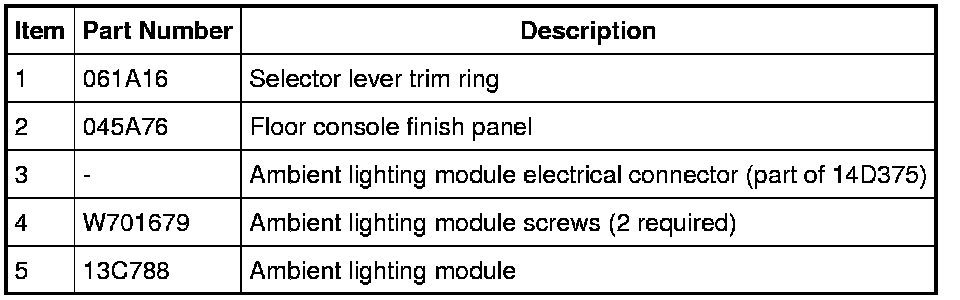

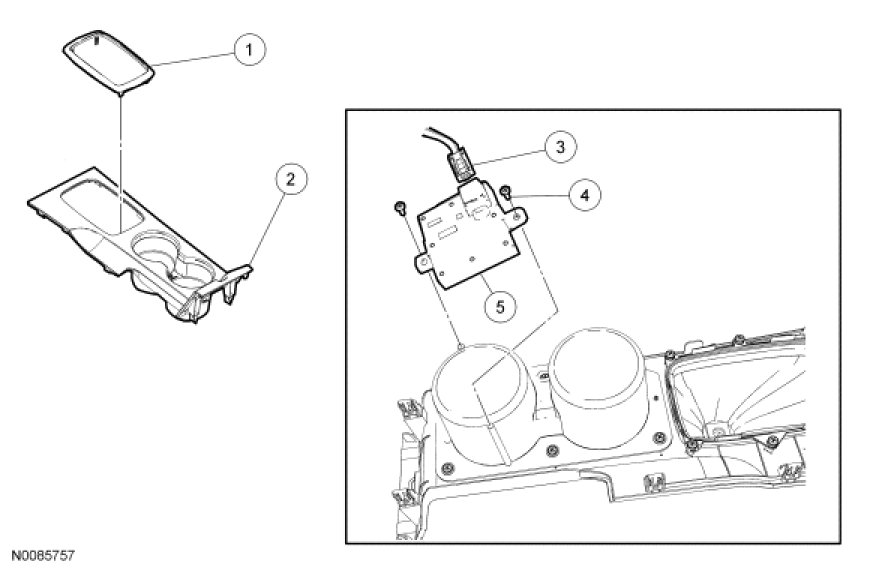

Removal and Installation

1. If equipped with an automatic transaxle, remove the selector lever trim ring.

2. If equipped with a manual transaxle, remove the gearshift knob.

3. Open the storage compartment door.

4. Pull the floor console finish panel straight up to release the retainer clips and remove the finish panel.
- Disconnect the ambient lighting module electrical connector.

5. Remove the 2 screws and the ambient lighting module.

6. To install, reverse the removal procedure.
