Symptom Related Diagnostic Procedures




Communications Network

Symptom Chart

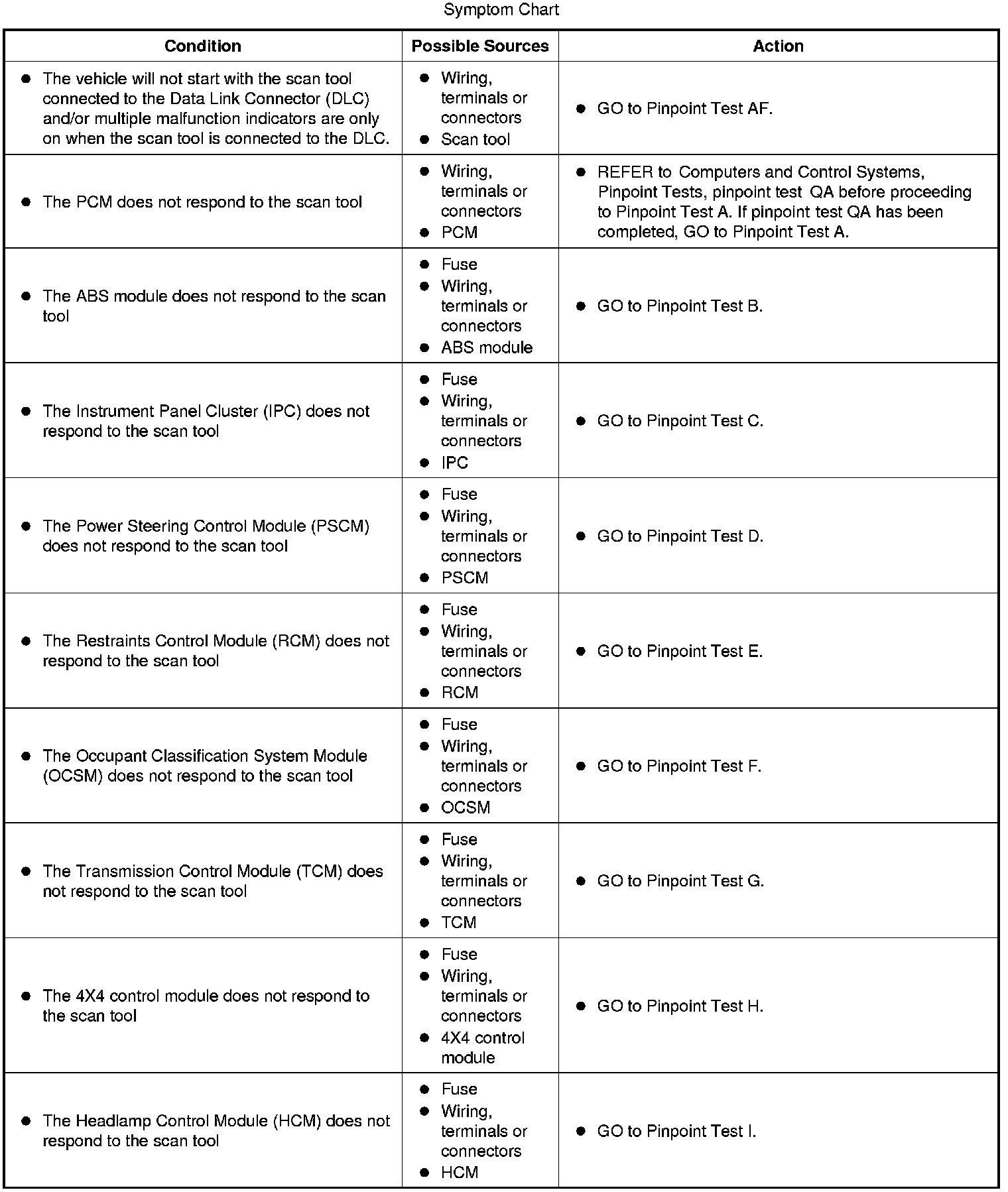

Symptom Chart (Part 1):

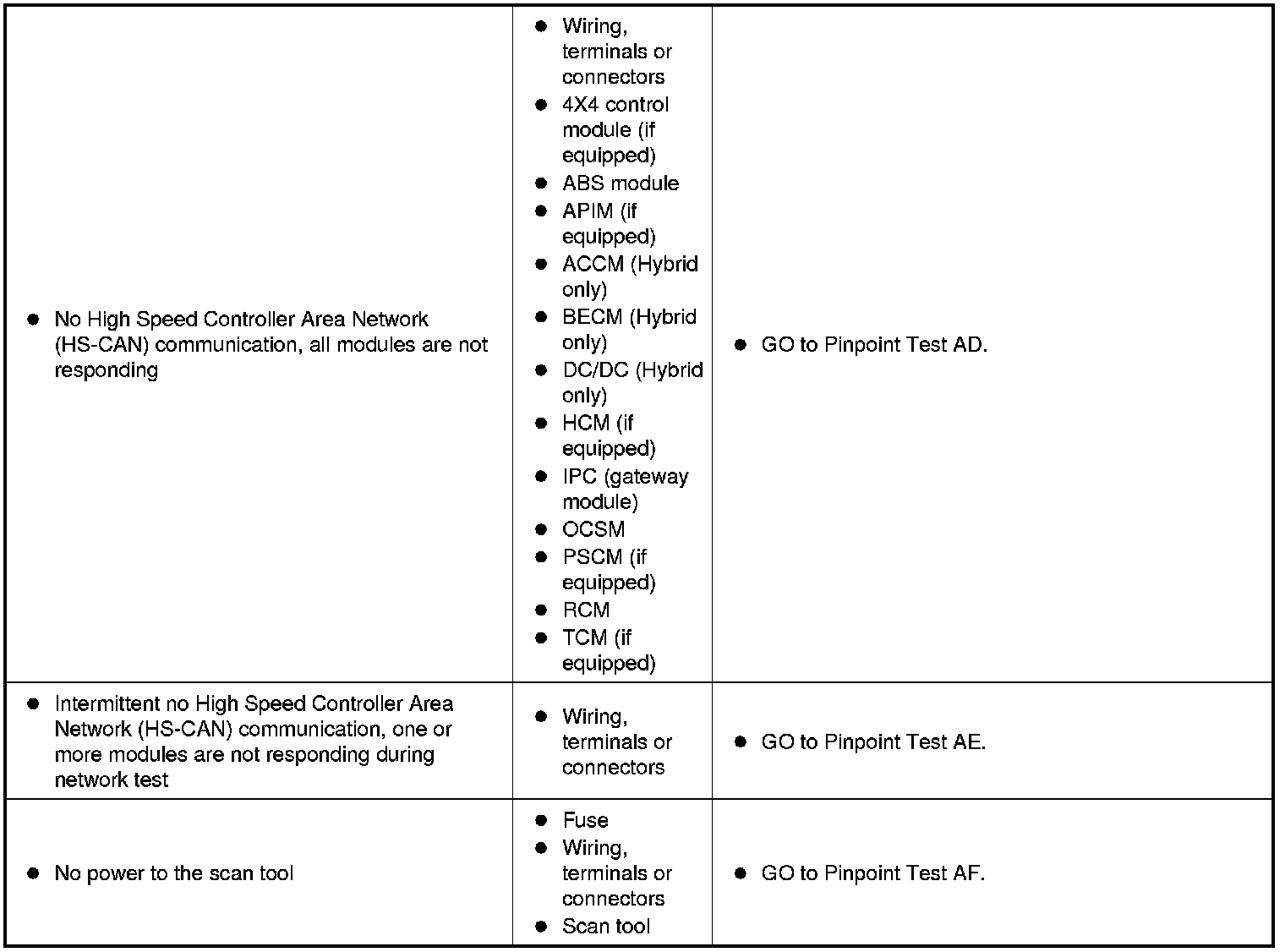

Symptom Chart (Part 2):

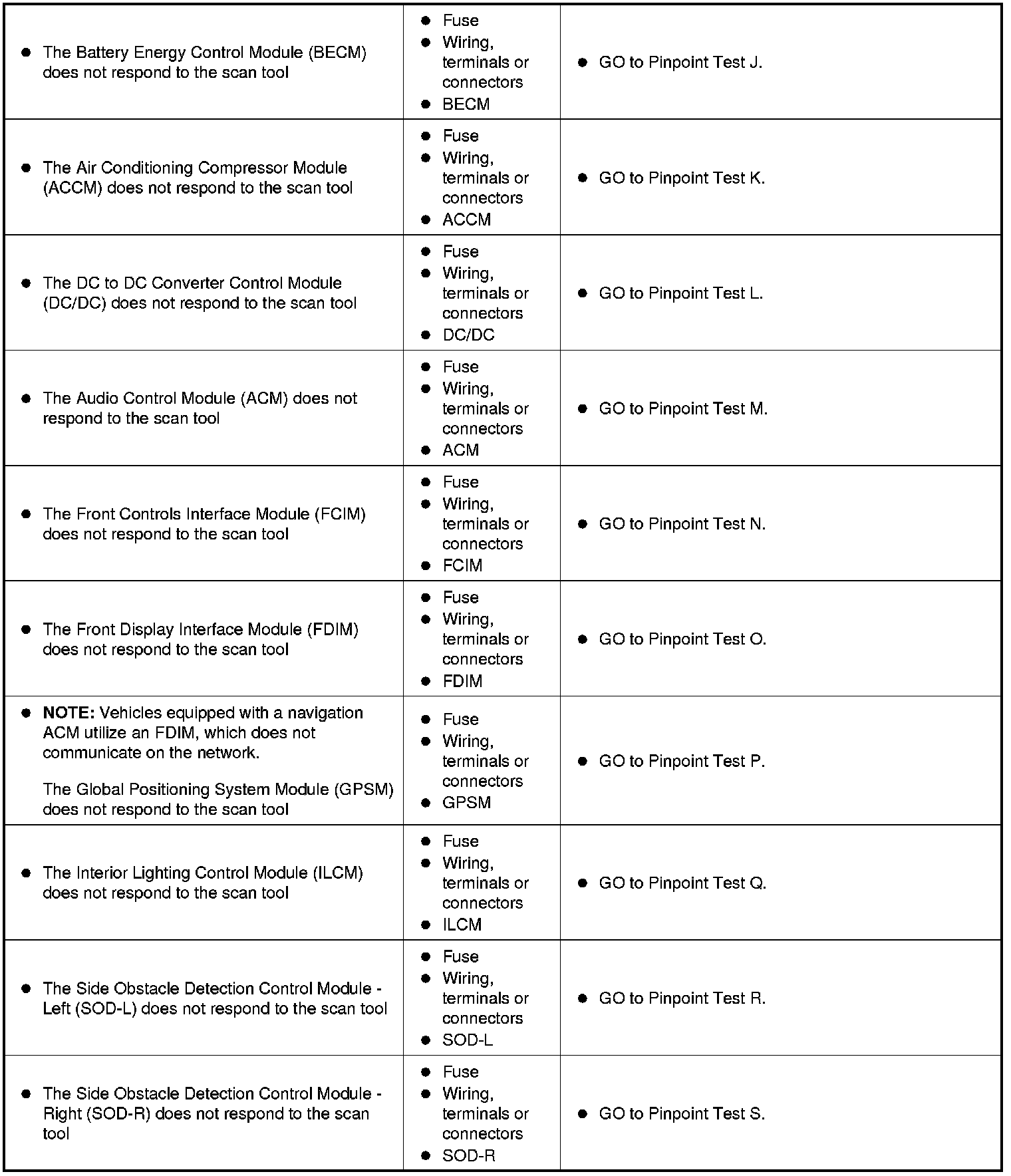

Symptom Chart (Part 3):

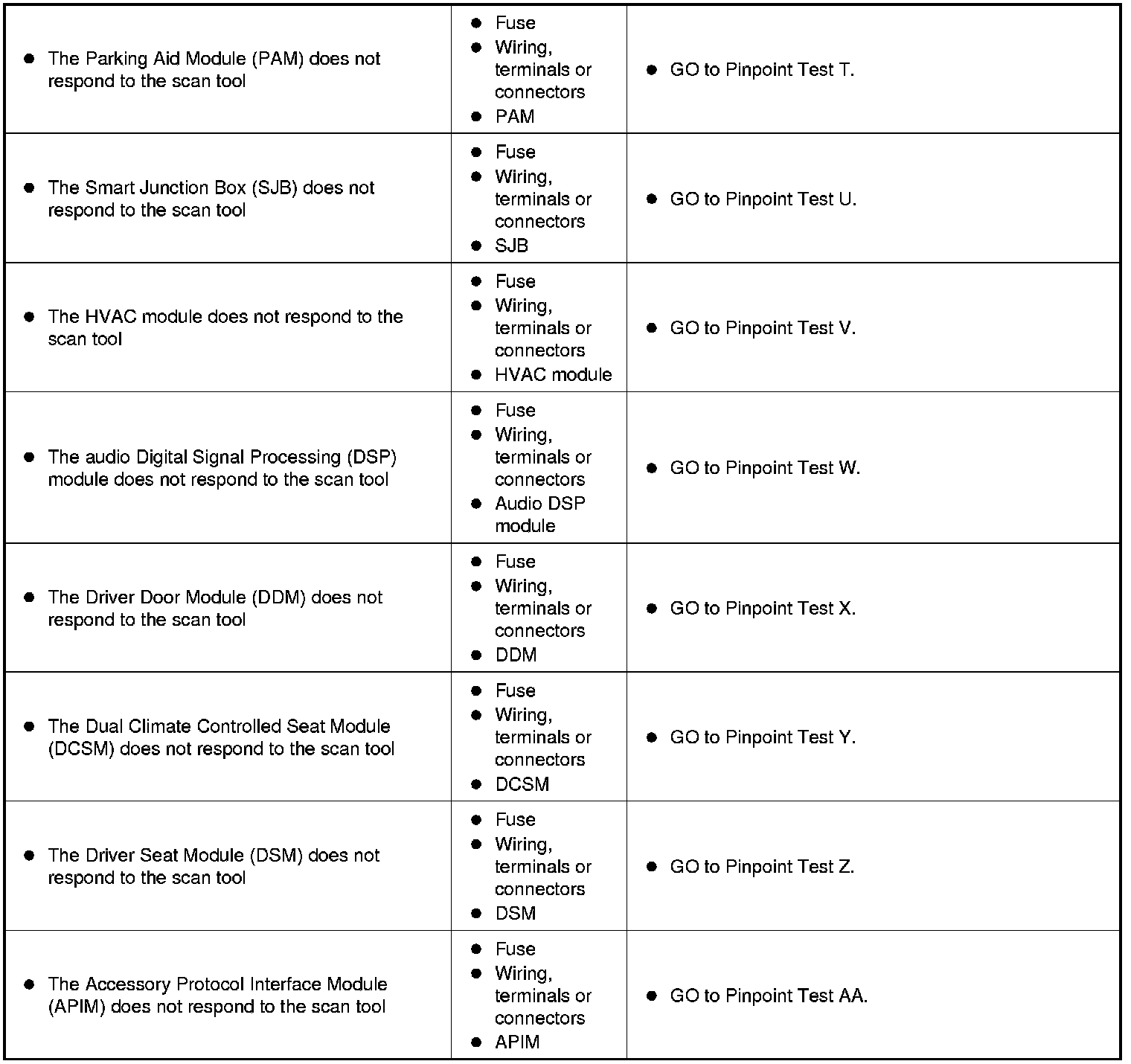

Symptom Chart (Part 4):

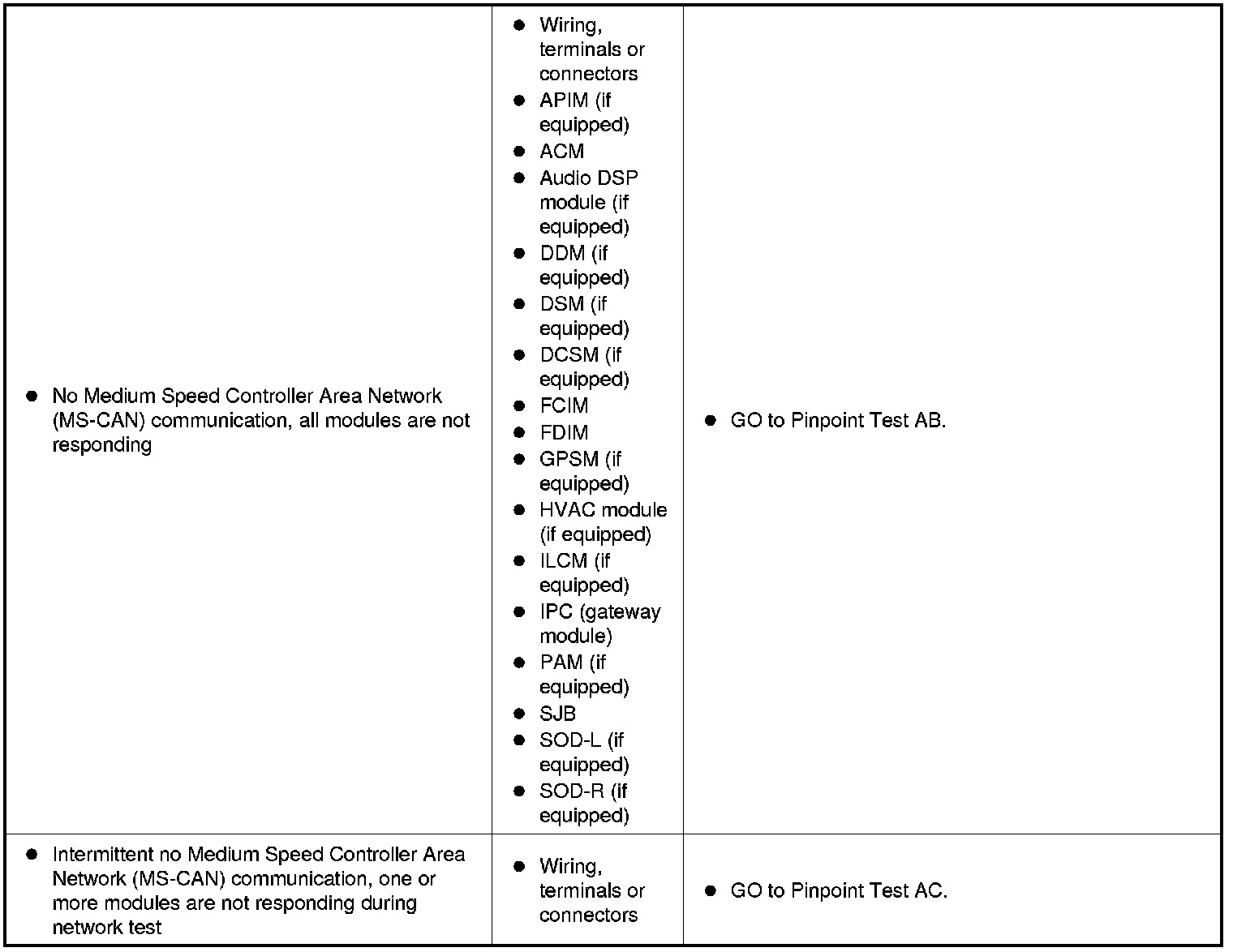

Symptom Chart (Part 5):
