Cruise Control Switch




Cruise Control Switch

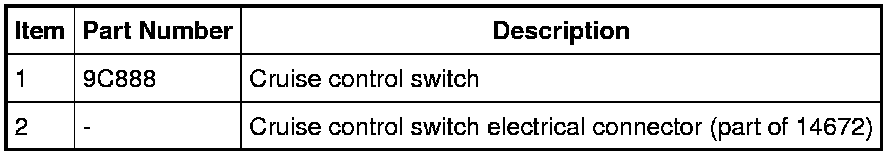

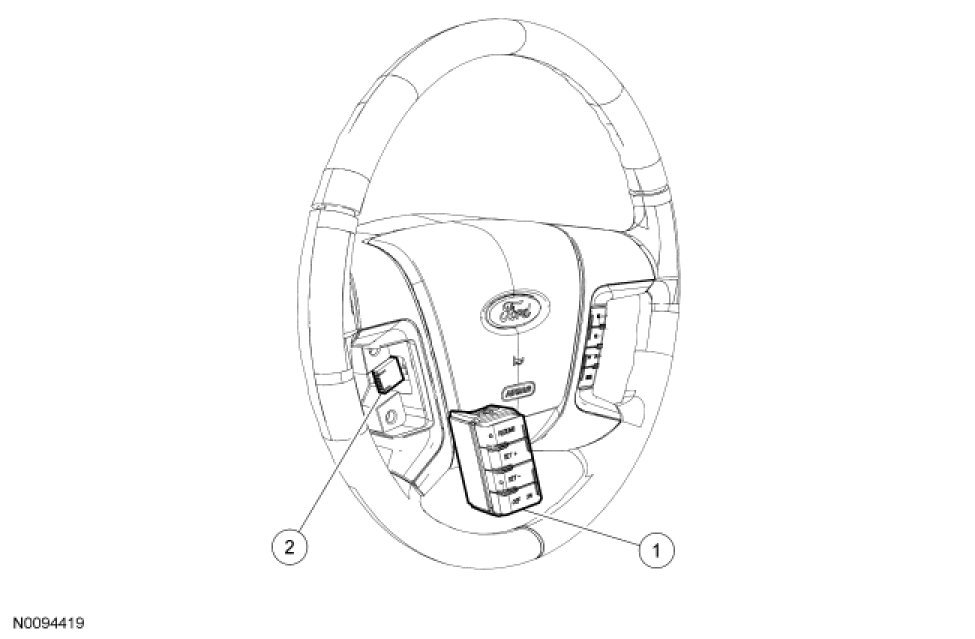

Without Bezel

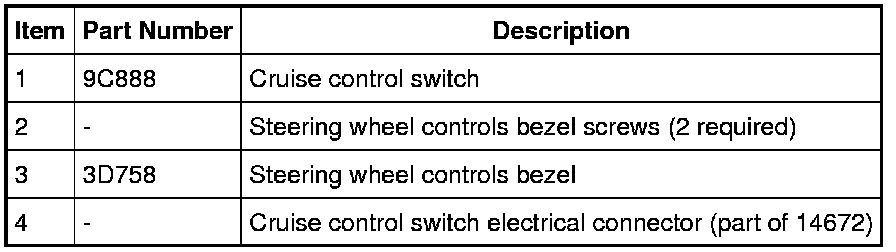

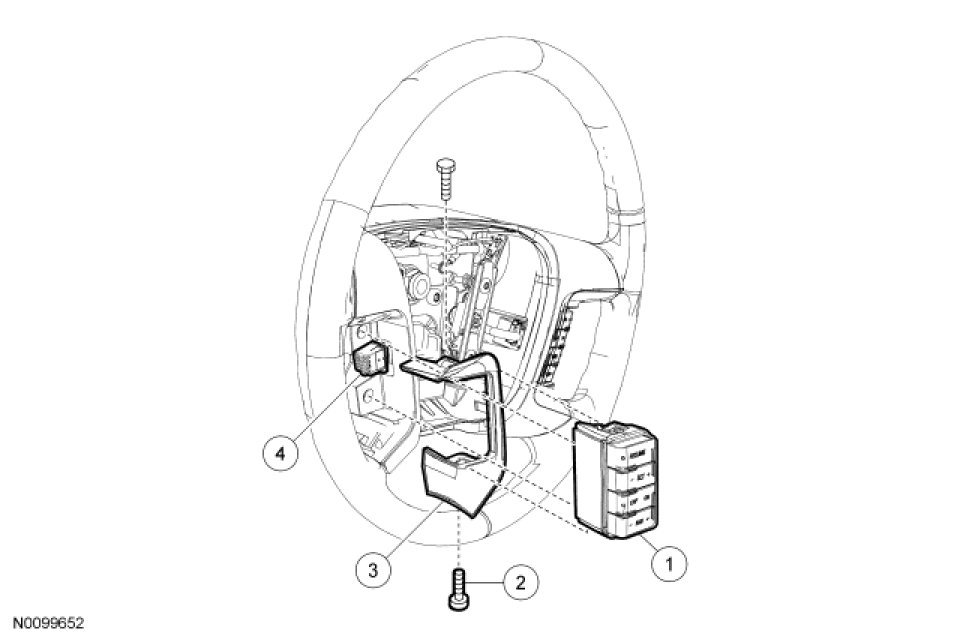

With Bezel









Removal and Installation

1. Remove the center steering wheel bezel. For additional information, refer to Steering Column.

2. Remove the cruise control switch and bezel by prying the switch with a suitable tool, such as a flat bladed screw driver, toward the rear of the vehicle.
- Disconnect the electrical connector.

3. Remove the screws and the steering wheel controls bezel, if equipped.

4. To install, reverse the removal procedure.
