Steering Column Assembly

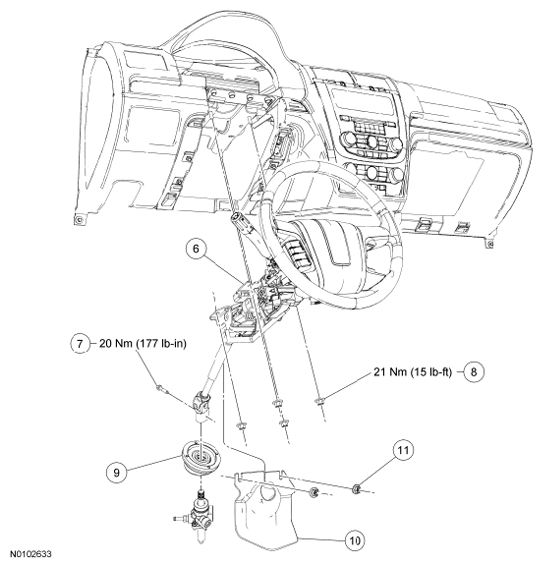

Fig 1: Identifying Steering Column Assembly Replacement Components With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION TABLE

Item	Part Number	Description
6	3C529	Steering column
7	3R827	Upper steering column shaft-to-lower steering column shaft bolt
8	N806423	Steering column support bracket nut (4 required)
9	3C611B	Steering gear/dash seal
10	3C611A	Lower steering column shaft joint cover
11	W704904	Lower steering column shaft joint cover nut (2 required)
