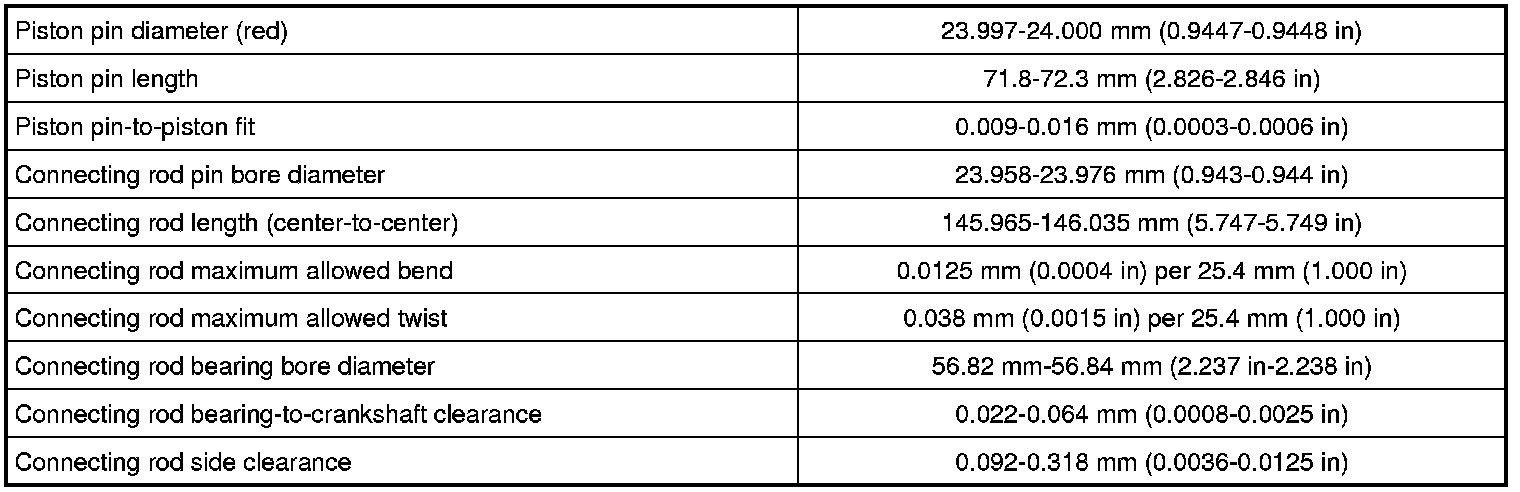

Connecting Rod, Engine

CONNECTING ROD











ROD BEARING CAP

Tighten the connecting rod nuts simultaneously in 2 stages:
Stage 1: Tighten to 20 Nm (177 lb-in).
Stage 2: Tighten an additional 90 degrees.
