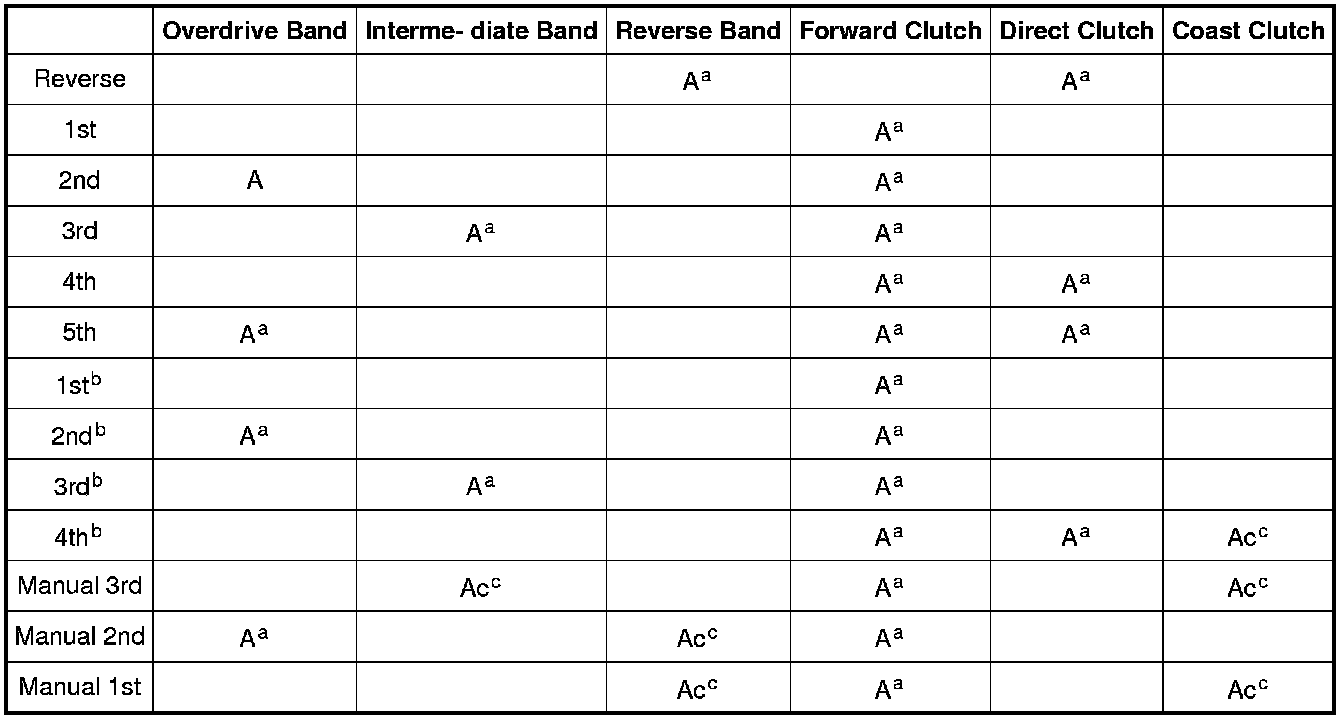

Band/Clutch Application Chart

Band/Clutch Application Chart A





a A = Applied
b D Position ((D) cancelled)
c Ac = Applied to carry coast torque

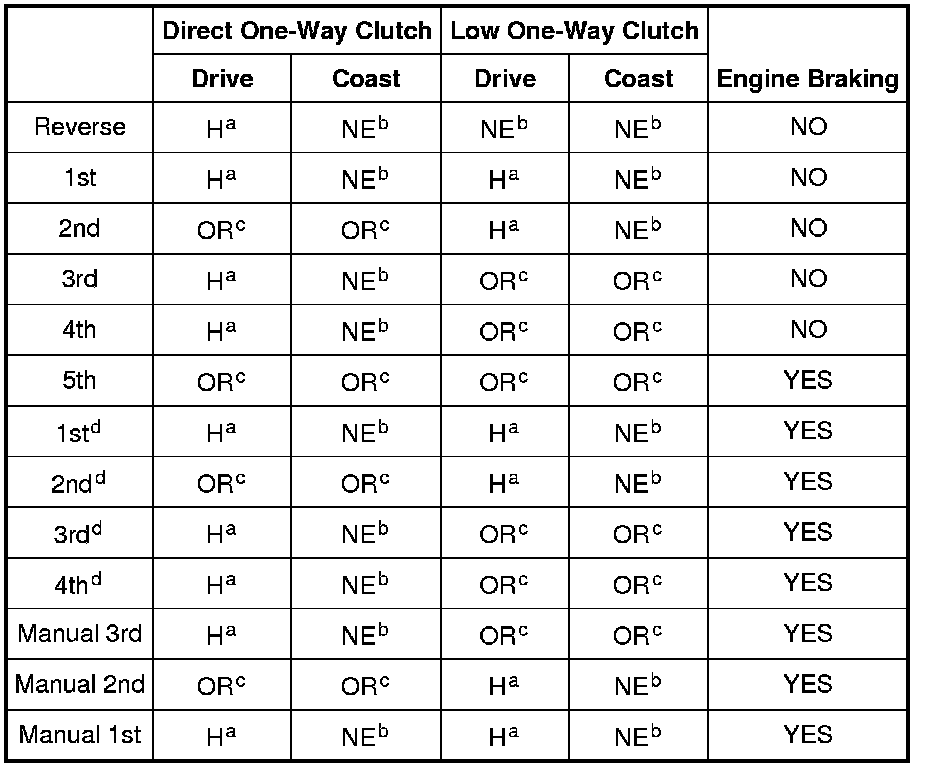

Band/Clutch Application Chart B





a H = Hold
b NE = No effect
c OR = Overrunning
d D Position ((D) cancelled)
