Front Disc Brake

Disc Brake System - Exploded View

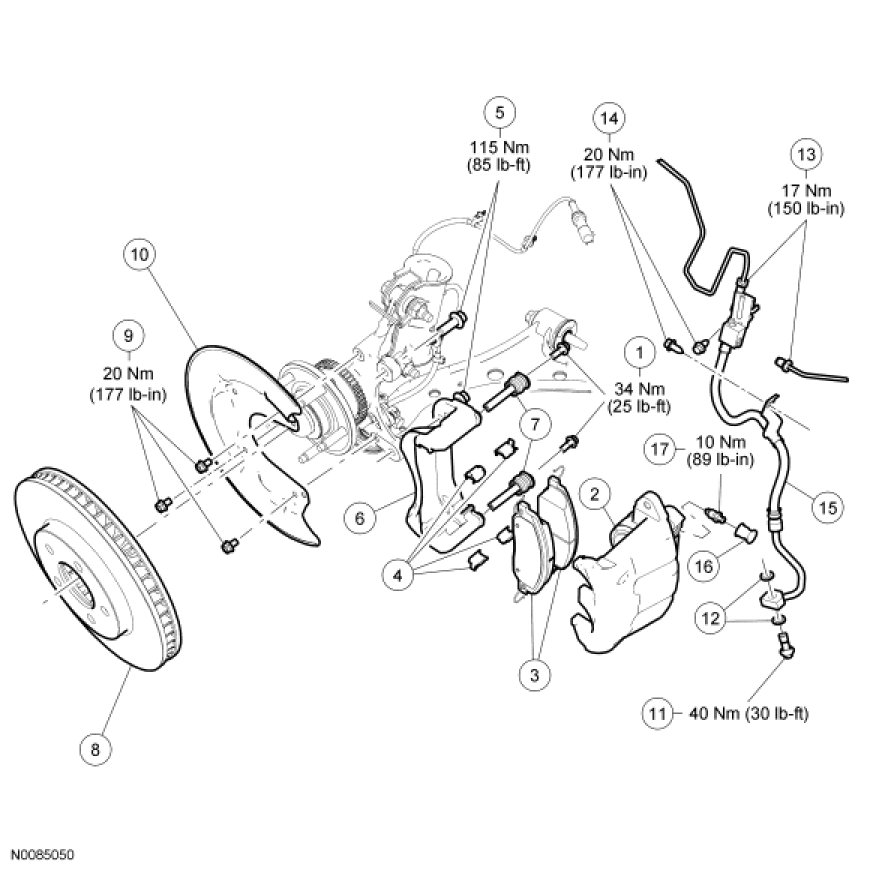

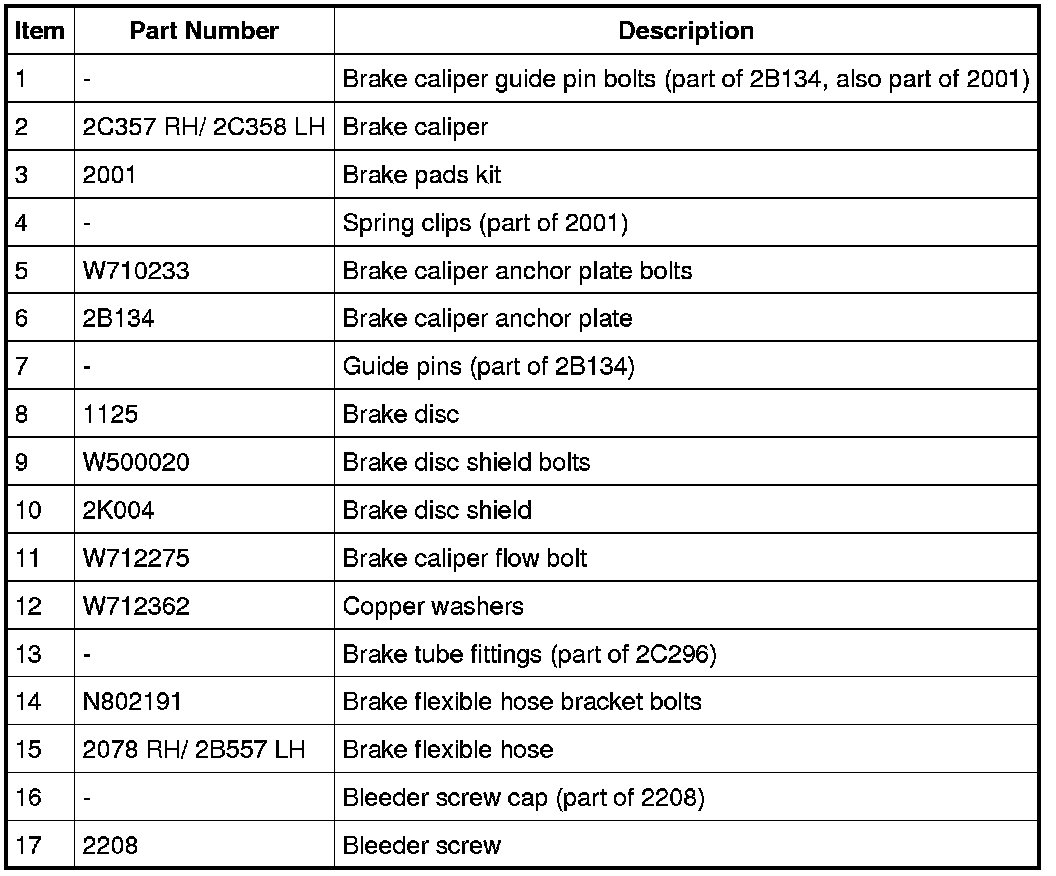

4.0L SOHC and 4.6L (3V)

NOTE: LH shown, RH similar.

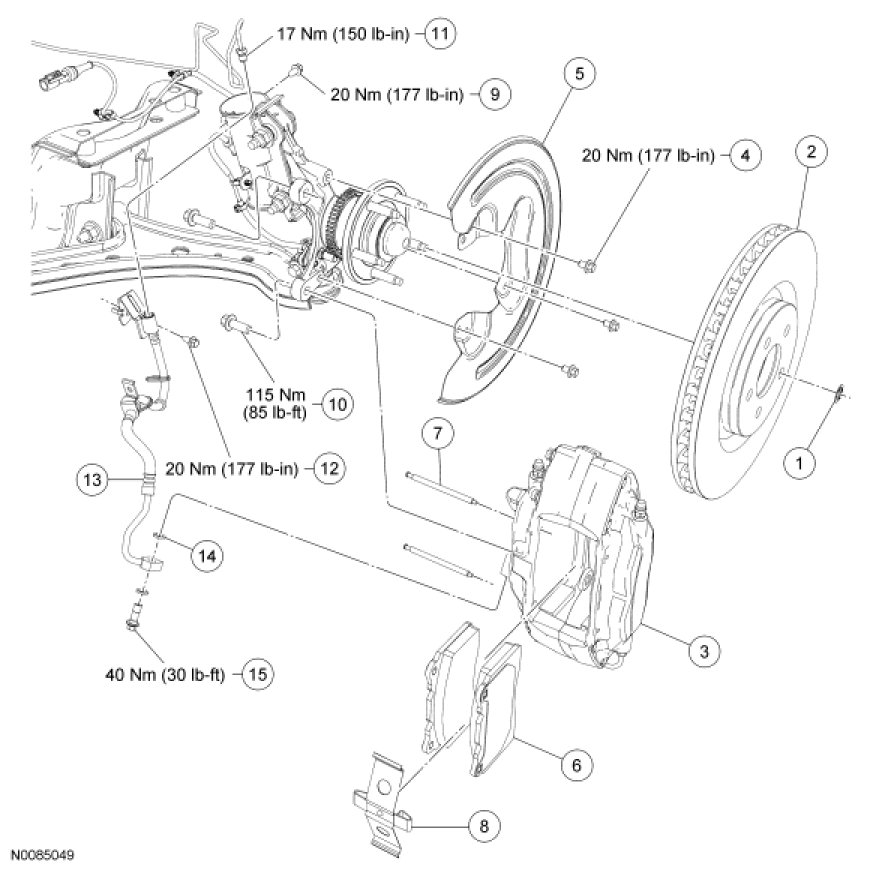

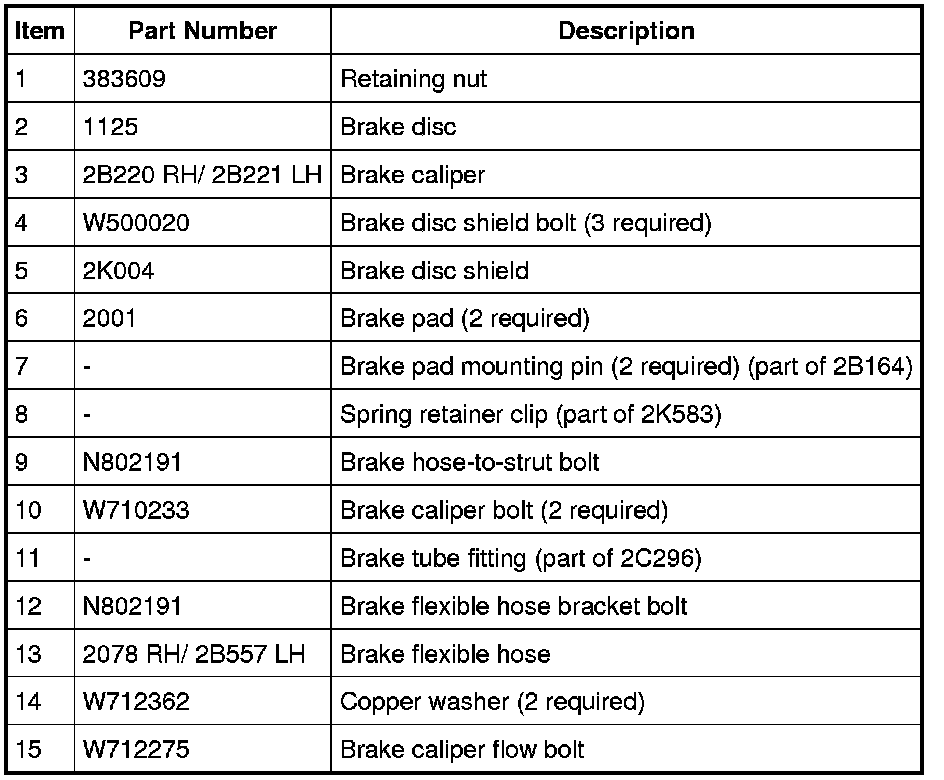

5.4L

NOTE: RH shown, LH similar











1. NOTE: A revised part, with the same base part number, has been released for the RH brake hose. When installing a new RH brake hose, position the anti-rotation tab on the mounting bracket toward the front of the vehicle and install the bolt with the head toward the rear of the vehicle.
