Oil Filter, Engine

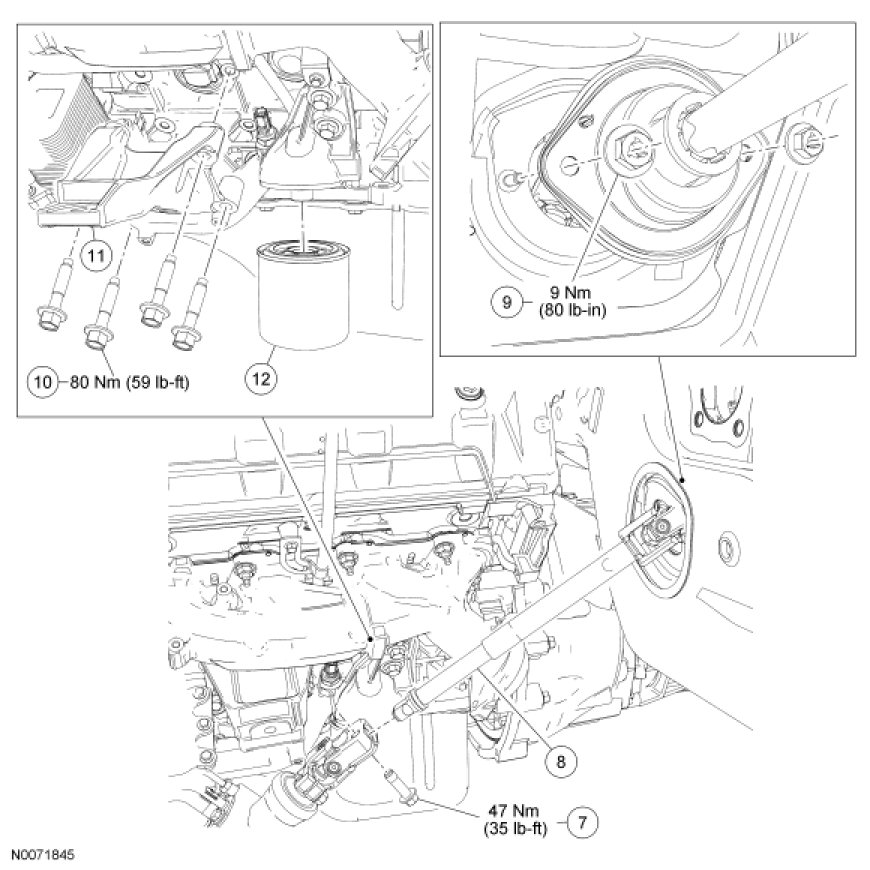

Engine Lubrication Components - Exploded View

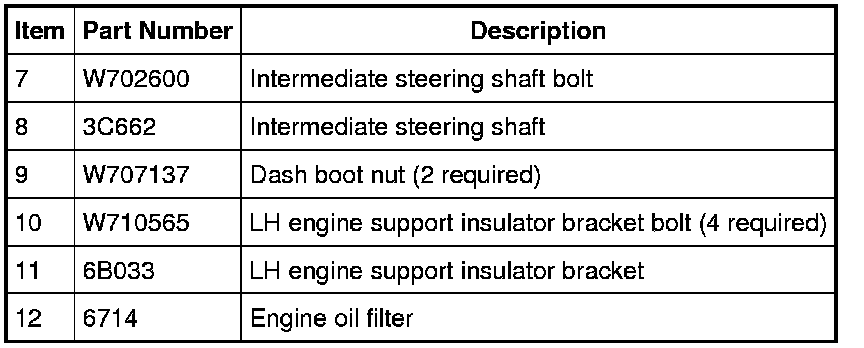

Intermediate Shaft, LH Support Insulator and Engine Oil Filter
