Engine Control Module: Service and Repair

Powertrain Control Module (PCM)









Removal

1. Retrieve the module configuration. Carry out the module configuration retrieval steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Information Bus.

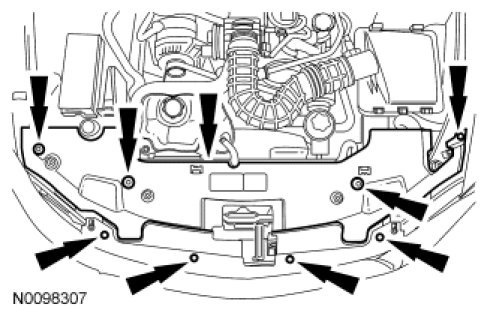

2. Remove the 8 retainers and the radiator sight shield.

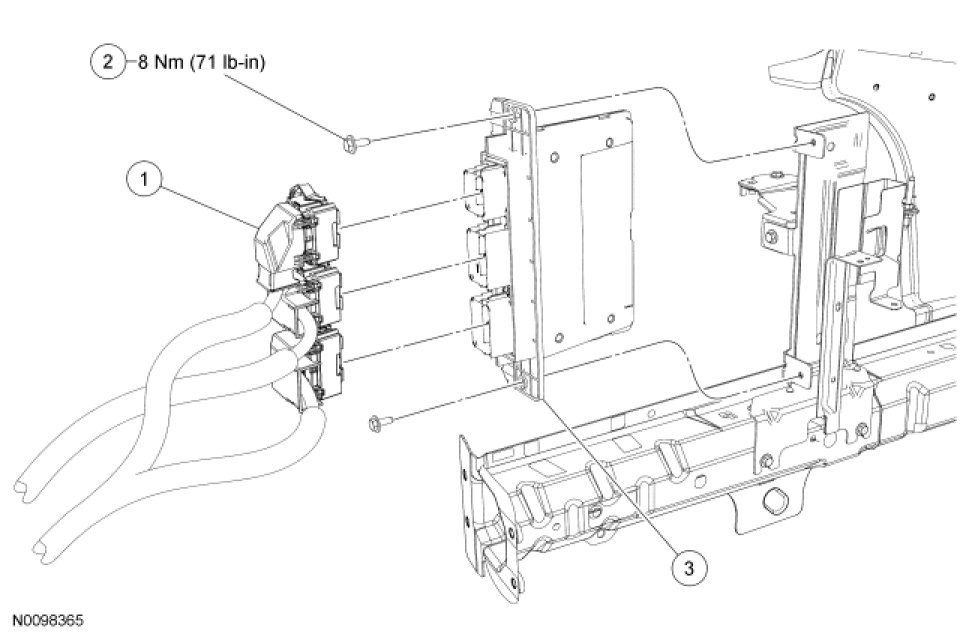

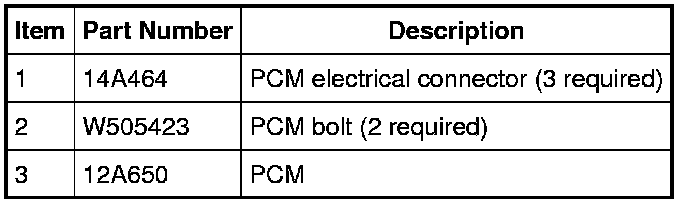

3. Disconnect the 3 PCM electrical connectors.

4. Remove the 2 bolts and the PCM.

Installation

1. Install the PCM and the 2 bolts.
- Tighten to 8 Nm (71 lb-in).

2. Connect the 3 PCM electrical connectors.

3. Install the radiator sight shield and the 8 retainers.





4. Restore the module configuration. Carry out the module configuration restore steps of the Programmable Module Installation (PMI) procedure. For additional information, refer to Information Bus.
