Timing Cover

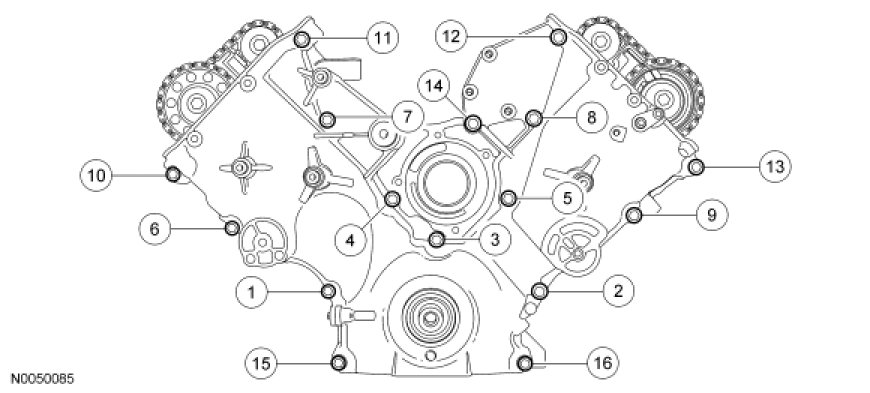

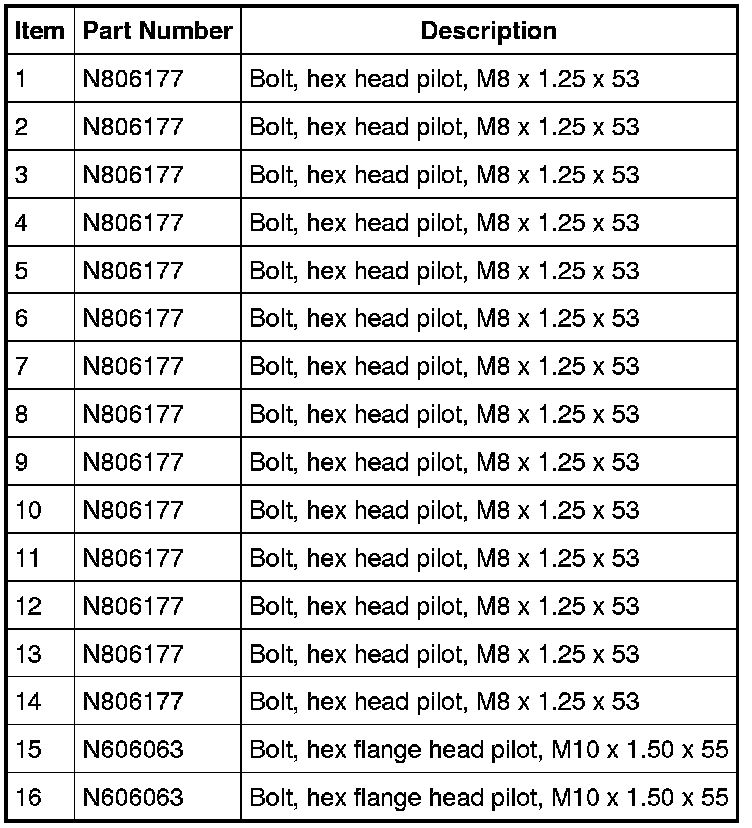

Using new gaskets, install the engine front cover and the 16 bolts. Tighten the bolts in the sequence shown:
Stage 1: Bolts 1 through 14 to 25 Nm (18 lb-ft).
Stage 2: Bolts 15 and 16 to 50 Nm (37 lb-ft).











Install the 2 oil pan-to-engine front cover bolts and the 2 oil pan-to-engine front cover stud bolts.
Tighten to 25 Nm (18 lb-ft).
