Wiper and Washer Systems




Wiper and Washer System - Exploded View

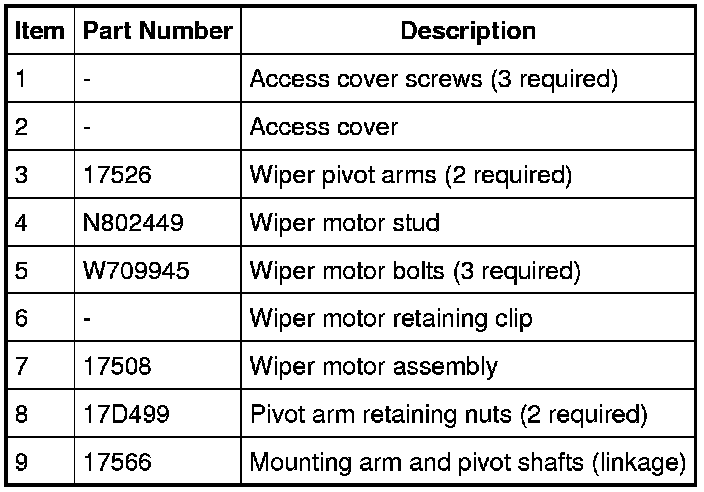

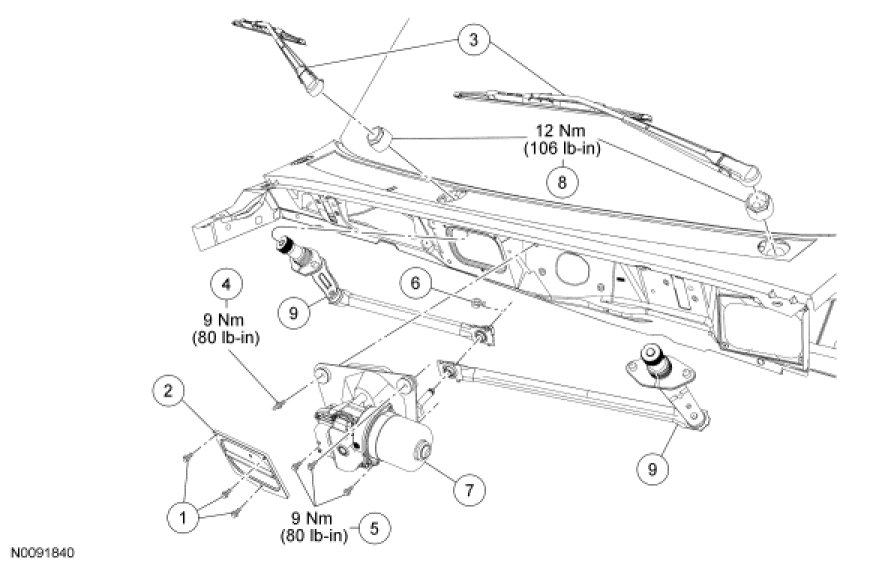

Windshield Wipers

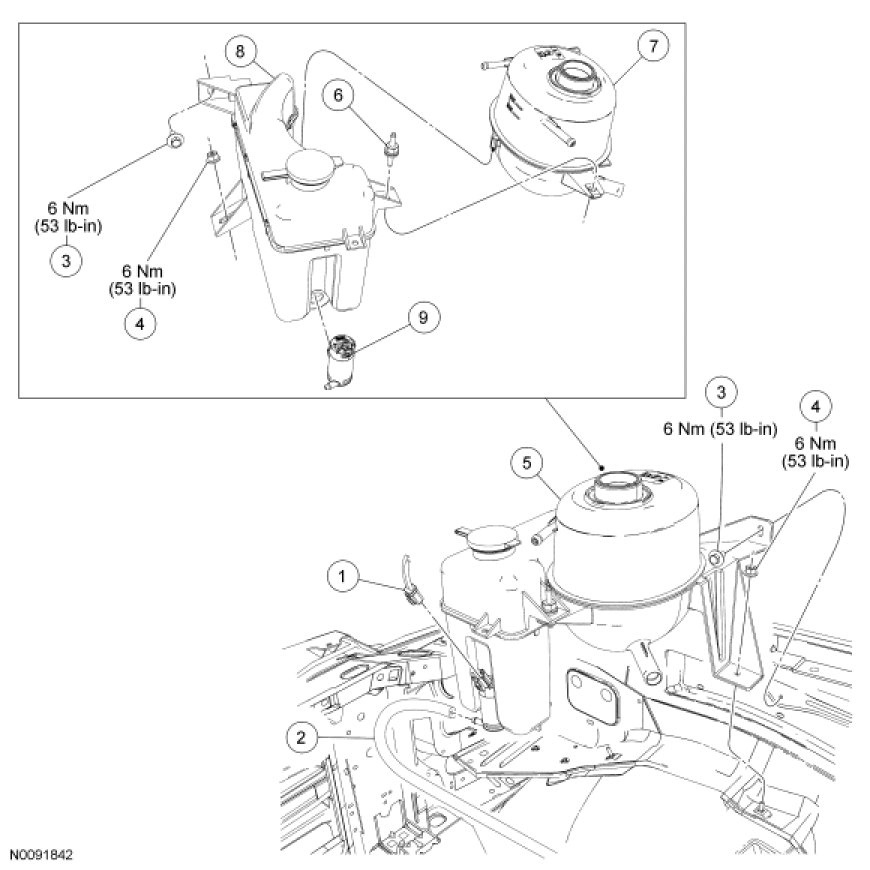

Washer Pump and Reservoir - 4.0L SOHC

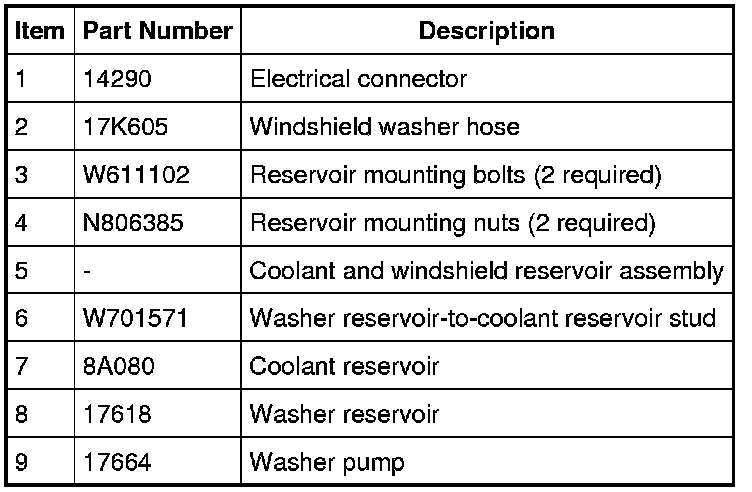

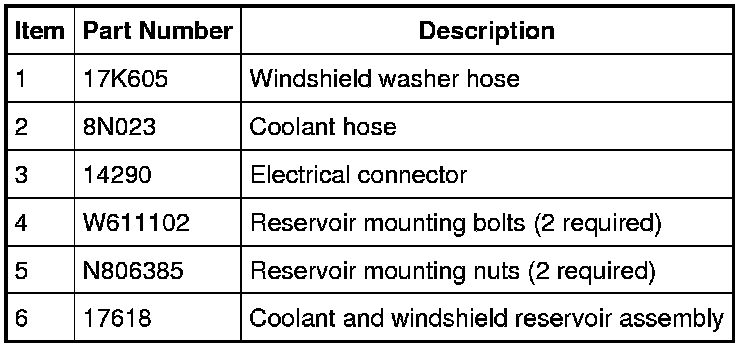

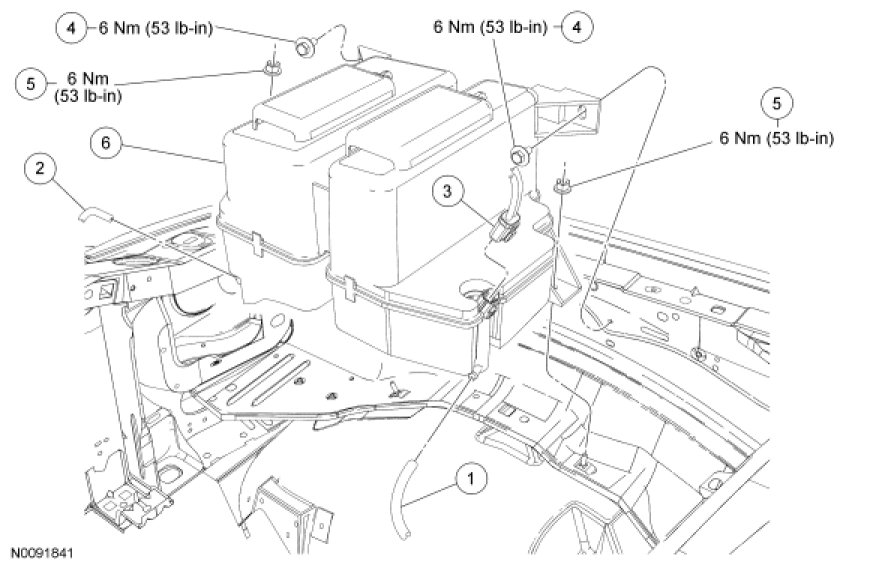

Washer Pump and Reservoir - 2.3L
