Interior Lighting Module: Service and Repair

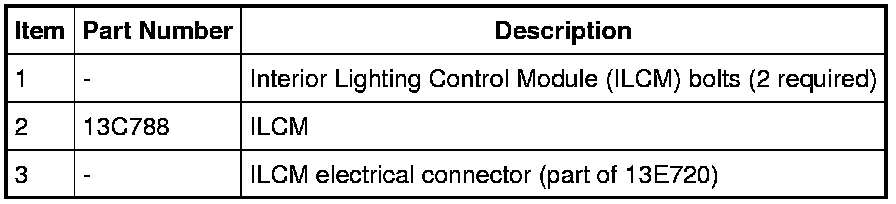

Interior Lighting Control Module (ILCM)









Removal and Installation

1. Remove the RH instrument panel finish panel. For additional information, refer to Instrument Cluster / Carrier &/or Interior Moulding / Trim.

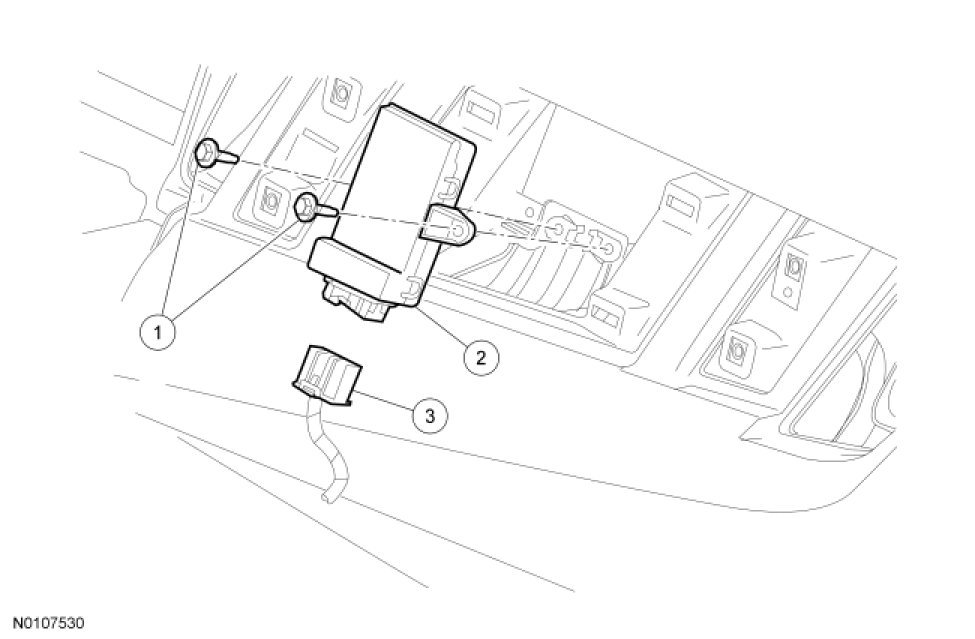

2. Remove the 2 bolts and the ILCM.

3. To install, reverse the removal procedure.
