Driver Seat Module (DSM)

Driver Seat Module (DSM)

DTC Charts

NOTE: Refer to Description and Operation, Intelligent Access (IA) with Push Button Start in Antitheft and Alarm Systems to review the procedures for achieving the various ignition states (ignition in accessory, ignition on, ignition start, ignition off) on vehicles with this feature.

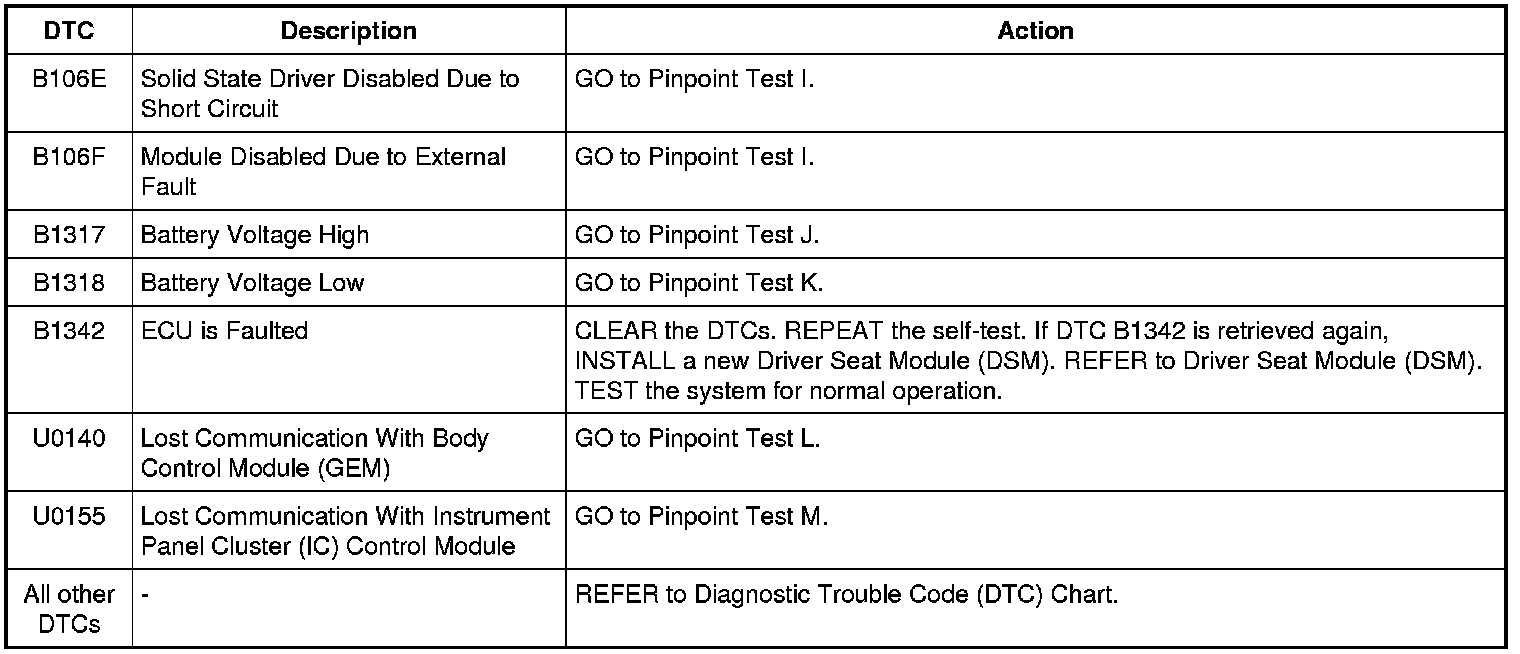

Driver Seat Module (DSM) DTC Chart
