Fuel Injection Pump Roller Tappet Inspection

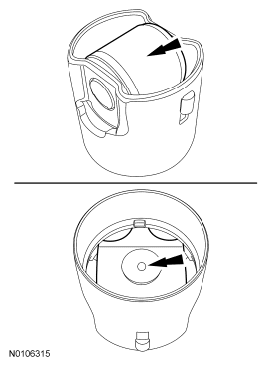

  1. Inspect the fuel injection pump roller tappet for flat spots or scoring, especially in the indicated areas. If any damage is found, inspect the fuel injection pump roller tappet camshaft lobe. Install new components as necessary.
    Fig 1: Locating Fuel Injection Pump Roller Tappet Camshaft Lobe
    G06261342Courtesy of FORD MOTOR CO.
