Throttle Body - 3.5L GTDI: Notes

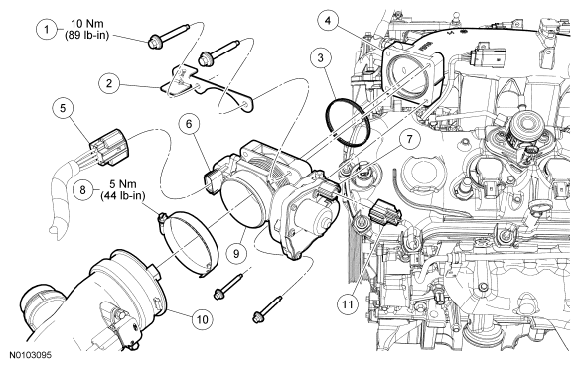

Fig 1: Throttle Body, Upper Intake Manifold, TP Sensor Electrical Connector And Charge Air Cooler With Torque Specifications
ITEM DESCRIPTION
| Item | Part Number | Description |
|---|---|---|
| 1 | W503282 | Throttle Body (TB) bolt (4 required) |
| 2 | 3925 | Throttle Position (TP) sensor shield bracket |
| 3 | 9E936 | TB gasket |
| 4 | 9425 | Upper intake manifold |
| 5 | 14A464 | TP sensor electrical connector |
| 6 | 9E928 | TP sensor |
| 7 | 9N825 | Throttle Actuator Control (TAC) |
| 8 | - | Charge Air Cooler (CAC) outlet pipe-to- TB clamp (part of 6F073) |
| 9 | 9E927 | TB |
| 10 | 6F073 | CAC outlet pipe |
