Electrical Component Locator: Motors
MOTORS LOCATION
| Component | Location |
|---|---|
| Adjustable Pedal Motor | Left side of dash. See Figure. |
| Air Inlet Mode Door Actuator | Right side of dash. See Figure. |
| Blower Motor | Right side of HVAC unit. See Figure. |
| Defrost/Panel/Floor Mode Door Actuator | Left side of HVAC unit. See Figure. |
| Door Latch (Left Front) | Driver's door. See Figure. |

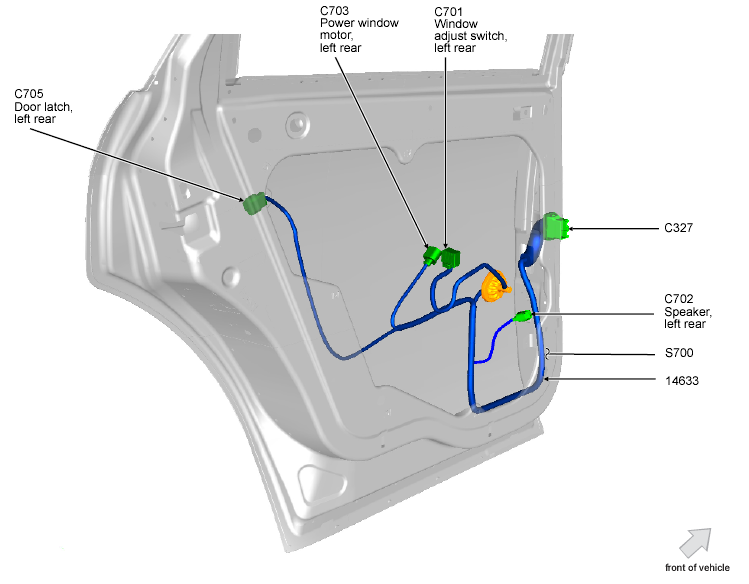

| Door Latch (Left Rear) | Left rear door. See Figure. |
| Door Latch (Right Front) | Front passenger's door. See Figure. |

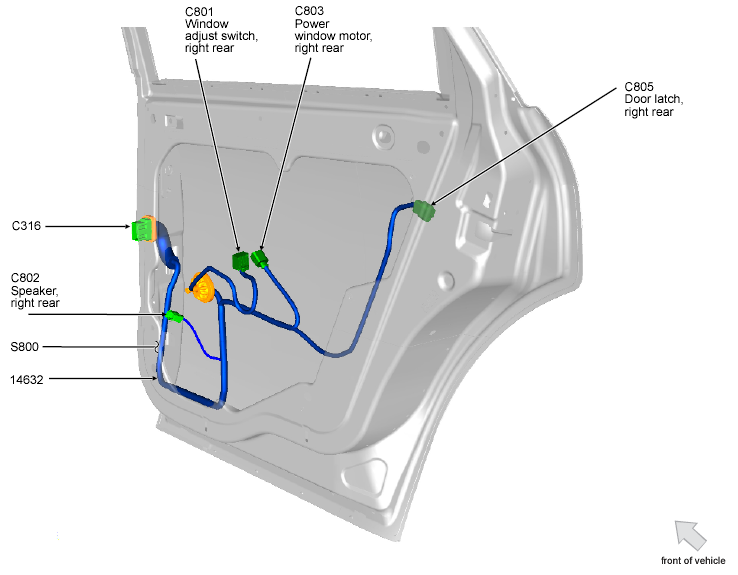

| Door Latch (Right Rear) | Right rear door. See Figure. |
| Electronic Throttle Control (ETC) Motor (Turbo) | Top front of engine. See Figure. |
| Electronic Throttle Control (ETC) (Non-Turbo) | Top rear of engine. See Figure. |
| Engine Cooling Fan Motor | Behind radiator. See Figure. |
| Exterior Rear View Mirror (Driver Side) | Driver's door. See Figure. |
| Exterior Rear View Mirror (Passenger Side) | Passenger's door. See Figure. |
| Fuel Injector Pump | Top left front of engine. See Figure. |
| Fuel Pump (FP) Module | Fuel tank assembly. See Figure. |
| Power Window Motor (Left Front) | Driver's door. See Figure. |
| Power Window Motor (Left Rear) | Left rear door. See Figure. |

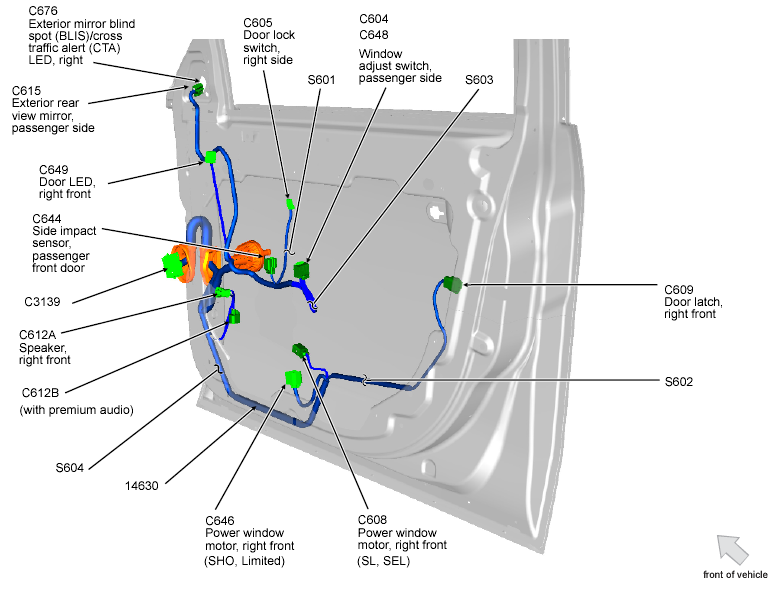

| Power Window Motor (Right Front) | Front passenger's door. See Figure. |
| Power Window Motor (Right Rear) | Right rear door. See Figure. |
| Seat Front Height Motor (Driver) | Under driver's seat. See Figure. |
| Seat Front Height Motor (Passenger) | Under front passenger's seat. See Figure. |
| Seat Horizontal Motor (Driver) | Under driver's seat. See Figure. |
| Seat Horizontal Motor (Passenger) | Under front passenger's seat. See Figure. |
| Seat Lumbar Motor/Pump (Driver) | In driver's seat back. See Figure. |
| Seat Lumbar Motor/Pump (Passenger) | In front passenger's seat back. See Figure. |
| Seat Rear Height Motor (Driver) | Under driver's seat. See Figure. |
| Seat Rear Height Motor (Passenger) | Under front passenger's seat. See Figure. |
| Seat Recliner Motor (Driver) | In driver's seat back. See Figure. |
| Seat Recliner Motor (Passenger) | In front passenger's seat back. See Figure. |
| Starter Motor (Non-Turbo) | Lower left rear of engine. See Figure. |
| Starter Motor (Turbo) | Lower left rear of engine. See Figure. |
| Temperature Blend Door Actuator (LH Side) | Left side of HVAC unit. See Figure. |
| Temperature Blend Door Actuator (RH Side) | Right side of HVAC unit. See Figure. |
| Windshield Washer Pump Motor | In washer fluid reservoir. See Figure. |
| Windshield Wiper Motor | Left rear of engine compartment. See Figure. |
