Electrical Component Locator: Splices
SPLICES LOCATION
| Component | Location |
|---|---|

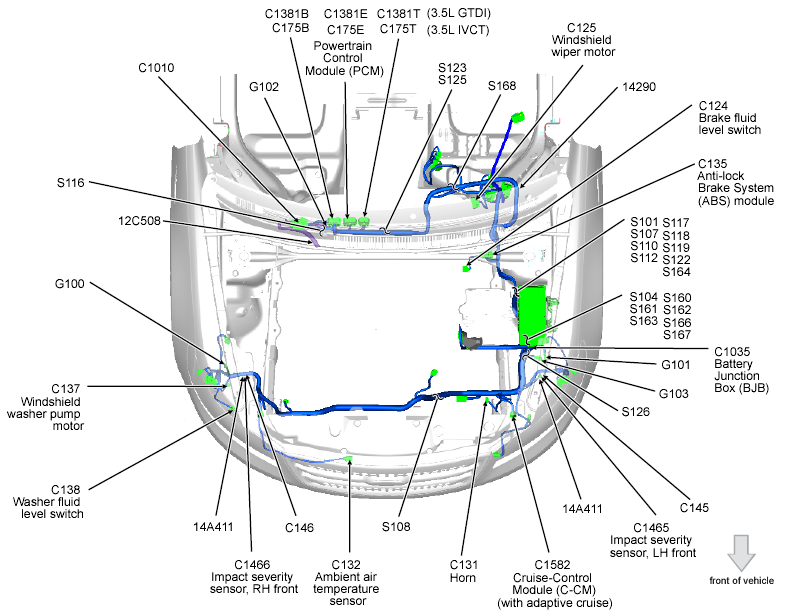

| S101 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |

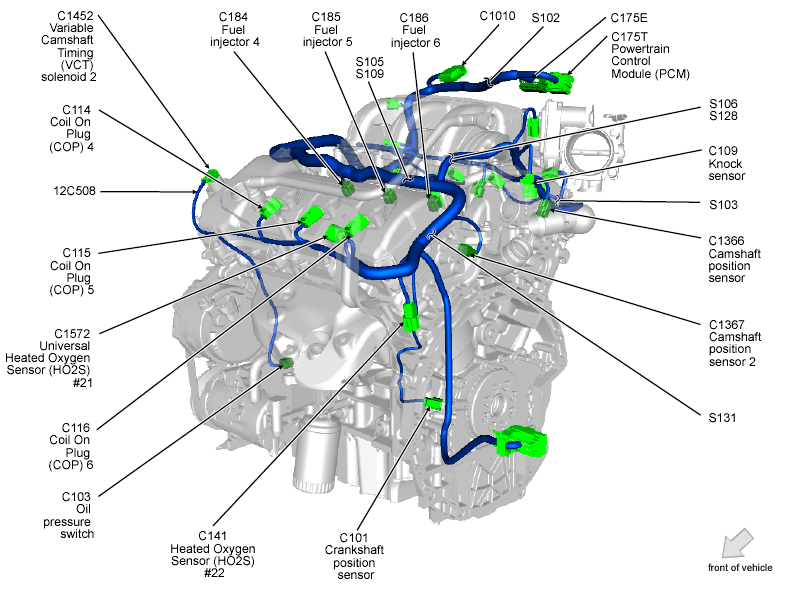

| S102 | Engine control sensor & fuel charge wiring harness, near breakout to powertrain control module. See Figure. |
| S103 | Engine control sensor & fuel charge wiring harness, near breakout to camshaft position sensor. See Figure. |
| S104 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S105 | Engine control sensor & fuel charge wiring harness, near breakout to fuel injector 6. See Figure. |
| S106 | Engine control sensor & fuel charge wiring harness, near breakout to fuel injector 6. See Figure. |
| S107 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S108 | Dash panel to headlamp junction wiring harness, near breakout to engine cooling fan motor. See Figure. |

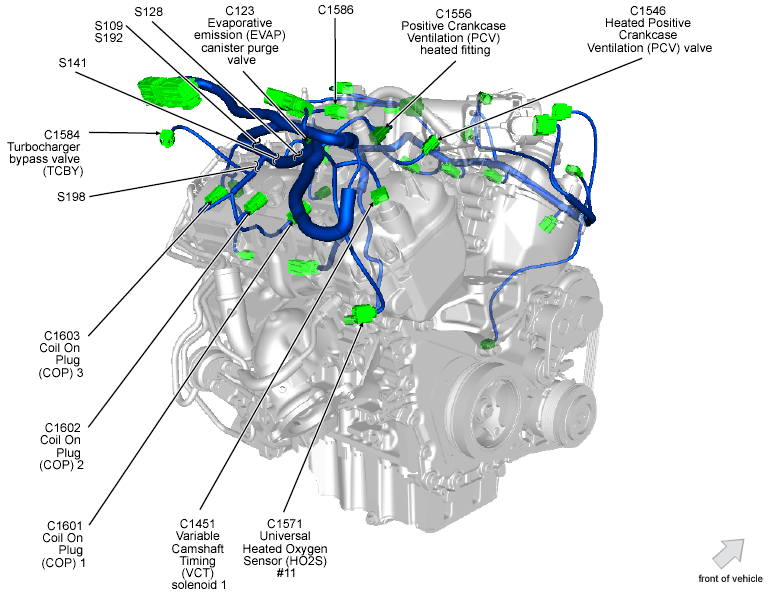

| S109 (Non-Turbo) | Engine control sensor & fuel charge wiring harness, near breakout to fuel injector 6. See Figure. |
| S109 (Turbo) | Engine control sensor & fuel charge wiring harness, near breakout to evaporative emission canister purge valve. See Figure. |
| S110 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S112 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S116 | Dash panel to headlamp junction wiring harness, in breakout to G102. See Figure. |
| S117 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S118 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S119 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S122 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S123 | Dash panel to headlamp junction wiring harness, in breakout to G102. See Figure. |

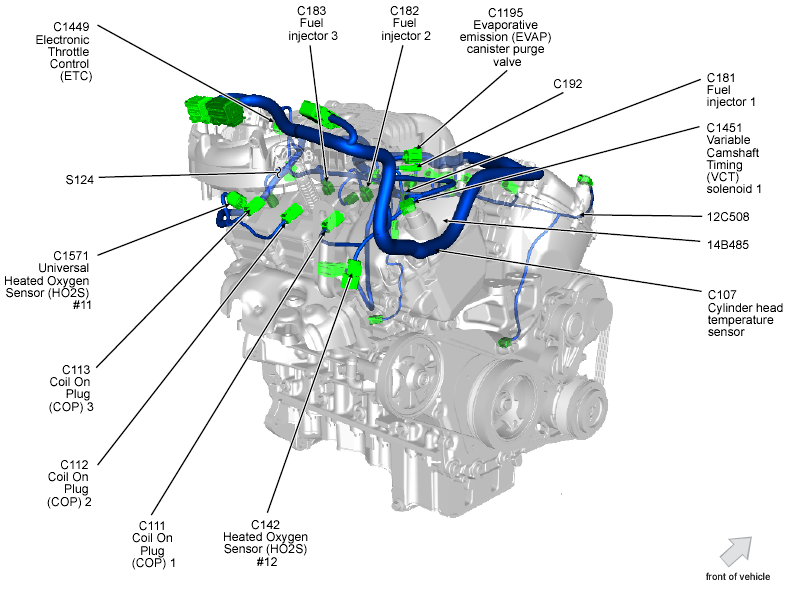

| S124 | Engine control sensor and fuel charge wiring harness, near breakout to coil on plug 3. See Figure. |
| S125 | Dash panel to headlamp junction wiring harness, near breakout to G102. See Figure. |
| S126 | Dash panel to headlamp junction wiring harness, near breakout to G103. See Figure. |

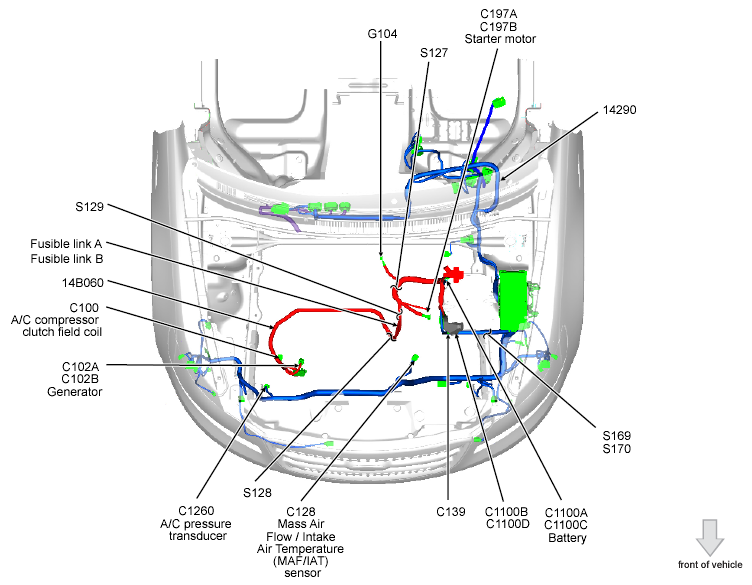

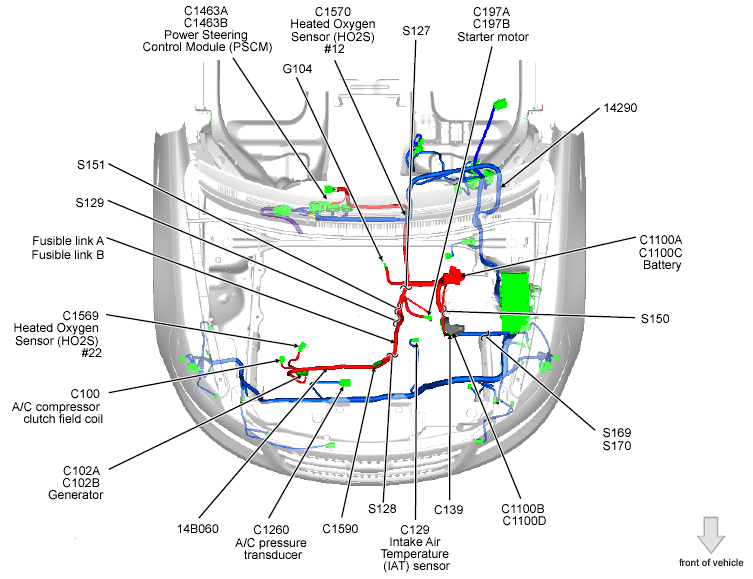

| S127 (Non-Turbo) | Starter motor relay & battery ground wiring harness, near breakout to starter motor. See Figure. |
| S127 (Turbo) | Starter motor relay & battery ground wiring harness, near breakout to starter motor. See Figure. |
| S128 (Non-Turbo) | Engine control sensor & fuel charge wiring harness, near breakout to fuel injector 6. See Figure. |
| S128 (Turbo) | Starter motor relay & battery ground wiring harness, near breakout to starter motor. See Figure. |
| S129 (Non-Turbo) | Starter motor relay & battery ground wiring harness, near breakout to fusible link A. See Figure. |
| S129 (Turbo) | Starter motor relay & battery ground wiring harness, near breakout to fusible link A. See Figure. |
| S131 | Engine control sensor & fuel charge wiring harness, near breakout to camshaft position sensor 2. See Figure. |
| S141 | Engine control sensor and fuel charge wiring harness, near breakout to C1586. See Figure. |
| S150 | Starter motor relay & battery ground wiring harness, near breakout to fusible link A. See Figure. |
| S151 | Starter motor relay & battery ground wiring harness, near breakout to fusible link A. See Figure. |
| S160 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S161 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S162 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S163 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S164 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S166 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S167 | Dash panel to headlamp junction wiring harness, near breakout to battery junction box. See Figure. |
| S168 | Dash panel to headlamp junction wiring harness, near breakout to windshield wiper motor. See Figure. |
| S169 (Non-Turbo) | Dash panel to headlamp junction wiring harness, near breakout to C139. See Figure. |
| S169 (Turbo) | Dash panel to headlamp junction wiring harness, near breakout to C139. See Figure. |
| S170 (Non-Turbo) | Dash panel to headlamp junction wiring harness, near breakout to C139. See Figure. |
| S170 (Turbo) | Dash panel to headlamp junction wiring harness, near breakout to C139. See Figure. |
| S173 | Engine control sensor & fuel charge wiring harness, in breakout to 6F transmission. See Figure. |

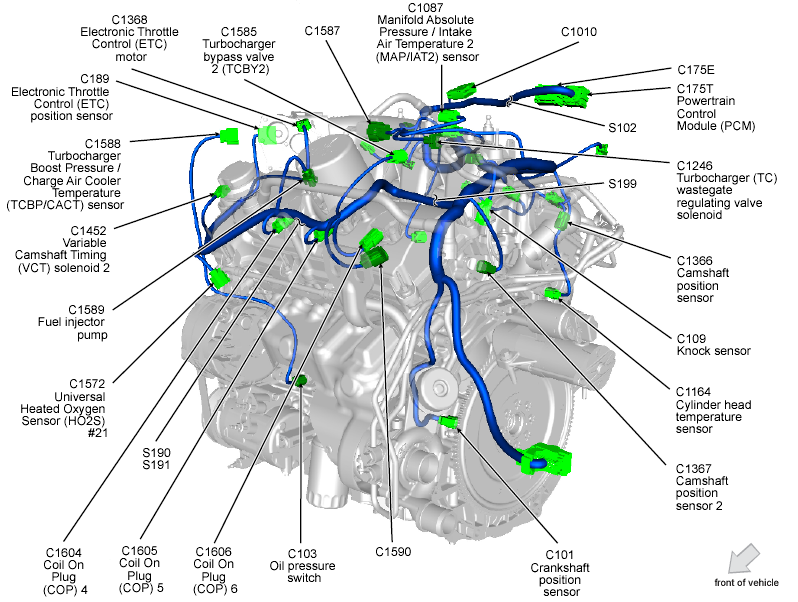

| S190 | Engine control sensor & fuel charge wiring harness, near breakout to coil on plug 5. See Figure. |
| S191 | Engine control sensor & fuel charge wiring harness, near breakout to coil on plug 5. See Figure. |
| S192 | Engine control sensor and fuel charge wiring harness, near breakout to evaporative emission canister purge valve. See Figure. |
| S198 | Engine control sensor and fuel charge wiring harness, near breakout to turbocharger bypass valve. See Figure. |
| S199 | Engine control sensor & fuel charge wiring harness, near breakout to camshaft position sensor 2. See Figure. |

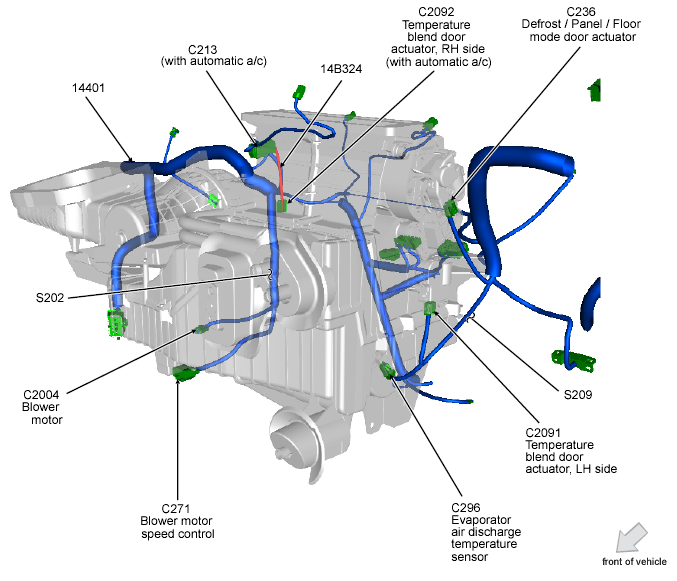

| S202 | Dash panel to headlamp junction wiring harness, near breakout to blower motor. See Figure. |
| S206 | Main wiring harness, near breakout to heads up display module. See Figure. |
| S207 | Main wiring harness, near breakout to C214. See Figure. |
| S208 | Main wiring harness, near breakout to C214. See Figure. |
| S209 | Dash panel to headlamp junction wiring harness, near breakout to evaporative air discharge temperature sensor. See Figure. |
| S210 | Main wiring harness, near breakout to heads up display module. See Figure. |

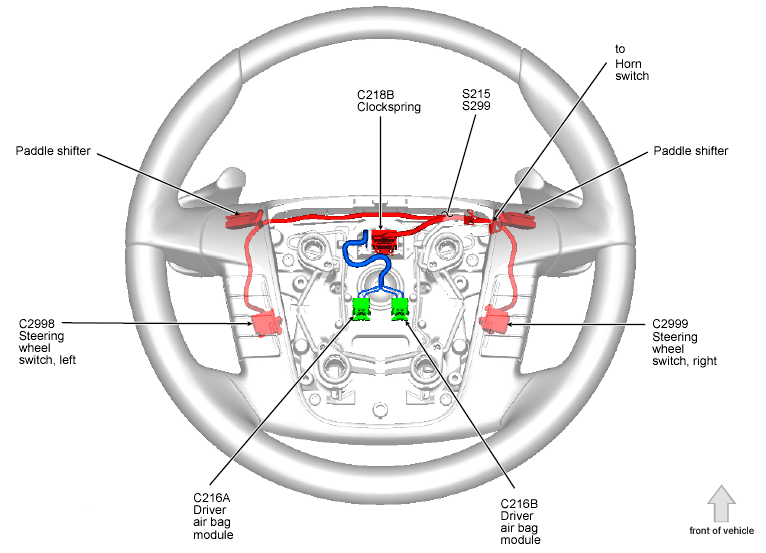

| S215 | In steering wheel. See Figure. |
| S220 | Main wiring harness, near breakout to luggage compartment lid release switch. See Figure. |
| S221 | Main wiring harness, near breakout to C214. See Figure. |
| S222 | Main wiring harness, near breakout to instrument cluster. See Figure. |
| S223 | Dash panel to headlamp junction wiring harness, near breakout to C210. See Figure. |

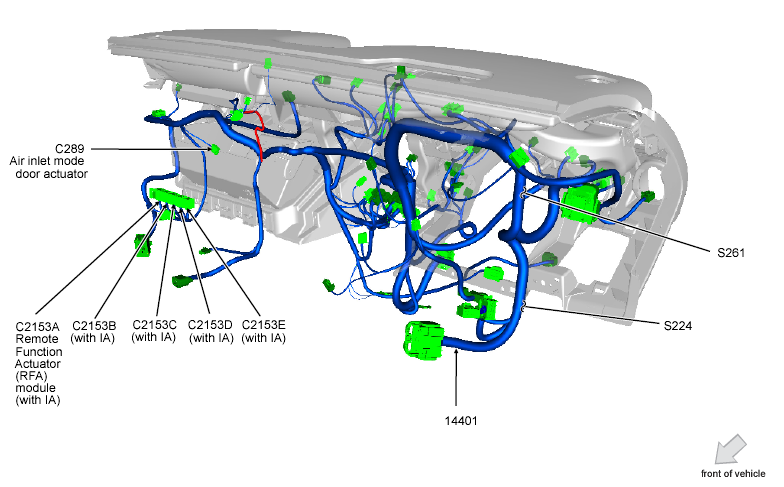

| S224 | Main wiring harness, near breakout to smart junction box. See Figure. |

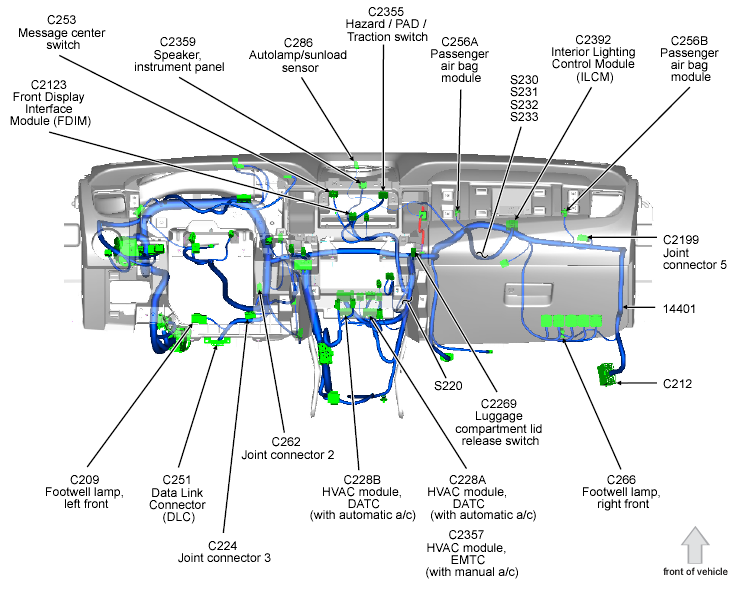

| S230 | Main wiring harness, in breakout to interior lighting control module. See Figure. |
| S231 | Main wiring harness, in breakout to interior lighting control module. See Figure. |
| S232 | Main wiring harness, in breakout to interior lighting control module. See Figure. |
| S233 | Main wiring harness, in breakout to interior lighting control module. See Figure. |
| S234 | Main wiring harness, in breakout to audio control module. See Figure. |
| S235 | Main wiring harness, near breakout to heads up display module. See Figure. |
| S236 | Main wiring harness, near breakout to heads up display module. See Figure. |
| S238 | Main wiring harness, near breakout to heads up display module. See Figure. |
| S239 | Main wiring harness, near breakout to heads up display module. See Figure. |
| S240 | Main wiring harness, in breakout to C215. See Figure. |
| S250 | Dash panel to headlamp junction wiring harness, in breakout to C211. See Figure. |
| S251 | Dash panel to headlamp junction wiring harness, in breakout to C211. See Figure. |
| S261 | Main wiring harness, near breakout to smart junction box. See Figure. |
| S299 | In steering wheel. See Figure. |

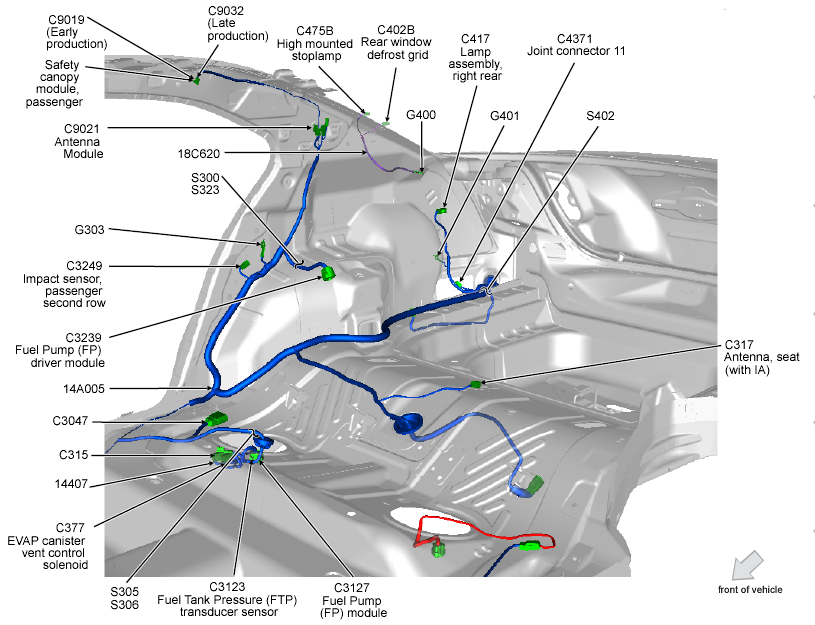

| S300 | Body main wiring harness, in breakout to fuel pump driver module. See Figure. |

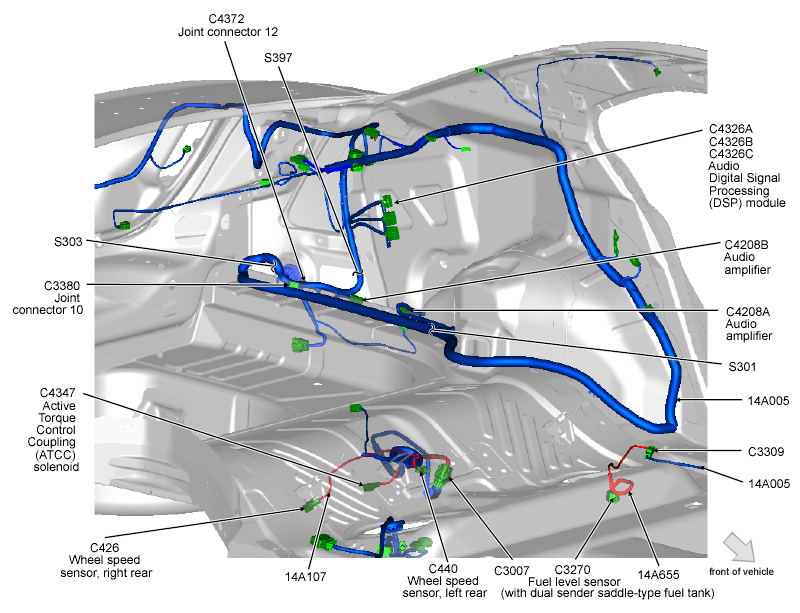

| S301 | Body main wiring harness, near breakout to luggage compartment intelligent access antenna. See Figure. |
| S302 | Body main wiring harness, near breakout to joint connector 6. See Figure. |
| S303 | Body main wiring harness, near breakout to joint connector 10. See Figure. |

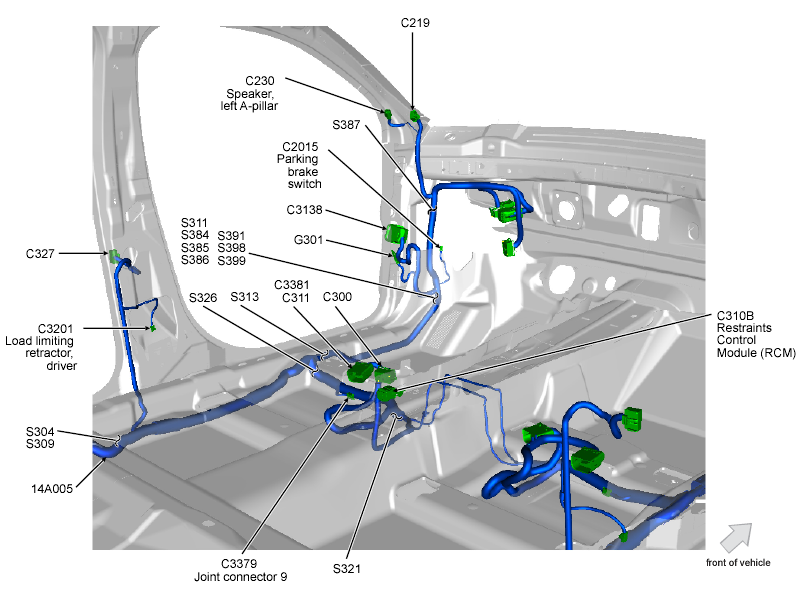

| S304 | Body main wiring harness, near breakout to C3309. See Figure. |
| S305 | Body main wiring harness, near breakout to C3047. See Figure. |
| S306 | Body main wiring harness, near breakout to C3047. See Figure. |
| S308 | Body main wiring harness, near breakout to joint connector 8. See Figure. |
| S309 | Body main wiring harness, near breakout to C3309. See Figure. |
| S310 | Body main wiring harness, near breakout to C211. See Figure. |
| S311 | Body main wiring harness, near breakout to parking brake switch. See Figure. |
| S313 | Body main wiring harness, near breakout to C311. See Figure. |
| S320 | Body main wiring harness, near breakout to C211. See Figure. |
| S321 | Body main wiring harness, near breakout to C311. See Figure. |
| S323 | Body main wiring harness, in breakout to fuel pump driver module. See Figure. |
| S325 | Body main wiring harness, near breakout to C312. See Figure. |
| S326 | Body main wiring harness, near breakout to C311. See Figure. |

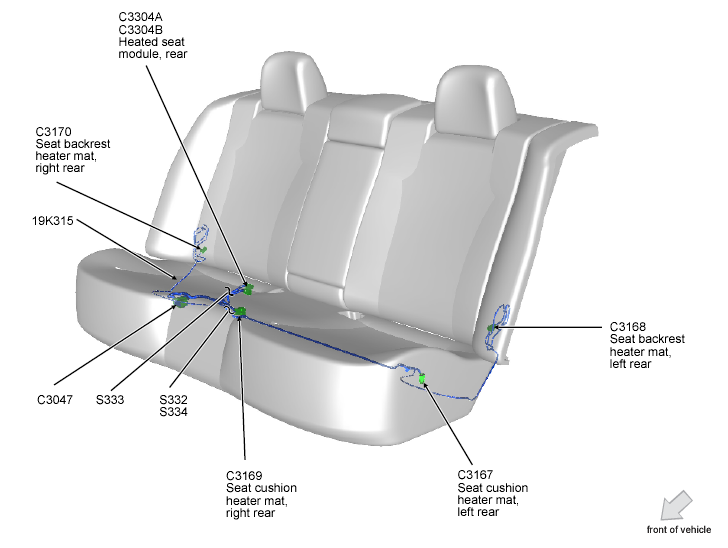

| S332 | Seat heated pad wiring harness, near breakout to right rear seat cushion heater mat. See Figure. |
| S333 | Seat heated pad wiring harness, in breakout to rear heated seat module. See Figure. |
| S334 | Seat heated pad wiring harness, near breakout to right rear seat cushion heater mat. See Figure. |

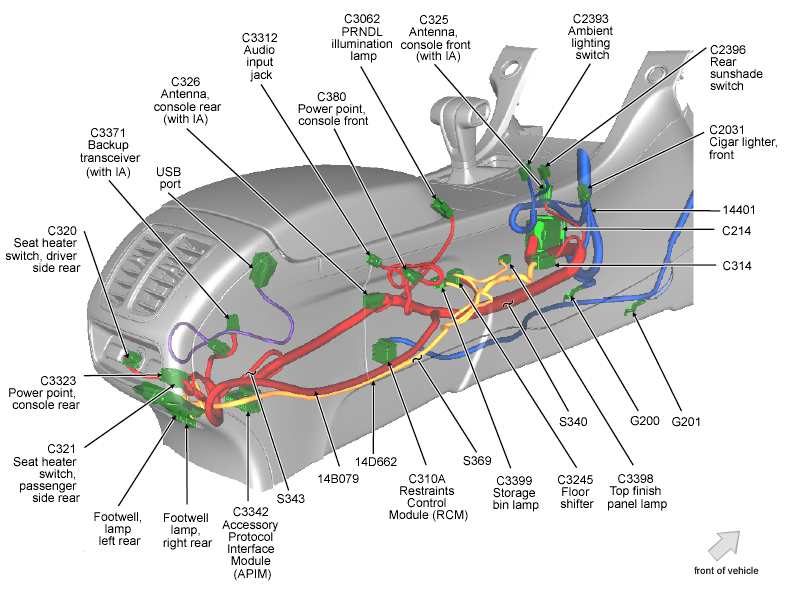

| S340 | Console panel wiring harness, near breakout to C314. See Figure. |
| S341 | Passenger seat wiring harness, near breakout to dual climate controlled seat module. See Figure. |
| S343 | Console panel wiring harness, near breakout to console rear power point. See Figure. |
| S345 | Driver seat wiring harness, near breakout to left front seat cushion heater mat. See Figure. |
| S346 | Driver seat wiring harness, near breakout to left front seat cushion heater mat. See Figure. |
| S350 | Passenger seat wiring harness, near breakout to occupant classification system module. See Figure. |
| S351 | Passenger seat wiring harness, near breakout to C312. See Figure. |
| S352 | Driver seat wiring harness, near breakout to C3050. See Figure. |

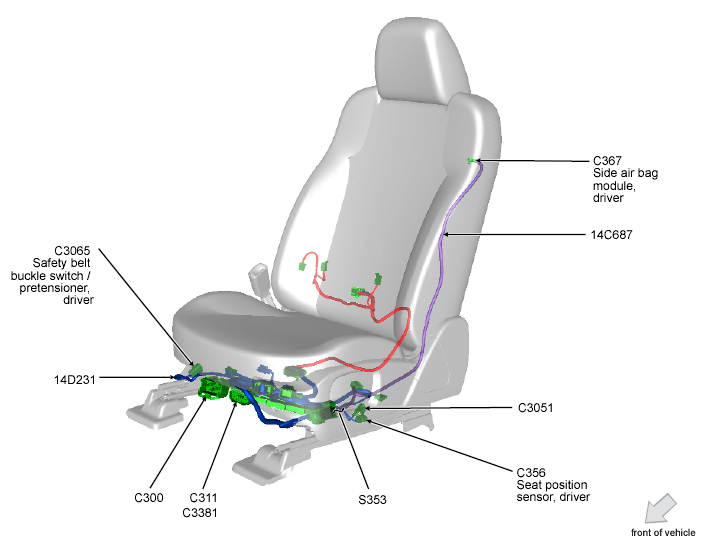

| S353 | Driver seat wiring harness, near breakout to C356. See Figure. |
| S363 | Passenger seat wiring harness, in breakout to C334. See Figure. |
| S364 | Passenger seat wiring harness, near breakout to dual climate controlled seat module. See Figure. |
| S365 | Passenger seat wiring harness, near breakout to dual climate controlled seat module. See Figure. |
| S366 | Driver seat wiring harness, in breakout to driver side seat cushion thermo electric device. See Figure. |
| S367 | Driver seat wiring harness, in breakout to driver side seat cushion thermo electric device. See Figure. |
| S368 | Driver seat wiring harness, near breakout to C3050. See Figure. |
| S369 | Ambient lighting center console wiring harness, near breakout to storage bin light. See Figure. |
| S371 | Passenger seat wiring harness, near breakout to occupant classification system module. See Figure. |
| S372 | Driver seat wiring harness, near breakout to driver seat front height motor. See Figure. |

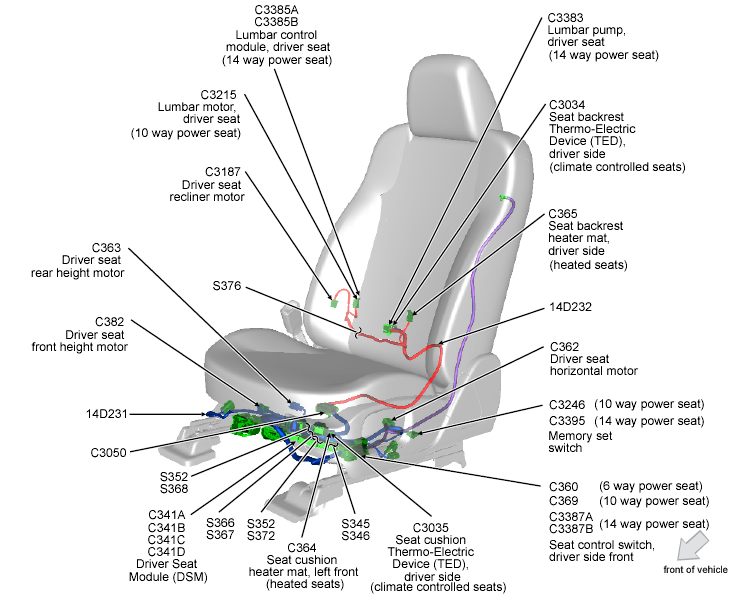

| S376 | Seat back wiring harness, near breakout to driver seat lumbar control module. See Figure. |
| S377 | Passenger seat wiring harness, near breakout to occupant classification system module. See Figure. |
| S379 | Seat back wiring harness, near breakout to passenger seat lumbar control module. See Figure. |
| S380 | Passenger seat wiring harness, near breakout to C3285. See Figure. |
| S381 | Passenger seat wiring harness, near breakout to C3285. See Figure. |
| S382 | Body main wiring harness, in breakout to C215. See Figure. |
| S383 | Body main wiring harness, near breakout to C311. See Figure. |
| S384 | Body main wiring harness, near breakout to parking brake switch. See Figure. |
| S385 | Body main wiring harness, near breakout to parking brake switch. See Figure. |
| S386 | Body main wiring harness, near breakout to parking brake switch. See Figure. |
| S387 | Body main wiring harness, near breakout to parking brake switch. See Figure. |
| S388 | Body main wiring harness, in breakout to all wheel drive module. See Figure. |
| S389 | Body main wiring harness, in breakout to all wheel drive module. See Figure. |
| S390 | Body main wiring harness, near breakout to C312. See Figure. |
| S391 | Body main wiring harness, near breakout to parking brake switch. See Figure. |

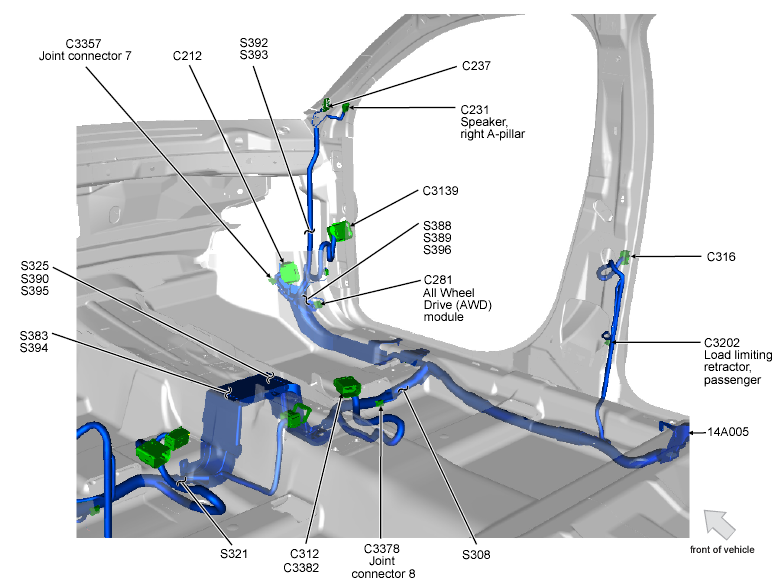

| S392 | Body main wiring harness, near breakout to C3139. See Figure. |
| S393 | Body main wiring harness, near breakout to C3139. See Figure. |
| S394 | Body main wiring harness, near breakout to C311. See Figure. |
| S395 | Body main wiring harness, near breakout to C312. See Figure. |
| S396 | Body main wiring harness, in breakout to all wheel drive module. See Figure. |
| S397 | Body main wiring harness, near breakout to joint connector 12. See Figure. |
| S398 | Body main wiring harness, near breakout to parking brake switch. See Figure. |
| S399 | Body main wiring harness, near breakout to parking brake switch. See Figure. |

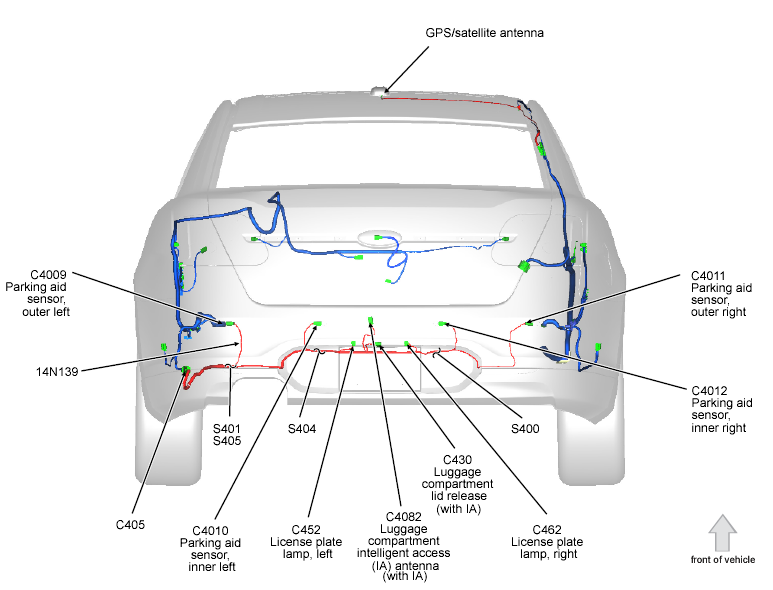

| S400 | Backup alarm jumper wiring harness, near breakout to right license plate lamp. See Figure. |
| S401 | Backup alarm jumper wiring harness, near breakout to C405. See Figure. |
| S402 | Body main wiring harness, near breakout to joint connector 11. See Figure. |
| S404 | Backup alarm jumper wiring harness, near breakout to left license plate lamp. See Figure. |
| S405 | Backup alarm jumper wiring harness, near breakout to C405. See Figure. |
| S406 | Body main wiring harness, near breakout to high mounted stoplamp. See Figure. |

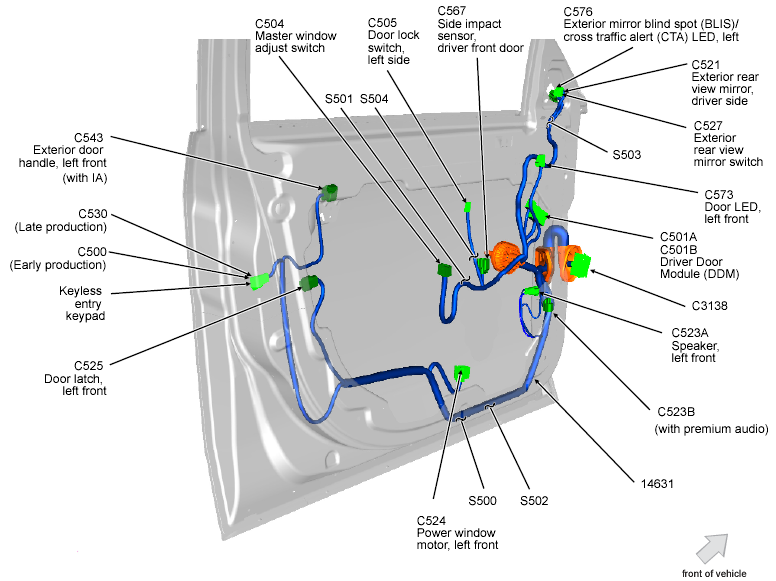

| S500 | Left front door window regulator wiring harness, near breakout to left front power window motor. See Figure. |
| S501 | Left front door window regulator wiring harness, in breakout to C504. See Figure. |
| S502 | Left front door window regulator wiring harness, near breakout to left front power window motor. See Figure. |
| S503 | Left front door window regulator wiring harness, in breakout to driver side exterior rear view mirror. See Figure. |
| S504 | Left front door window regulator wiring harness, in breakout to left side door lock switch. See Figure. |
| S601 | Right front door window regulator wiring harness, in breakout to right side door lock switch. See Figure. |
| S602 | Right front door window regulator wiring harness, near breakout to right front power window motor. See Figure. |
| S603 | Right front door window regulator wiring harness, in breakout to passenger side window adjust switch. See Figure. |
| S604 | Right front door window regulator wiring harness, near breakout to C3139. See Figure. |
| S700 | Left rear door window regulator wiring harness, near breakout to C327. See Figure. |
| S800 | Right rear door window regulator wiring harness, near breakout to C316. See Figure. |

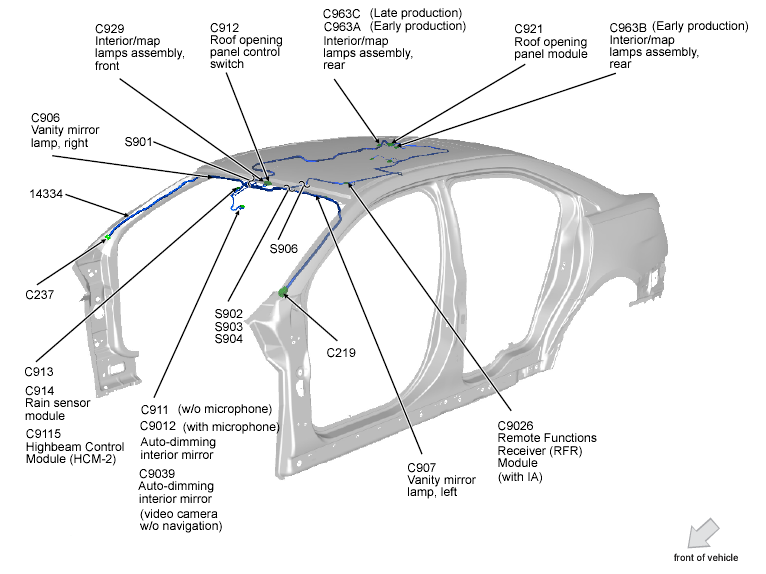

| S901 | Interior lamps wiring harness, near breakout to auto-dimming interior mirror. See Figure. |
| S902 | Interior lamps wiring harness, near breakout to left vanity mirror lamp. See Figure. |
| S903 | Interior lamps wiring harness, near breakout to left vanity mirror lamp. See Figure. |
| S904 | Interior lamps wiring harness, near breakout to left vanity mirror lamp. See Figure. |
| S906 | Interior lamps wiring harness, near breakout to remote functions receiver module. See Figure. |
