Throttle Body - 3.5L: Notes

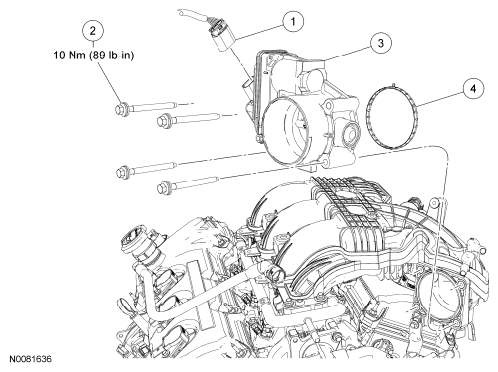

Fig 1: Exploded View Of Throttle Body With Torque Specifications

Courtesy of FORD MOTOR CO.

ITEM DESCRIPTION

Item	Part Number	Description
1	14A464	Electronic throttle control electrical connector (part of 12B637)
2	W503285	Throttle Body (TB) bolt (4 required)
3	9E926	TB
4	9E936	TB gasket
