In-Dash Computer

In-Dash Computer

Center Instrument Panel Finish Panel









In-Dash Computer









Removal and Installation

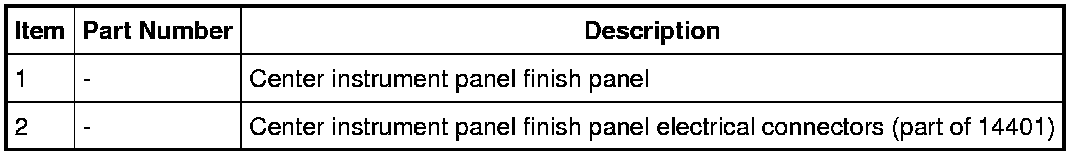

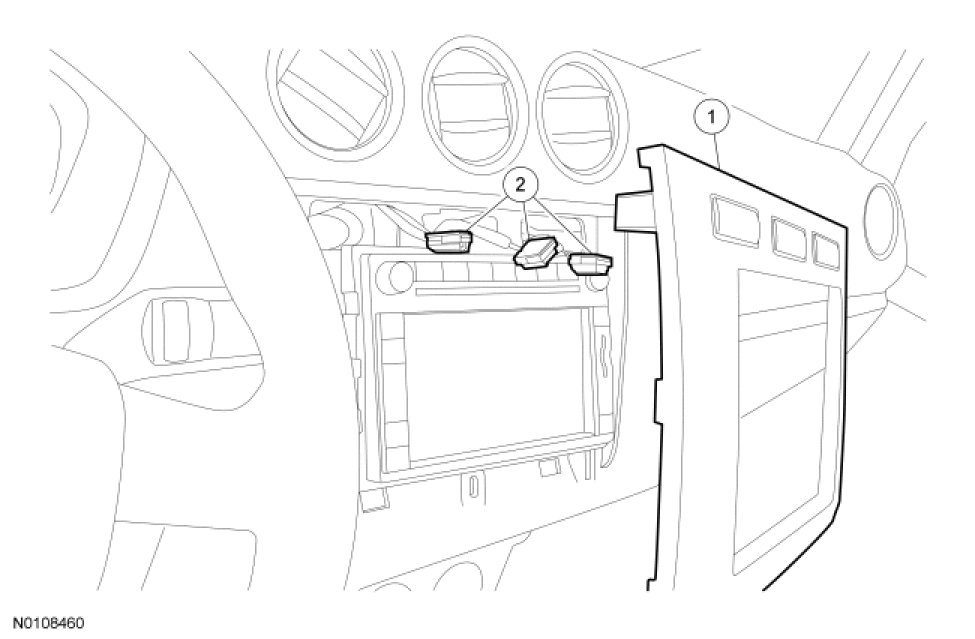

1. Using a suitable tool (such as a flat-bladed trim removal tool), remove the instrument panel center finish panel by prying it straight rearward.

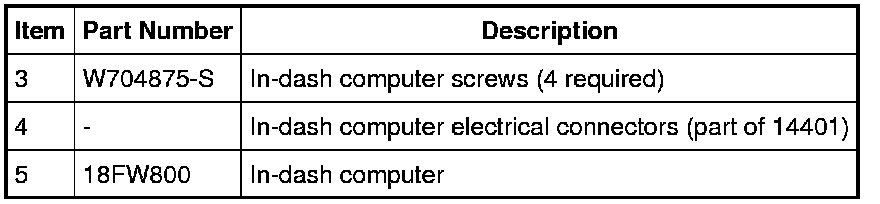

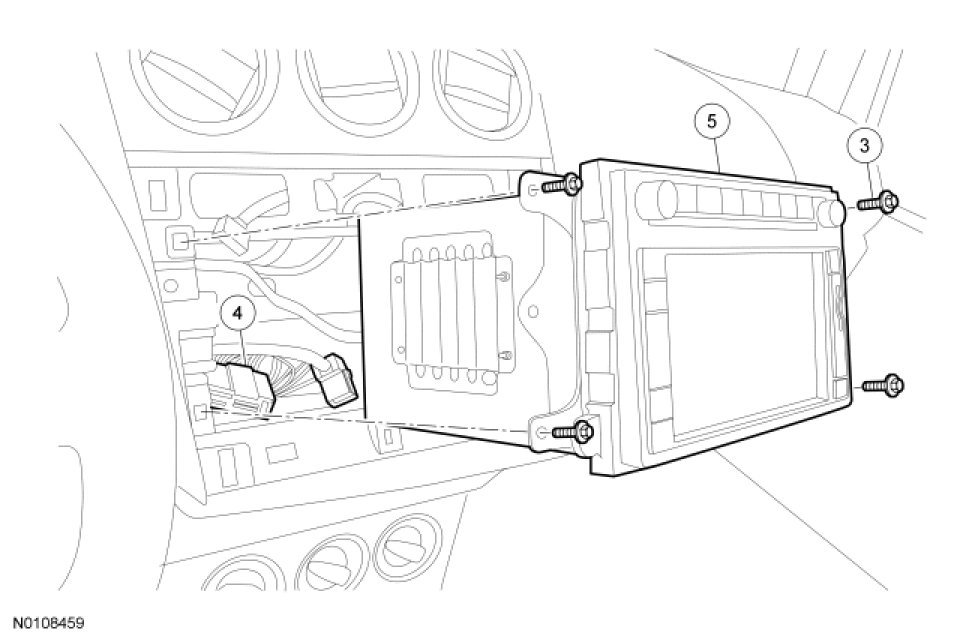

2. Remove the 4 screws and the in-dash computer.
- Disconnect the electrical connectors.

3. To install, reverse the removal procedure.
