Transit Connect L4-2.0L
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Fuse
>>
Locations
>>
Passenger Compartment Fuse Box
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.

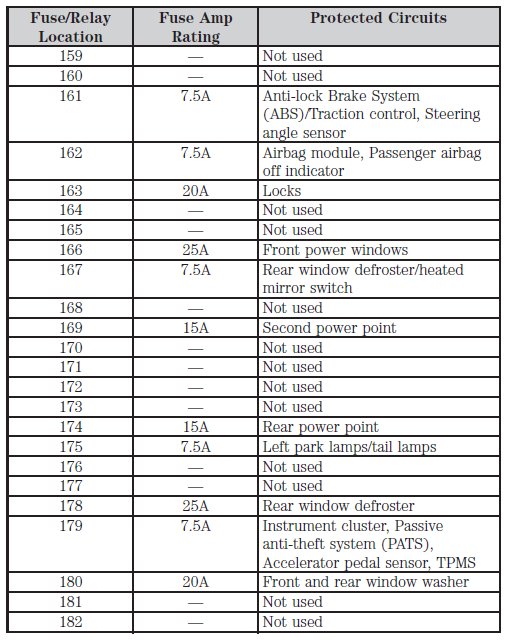

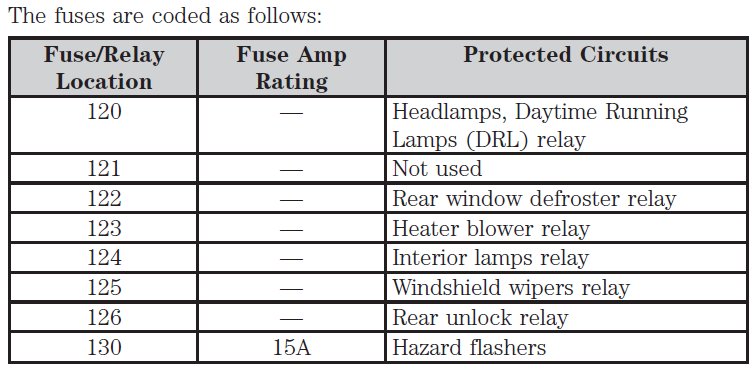

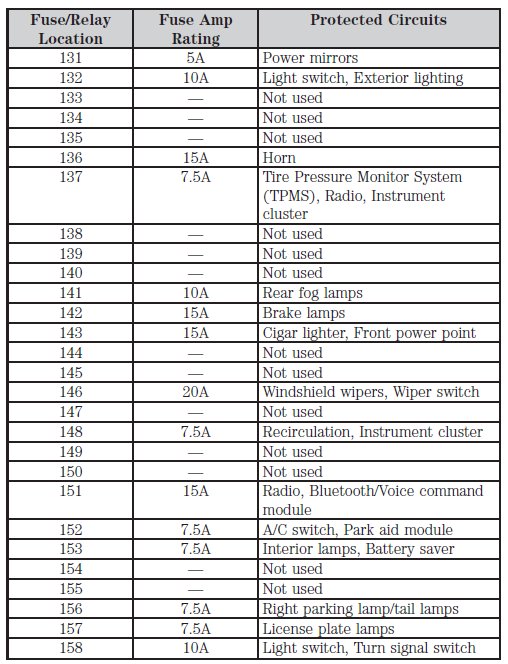

Passenger Compartment Fuse Box
