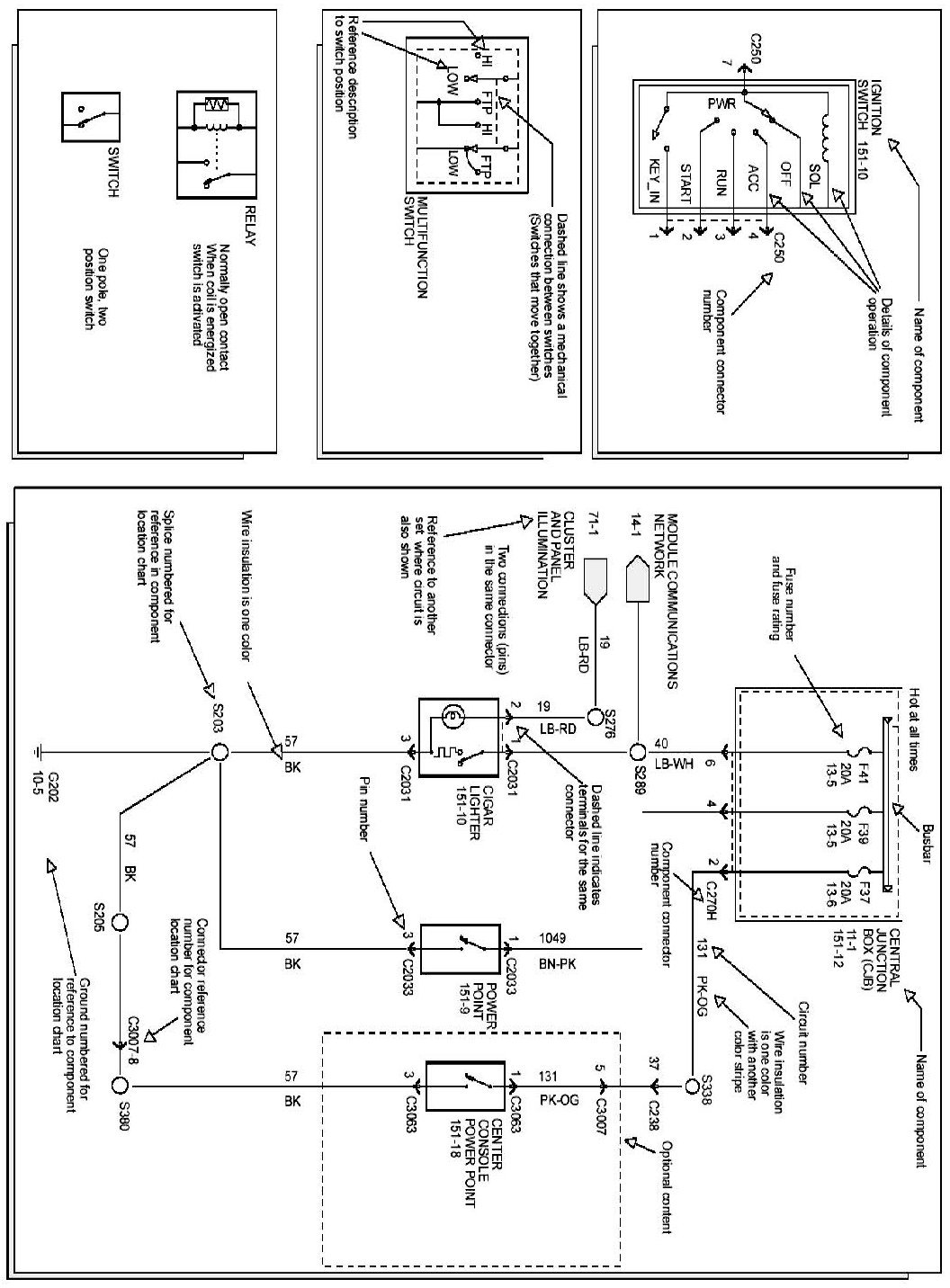

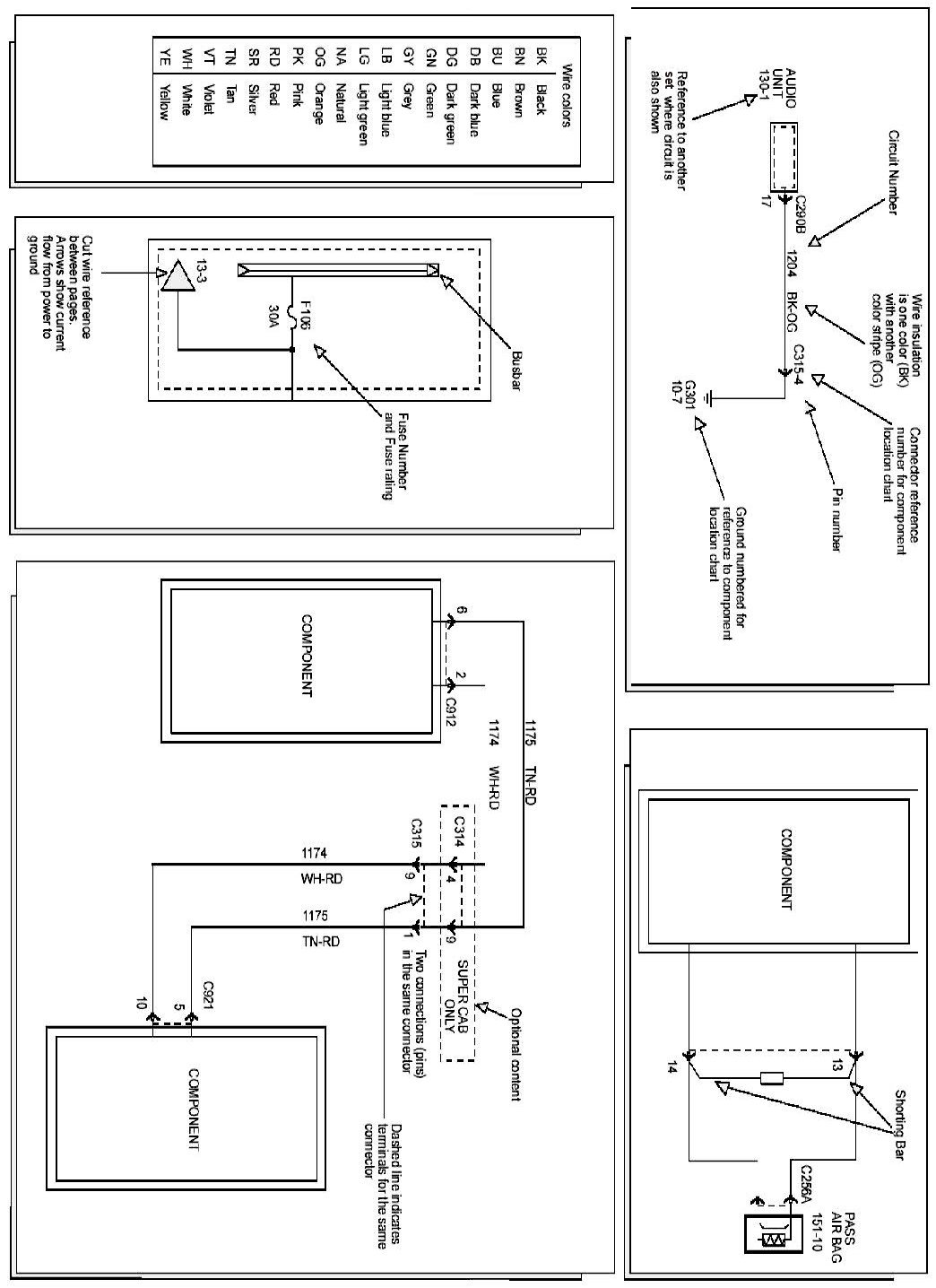

Diagram Information and Instructions
>>
Symbol
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Symbol

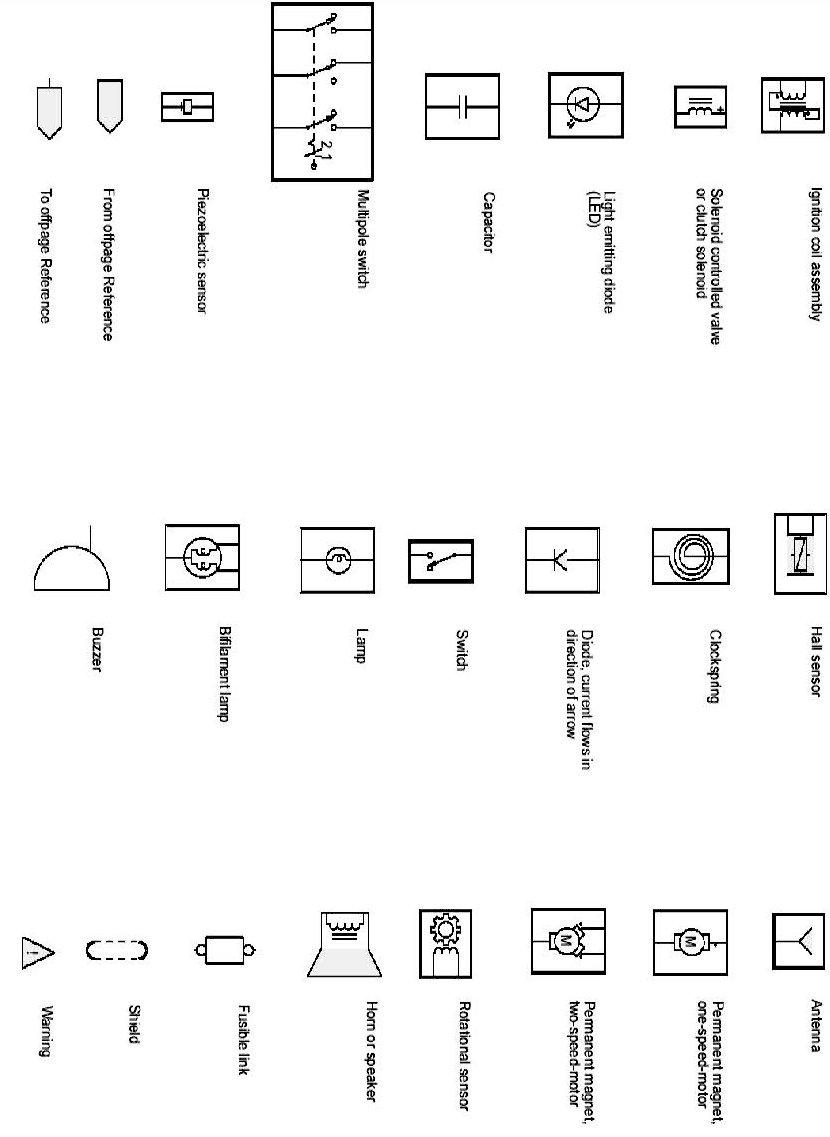

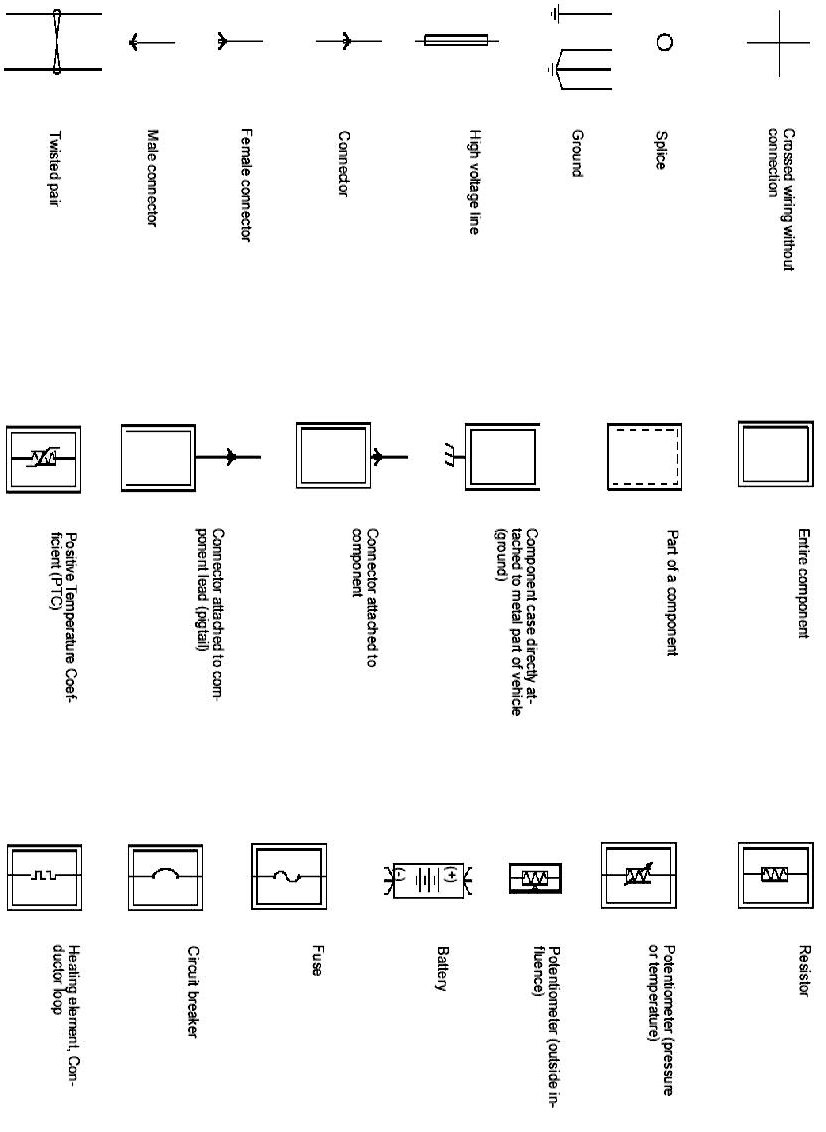

Symbols (Part 1):
Symbols (Part 2):
Symbols (Part 3):
Symbols (Part 4):
Symbols (Part 5):
