Test DF: Vehicle Speed Circuit (VSC) Check

PINPOINT TEST DF: VEHICLE SPEED CIRCUIT (VSC) CHECK

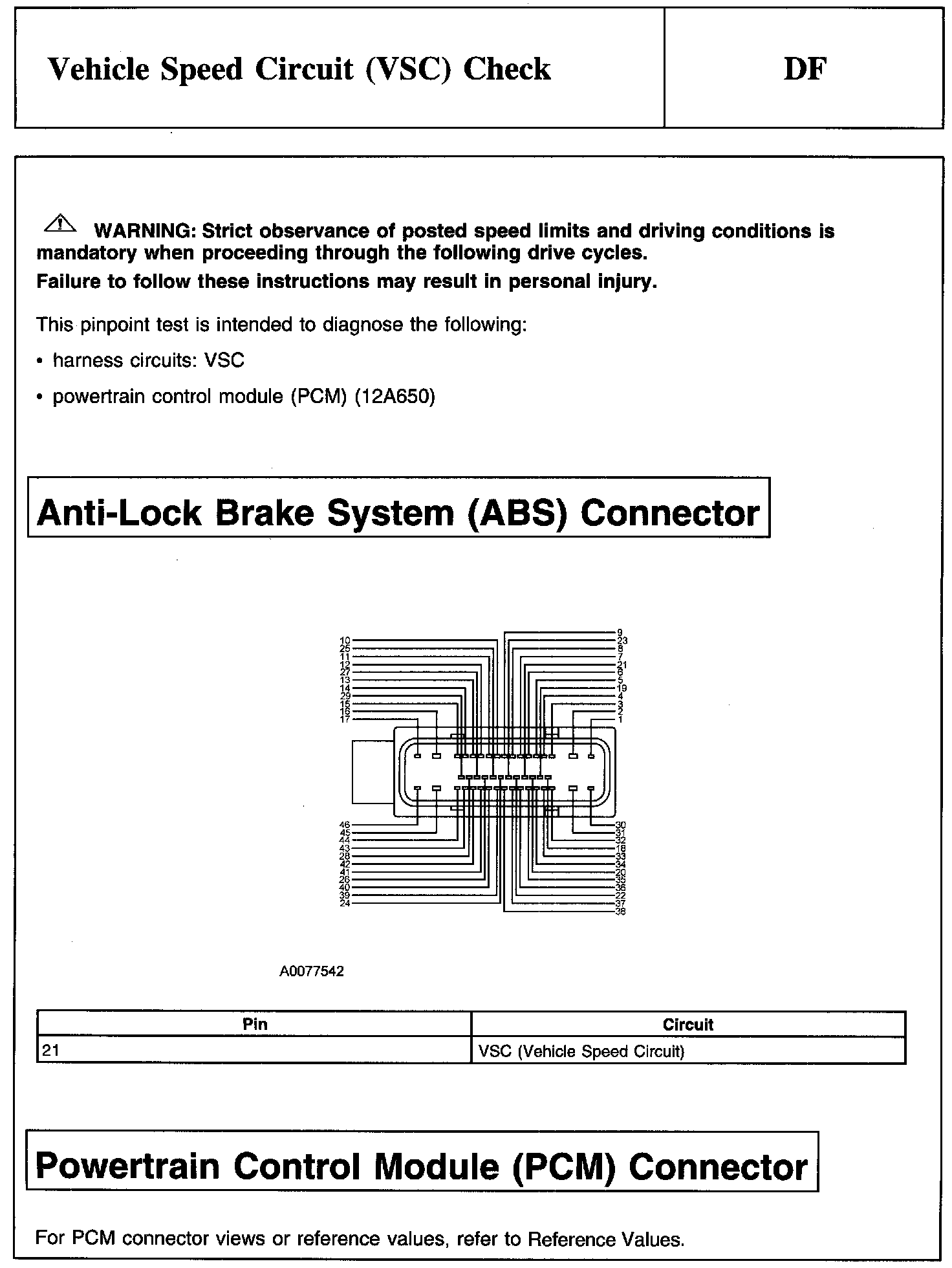

Warning, Anti-Lock Brake System (ABS) Connector And Powertrain Control Module (PCM) Connector:

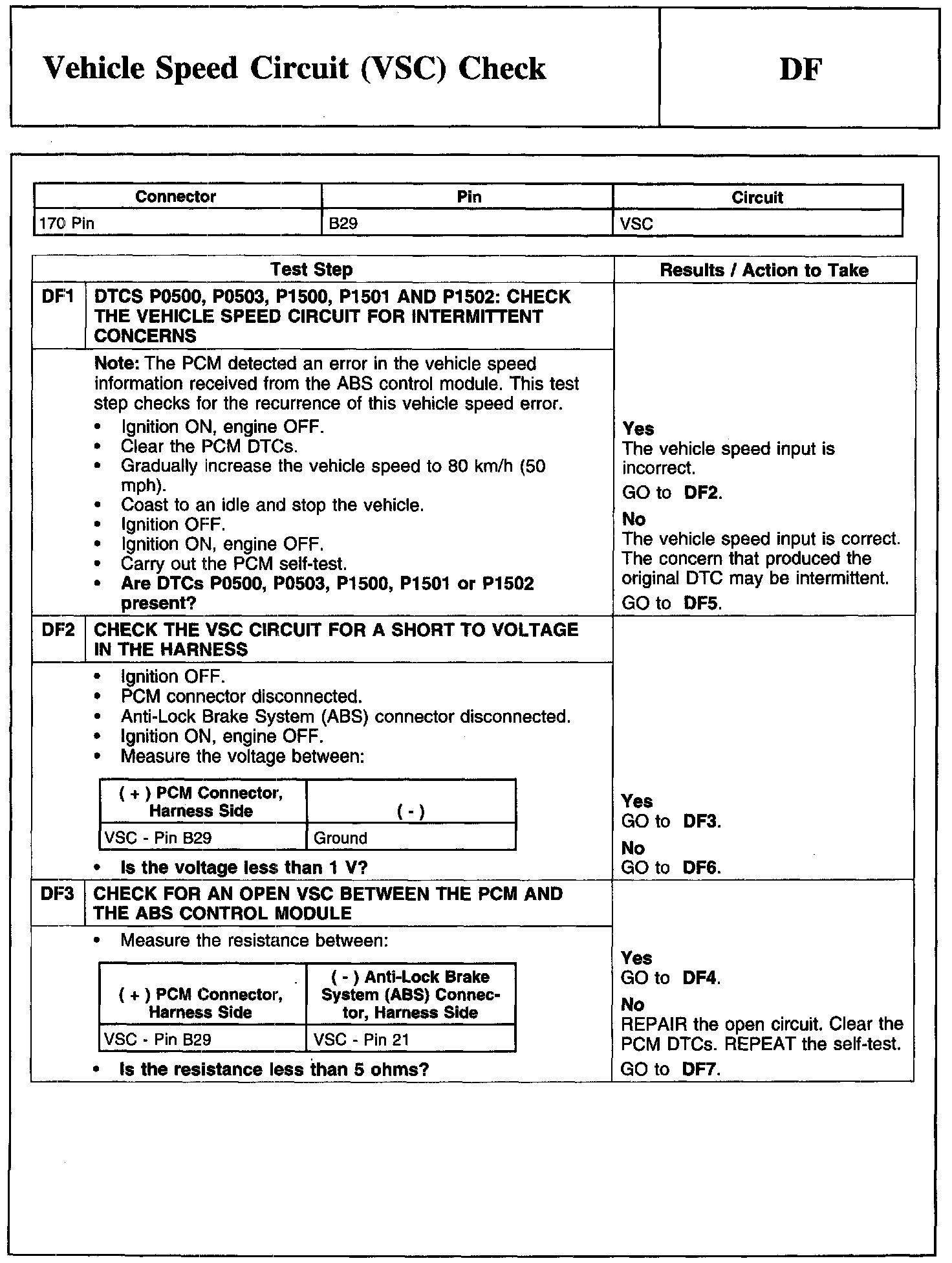

DF1-DF3:






DF4-DF6:

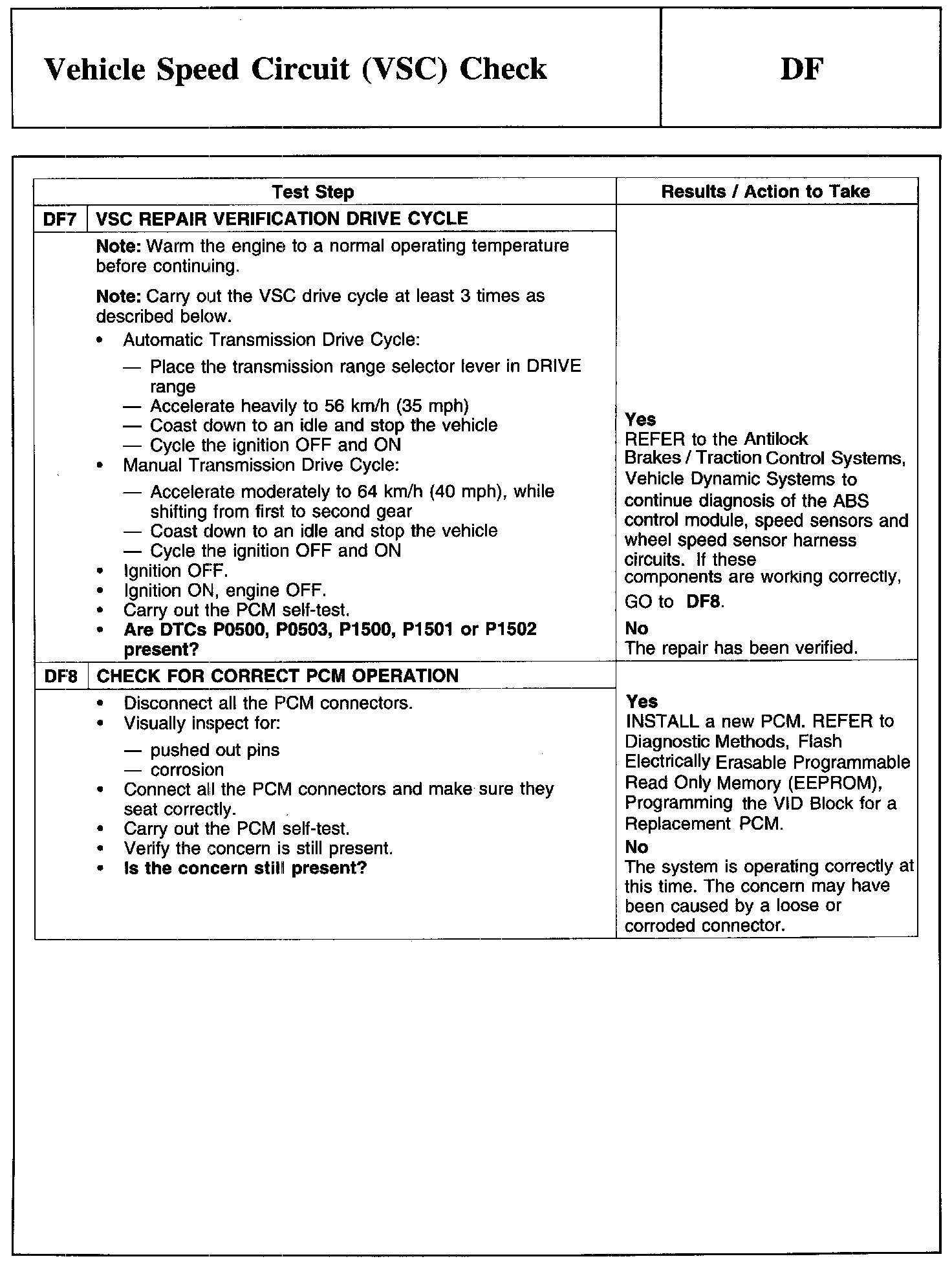

DF7-DF8:
