Test DK: Accelerator Pedal Position (APP) Sensor

PINPOINT TEST DK: ACCELERATOR PEDAL POSITION (APP) SENSOR

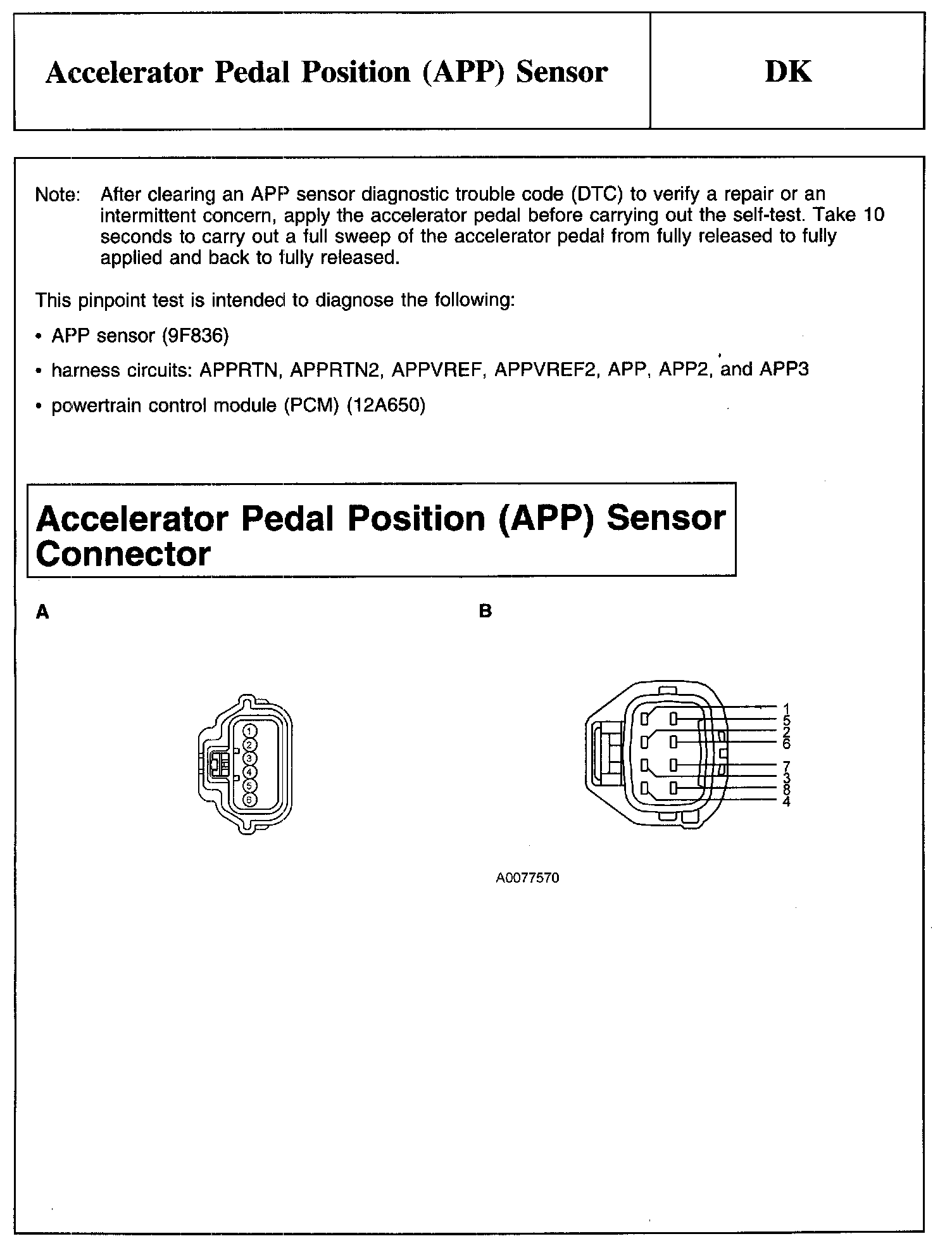

Note And Accelerator Pedal Position (APP) Sensor Connector:

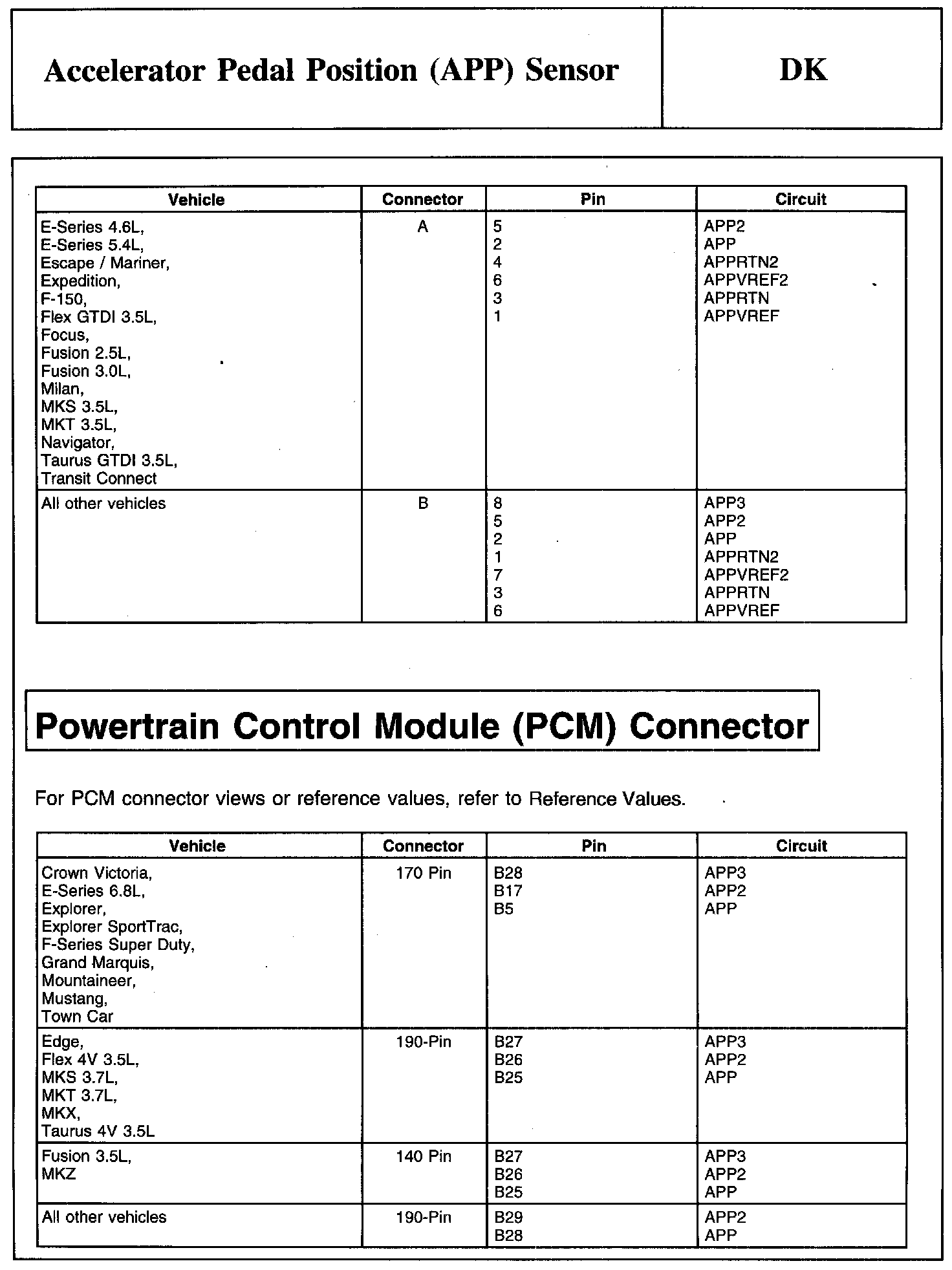

Accelerator Pedal Position (APP) Sensor Connector And Powertrain Control Module (PCM) Connector:

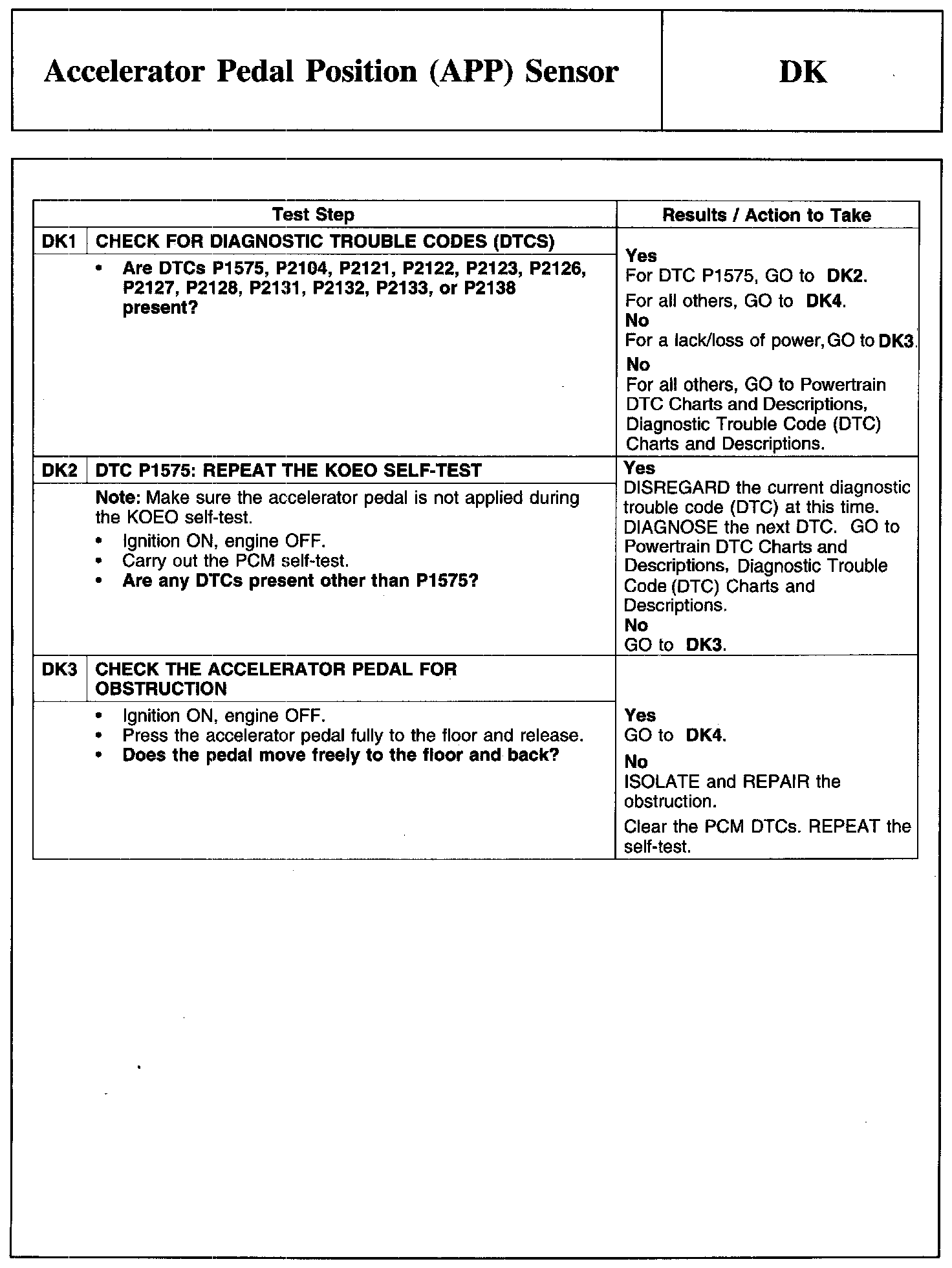

DK1-DK3:

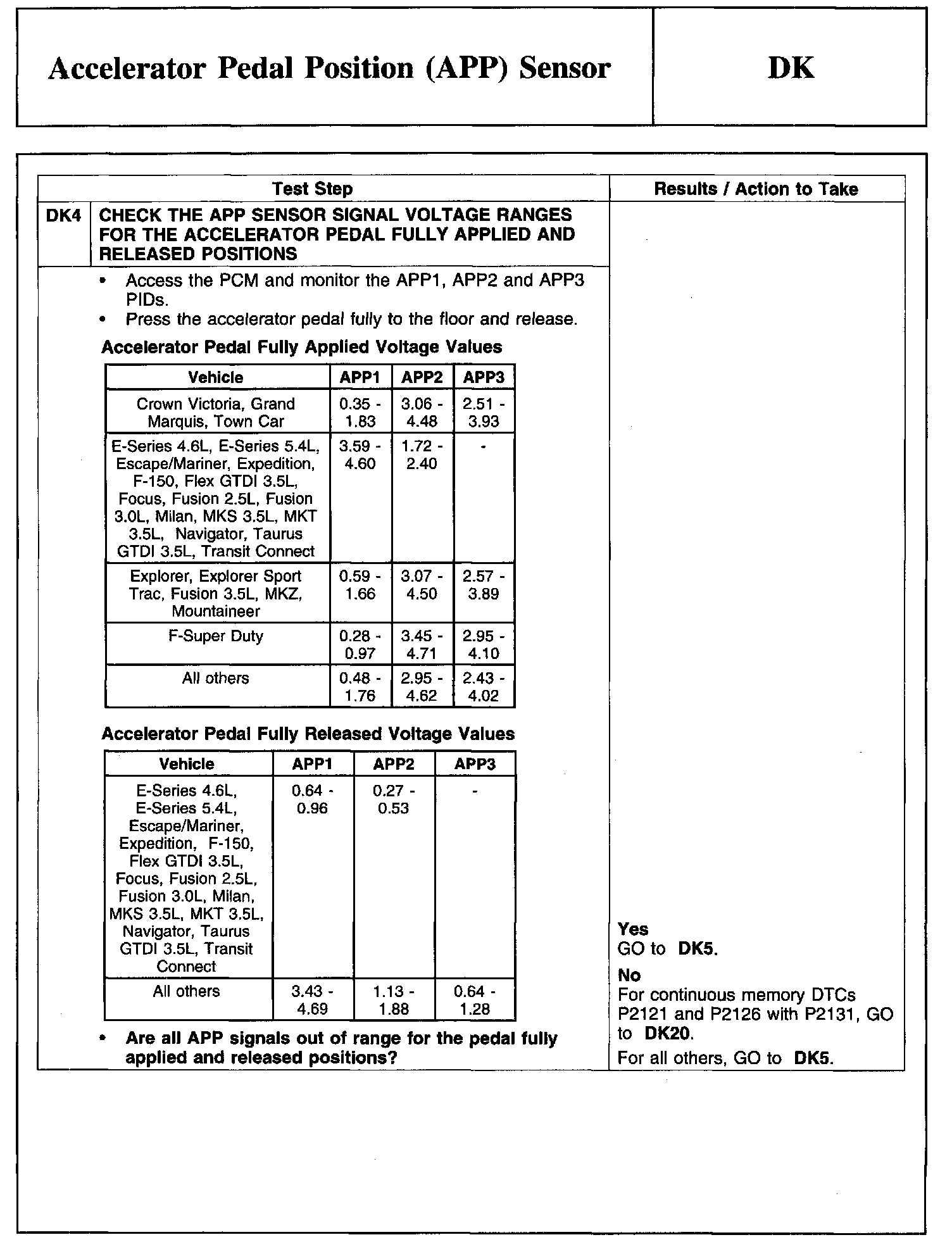

DK4:

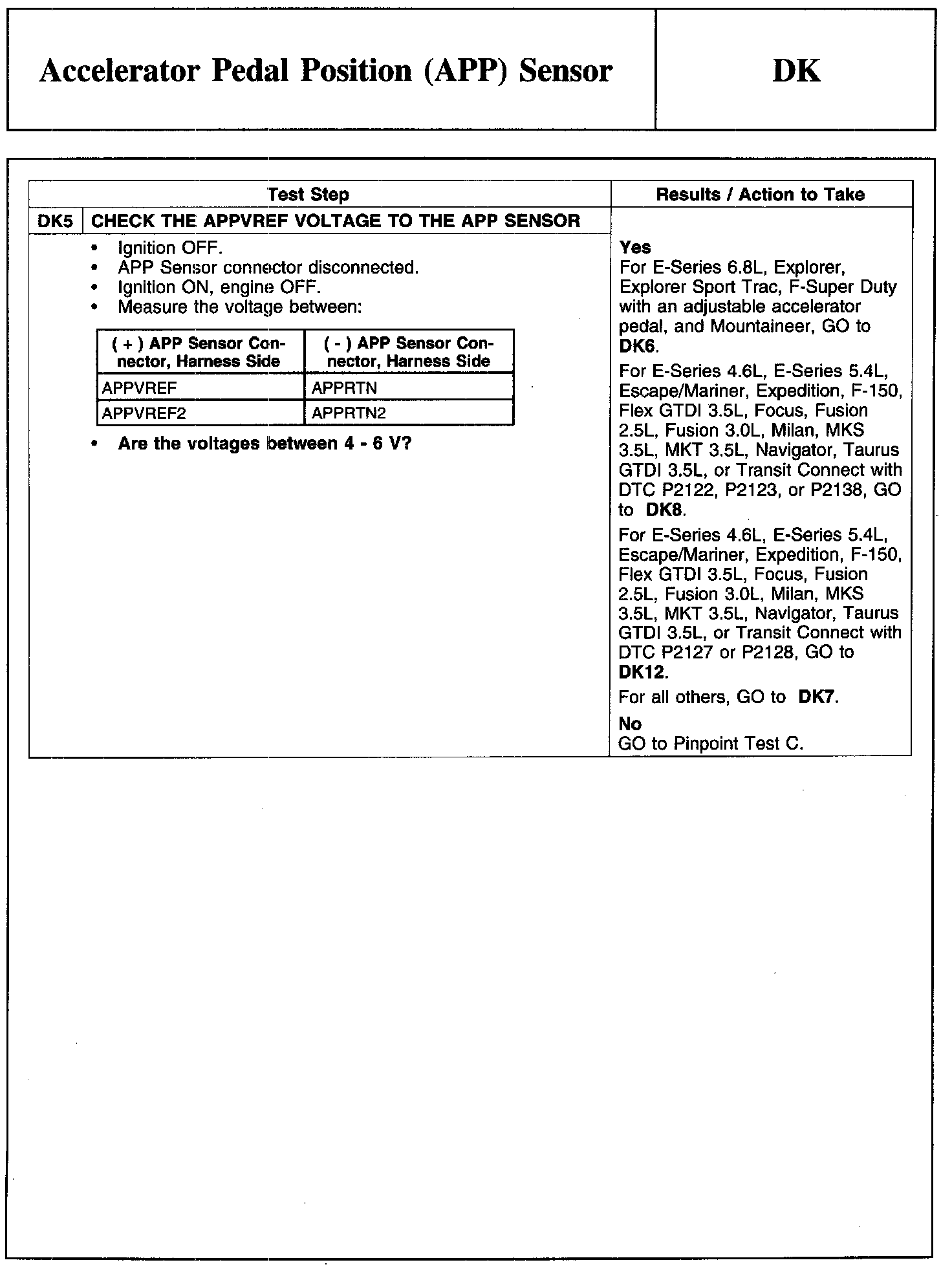

DK5:

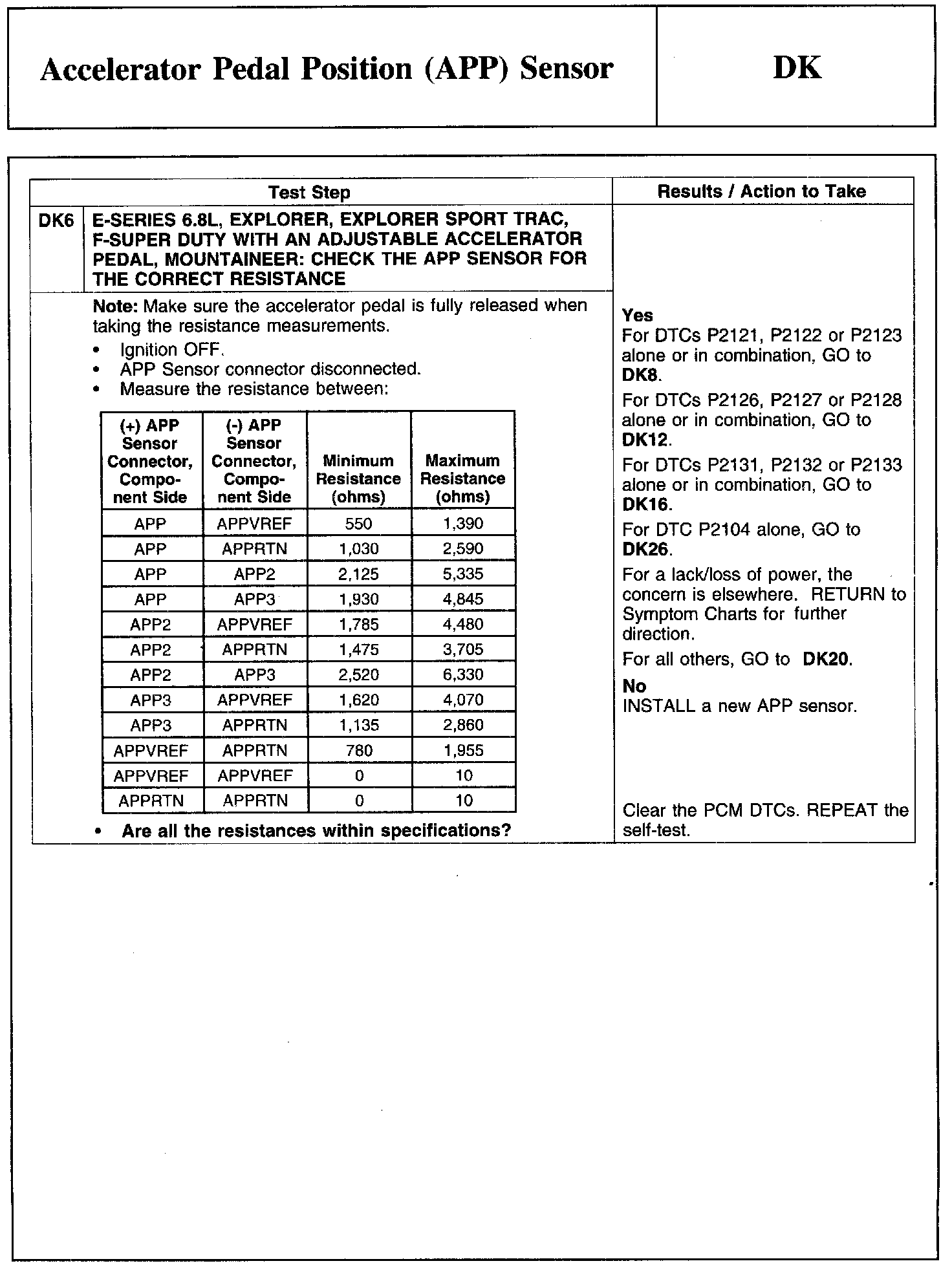

DK6:

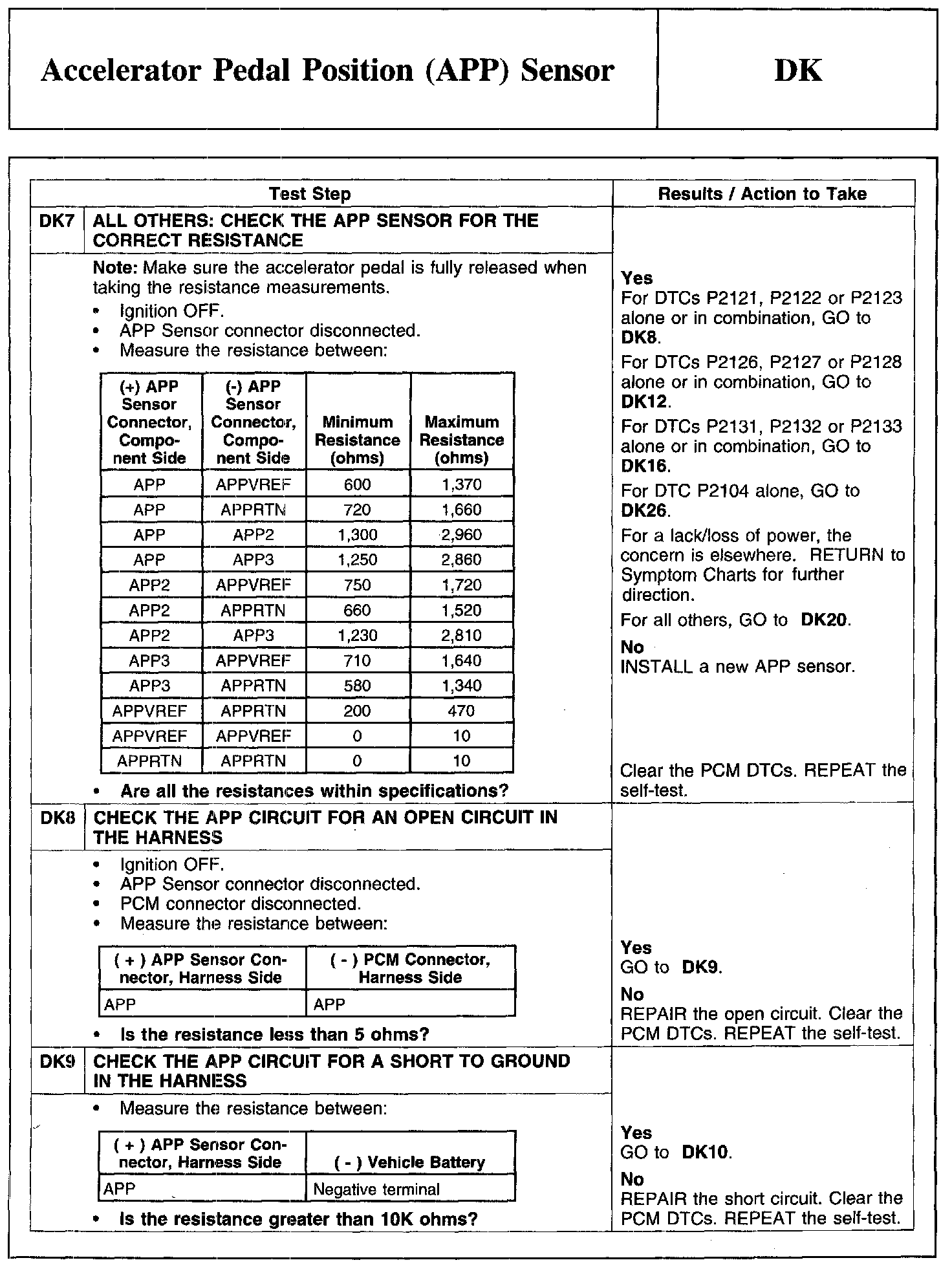

DK7-DK9:






DK10-DK13:

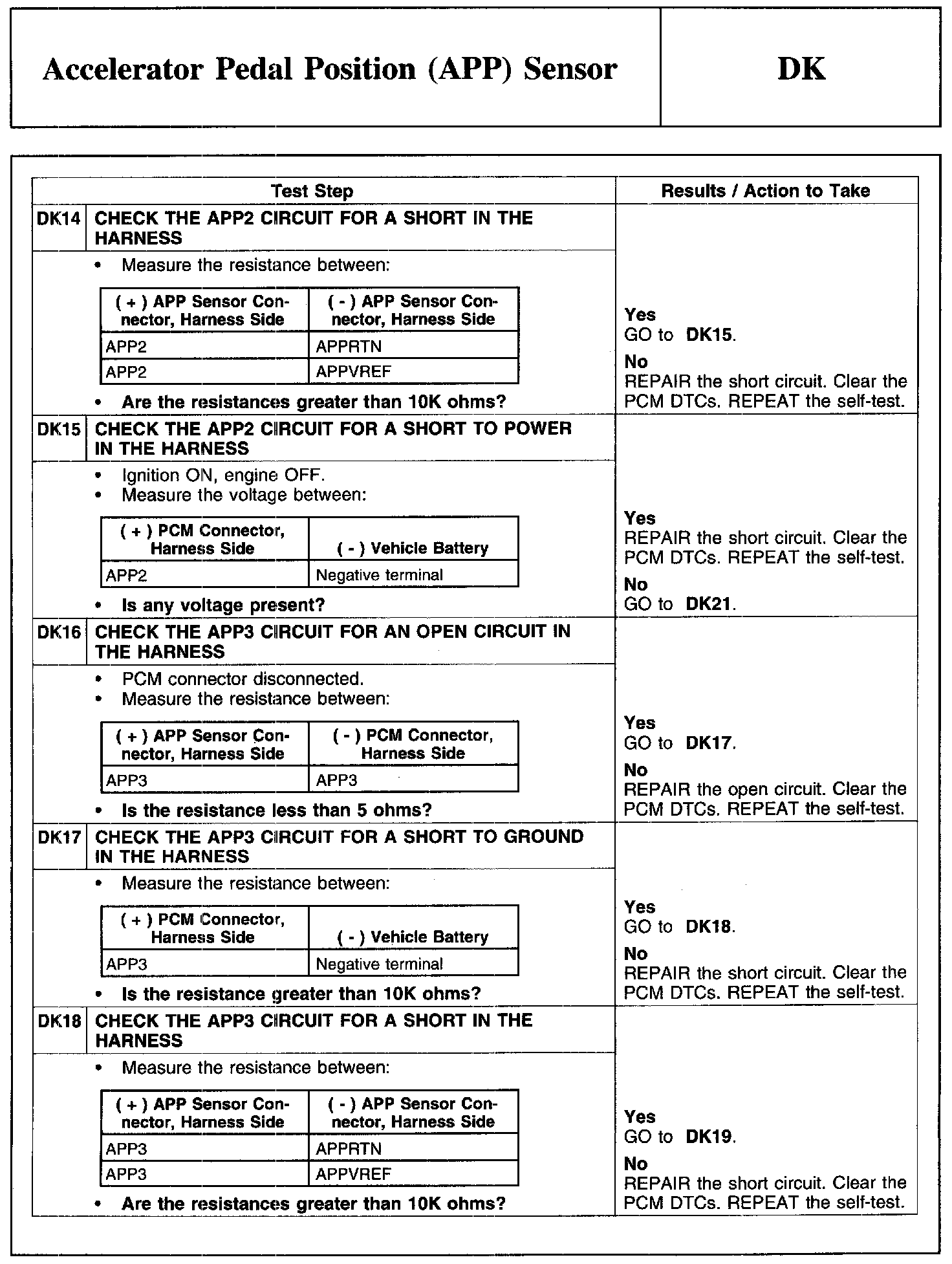

DK14-DK18:

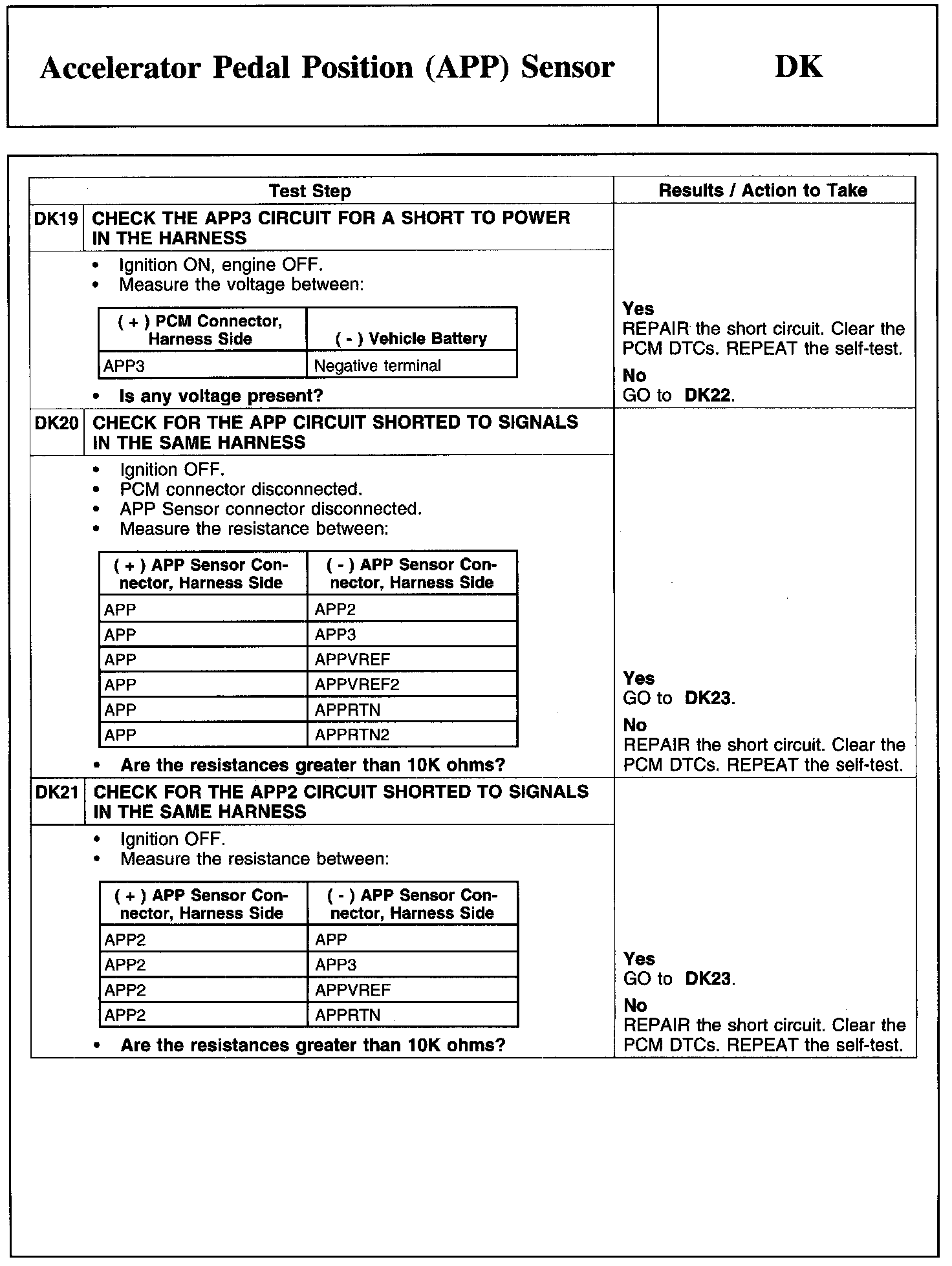

DK19-DK21:

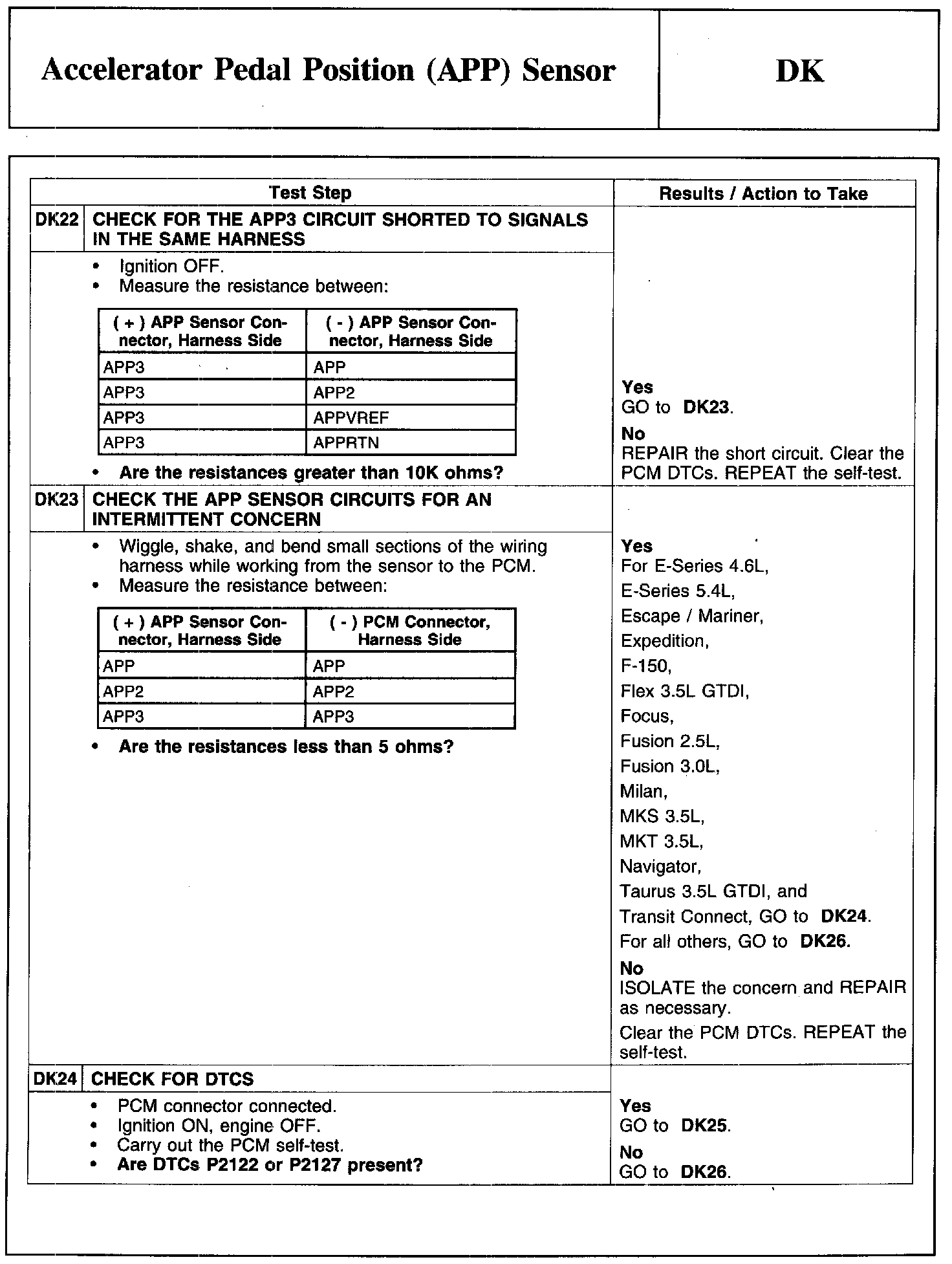

DK22-DK24:

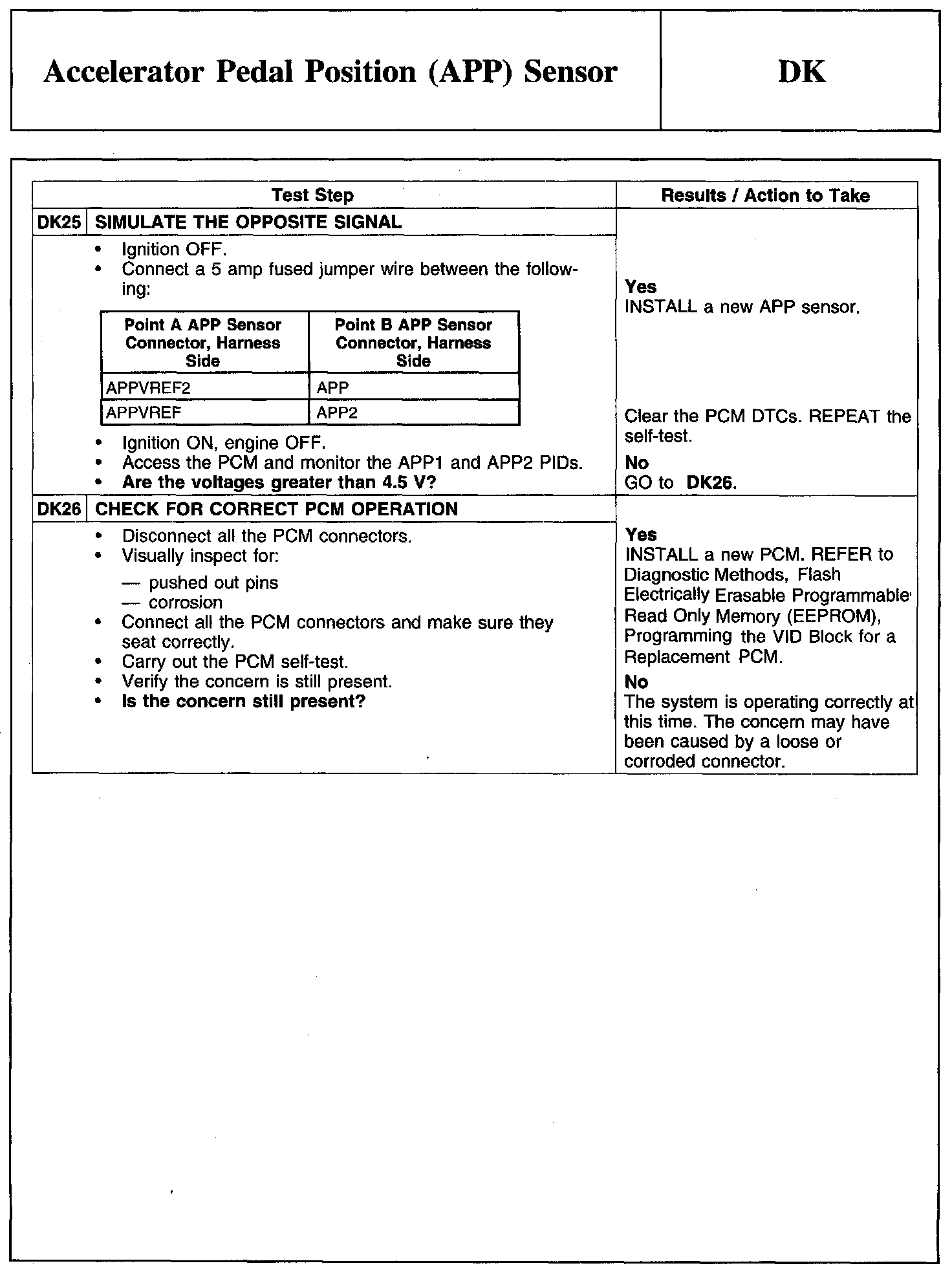

DK25-DK26:
