Test DX: Engine Coolant Temperature (ECT) Sensor

PINPOINT TEST DX: ENGINE COOLANT TEMPERATURE (ECT) SENSOR

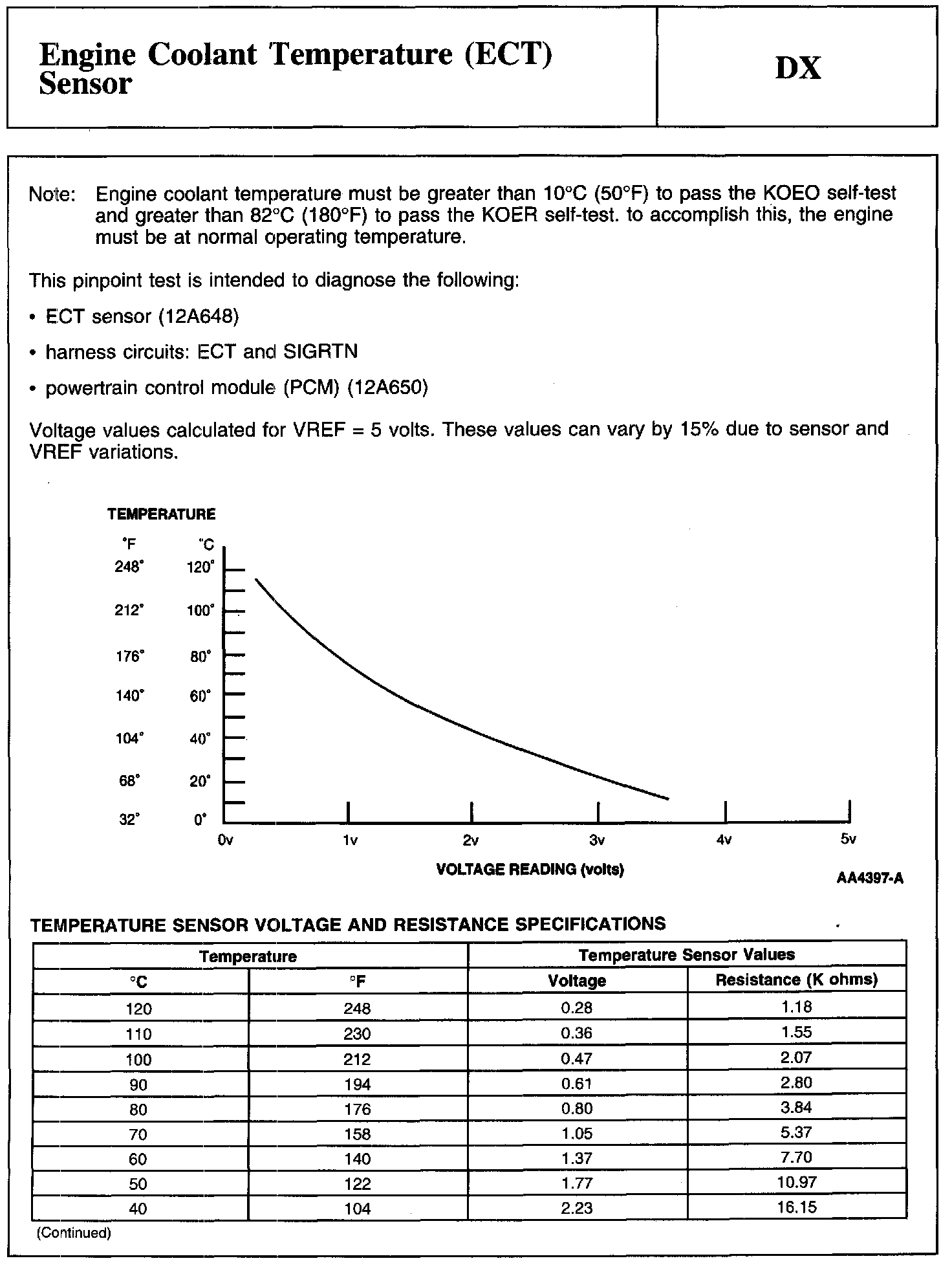

Note, Temperature Sensor Voltage And Resistance Specifications:

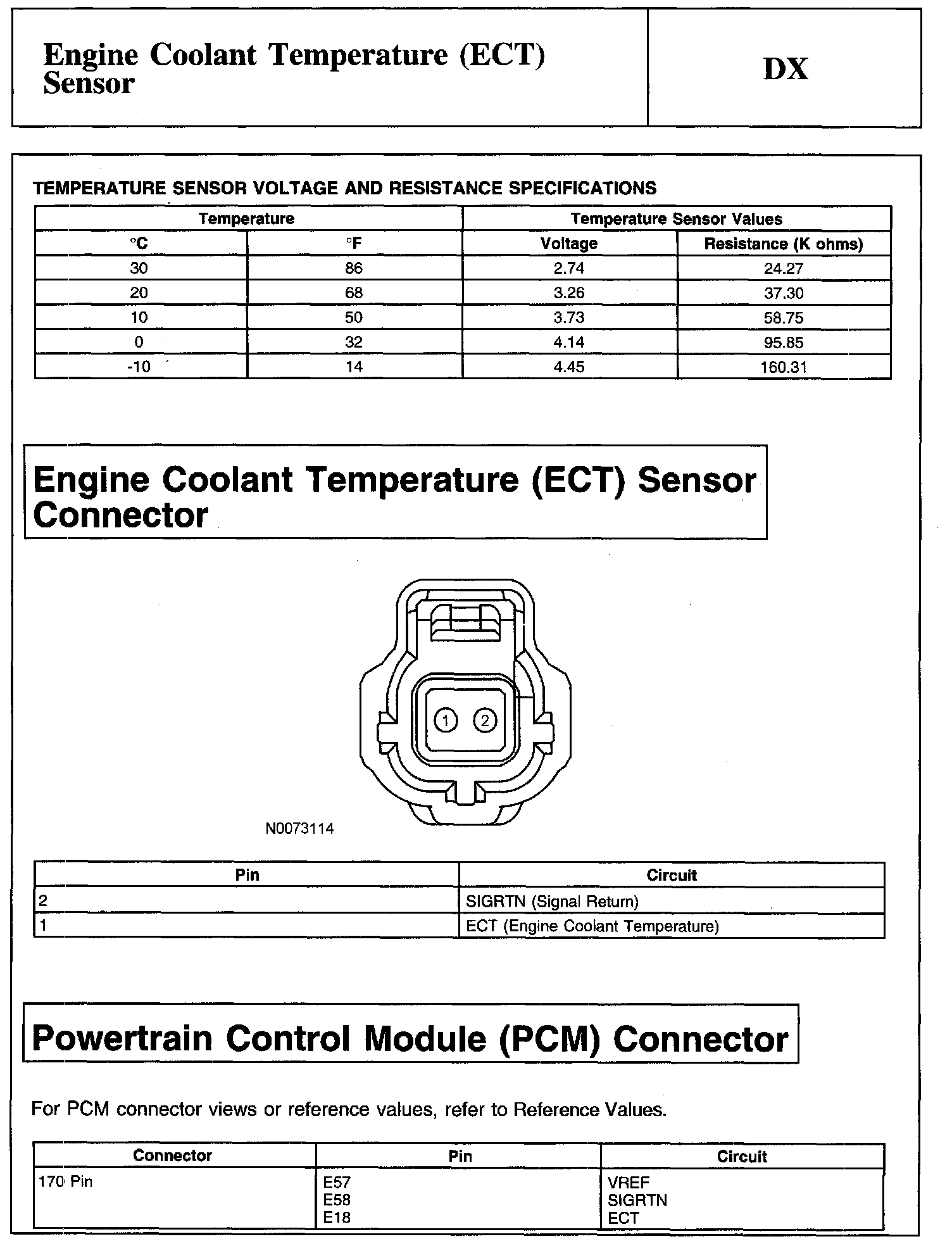

Temperature Sensor Voltage And Resistance Specifications And Engine Coolant Temperature (ECT) Sensor Connector And Powertrain Control Module (PCM) Connector:

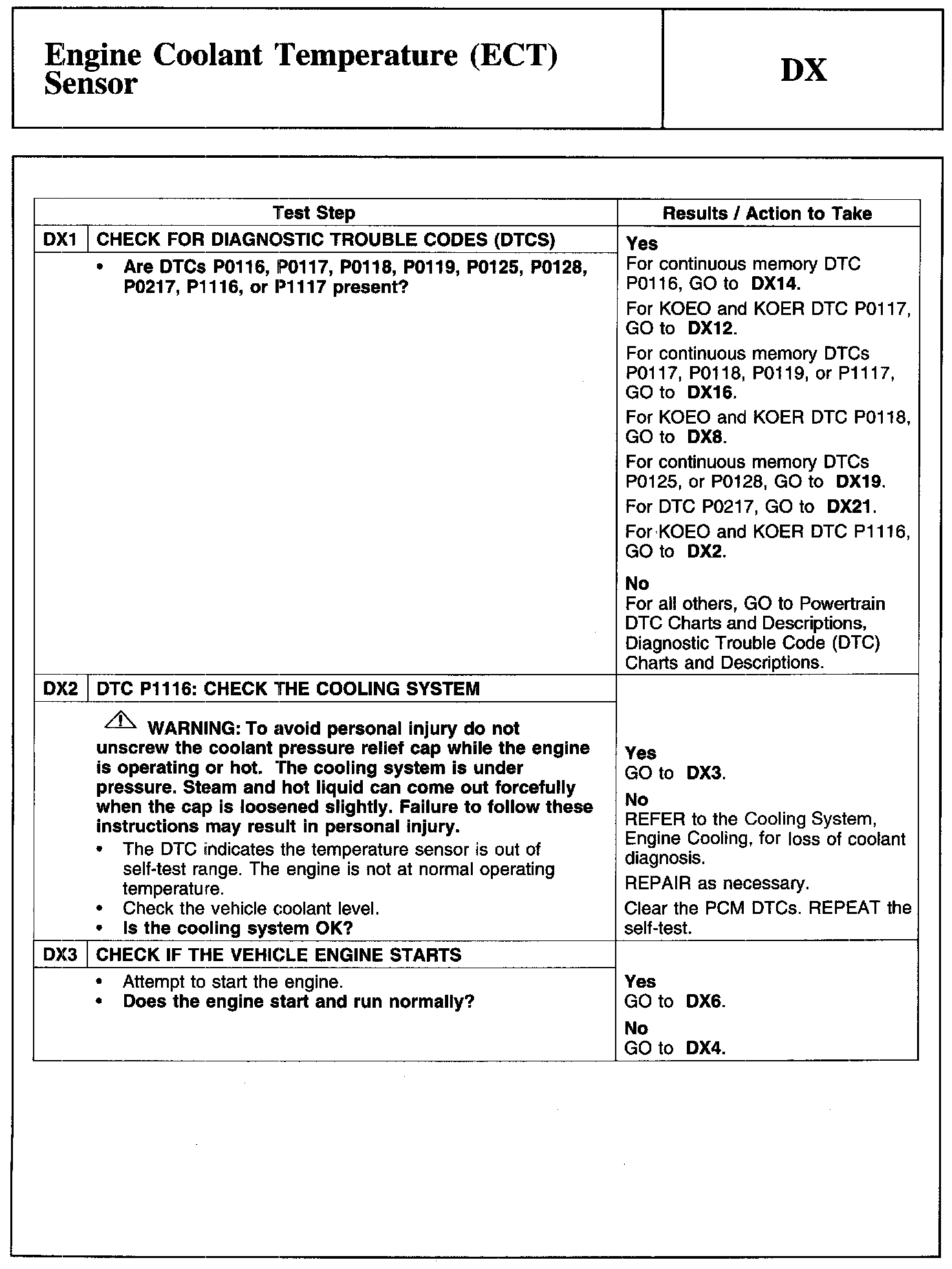

DX1-DX3:

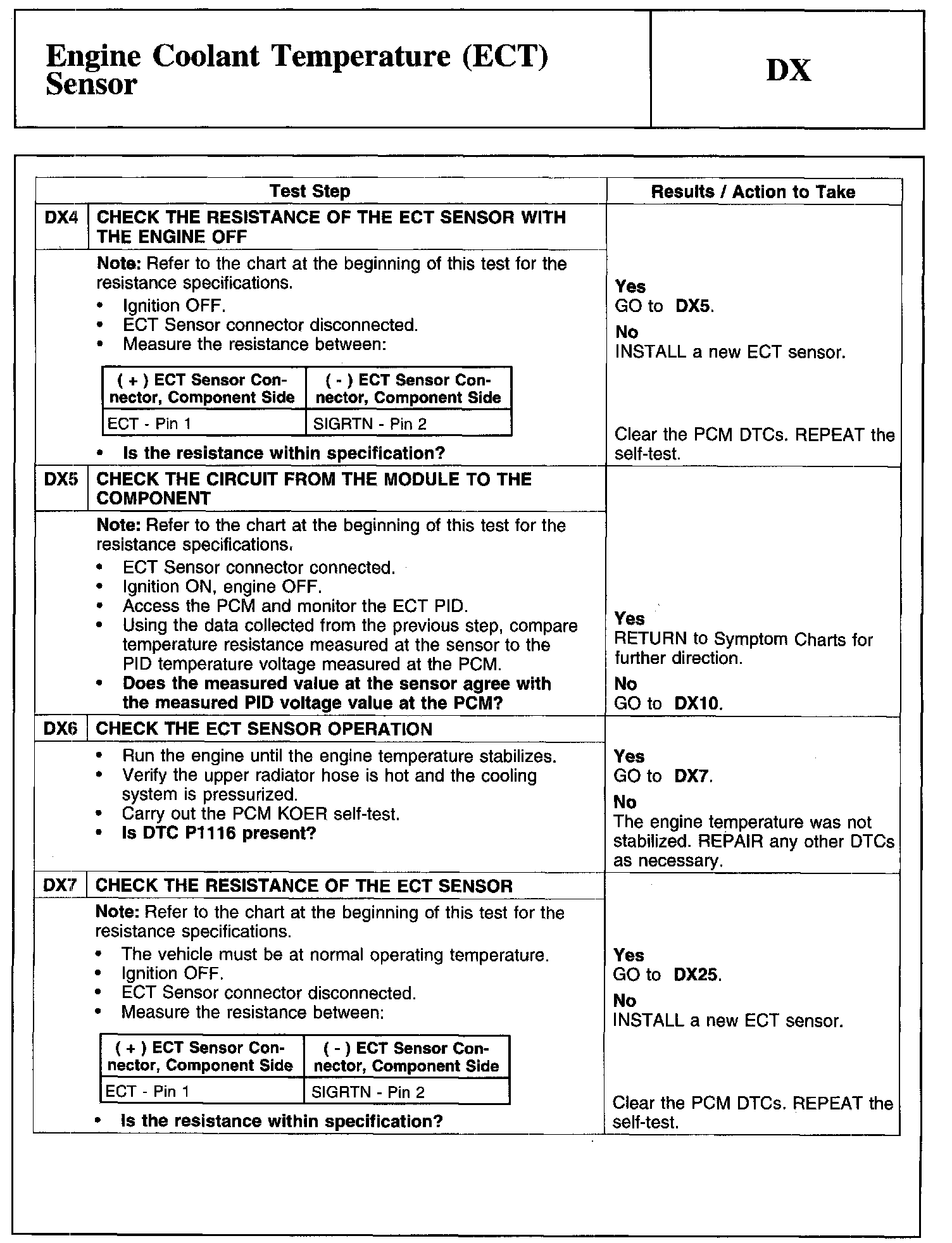

DX4-DX7:

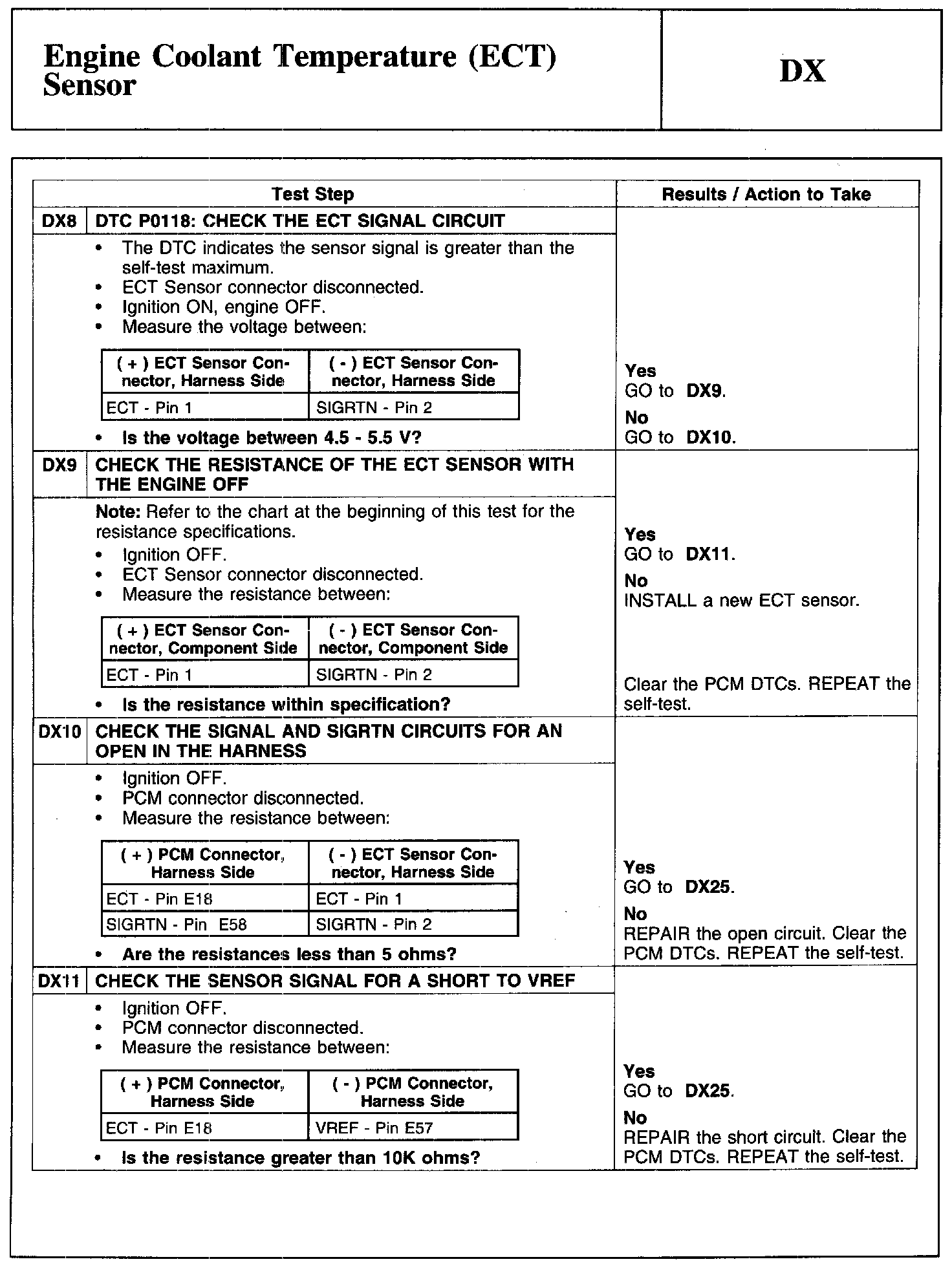

DX8-DX11:






DX12-DX14:

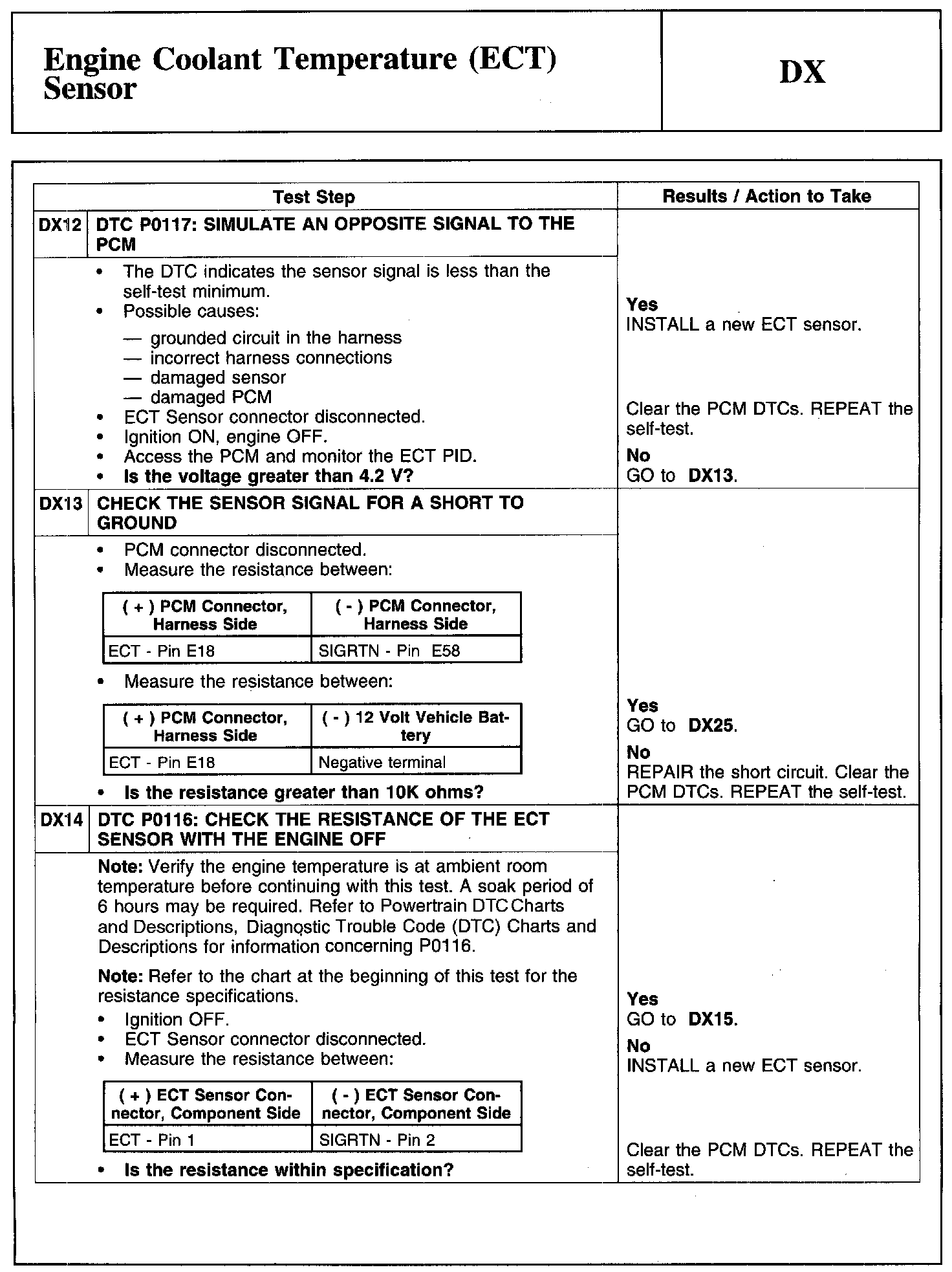

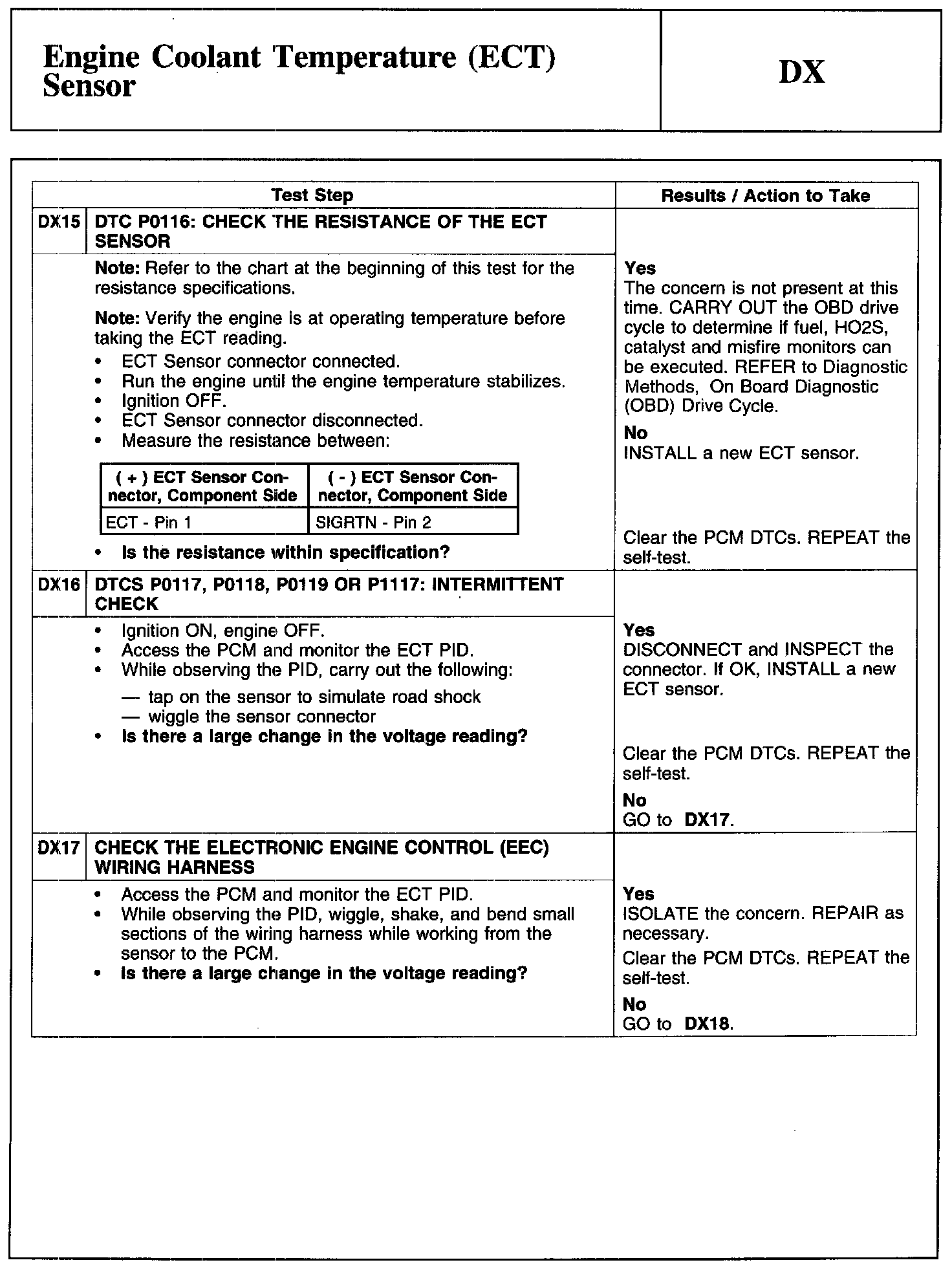

DX15-DX17:

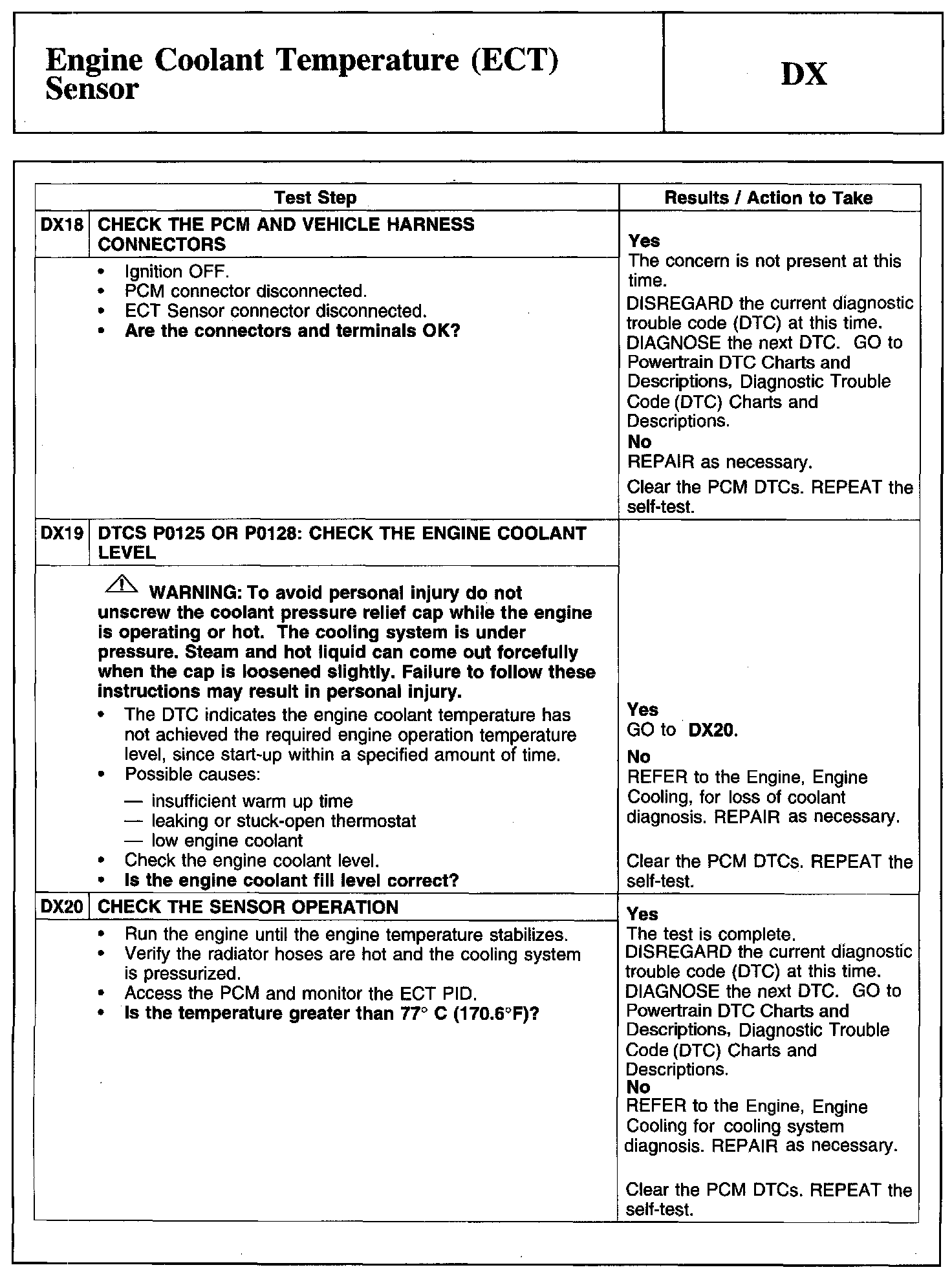

DX18-DX20:

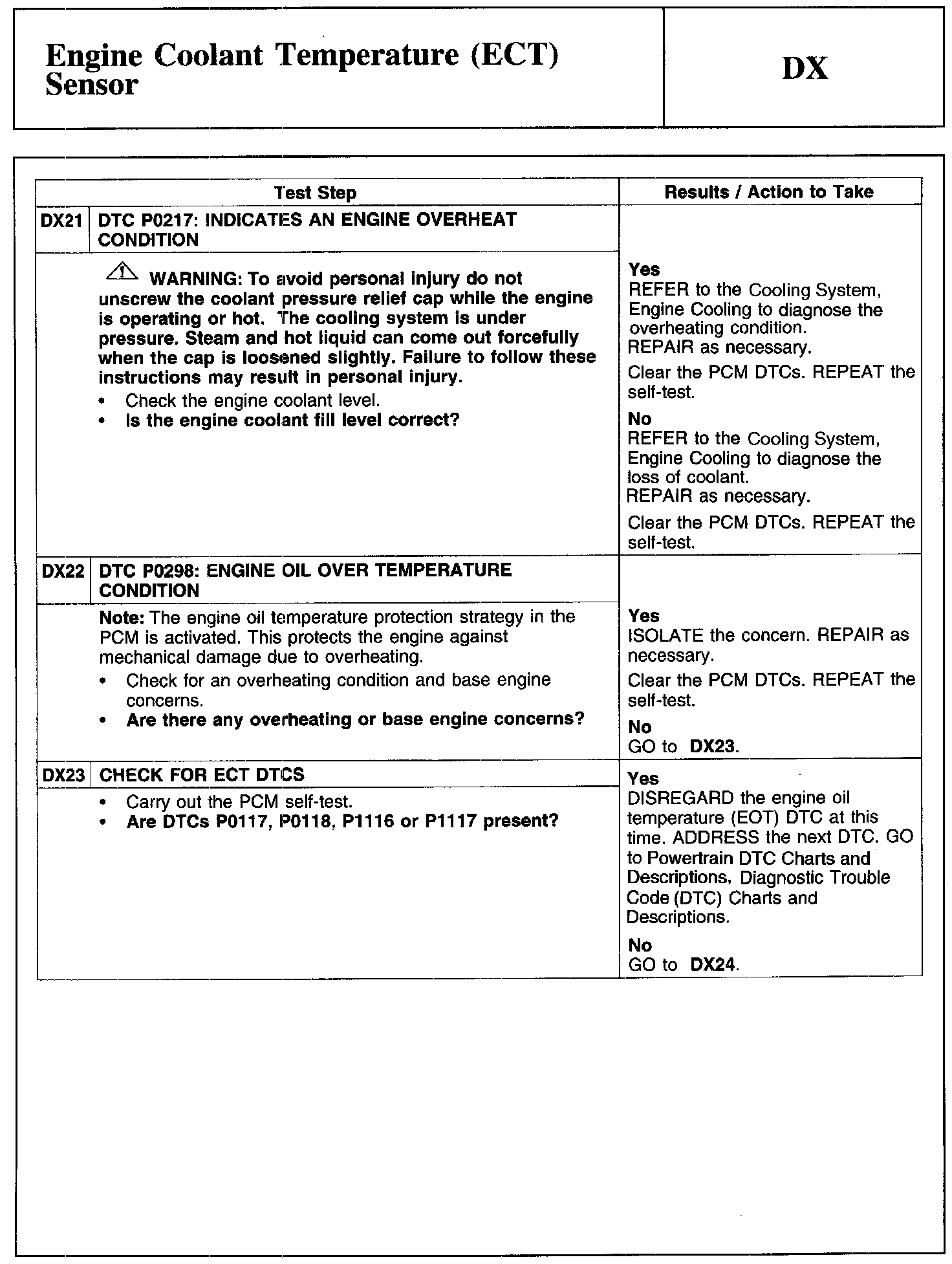

DX21-DX23:

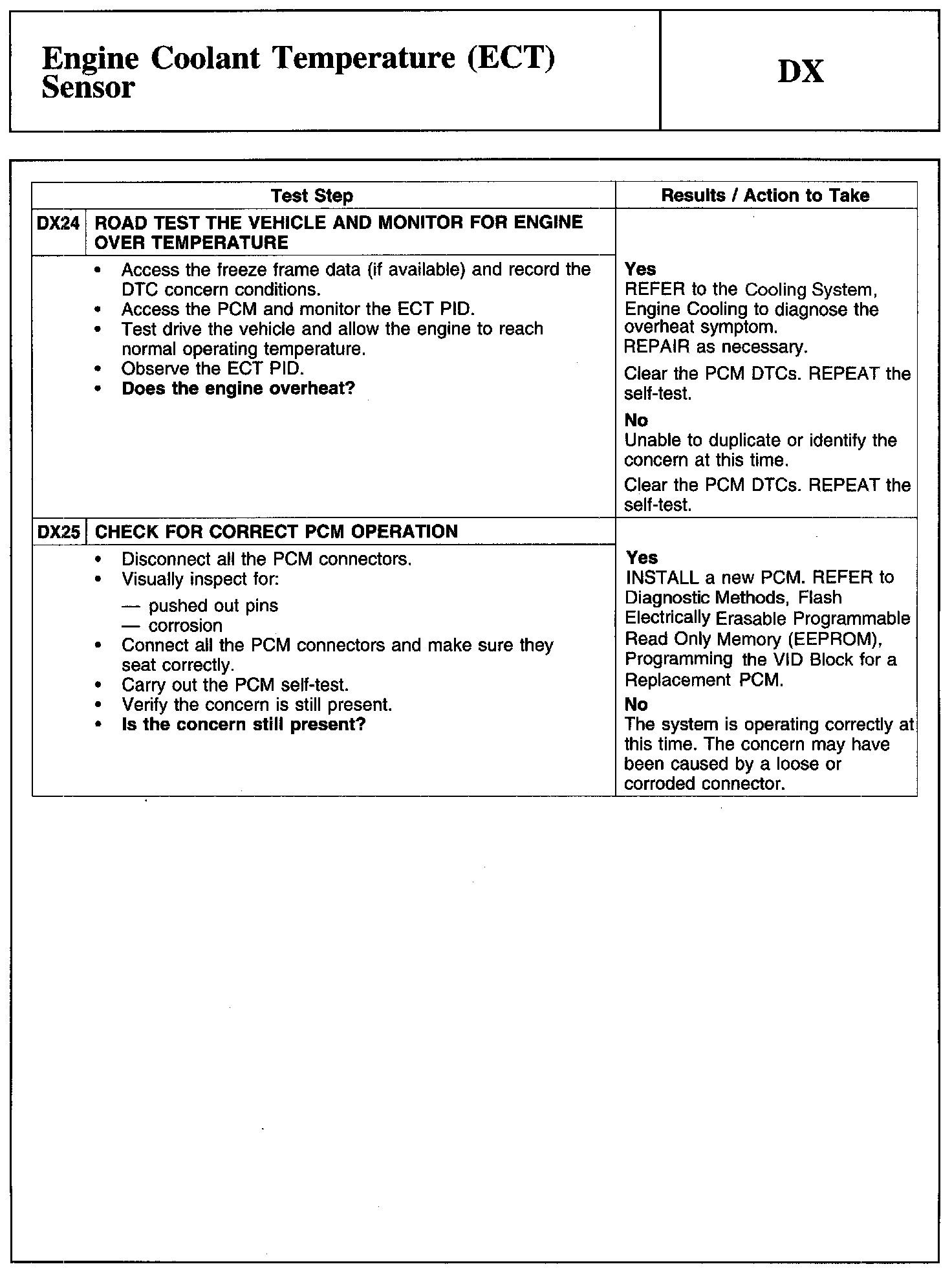

DX24-DX25:
