Test DY: Engine Oil Temperature (EOT) Sensor

PINPOINT TEST DY: ENGINE OIL TEMPERATURE (EOT) SENSOR

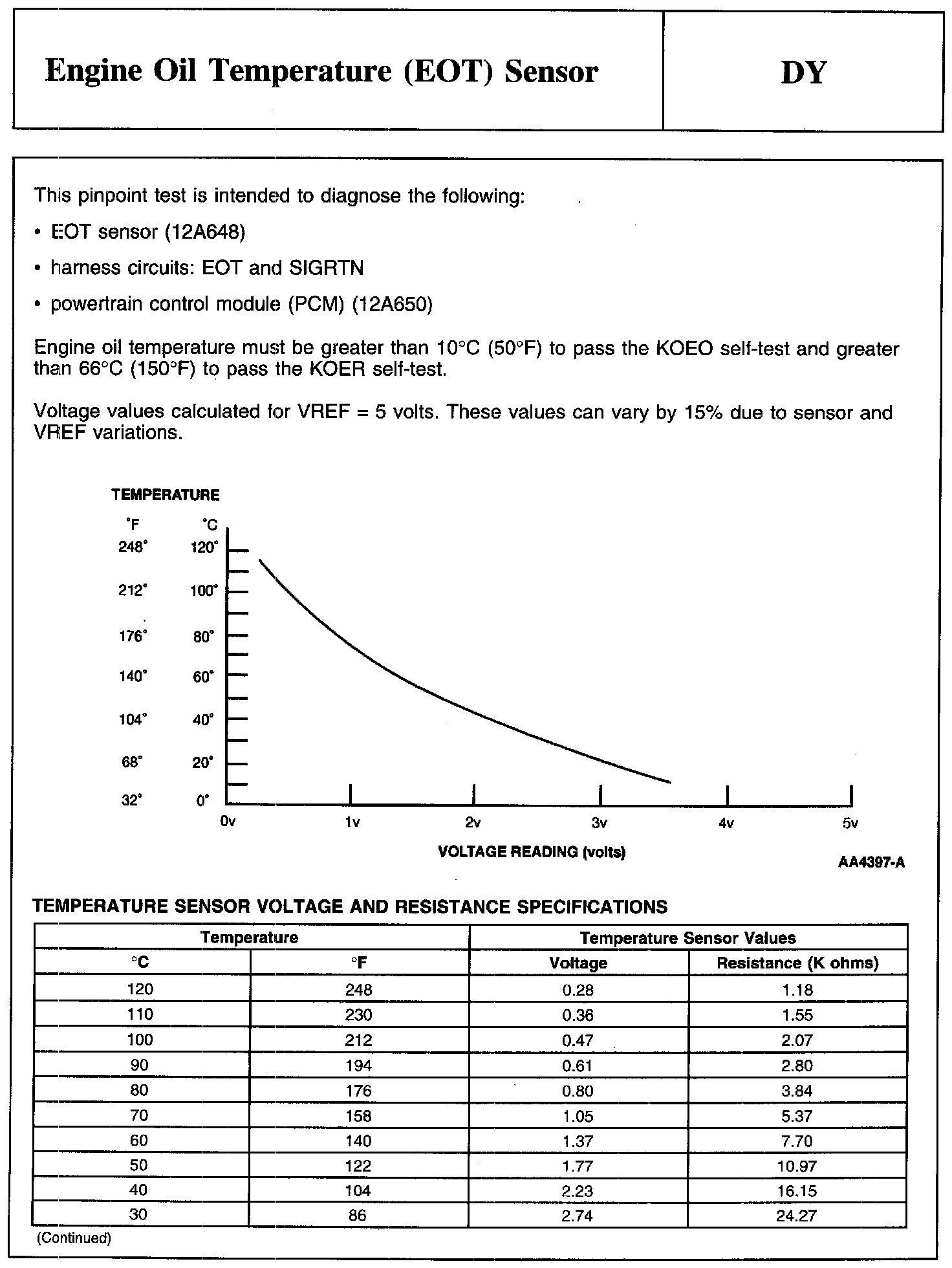

Temperature Sensor Voltage And Resistance Specifications:

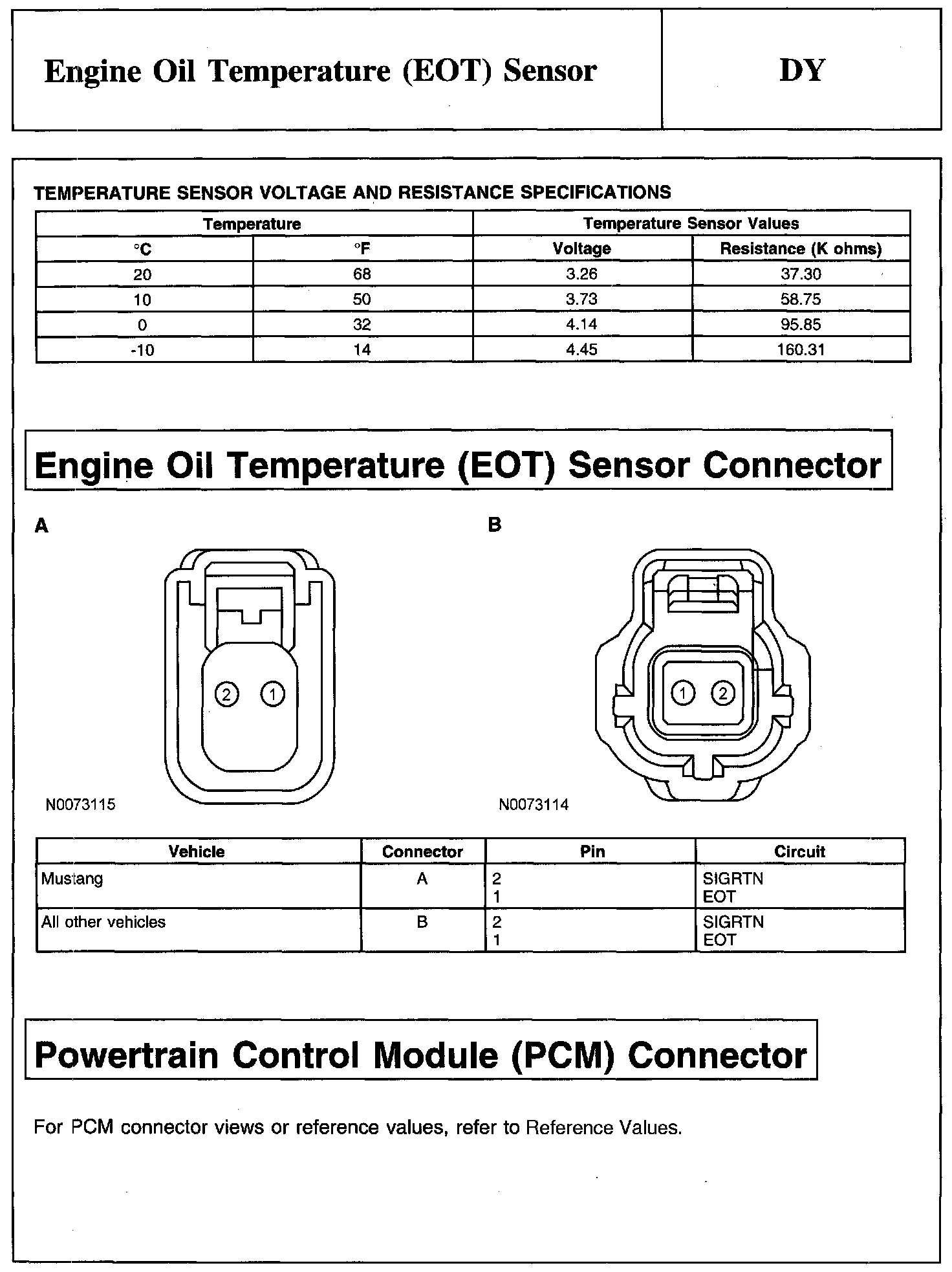

Temperature Sensor Voltage And Resistance Specifications, Engine Oil Temperature (EOT) Sensor Connector And Powertrain Control Module (PCM) Connector:

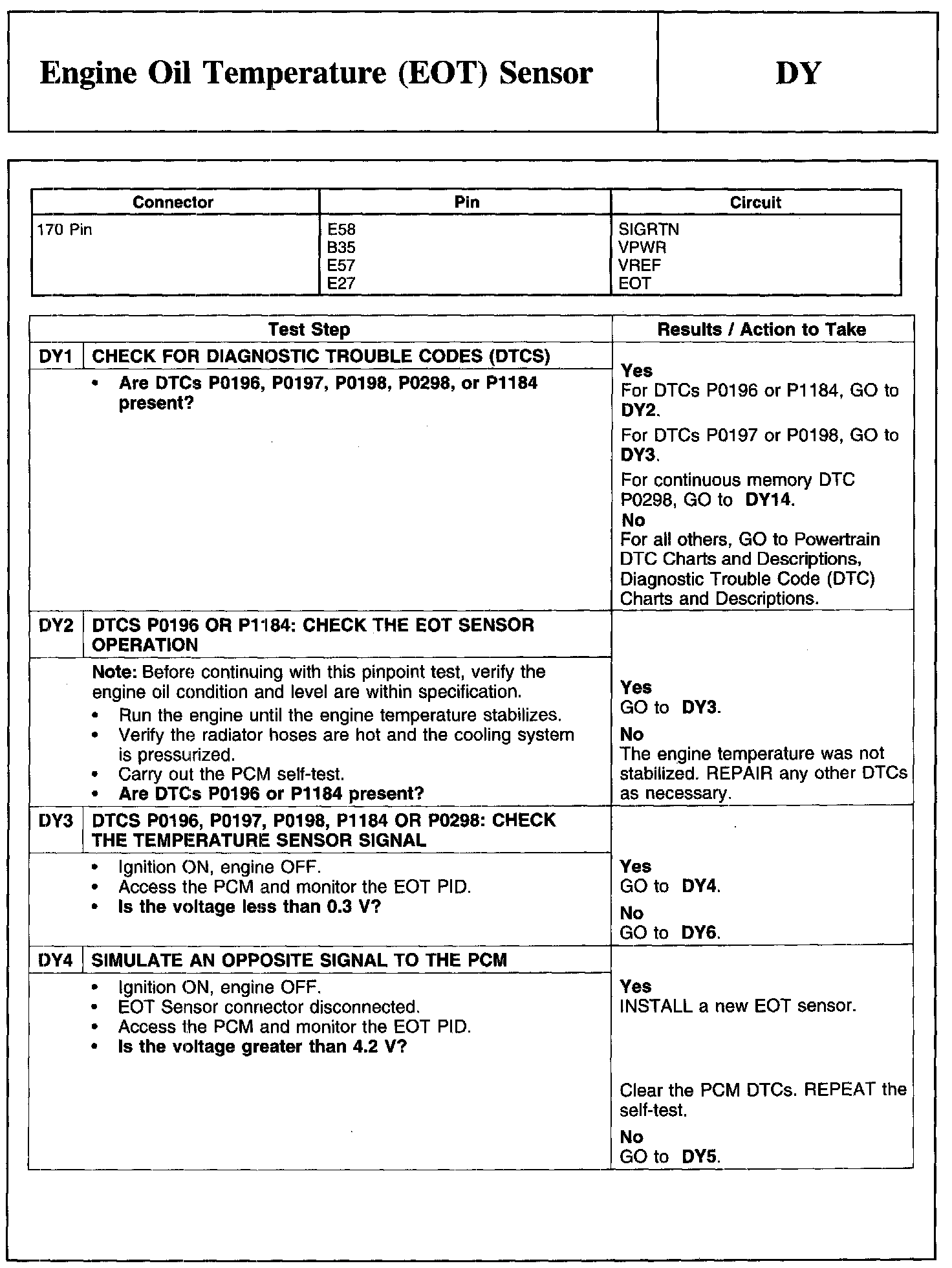

DY1-DY4:

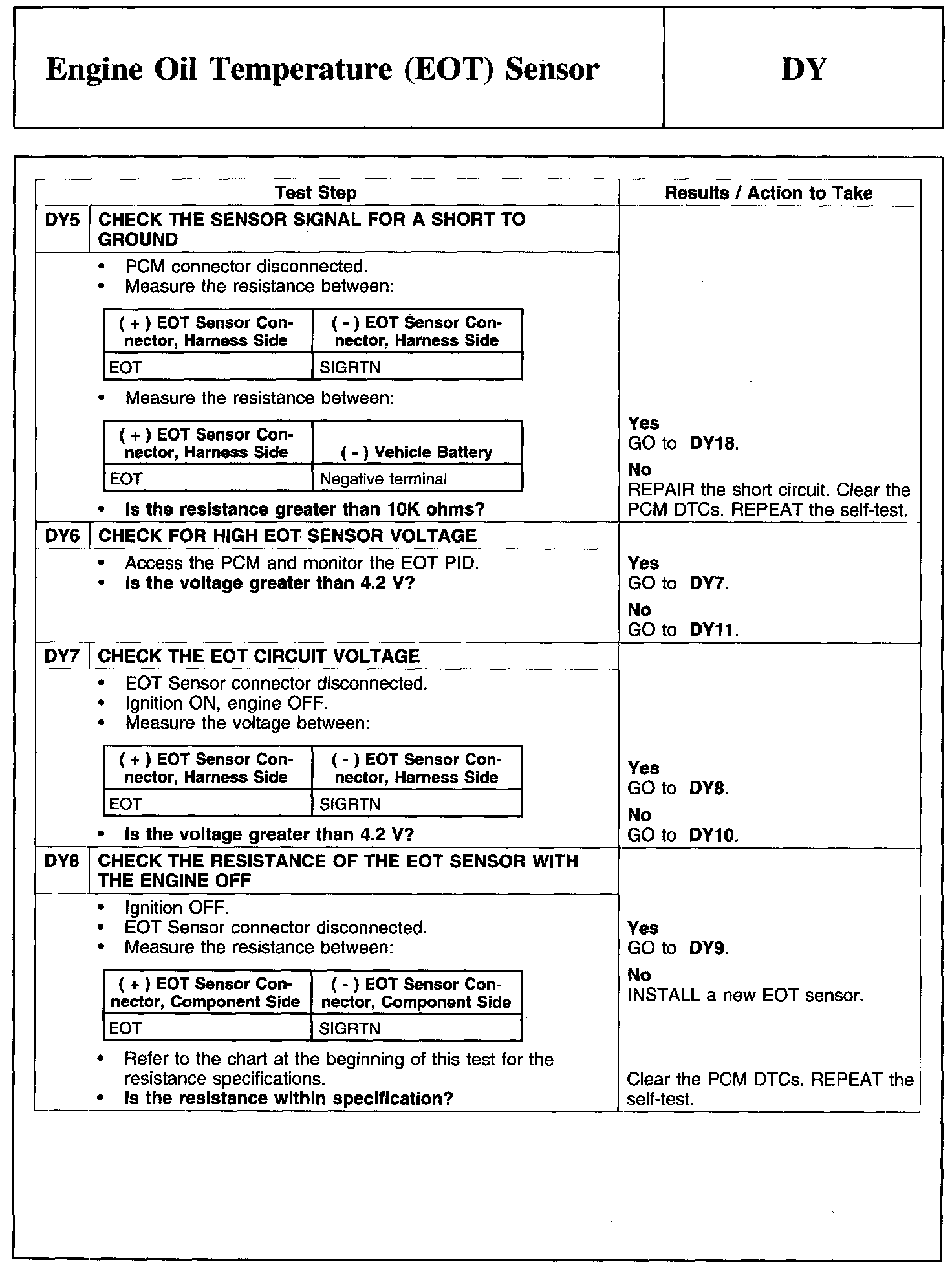

DY5-DY8:

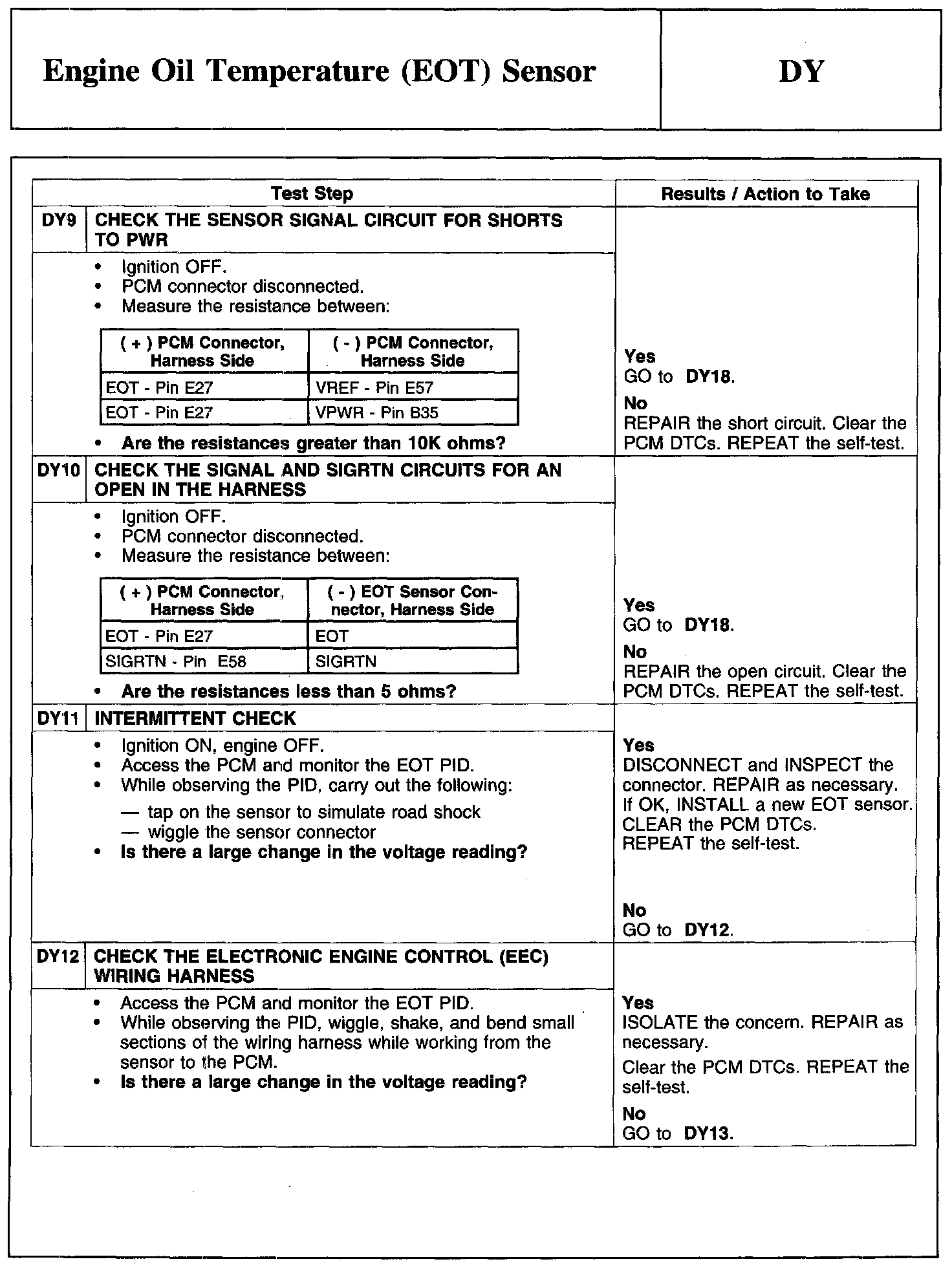

DY9-DY12:






DY13-DY16:

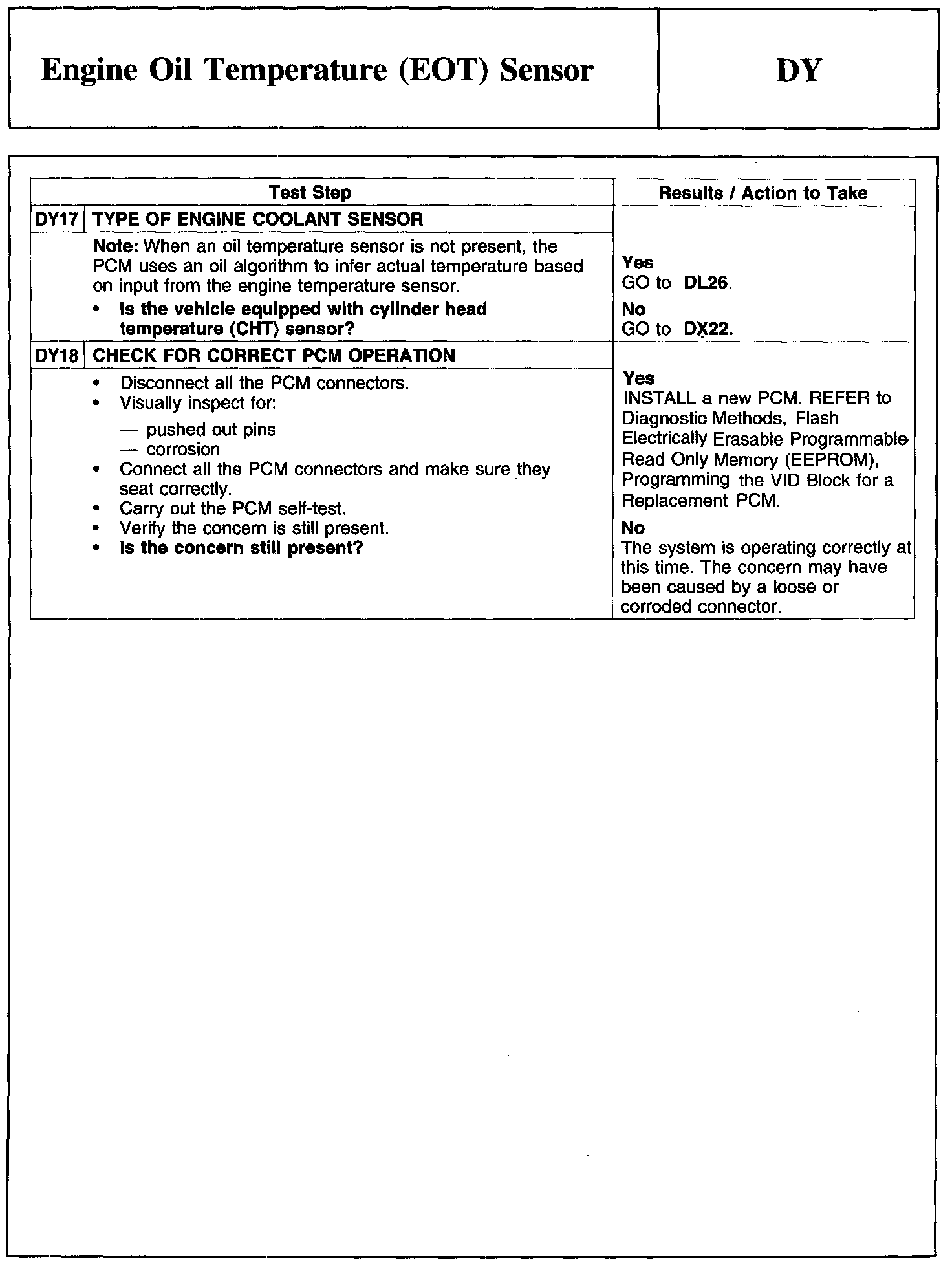

DY17-DY18:
