Test FF: Power Steering Pressure (PSP) Switch

PINPOINT TEST FF: POWER STEERING PRESSURE (PSP) SWITCH

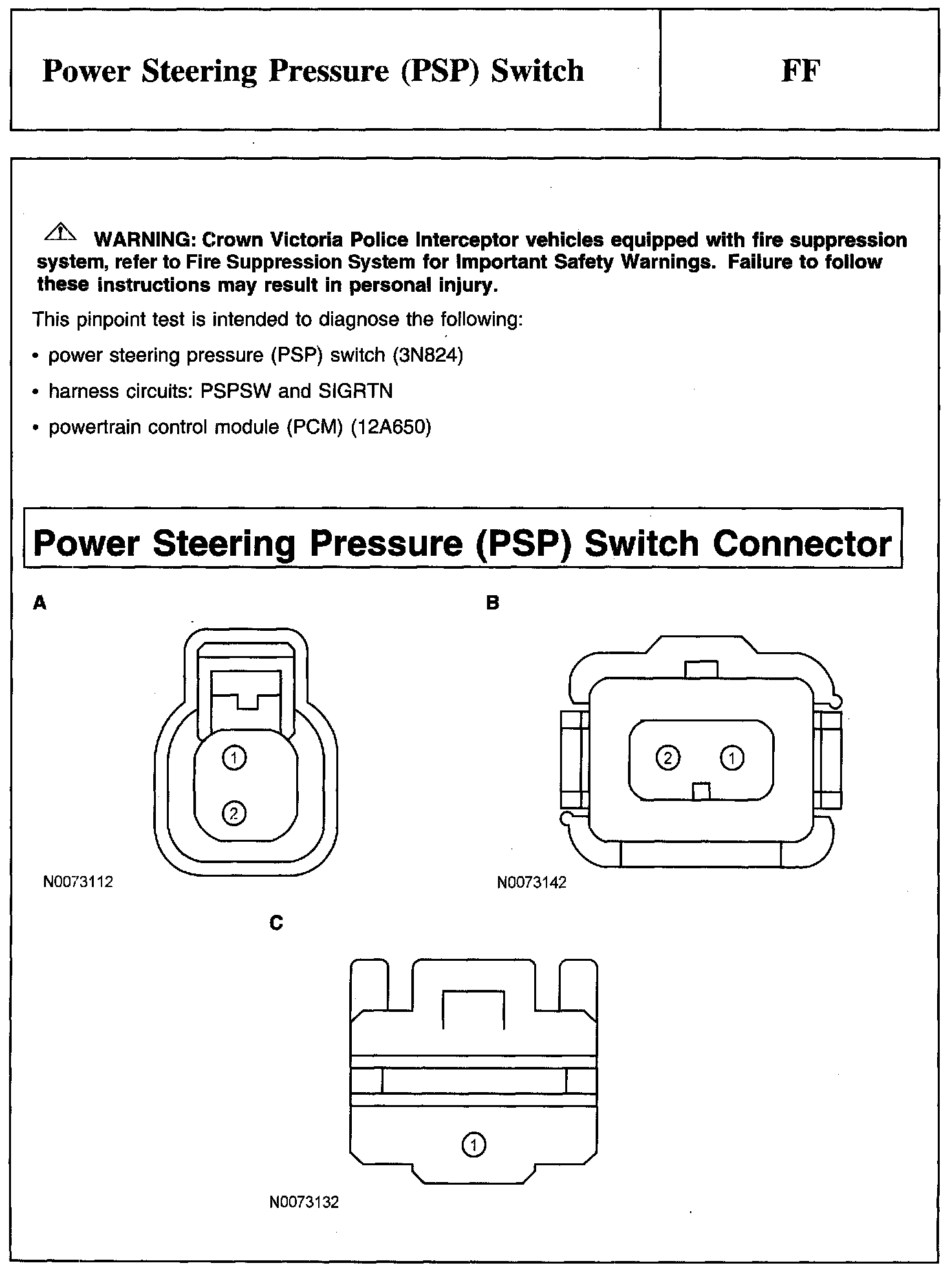

Warning And Power Steering Pressure (PSP) Switch Connector:

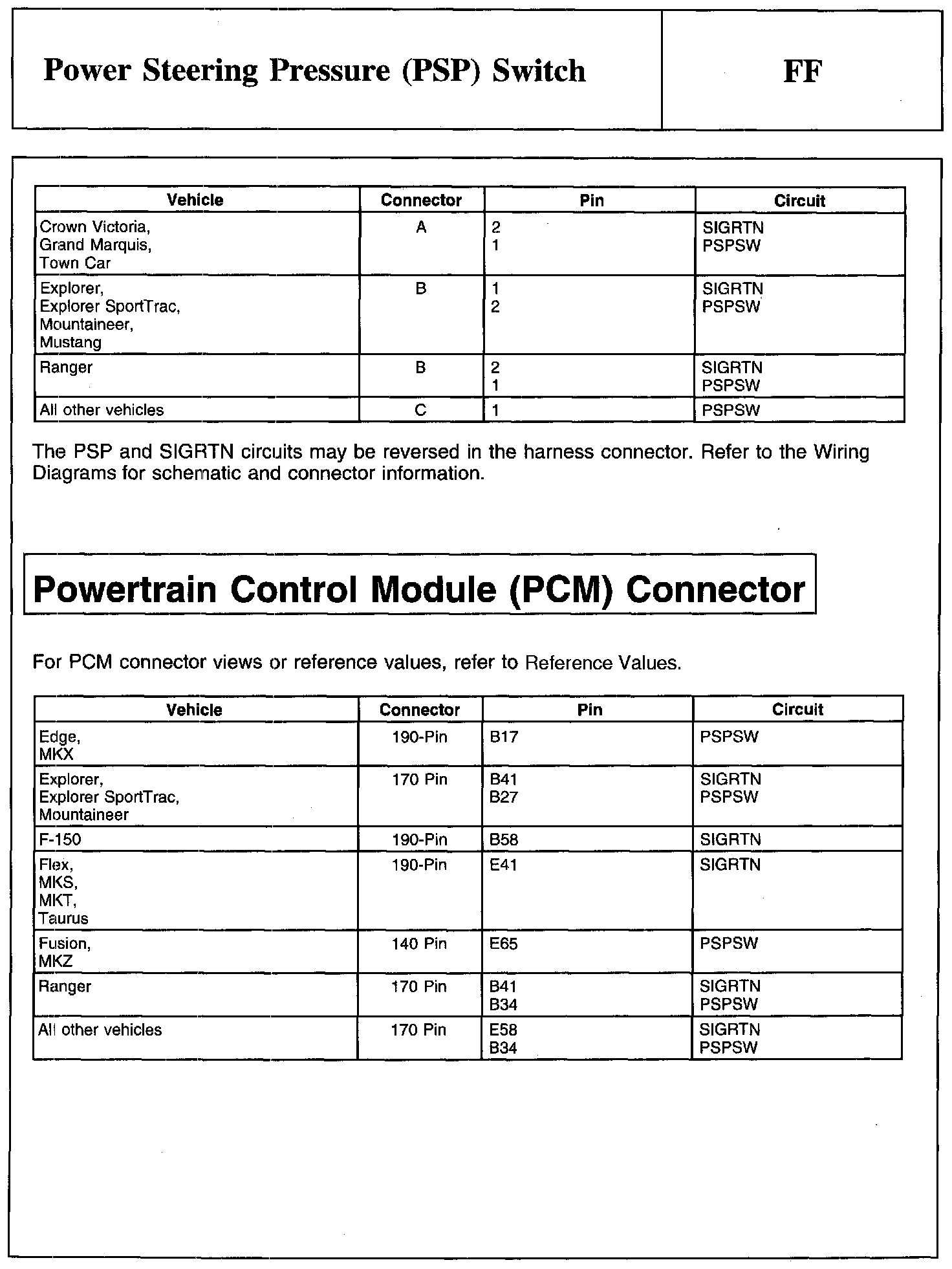

Power Steering Pressure (PSP) Switch Connector And Powertrain Control Module (PCM) Connector:

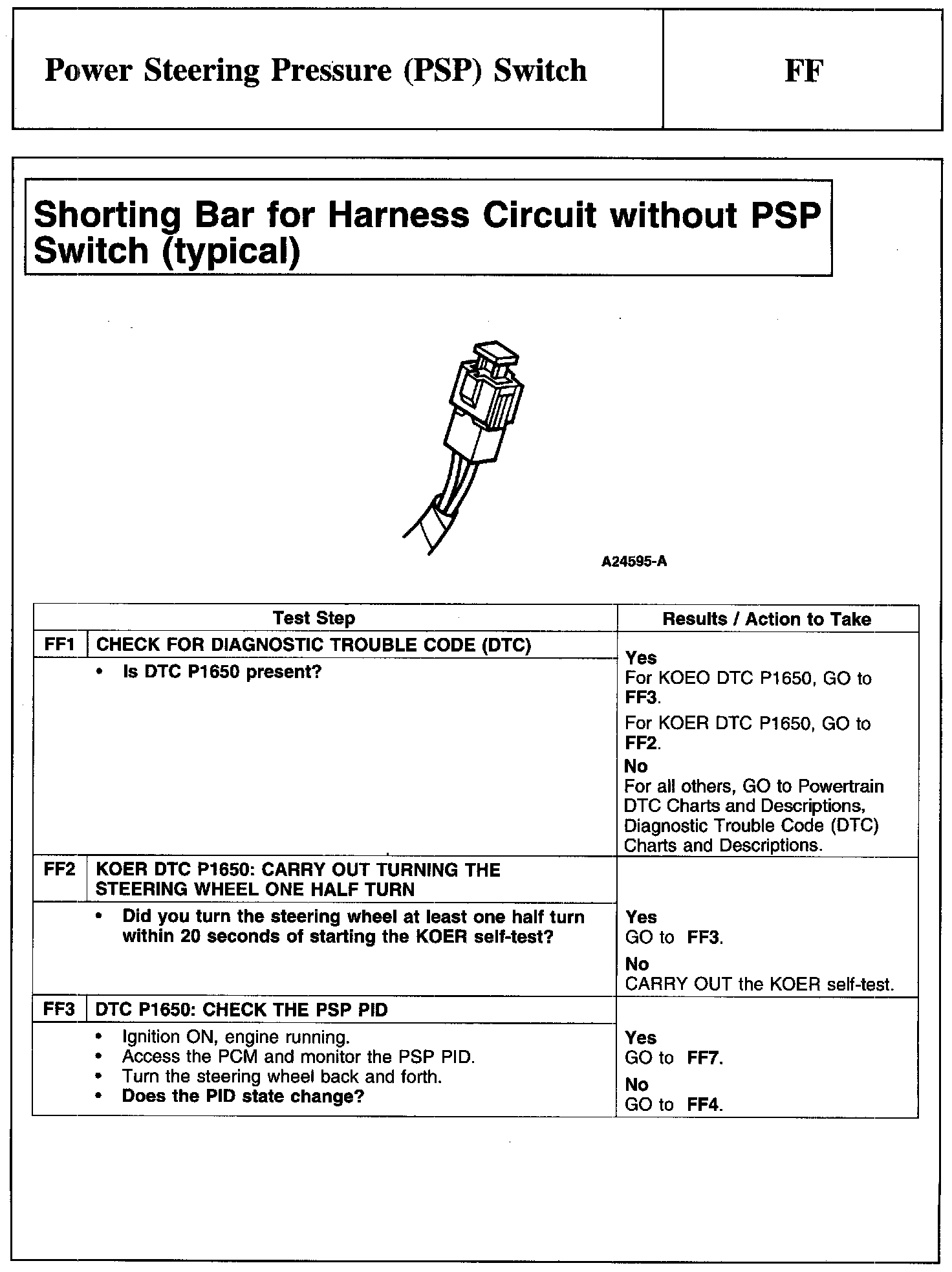

FF1-FF3:

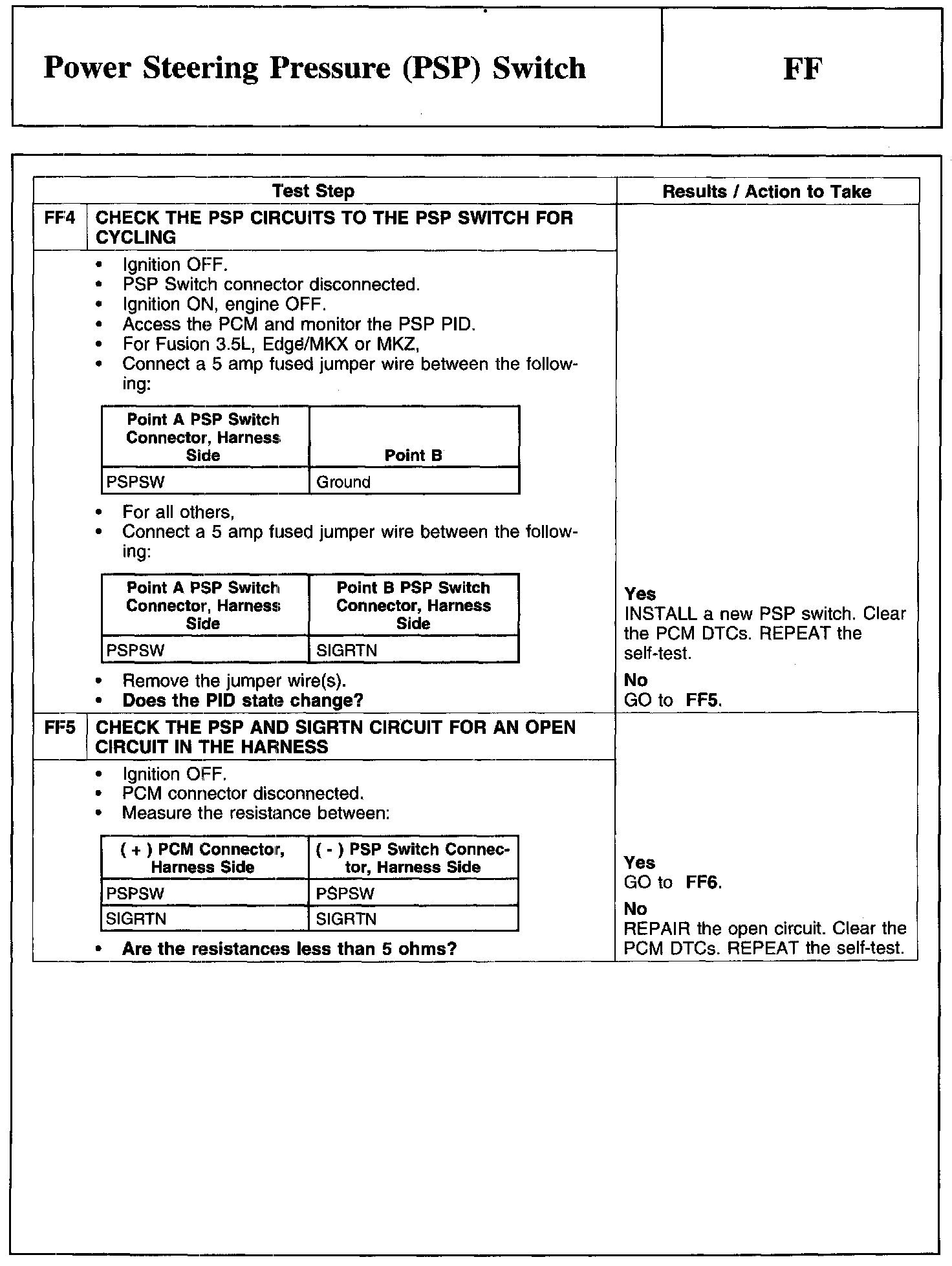

FF4-FF5:

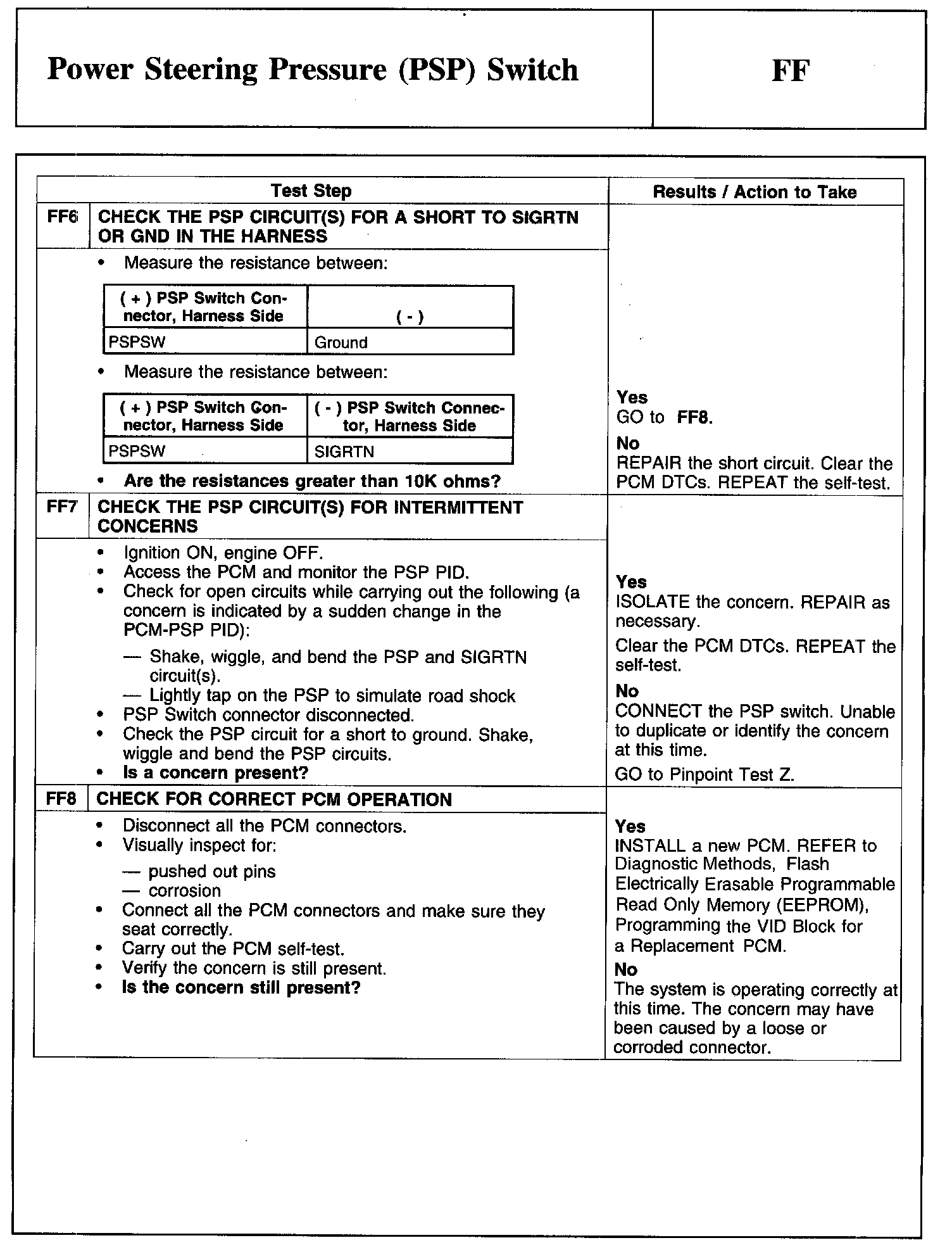

FF6-FF8:
