Test HG: Positive Crankcase Ventilation (PCV) System

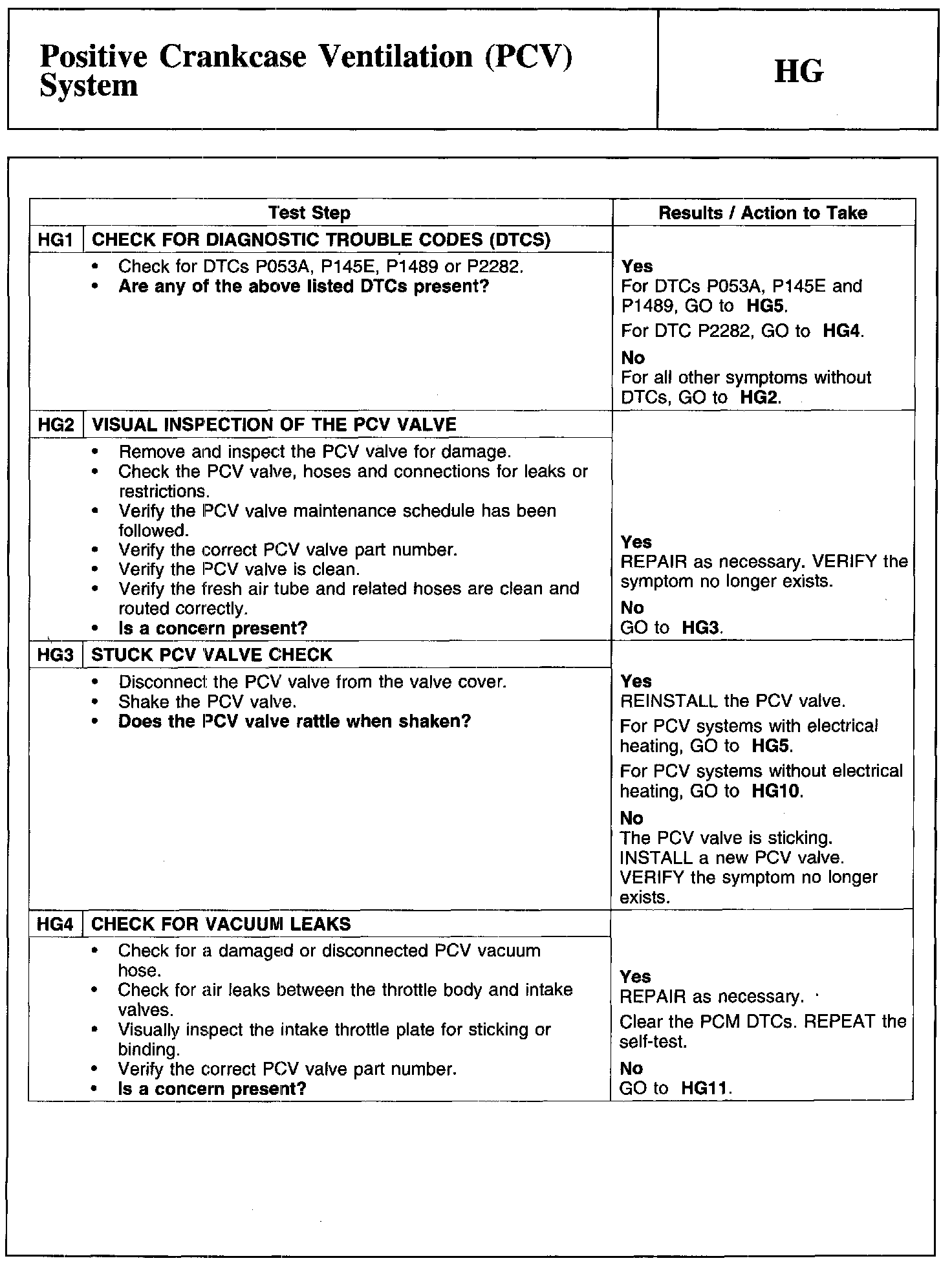

PINPOINT TEST HG: POSITIVE CRANKCASE VENTILATION (PCV) SYSTEM

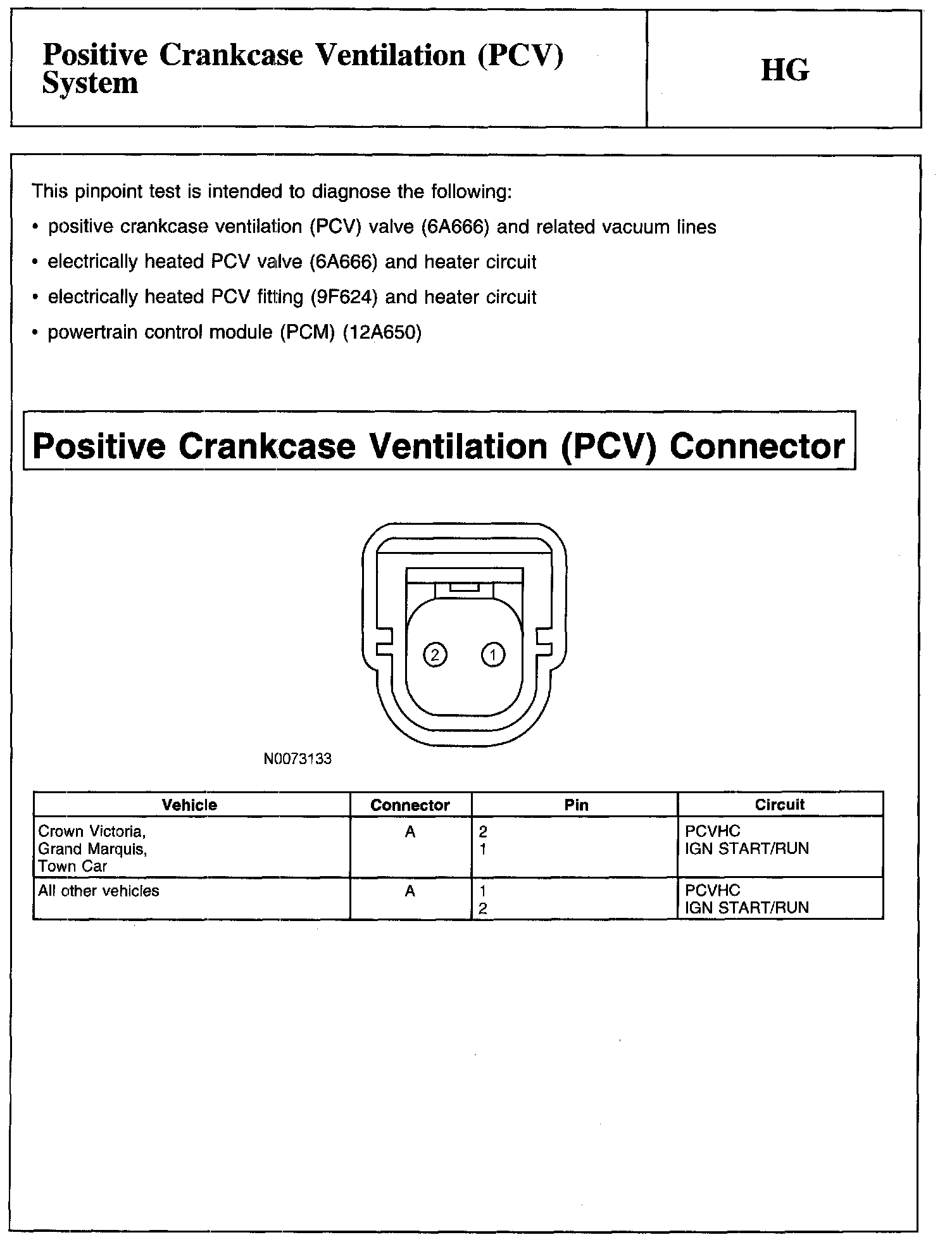

Positive Crankcase Ventilation (PCV) Connector:

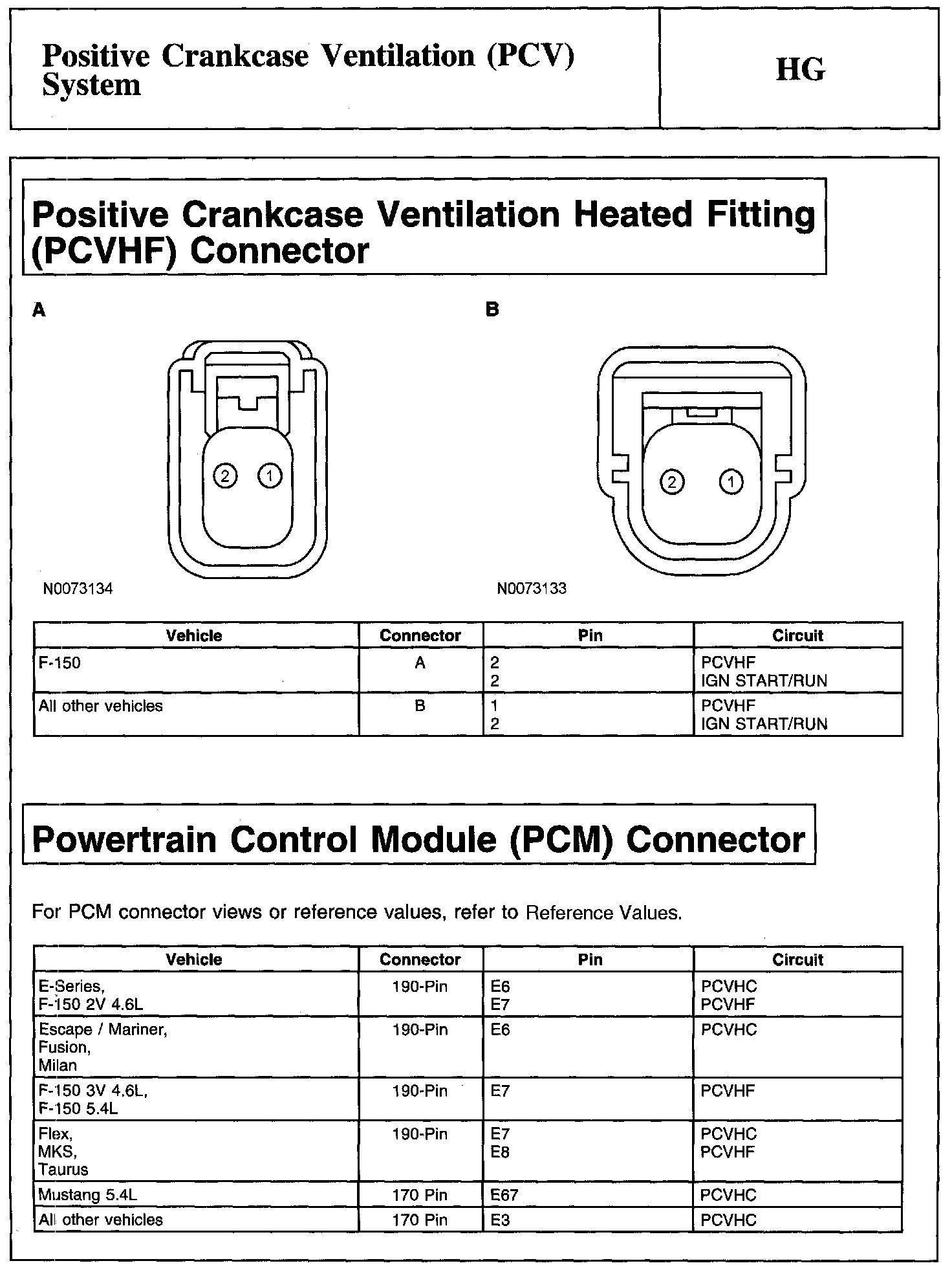

Positive Crankcase Ventilation Heated Fitting (PCVHF) Connector And Powertrain Control Module (PCM) Connector:






HG1-HG4:

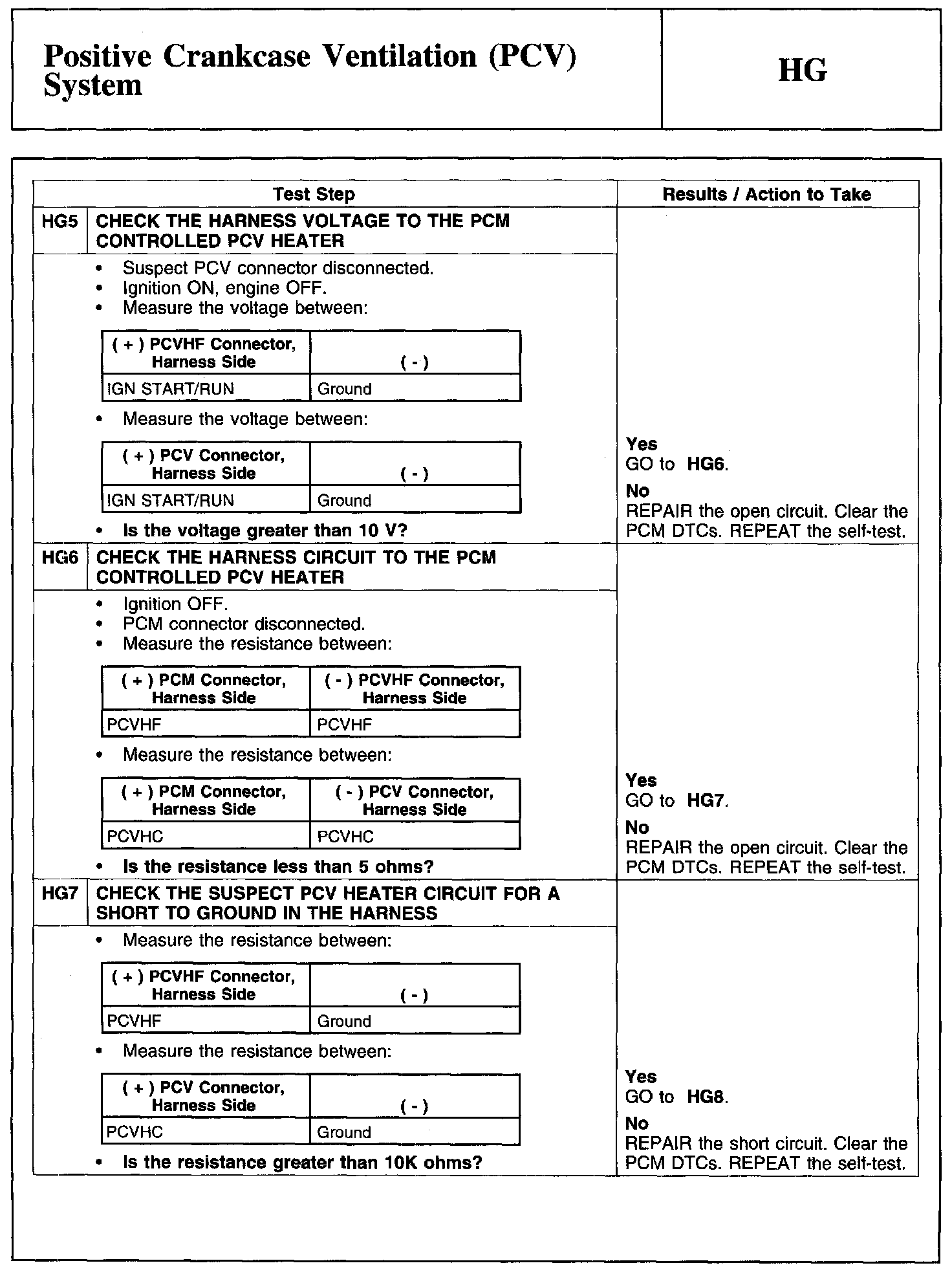

HG5-HG7:

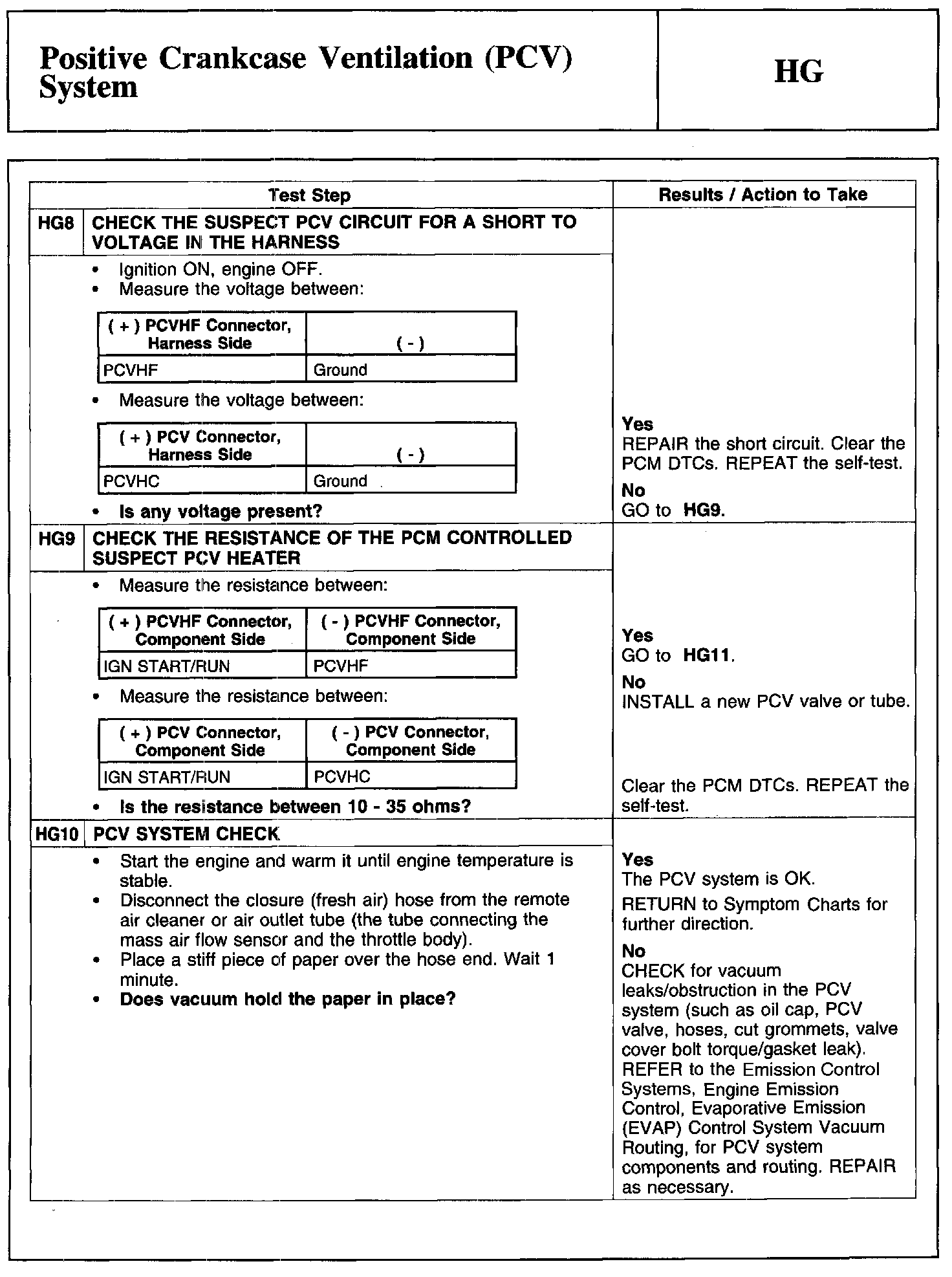

HG8-HG10:

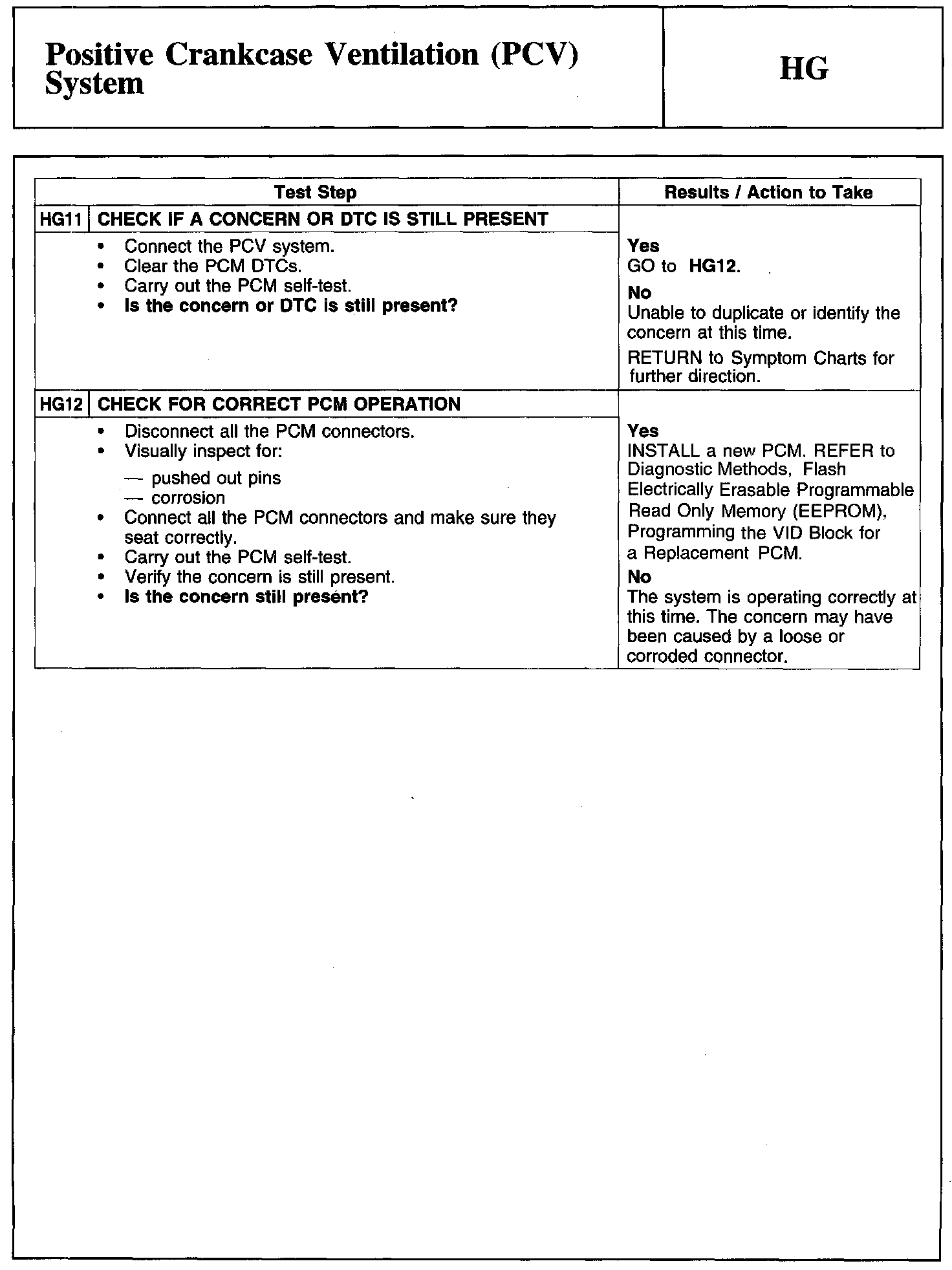

HG11-HG12:
