Throttle Body: Notes

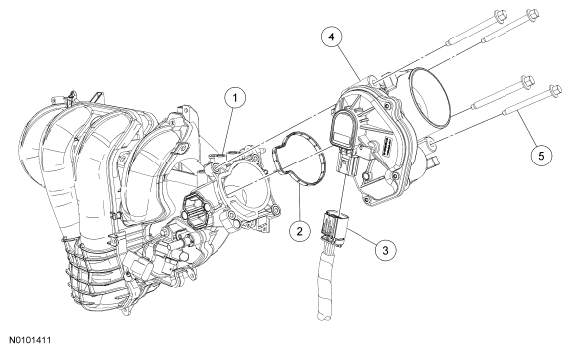

Courtesy of FORD MOTOR CO. THROTTLE BODY COMPONENTS PART NUMBER REFERENCE
| Item |
Part Number |
Description |
| 1 |
9424 |
Intake manifold |
| 2 |
9E936 |
Throttle Body (TB) gasket |
| 3 |
14A464 |
Electronic throttle control electrical connector (part of 12C508) |
| 4 |
9F991 |
TB |
| 5 |
W500305 |
TB
bolt (4 required) |
