Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

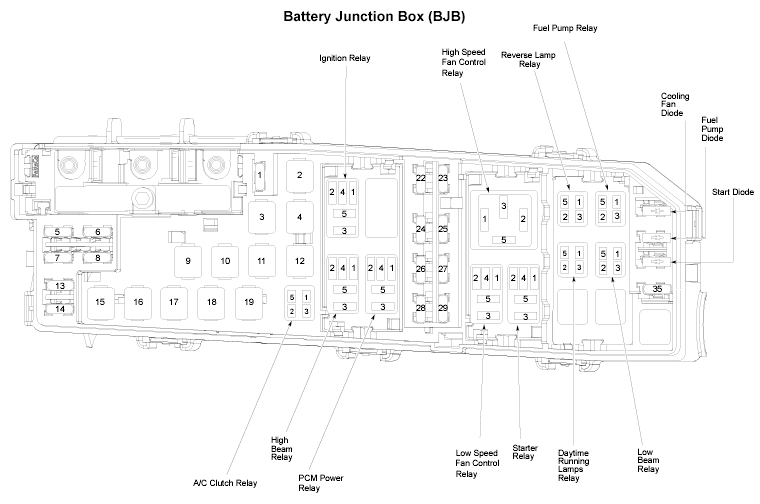

Fig 1: Battery Junction Box (BJB)
G00476685Courtesy of FORD MOTOR CO.

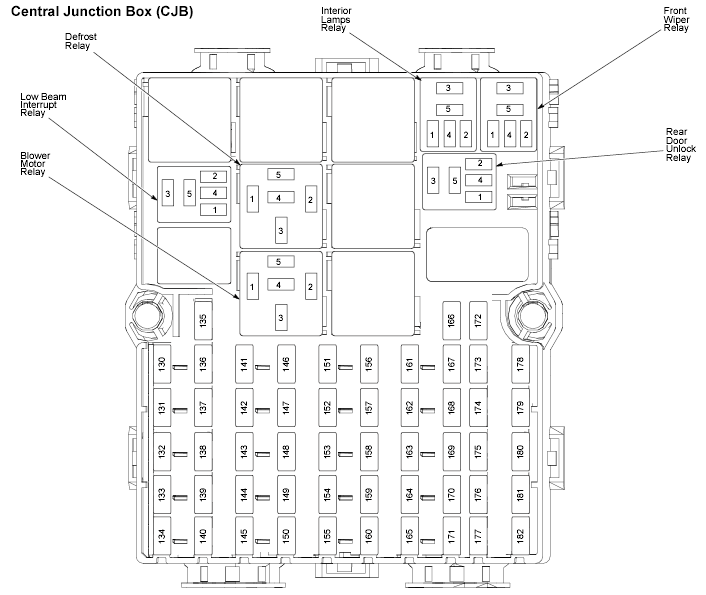

Fig 2: Central Junction Box (CJB)
G00476686Courtesy of FORD MOTOR CO.
Fig 3: Engine Compartment
G00476687Courtesy of FORD MOTOR CO.

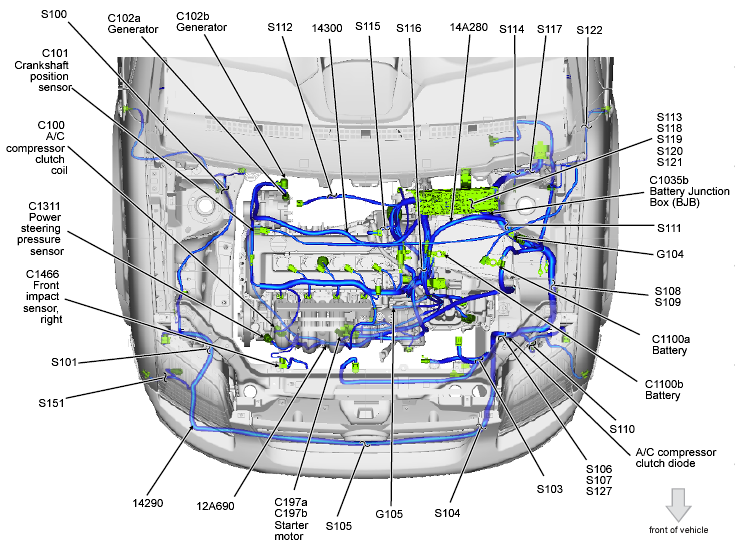

Fig 4: Engine Compartment
G00476688Courtesy of FORD MOTOR CO.
Fig 5: Right Side Of Engine
G00476689Courtesy of FORD MOTOR CO.
Fig 6: Left Side Of Engine
G00476690Courtesy of FORD MOTOR CO.

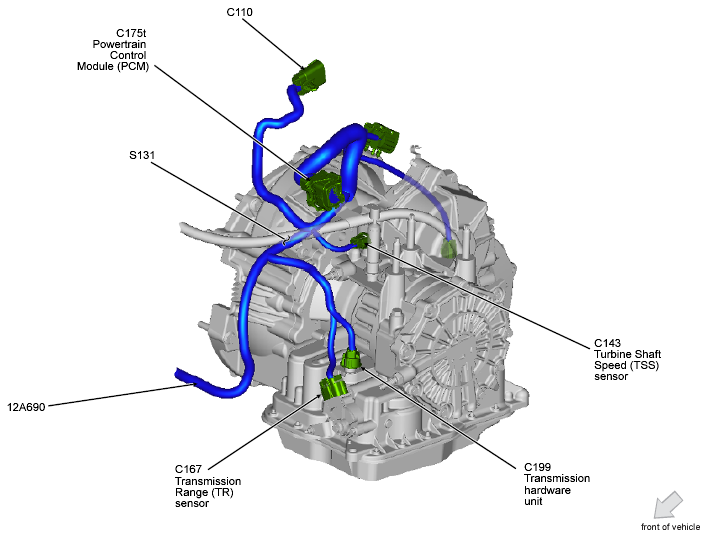

Fig 7: Left Side Of Automatic Transmission
G00476691Courtesy of FORD MOTOR CO.

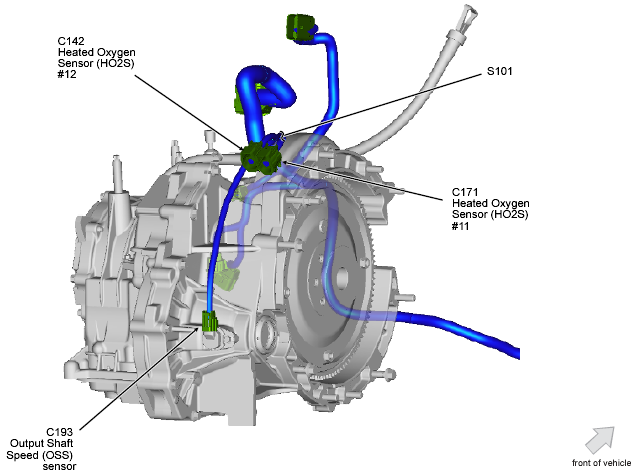

Fig 8: Right Side Of Automatic Transmission
G00476692Courtesy of FORD MOTOR CO.
Fig 9: Dash & Center Console
G00476693Courtesy of FORD MOTOR CO.
Fig 10: Rear Of Dash
G00476694Courtesy of FORD MOTOR CO.
Fig 11: Steering Wheel & Column
G00476695Courtesy of FORD MOTOR CO.

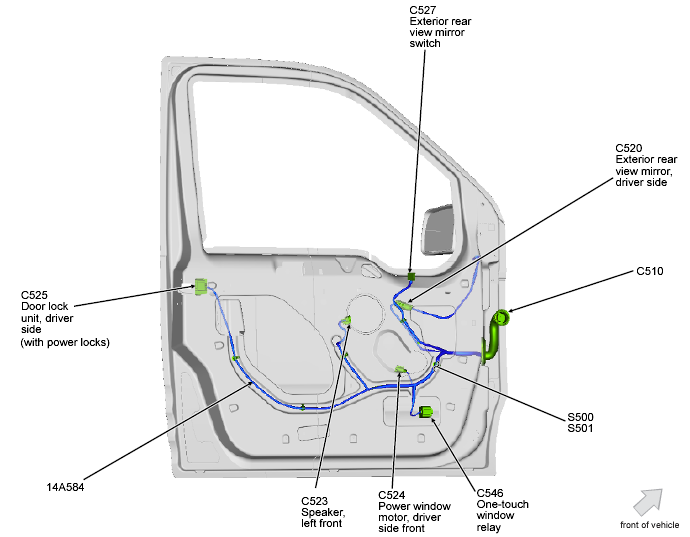

Fig 12: Driver's Door
G00476696Courtesy of FORD MOTOR CO.

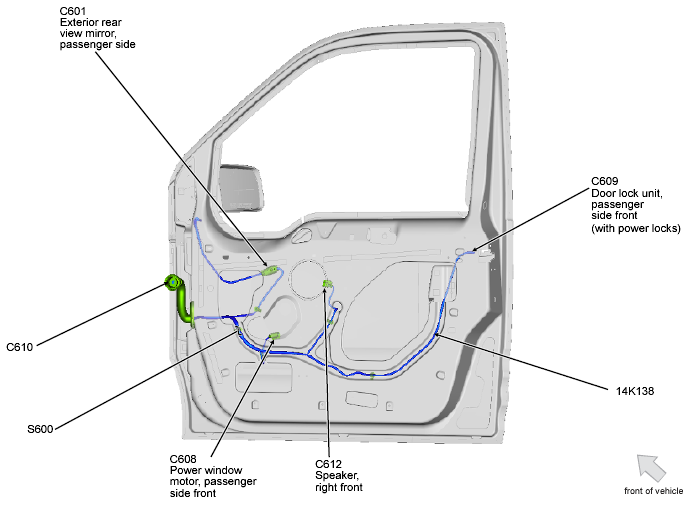

Fig 13: Passenger's Door
G00476697Courtesy of FORD MOTOR CO.
Fig 14: Front Seats
G00476698Courtesy of FORD MOTOR CO.

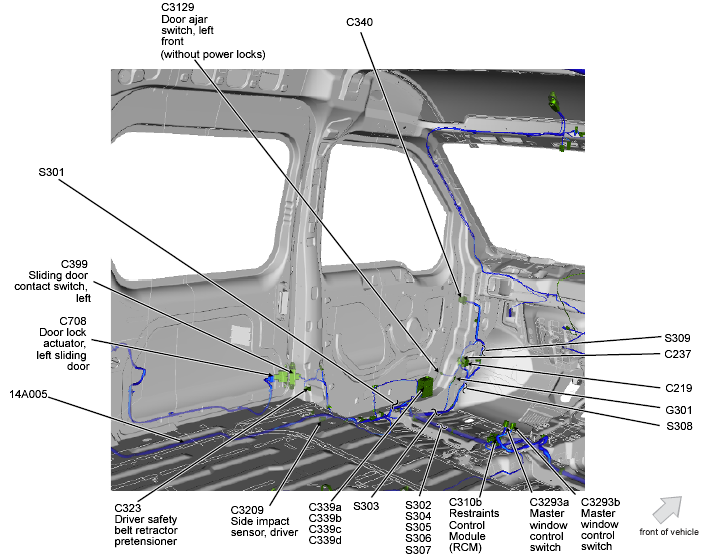

Fig 15: Left Front Of Vehicle Interior
G00476699Courtesy of FORD MOTOR CO.

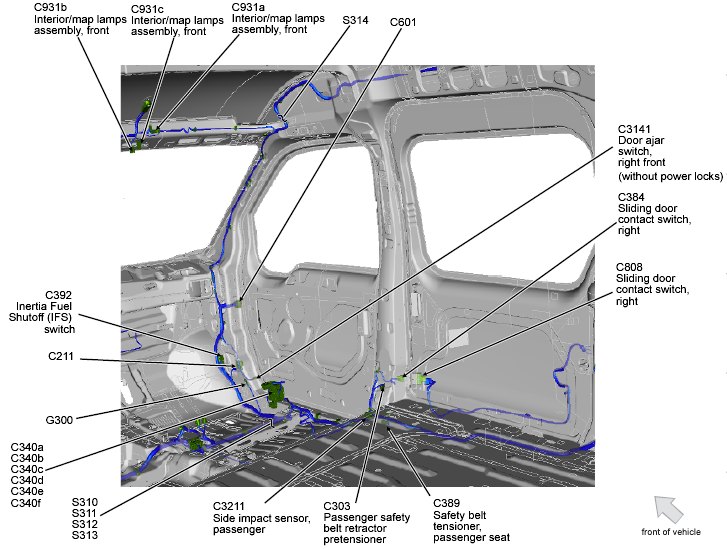

Fig 16: Right Front Of Vehicle Interior
G00476700Courtesy of FORD MOTOR CO.

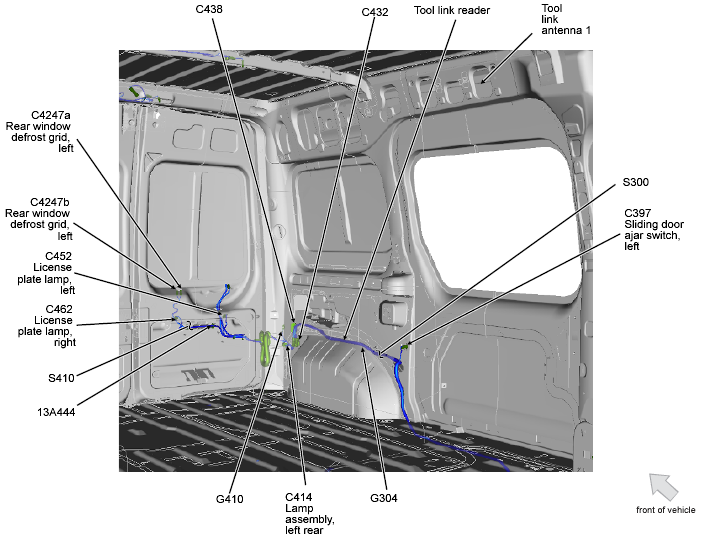

Fig 17: Left Rear Of Vehicle Interior
G00476701Courtesy of FORD MOTOR CO.

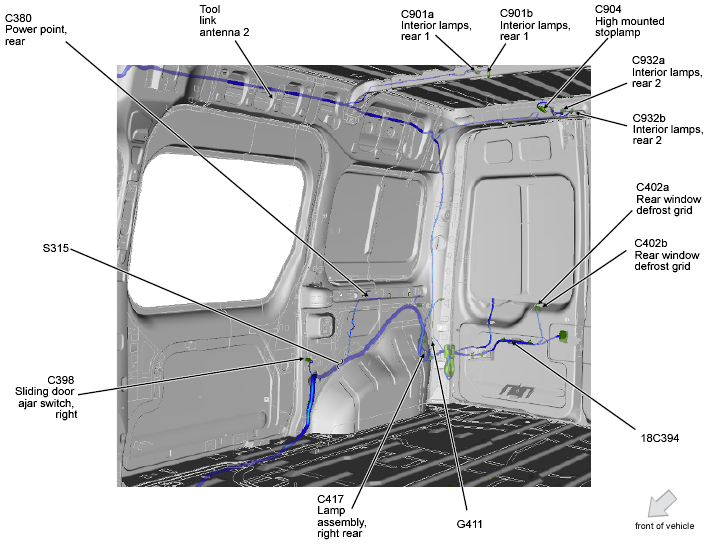

Fig 18: Right Rear Of Vehicle Interior
G00476702Courtesy of FORD MOTOR CO.

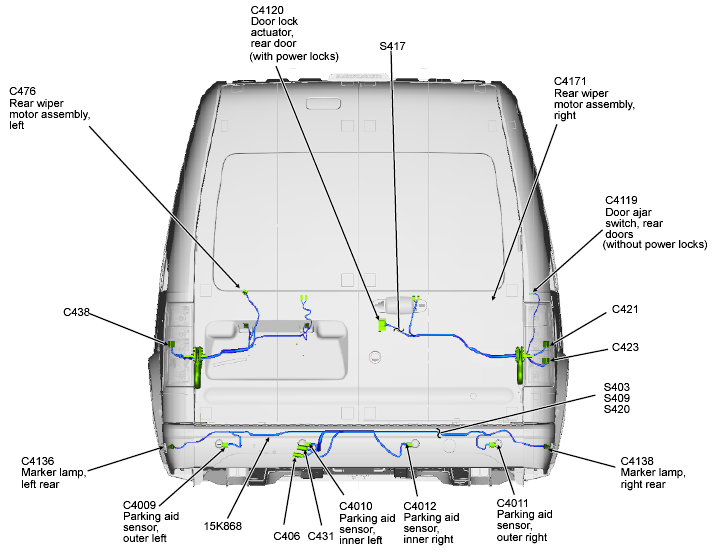

Fig 19: Rear Of Vehicle
G00476703Courtesy of FORD MOTOR CO.

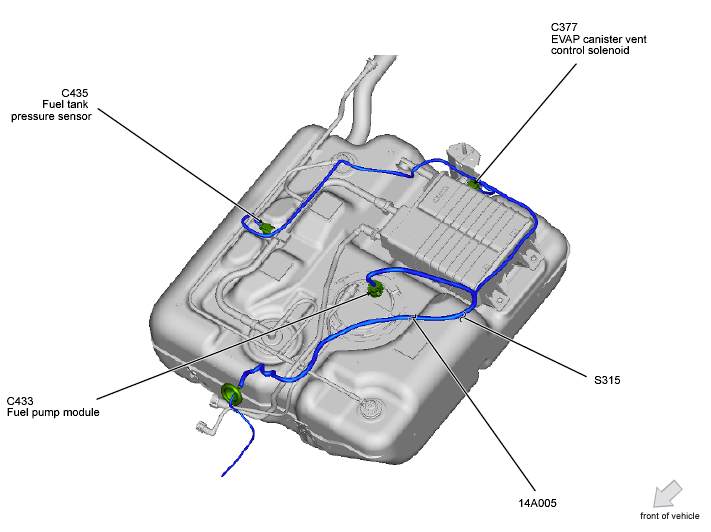

Fig 20: Fuel Tank
G00476704Courtesy of FORD MOTOR CO.

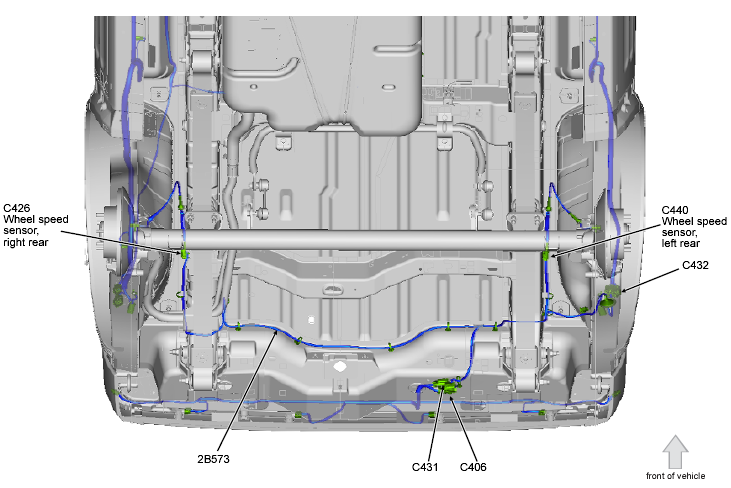

Fig 21: Under Rear Of Vehicle
G00476705Courtesy of FORD MOTOR CO.
