Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

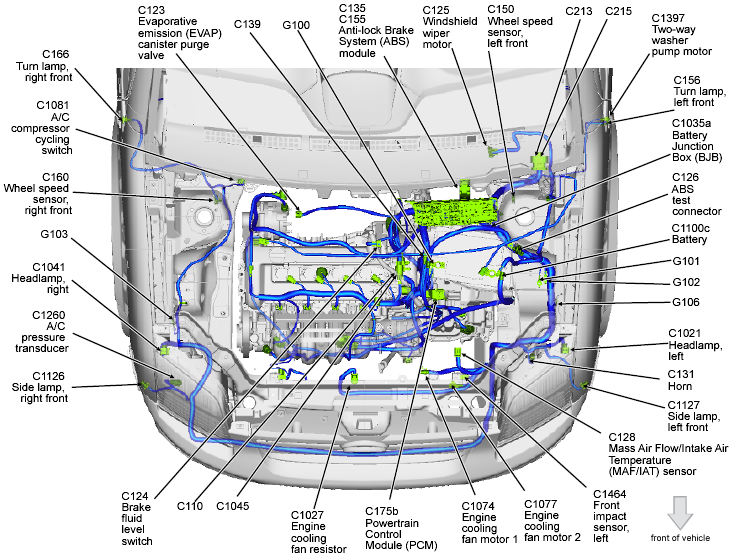

| Anti-Lock Brake System (ABS) Module | Left rear of engine compartment. See Figure. |

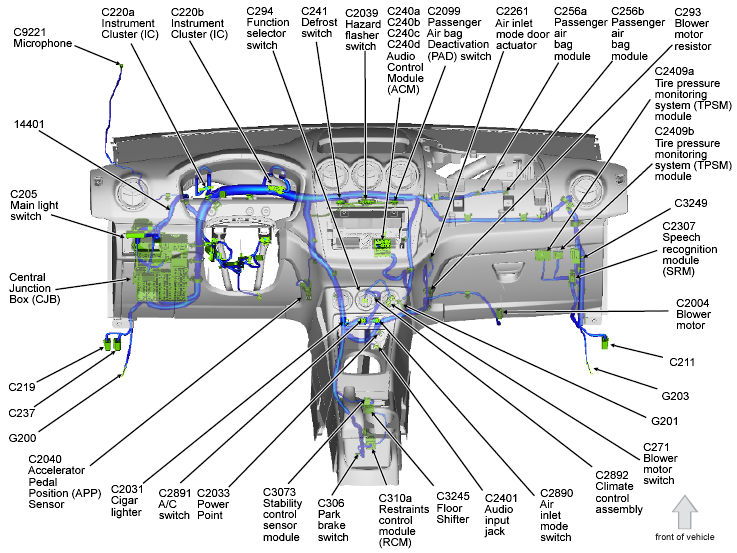

| Audio Control Module (ACM) | Center of dash. See Figure. |

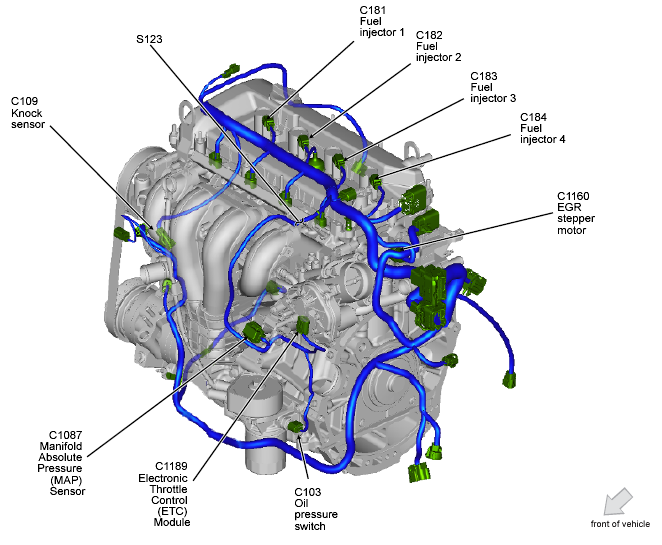

| Electronic Throttle Control (ETC) Module | On throttle body. See Figure. |
| General Electronic Module (GEM) | Lower left side of dash. See Figure. |

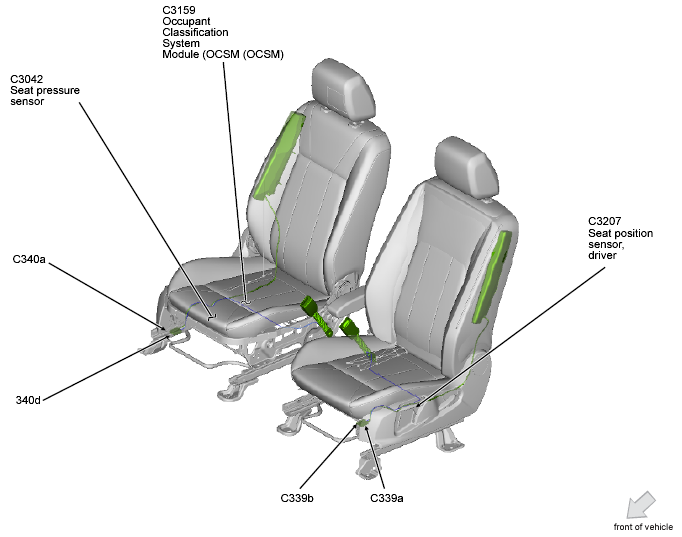

| Occupant Classification System Module (OCSM) | Under passenger's seat. See Figure. |

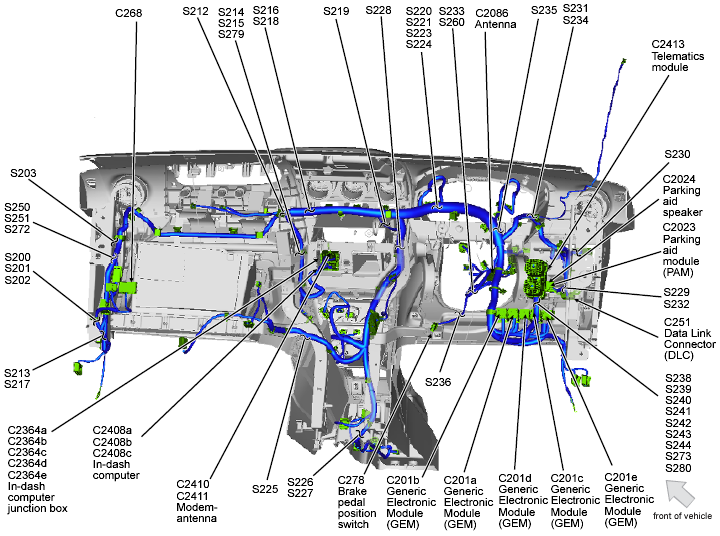

| Parking Aid Module (PAM) | Left end of dash. See Figure. |

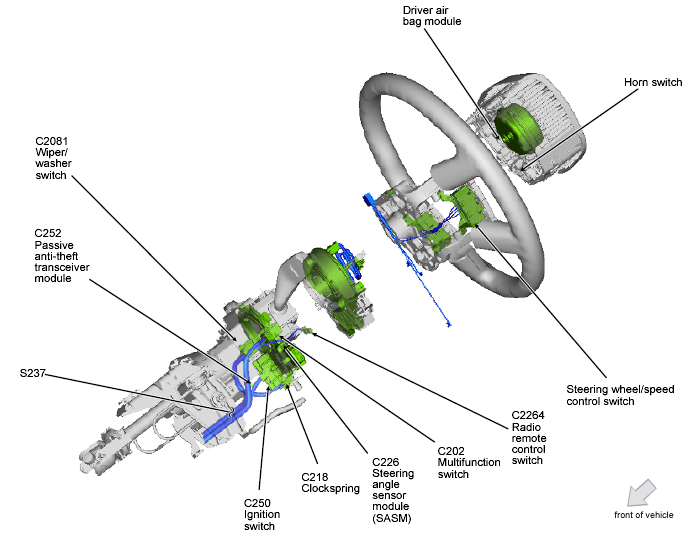

| Passive Anti-Theft Transceiver Module | Steering column. See Figure. |

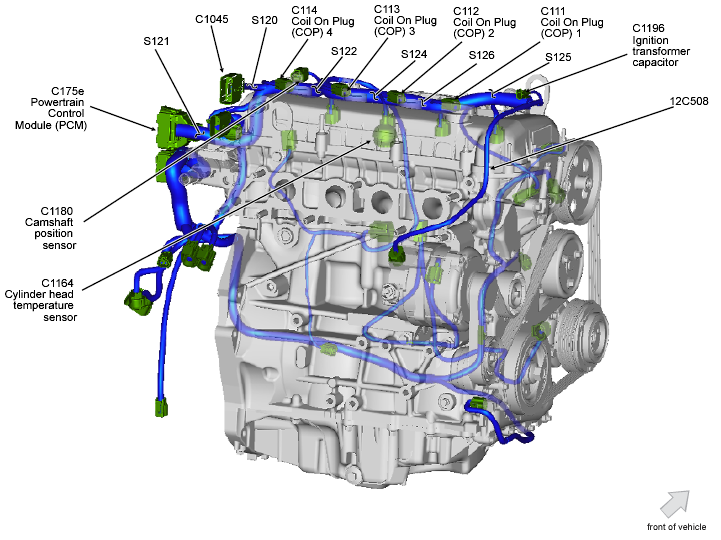

| Powertrain Control Module (PCM) | Rear of engine. See Figure. |
| Restraints Control Module (RCM) | Center console. See Figure. |
| Speech Recognition Module (SRM) | Right end of dash. See Figure. |
| Steering Angle Sensor Module (SASM) | Steering column. See Figure. |
| Telematics Module | Left end of dash. See Figure. |
| Tire Pressure Monitoring System (TPSM) Module | Right end of dash. See Figure. |
